Bovone ELB-102, Vertical Glass Edge Grinder, 40 x 40 mm min. size, 2 - 30 mm thick, 0.35 - 5.4 m/min, 30 kW, 825 mm working H, 2015

Estimated monthly payment valid upon approved credit.

Request Formal Quote

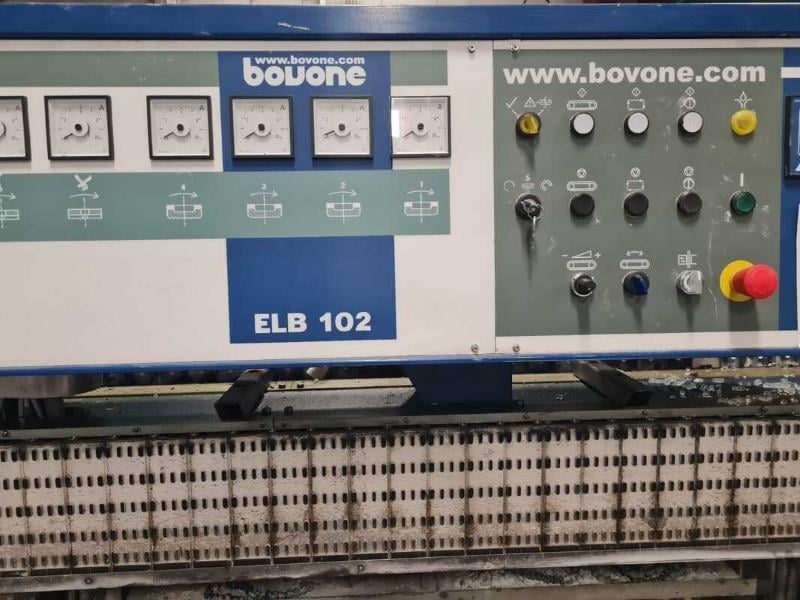

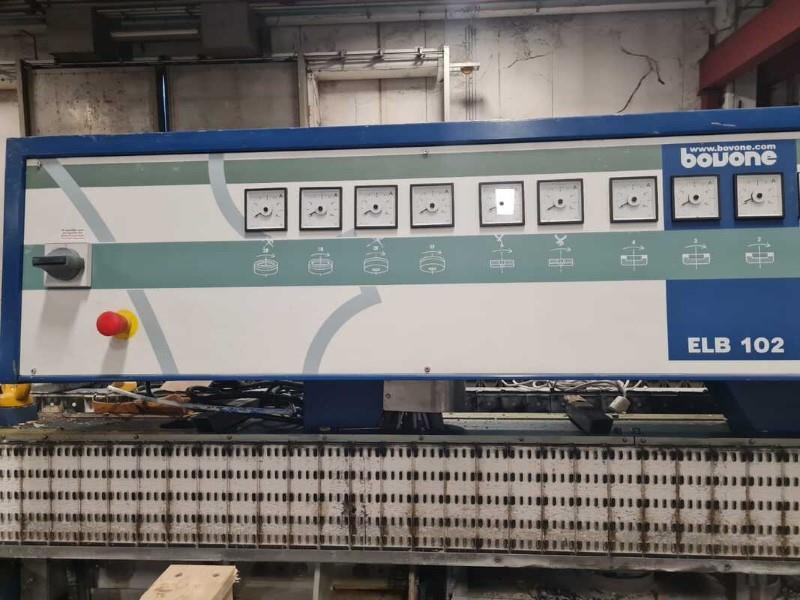

BOVONE ELB-102 Vertical Glass Edging Machine

(10) Spindle straight grinder for edging with arrises for heavy duty production of medium/thin glass. The presence of (3) diamond grinding wheels on the edge allows working glass that is up to 30 mm thick. The cerium oxide felt in the last position ensures an excellent brilliant finish for the profile.

The ELB-102 is designed to operate in a 24 hour production environment. The machine need only be stopped when the operator requires a break.

Wheels Configuration "Standard" for General Application:
POS. 1 Diamond metal cup wheel CC
POS. 2 Diamond cup wheel CC
POS. 3 Diamond resin cup wheel segmented
POS. 4 Diamond metal cup arris wheel CC
POS. 5 Polishing cup arris wheel
POS. 6 Diamond metal cup arris wheel CC
POS. 7 Polishing cup arris wheel
POS. 8 Polishing cup wheel
POS. 9 Polishing cup wheel
POS.10 Felt

Specifications:
● Min. glass size: 40 x 40 mm
● Glass thickness: 2 - 30 mm
● Feed: 0.35 - 5.4 m/Min
● Power: 30 Kw
● Working height: 825 mm
● Weight: 4100 Kg
● Overall dimensions: 7,900 x 1,200 x 2,900 mm


NOTE: Machine is ready for immediate delivery.

NOTE: Price includes “Full Service Logistics” from Overseas Suppliers to your Door. …Packaging, Container Loading, Ocean Freight, Marine Insurance (door to door), US or Canadian Customs, Duty and domestic shipping to your Plant Door.
