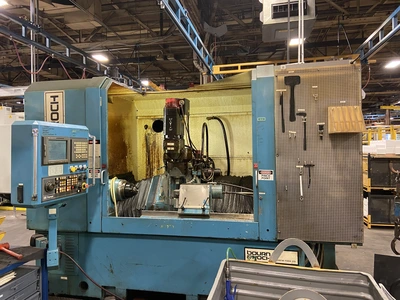

Bourn & Koch #200H Series II, 6-Axis CNC horizontal hobber, 8" dia x 60" lngth, 2003

Description
Bourn & Koch 200H Series II 6-Axis CNC Horizontal Hobber, 8" Max Diam x 60" Part Length, w/Fanuc 16 IM controller motors & Drives, CNC tailstock , auto clamping , full enclosure , chip conveyor , controls and misc tooling new 2003
Specifications
Bourn & Koch 7 Axis CNC Horizontal Hobbing machine
Model 200H series II

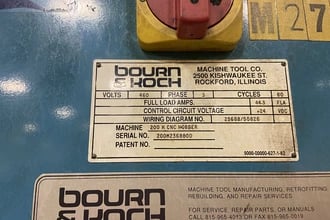

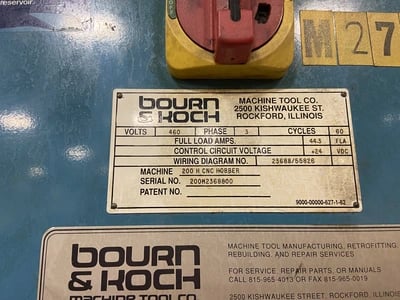

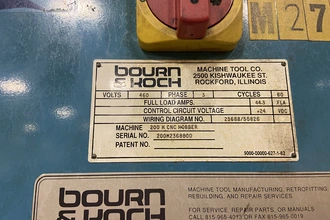

s/n 200H2368800 New 2003
condition Excellent
The BK 200H Series II 6-Axis CNC horizontal hobbers have been
Specially designed for Long Heavy Workpieces up to 200 mm in
Diameter , 60" part Length and heavy duty tailstock. Machine
features high torque Hob head , and conversational controls.
Multiple gears, splines , and keyways can be cut in one set up!!
Machine specifications are as follows:
Workpiece Diameter Max 203 mm
Max module 6.4
Max Swivel of head 45 +/-
Dist from work spindle to tailstock 1500 mm
centerline hob spindle to centerline work spindle 12.7 - 203.2 mm
Axial travel of hob head 1550 mm
Max tool Length 215 mm
Max tool Diameter 203 mm
max tool shift / tang travel 200 mm
Tool spindle power 15 kw
Tool spindle speed 50-500 RPM
Work Spindle speed 0-80 RPM
Machine weight 12000 kg
typical quality standard when new 6/7 DIN
10/9 AGMA
Machine dimensions 7' wide x 17' long
Machine is equipped with the following :

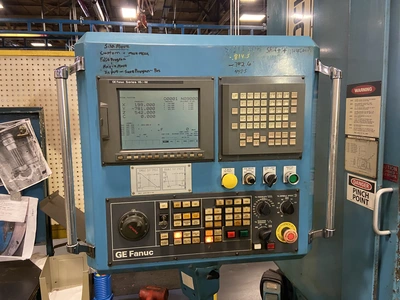

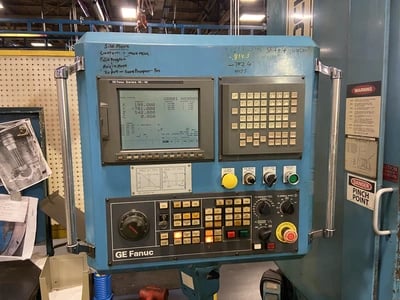

GE Fanuc model 16I-M control motors and drives
hob arbor

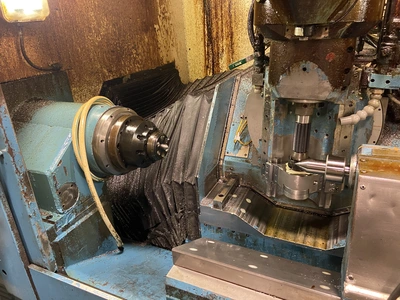

tailstock w/ hydraulic center
precision work holding fixture center drivers
pendant control

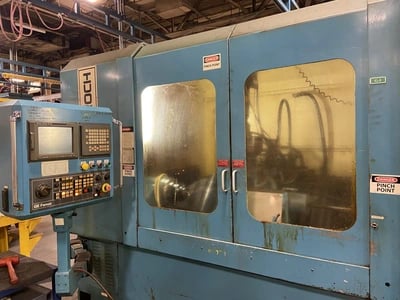

full enclosure

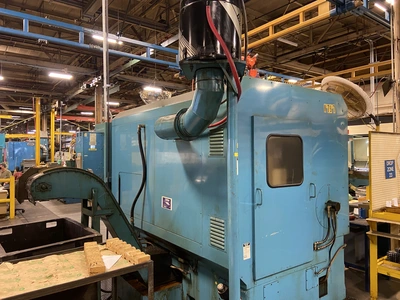

Magnetic chip conveyor
Mist collector
books and manuals
Inspection to be viewed under power in our Statesville NC Plant with
notice. let us know if you need any further information as we may have
another machine which would be an excellent candidate as well. visit
WWWW.PiselliEnt.com to view this machine and others in our vast
Inventory . Thank you !
