For Sale by Smith Machinery Co
Surplus Record Dealer Since 2001
Location: Ames, IA
Contact Jim Smith
Phone Number: 515...> Show Phone Number 515-233-6330
Let the seller know you found their listing on Surplus Record!
Description
Specifications
Equipped With
Equipped With
Equipped With
Equipped With

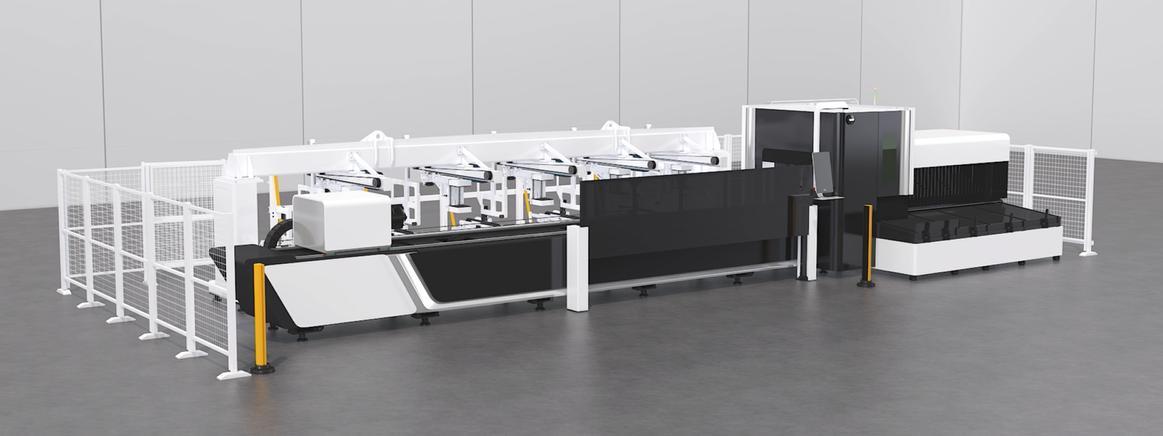

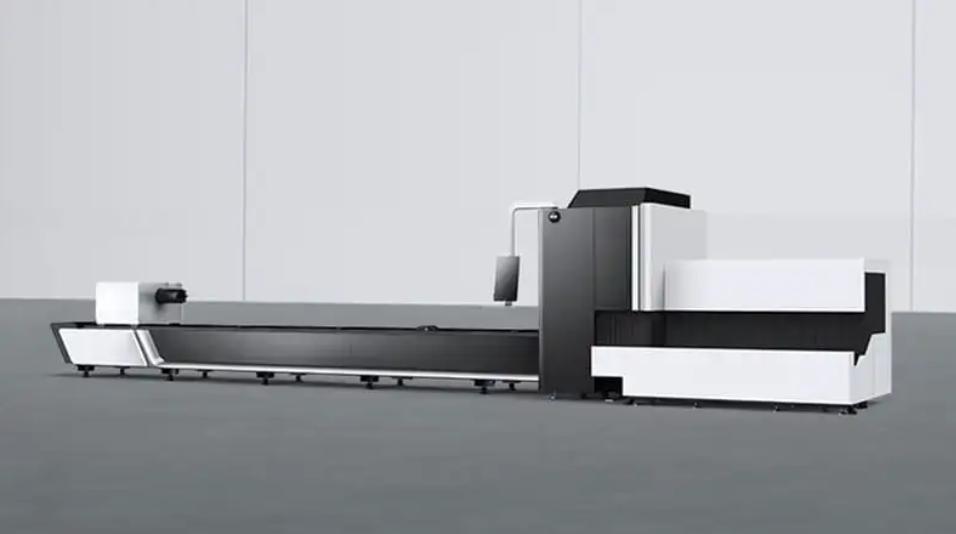

| FIBER LASER CUTTING MACHINE: | ||
| Laser Power | ||
| 6kw | ||
| Freight & Tariff | Included | |
| Installation & Training Cost | Included | |
| Transportantion | By Sea | |
| Loading Container | 2*40'HQ | |
| Payment Terms | 30% down payment, 70% before shipment. | |
| Warranty | Three years limited warranty for main parts. One year free labor. | |
| Optional: | ||
| T-Loader2-65 (Automation) | ||
| T-Trans2-65 (Automation) | ||
| Fume Filter | ||
| Air Compressor | ||
| Basic Parameter: | ||
| Tube cross-sectional shape | Round, square, rectangular, oval, rounded rectangular, Angle steel, channel steel and other tubes | |
| Tube size range | Round tubeφ8-φ230mm Square tube 8-230mm Rectangular tube 230mm≥Side length≥8mm I-beam: 10#-14# | |
| Maximum machinable tube length | 6500mm (≈21') | |
| Intelligent Function: | ||
| Bodor Lightning perforation technology | Yes | |
| High Speed Cutting Expert Database | Yes | |
| Adaptive adjustment of jaw clamping force | Yes | |
| Following servo feeding bracket | Yes | |
| Composite rollers | Yes | |
| Automatic tube inspection | Edge-seeking, center-finding | |
| Cutting gas automatic pressure regulation function | O2 | |
| Touch screen control | Yes | |
| Automatic focusing function of laser head | Yes | |
| Laser cutting technology database | Yes | |
| Over edge protection | Yes | |
| Active collision prevention | Yes | |
| Anti-slag Protection | Yes | |
| Gas-saving steady flow nozzle | Yes | |
| Intelligent maintenance reminder | Yes | |
| BodorCloud service | Yes | |
| WIFI internet connection | Yes | |
| Performance: | ||
| Requirements for tubes | Diameterφ50mm thickness≥1.2mm Diameter≥φ50mm; Wall thickness≥2.5% of Diameters of tubes | |
| Maximum tube length | 4500mm (≈14.8') | |
| Shortest remaining material | 80mm (≈3') 560mm (Optional open type pipe special claw) | |
| Dimensions | 12650mmx2350mm×2500mm (≈41.5'x7.7'x8.2') | |
| Maximum tube weight | 300Kg 46Kg/m | |
| Overall weight | 5060kg | |
| Positioning accuracy | 0.05mm/m | |
| Repositioning accuracy | 0.03mm | |
| Max. Chuck rotating speed | 120r/min | |
| X axis maximum speed | 140m/min | |
| Y axis maximum speed | 100m/min | |
| X maximum acceleration | 1.5G | |
| Y maximum acceleration | 1.5G | |
| Z axis maximum speed | 60m/min | |
| Configuration: | ||
| Processing precision38mm stainless steel square tube | Φ20mm roundness | ≤0.15mm |
| 20mm square diagonal size difference | ≤0.20mm | |
| 20mm square position size difference | ≤0.3mm | |
| Laser source | BodorPower | |
| Laser head | BodorGenius T | |
| Chuck drive types | Pneumatic chuck | |
| Linear Rails | Bodor | |
| Rack | Bodor | |
| X-axisY-axisZ-axisA-axis Servo motor and driver | Bodor | |
| Control system | BodorThinker Tube | |
| Display size | 21.5 inches | |
| File format | IGSDXFG Code | |
| Water Chiller | Yes | |
| Dust removal | Centrifugal fan | |
| Total power capacity/current with 6KW source (380V) | 68.38 KVA/104A | |
| Total power capacity/current with 3KW source (380V) | 52.63 KVA/80A | |

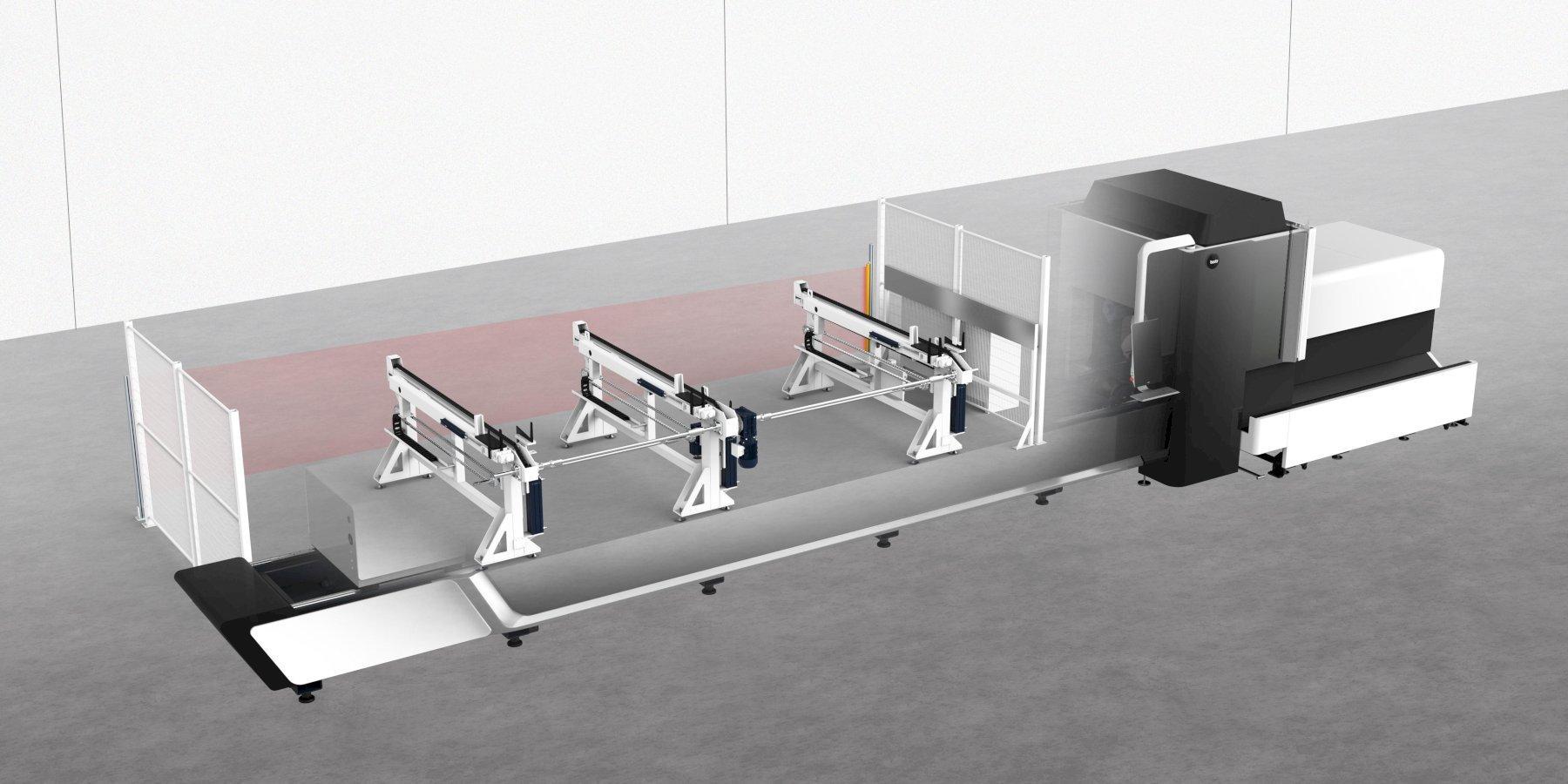

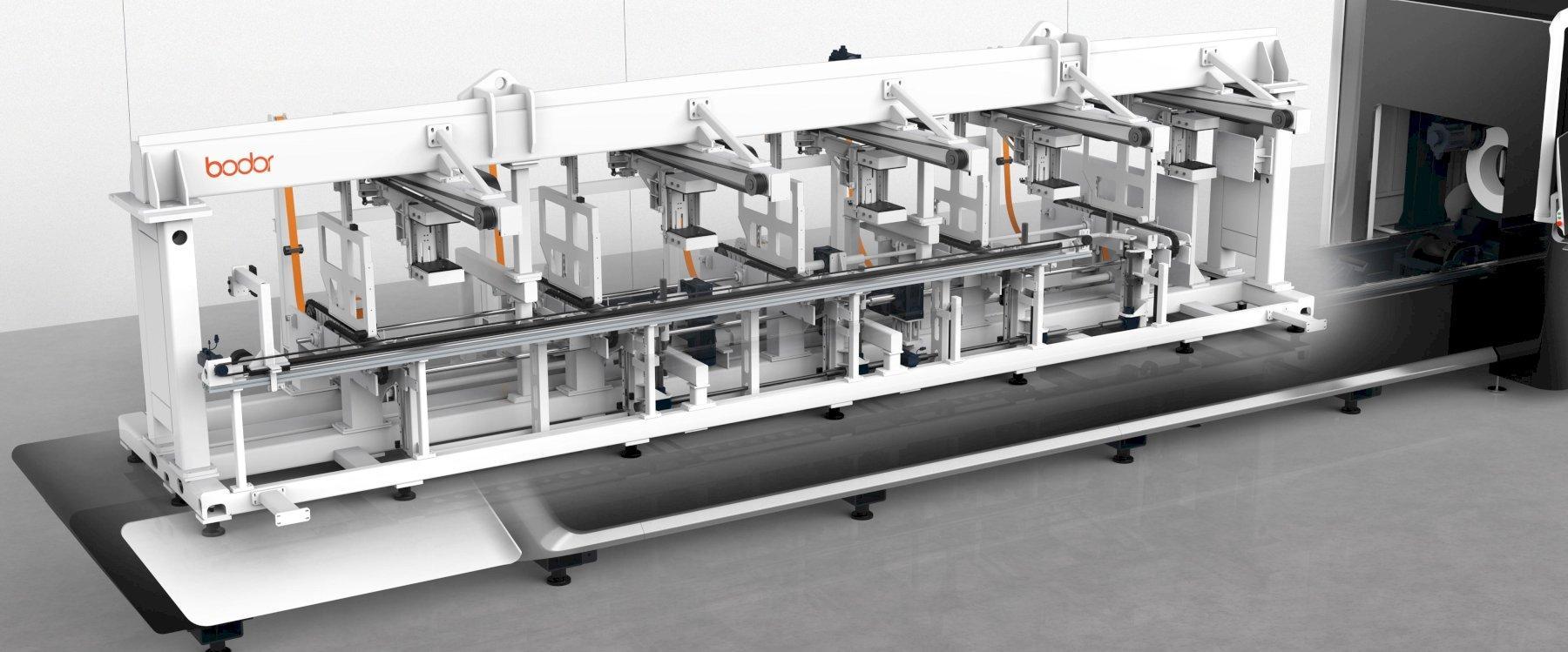

| T-Loader2-65: | ||
| Adaptive length | 6500mm (≈21') | |
| One-click setting | Yes | |
| Lack of material alarm | Yes | |
| Add tube midway | Yes | |
| Automatic loading | Yes | |
| Host security interlock | Yes | |
| Tube type | Round tube | Yes |
| Square tube | Yes | |
| Rectangular tube | Yes | |
| Tube size range | Round tube | Φ25 - Φ230mm |
| Square tube | 25 - 160mm | |
| Rectangular tube | 160mm≥Side length≥20mm | |
| Maximum tube weight | 300KG | |
| Tube loading length range | 4500mm-6500mm (≈15'-21') Due to the long overhang of some length tubes, the overhang is large | |
| Maximum load capacity of storage bin | 1.8t | |
| Location number | 11φ<906(φ>90) | |
| Module dimensions | 6598mm*2800mm*1265mm (≈21.6'x9'x4') | |
| Weight | 1200kg | |
| Total power capacity/current (380V) | 2.1KVA/3.2A | |
