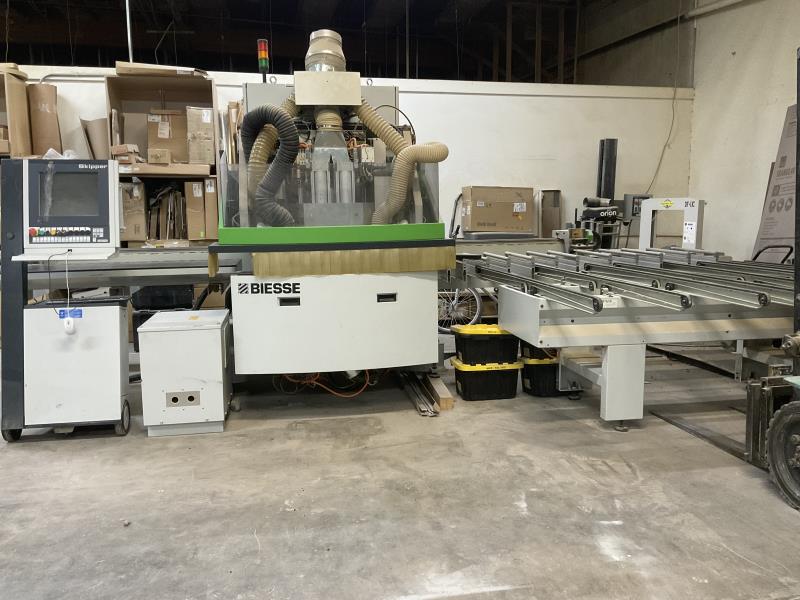

Biesse #Skipper-130, CNC flexible top & bottom machining center, 2 head, 118" X, 51.1" Y, 2009

BIESSE - SKIPPER 130: CNC Machining Center (2-Head) -- Specifications Flexible "Top & Bottom" Machining Center that: Uses an innovative panel handling system. -- Working Cap.Max. workable part size: "X" Axis is 118" (3,000 mm); "Y" axis is 51.1" (1,300 mm); max. part thickness of 3.5" (90 mm).Min. workable part size: "X" Axis is 3-1/2" (90 mm); "Y" axis is 2.7" (70 mm); "Z" axis 0.3" (8 mm). -- WorktableLH Infeed air cushion transfer table & part clamping devices; automatic RH outfeed transfer conveyor with belts; outfeed is "Robot Ready". -- Positioning Speed"X" Axis is: 394 FPM (120 MPM); "Y" axis: 295 FPM (MPM); "Z" axis: 98 FPM (30 MPM). -- Boring Units(1) Top mounted boring block: 4.2 HP (3 kW) - 4,000 RPM; (31) vertical spindles; (18) spindles in "X" axis & (13) spindles in "Y" axis.(10) Horizontal spindles: (4 + 4) Spindles in "X" axis & (1 + 1) horizontal spindles in "Y" axis; (1) "X" axis grooving Saw with 2.2 HP (1.7 kW) motor - 5,000 RPM; 150 mm dia. blade.(1) Bottom mounted boring block: 4.2 HP (3 kW) - 4,000 RPM; (31) Vertical spindles; (18) spindles in "X" axis & (13) spindles in "Y" axis.(10) Horizontal spindles: (4 + 4) Spindles in "X" axis & (1 + 1) horizontal spindles in "Y" axis; (1) "X" axis grooving Saw with 2.2 HP (1.7 kW) motor - 5,000 RPM; 150 mm dia. blade. -- Machining(1) Top mounted 6 HP (4.5 kW) electro spindle; 1,800 - 24,000 RPM with RH/LH rotation; HSK D-50 adaptors for manual push button "quick tool" change.(1) Bottom mounted 6 HP (4.5 kW) electro-spindle; 1,800 - 24,000 RPM with RH/LH rotation; HSK D-50 adaptors for manual push button "quick tool" change. -- Operator & Machine ControlPC Front-End with: BIESSE "WORKS" + Windows "XP" Operating System; 15" color monitor; international keyboard with soft touch keypad & industrial mouse.RS-232 Serial ports for possible downloading from an office PC; USB ports; (1) 48x CD ROM drive; all mounted in a separate control console with a built-in 1,500 W air conditioner for constant temperature & dust-free environment. -- Complete with:Pneumatic part clamping: Air table infeed & motorized outfeed transfer conveyors; universal transformer for voltages from: 200 - 600 Volts; 50/60 Hz; 3-Phase; automatic lubrication system for: Guides & ways; safety mats/fences/devices; machine docs & manuals.
