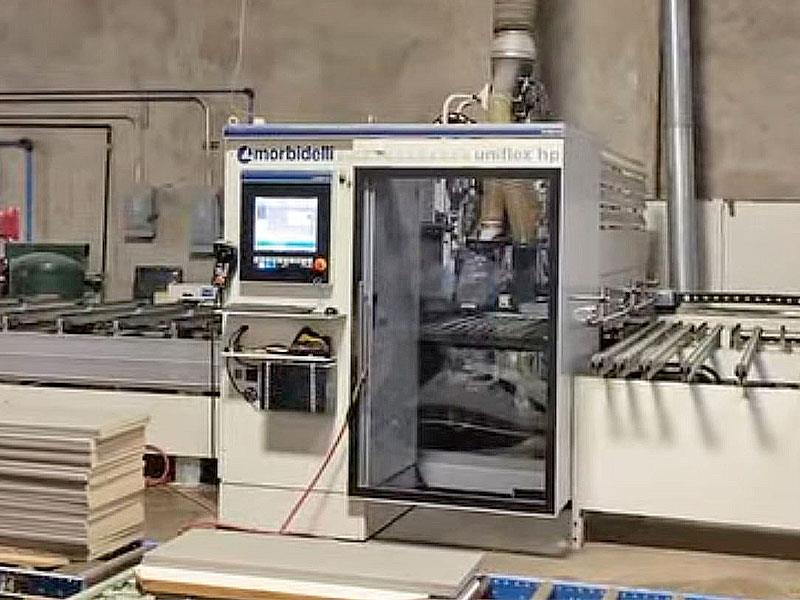

Morbidelli #Uniflex, CNC machining center (2-head), 118" X, 51" Y, 3" Z, 6k RPM, 2016

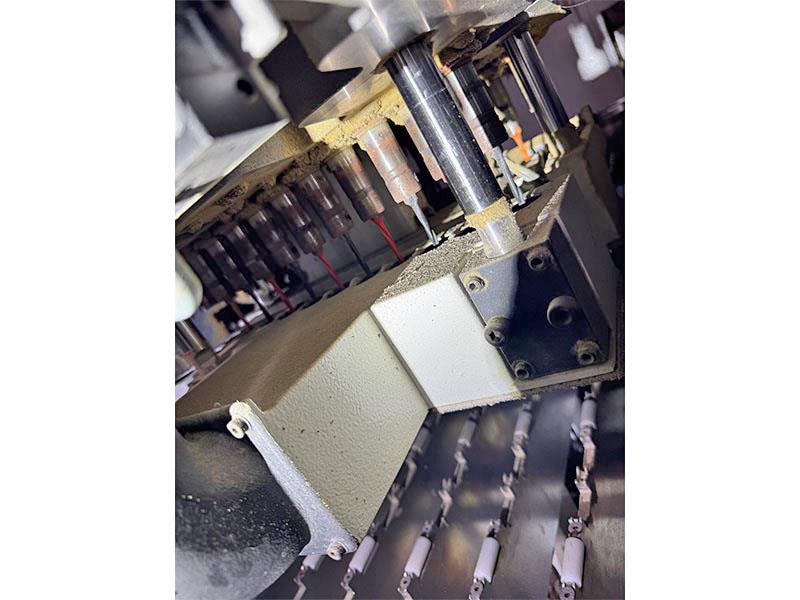

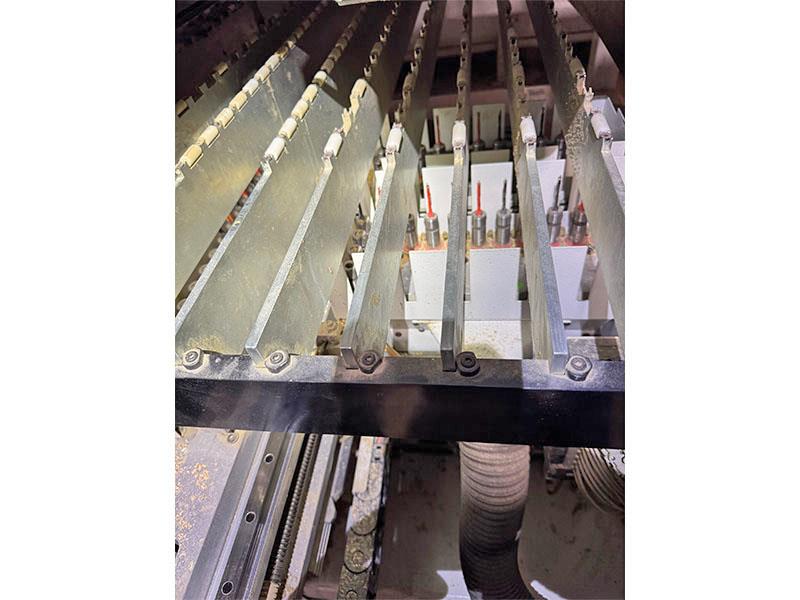

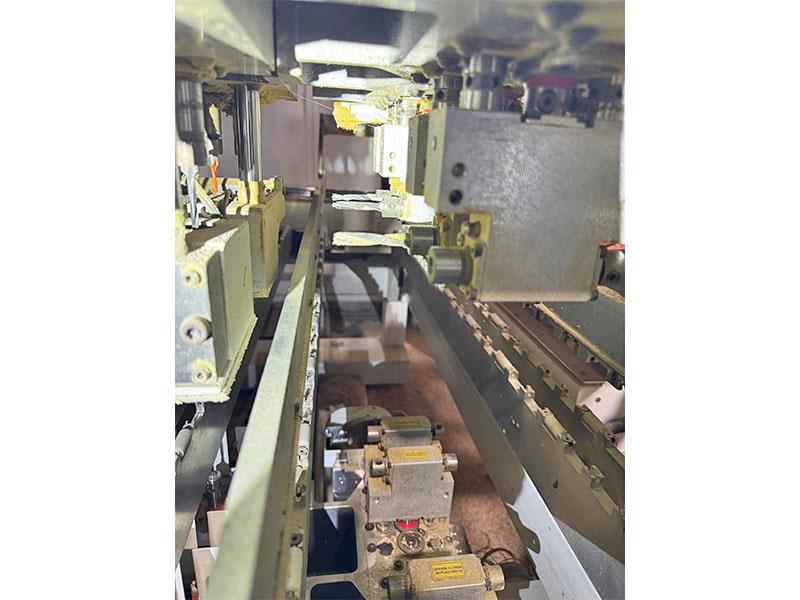

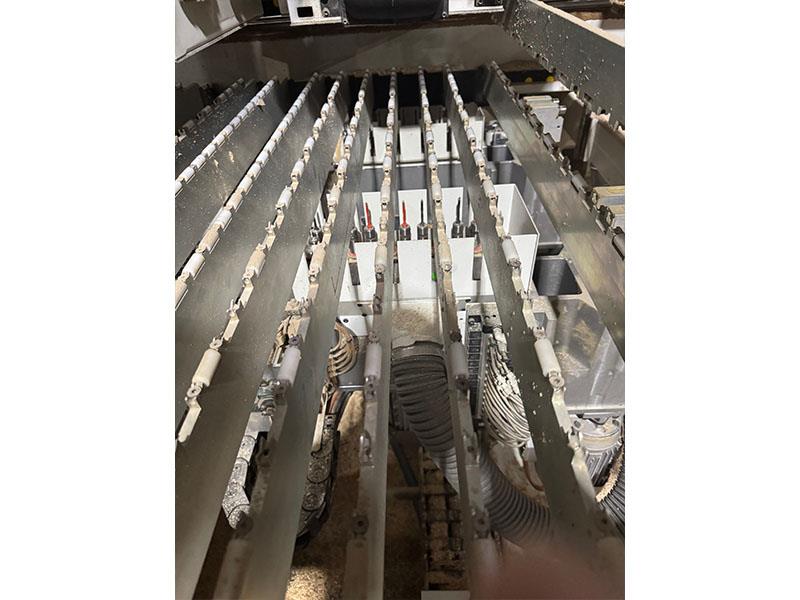

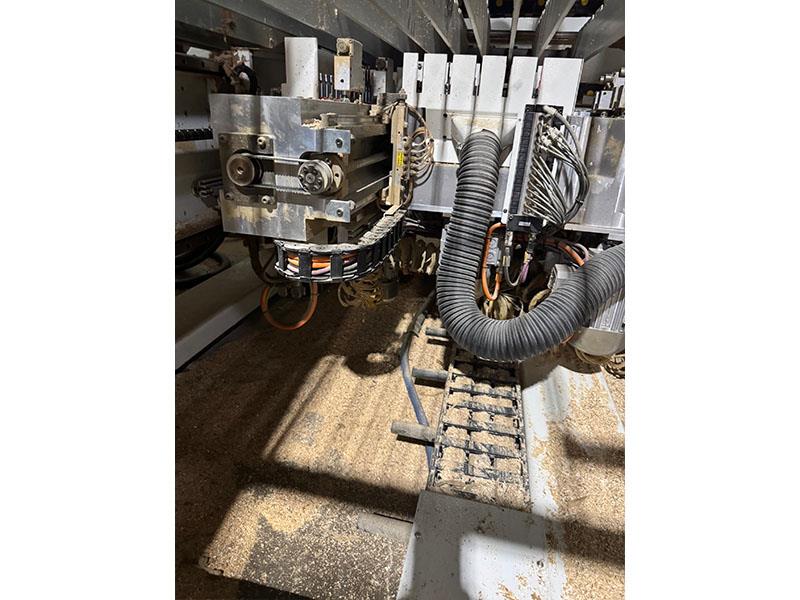

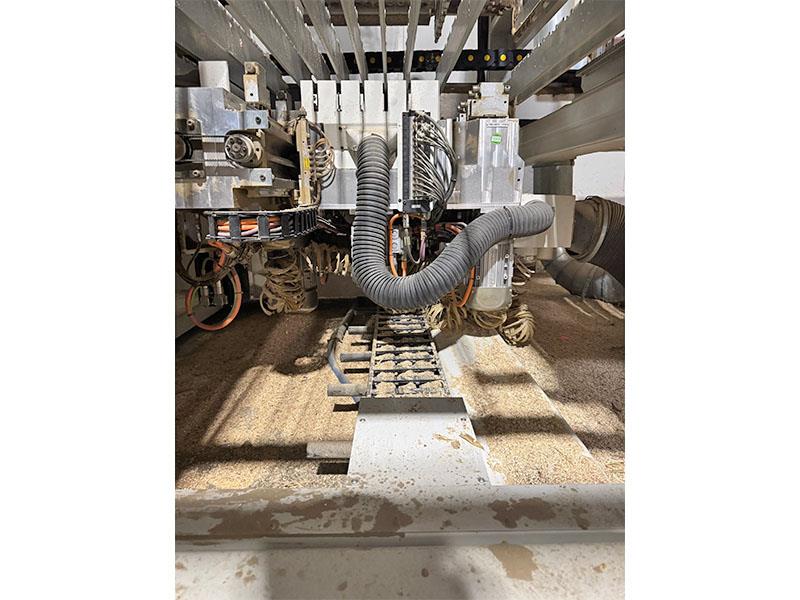

MORBIDELLI UNIFLEX HP 1.1 CNC MACHINING CENTER (2-HEAD): -- Specifications:Flexible "TOP & BOTTOM" Machining Center that uses an innovative panel handling system. -- Positioning SpeedsThe "UNIFLEX" can reach positioning speeds of: 130 MPM in "X" Axis; 80 MPM in "Y" axis; 50 MPM in "Z" axis with total safety, providing an unmatched working capacity. -- Working DimensionsMax. worktable part size for: "X" axis is 118" (3,000 mm); "Y" axis is 51" (1,300 mm) "Z" axis max. part thickness 3.1" (80 mm).Min. worktable part size for: "X" Axis is 7.8" (200 mm); "Y" axis 2.7" (70 mm); min. part thickness 0.157" (4 mm). -- Worktable:Automatic LH infeed air table with gripper clamps; automatic RH outfeed transfer conveyor with belts; both infeed & outfeed are considered Robot ready. -- Boring Units:(1) Top mounted boring block: 4.2 HP (3 kW); variable speed from 1,500 - 6,000 RPM; (48) vertical spindles: 24-Spindles in "X axis & 24-spindles in "Y" axis; (6) horizontal spindles with: (2+2) in "X" axis & (1+1) in "Y" axis; (1) 4.2 HP (3 kW) - 9,000 RPM, NC controlled 0-90 "X/Y" Grooving Saw, max. 120 mm dia. blade.(1) Bottom mounted boring block: 4.2 HP (3 kW); variable speed from 1,500 - 6,000 RPM; (48) vertical spindles: 24-Spindles in "X axis & 24-spindles in "Y" axis; (6) horizontal spindles with: (2 + 2) in "X" axis & (1 + 1) in "Y" axis; (1) 4.2 HP (3 kW) - 9,000 RPM, NC controlled 0-90 "X/Y" Grooving Saw, max. 120 mm dia. blade. -- Machining:(1) Top mounted 10 HP (7.5 kW) electro-spindle with: HSK D-50 Adaptor; "ERC 32" tool holders & RC-32 collets, 1,500 - 24,000 RPM.(1) Bottom mounted 10 HP (7.5 kW) electro-spindle HSK D-50 adaptors, "ERC 32" tool holders & RC-32 collets; 1,500 - 24,000 RPM. -- Operator Interface:PC Front-End with: "XYLOG PLUS" + Windows environment Operating system; 20 GB hard drive; 17" TFT monitor; international keyboard, soft touch keypad & industrial mouse; RS-232 Serial ports, USB ports; (1) 1.44 MB floppy drive; (1) CD ROM drive; all mounted in separate control console. -- Operating System:"XYLOG PLUS" Offers Real time multitask processing; programs can be transferred via diskette or downloaded by wire. -- Complete with: Pneumatic part clamping devices; sound enclosure; safety mats. -- Operating features: Machine can work the panel from above & below at the same time and can produce (2) identical or mirrored panels per cycle with no difficulty.The "UNIFLEX" can machine porous materials since the pieces are held with grippers, directly managed by the numerical control; it can even process small pieces and carry out "through" machining.(4) Operating modes at each cycle, it can change automatically from: Top machining to bottom machining, to top & bottom machining together, either on (1 or 2) stacked panels. -- Actual model is MORBIDELLI UNIFLEX HP.
