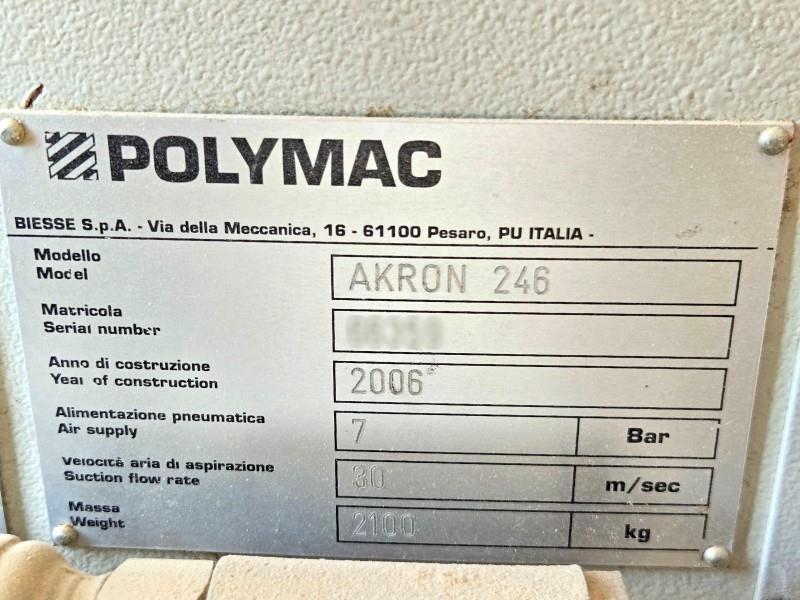

Biesse #Akron-246, Edgebander w/Corner Rounding, 0.4-8 mm Edge Thickness, 85 mm width x 140 mm L min Panel Size, 10-50 mm Panel thickness, 39 FPM, 2006
Estimated monthly payment valid upon approved credit.
Description

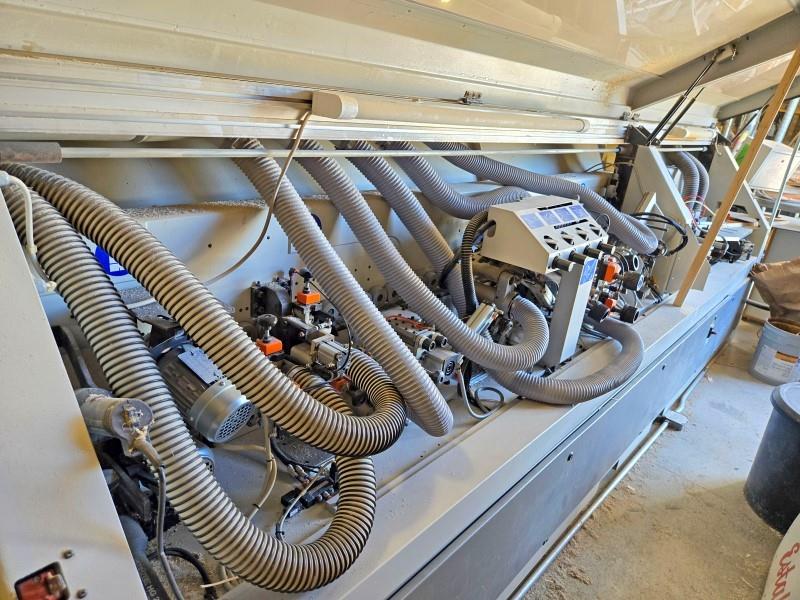

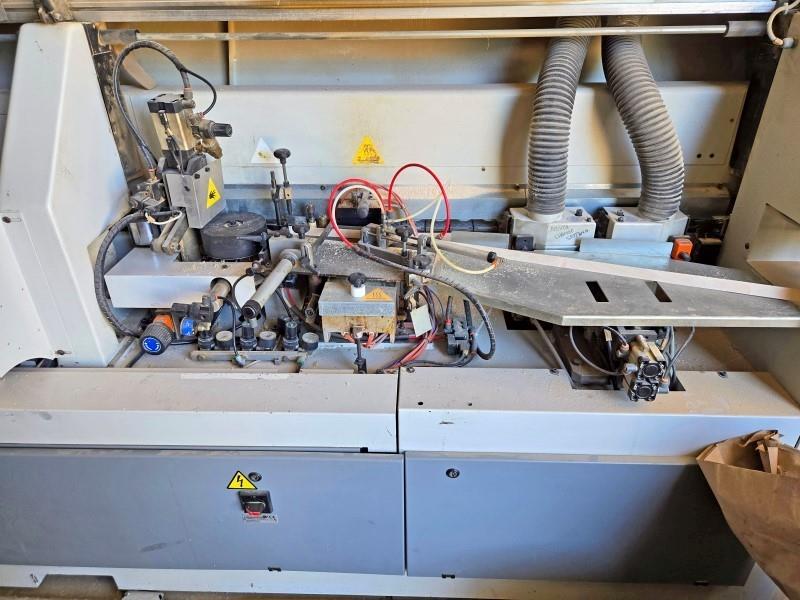

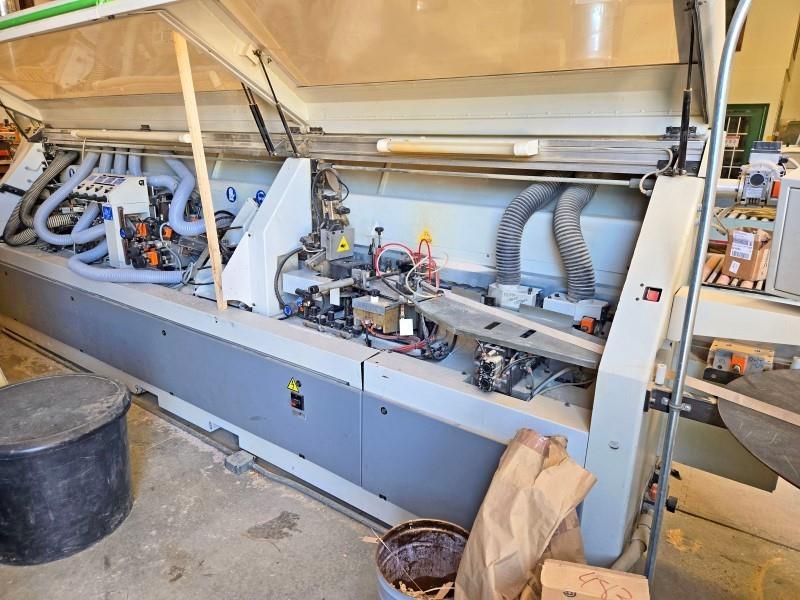

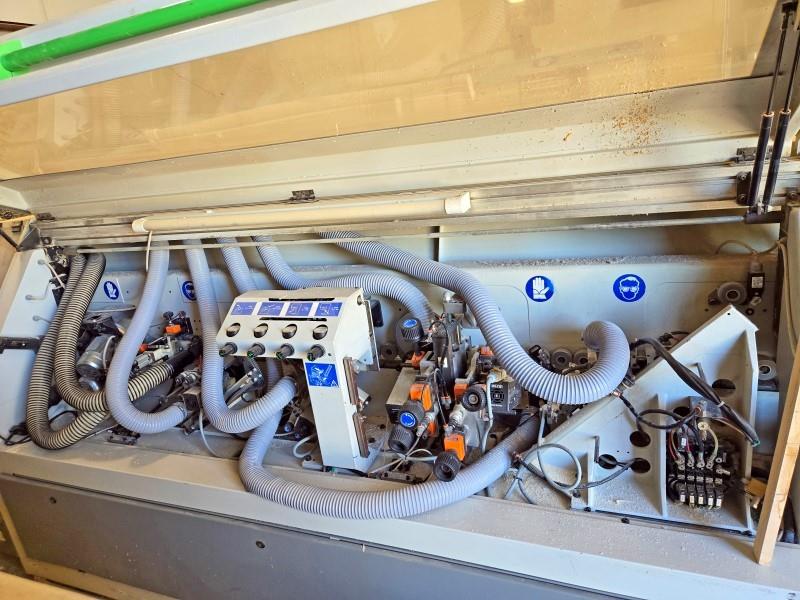

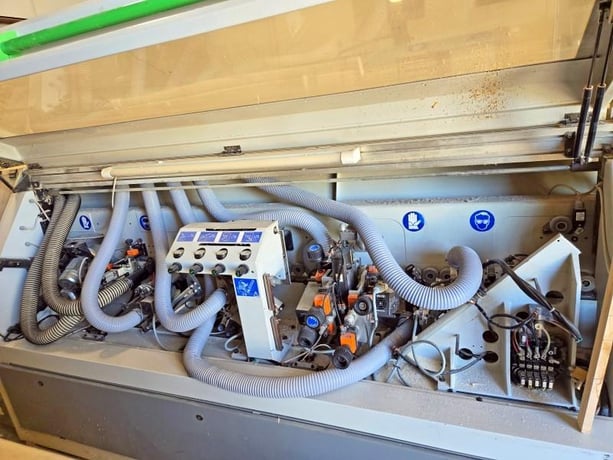

BIESSE - AKRON 246: EDGEBANDER WITH PRE-MILL AND CORNER ROUNDING0.4 - 8 mm (5/16") Cap. Edgebanding thickness; min. panel width: 85 mm; min. length: 140 mm; panel thickness: 10 - 50 mm; automatic strip & coil feed magazine with: Robust shear type 3 mm PVC guillotine.Equipped with: -- Adjustable top pressure beam positioning. -- Hot Melt glue system (12 min. heat up time) with: Teflon coated glue pot; digital thermostats with automatic kickdown when machine is in idle mode. -- 1" Dia. glue applicator roller; pressure section with: (1) Large dia. "non-stick" coated drive roller & (2) chrome plated idle rollers with pneumatic positioning.Workstations -- Pre-Milling Station with: (2) 3 kW (4 HP) - 150 Hz, 9,000 RPM Motors. -- Front & Rear end trims (0.33 HP - 12,000 RPM motors); motors travel on (2) straight slides; pneumatic tilt 0 - 25 on horiz. plane. -- Top & Bottom flush trims with "Quick Change" motors (1.0 HP - 12,000 RPM motors), digital readouts for easy setup. -- Corner rounding unit for trimming leading & trailing upper & lower edge/corners with "Fast Position"; can be used as a 2nd Top & Bottom fine trimmer, as well. -- Top & Bottom scrapers for 3 mm thick PVC banding; digitals for horiz. adjustments. -- Top & Bottom (2,000 Watt) hot air blowers with temperature adjustment. -- Top & Bottom buffing (0.5 HP - 2,800 RPM motors); units tilt 0 - 30. -- Feed Speed: 39 FPM, 3 HP feed drive.Complete with: -- Microprocessor for workstations & feed speed; insulated sound enclosure over all trim stations with: Triple split dust hood; industrial lights; viewing windows. -- Extendible side panel support rail; 12 KVA - 240 Hz digital frequency inverters. -- Includes: Used tooling on all workstations.NOTE: Seller states that all workstations are functioning properly as can be seen in the video, but the End Trim needs adjustment. The Return Conveyor is not included.

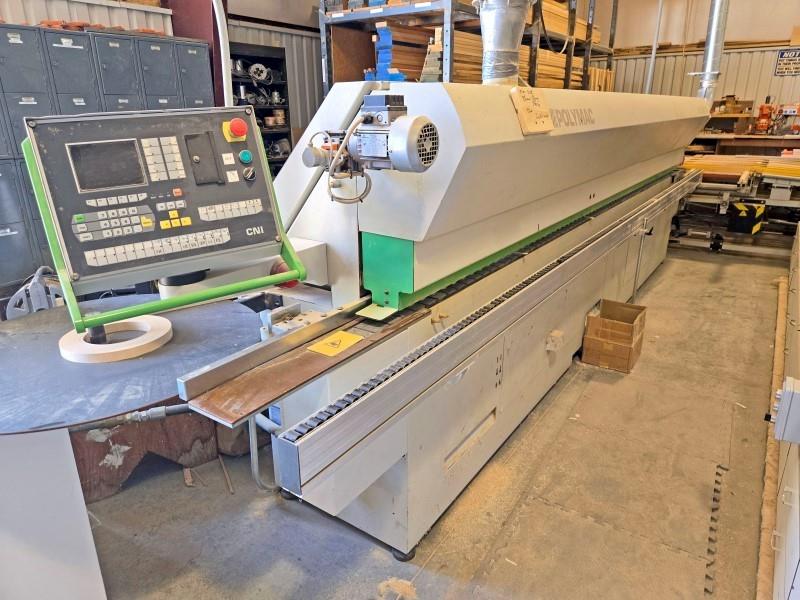

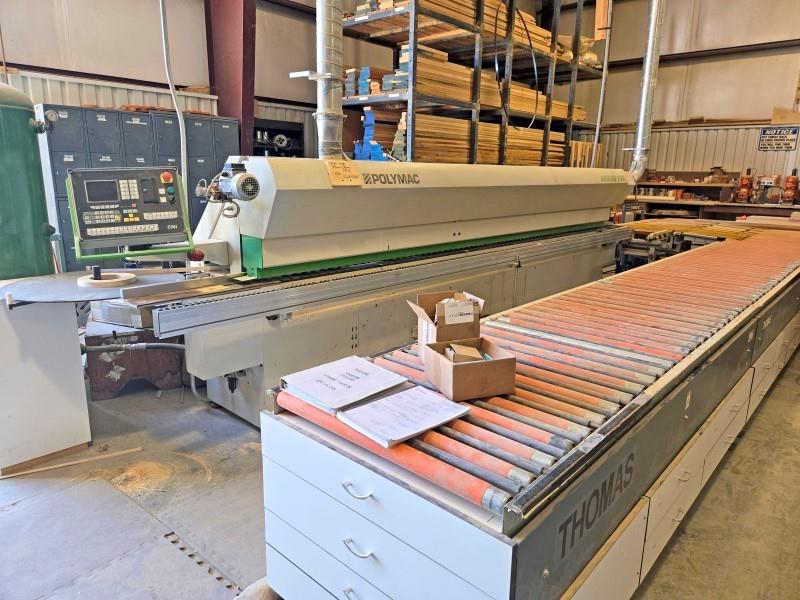

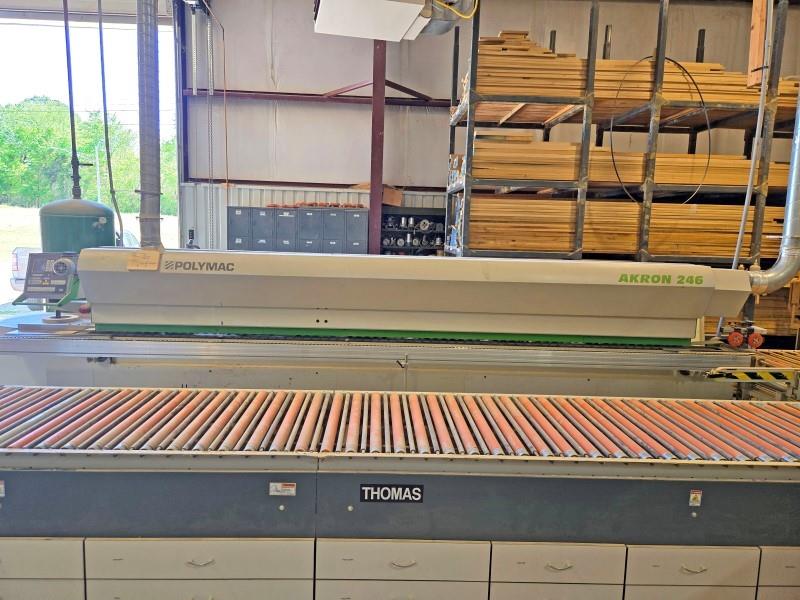

The 2006 Biesse Akron 246 is a robust, single-sided automatic edgebander designed to enhance productivity and precision in woodworking operations. Suitable for use with panel thicknesses from 10 mm to 50 mm, and edge thicknesses ranging from 0.4 mm to 8 mm, this machine offers versatility for various applications. It ...more
