For Sale by Machine Tool Technologies
Surplus Record Dealer Since 2011
Location: Milwaukee, WI
Contact Joe Ryan
Phone Number: 414...> Show Phone Number 414-486-9700
Let the seller know you found their listing on Surplus Record!
Description

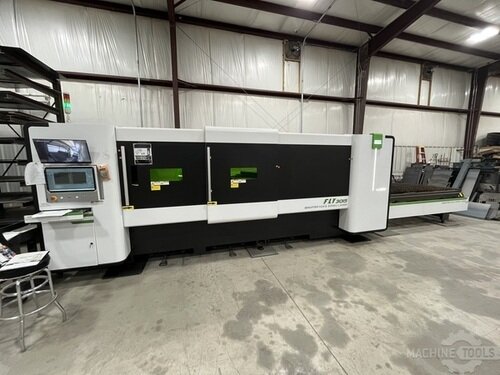

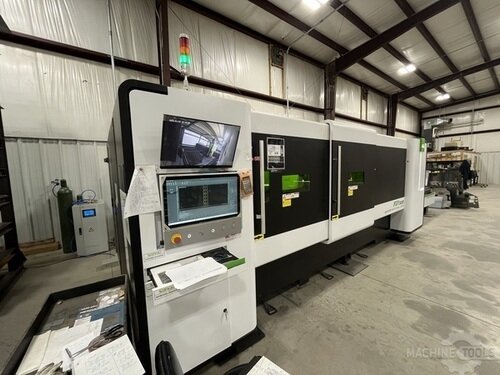

2023 Bescutter Fly 3015 6kw Fiber Laser w/Shuttle Table and Air Compressor
| Sheet-W | 5' |
| Sheet-L | 10' |
| Wattage | 6000 w |
| IPM | 5512 ipm |
| X | 61" |
| Y | 120" |
| Z | 3.93" |
| Dimensions | 350"x 118" x 83" |
| Weight | 20945 lbs |
| Control | CNC (CypCut) |
Equipped With

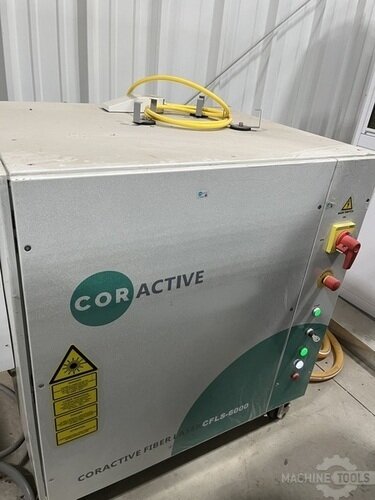

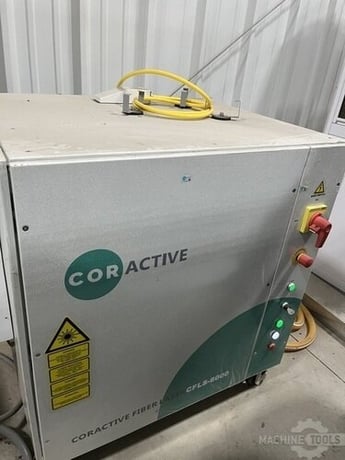

Coractive CFLS-6000 Power Source,

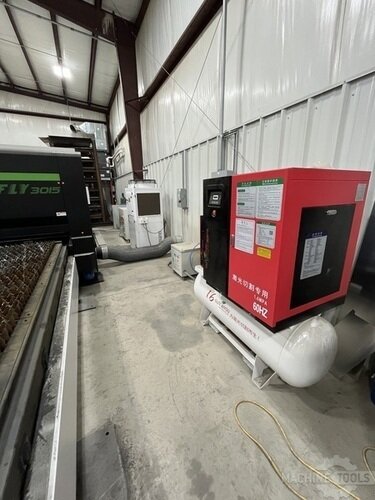

Gun Aiyou 53CFM Air Compressor,
Chiller,

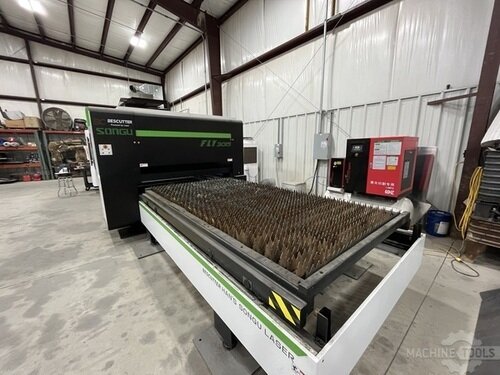

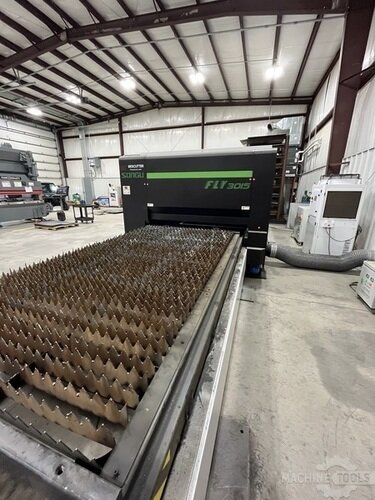

Auto Exchanging Shuttle Table,
Gun Aiyou 53CFM Air Compressor,
Chiller,
Auto Exchanging Shuttle Table,
Spec Sheet
Standard working area 61" x 120" (3050 x 1550 mm)
X, Y, Z axis distance 61" (3050 mm)/120" (1550 mm)/3.93" (100 mm)
X, Y Two-axis coordinated positioning speed (MAX) 140 m/min
Positioning acceleration (MAX) 1.4 G
Positioning accuracy ±0.05 mm/m
Re-positioning accuracy ±0.02 mm
Maximum load weight 1543 lbs
X-Y-Z Servo Motors X-2x2900W; Y- 1x850W ; Z-1x750W
Machine Weight 20945 lbs (9500 kg)
Dimensions 350"x 118" x 83" (8900 x 3000 x 2100 mm)
***CALL Louie at 847-627-6009 for more details or a quote***
X, Y, Z axis distance 61" (3050 mm)/120" (1550 mm)/3.93" (100 mm)
X, Y Two-axis coordinated positioning speed (MAX) 140 m/min
Positioning acceleration (MAX) 1.4 G
Positioning accuracy ±0.05 mm/m
Re-positioning accuracy ±0.02 mm
Maximum load weight 1543 lbs
X-Y-Z Servo Motors X-2x2900W; Y- 1x850W ; Z-1x750W
Machine Weight 20945 lbs (9500 kg)
Dimensions 350"x 118" x 83" (8900 x 3000 x 2100 mm)
***CALL Louie at 847-627-6009 for more details or a quote***
