Manufacturer: Bendmak
Stock # 4220
For Sale by Southern Fabricating Mchy Sales
Surplus Record Dealer Since 2015
Dan McCurdy
813-44...> Show Seller's Phone Number 813-444-4555 Let the seller know you found their listing on Surplus Record!
Description

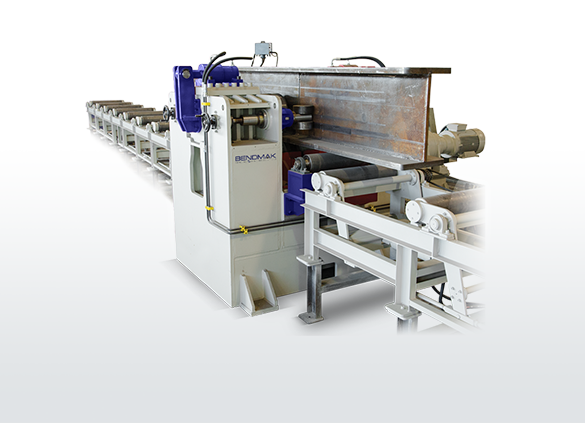

440 Ton H-Beam Flange Straightening Machine with 65 HP and 20 ft/min Straightening Speed.
GENERAL SPECIFICATIONS
GENERAL SPECIFICATIONS
- Force (Ton-Short): 440
- Beam Height: Customer Specific
- Beam Width: 12” -40
- Beam Length: 80” -472”
- Flange Max. Thickness: 3 ”
- Web Thickness: 3 ”
- Web Min. Height: 20”
- Tensile Strength of Flange: 50,000 PSI
- Machine Power: 65 HP
- Straightening Speed: 20’ / Min.
- System Pressure: 3,626 PSI
- Conveyer Length: 36’
- Conveyor Amount w / Drive: 2
***We strongly encourage personal inspection of all pieces of used equipment***
***All Price, Location and Specifications Subject to Change without Notice***
