For Sale by Southern Fabricating Mchy Sales
Surplus Record Dealer Since 2015
Location: Lithia, FL
Contact Dan McCurdy
Phone Number: 813...> Show Phone Number 813-444-4555
Let the seller know you found their listing on Surplus Record!
Description

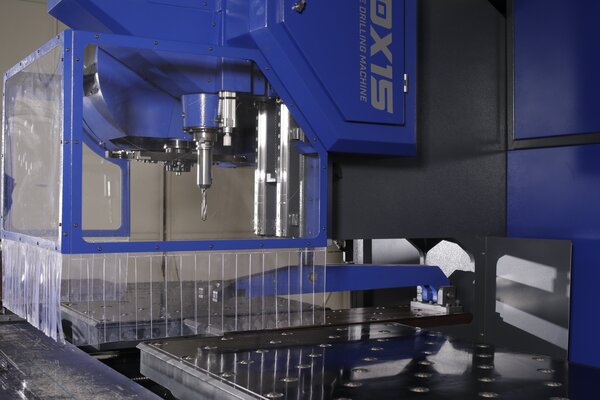

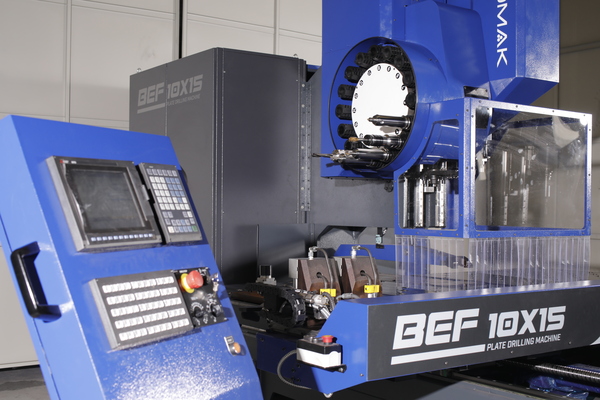

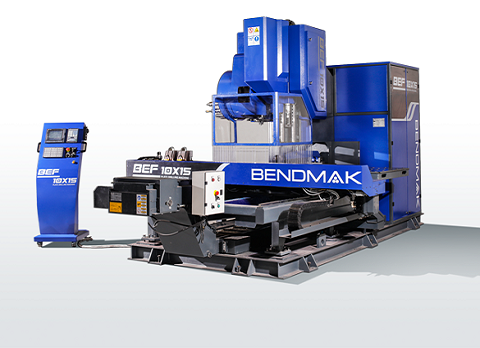

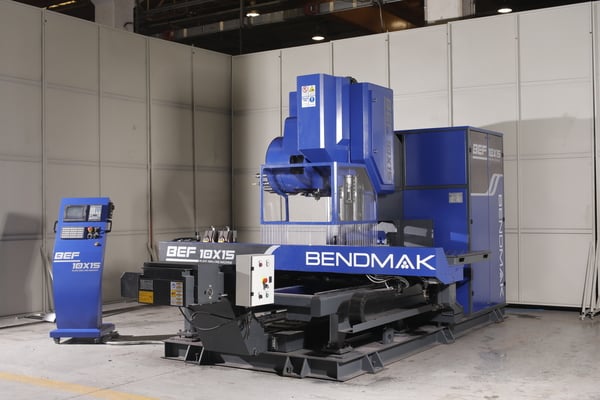

40” X 60” Plate Flange and Drilling Machine with Mitsubishi M70 V or Siemens Control Panel, Automatic Tool Changer, Adjustable Hydraulic Clamps.
GENERAL SPECIFICATIONS
GENERAL SPECIFICATIONS
- Control Panel: Mitsubishi M70 V or Siemens
- Number of Spindle: 1 Unit - Vertical
- Tool Conical: BT 40
- Spindle Rotation Speed: 10-3000 RPM
- Motor Power: 29.5 HP / 140 NM
- Spindle Torque: 280 NM
- Plate Dimension Min.: 3.9” X 3.9” X 0.23”
- Plate Dimension Max.: 39.3” X 59” X 2.5” / 39.3” X 46.9” X 3.1” / 31.3” X 59” X 3.1”
- Plate Thickness Min. / Max.: 0.23” / 3.5”
- Max. Drilling Capacity Ø: 1.6”
- Automatic Tool Changing (ATC): 16 Units
- Max Material Weight can be Positioned: 1,653 LBS
- Total Weight: 15,983 LBS
- Area Covered by the Machine: 21.3’ X 18’ X 8.3’
INCLUDES: Mitsubishi M70 V or Siemens Control Panel, Automatic Tool Changer, Adjustable Hydraulic Clamps.
OPTIONAL FEATURES: Tool Measurement Device, Marking by Scribing Tool, Press Type Marking, Hub Connection, Drill Bit Set.
***We strongly encourage personal inspection of all pieces of used equipment***
***All Price, Location and Specifications Subject to Change without Notice***
