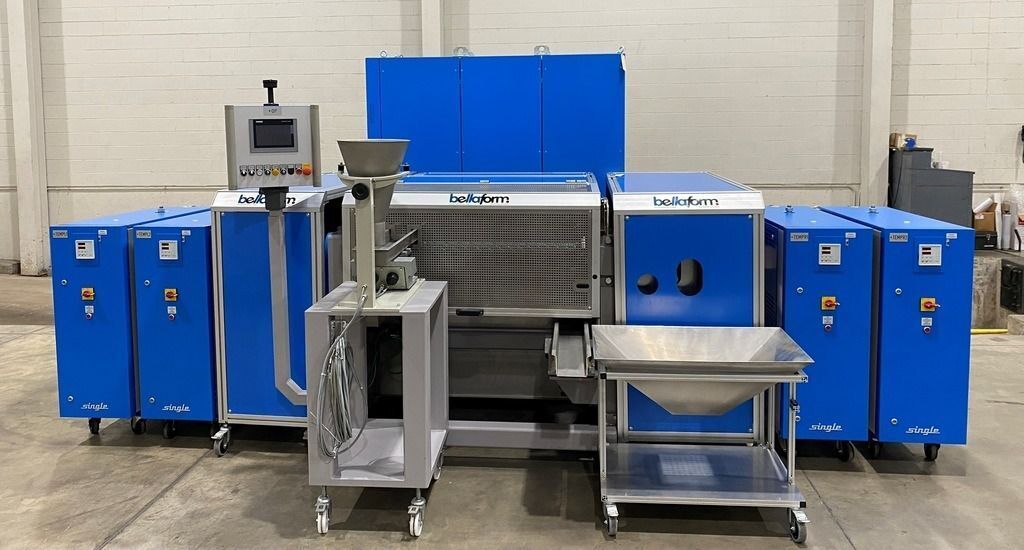

Bellaform #BSW-135, High Shear, Continuous, Roller type, Up to 110 Lbs./Hr.

High shear mixers like the Bellaform BSW-135 are an excellent option for high-purity, contamination-free, continuous processing of medium to high viscosity feedstocks. They are the best constantly functioning open design process for melting, homogenizing, dispersing, compressing, and granulating. High shear mixers are used to make ceramics, powder metallurgy, plastics, rubber, and chemicals. ~ Bellaform brochure
SPECIFICATIONS:
Output capacity............11 - 110 Lbs./Hr.
Working height............39.4"

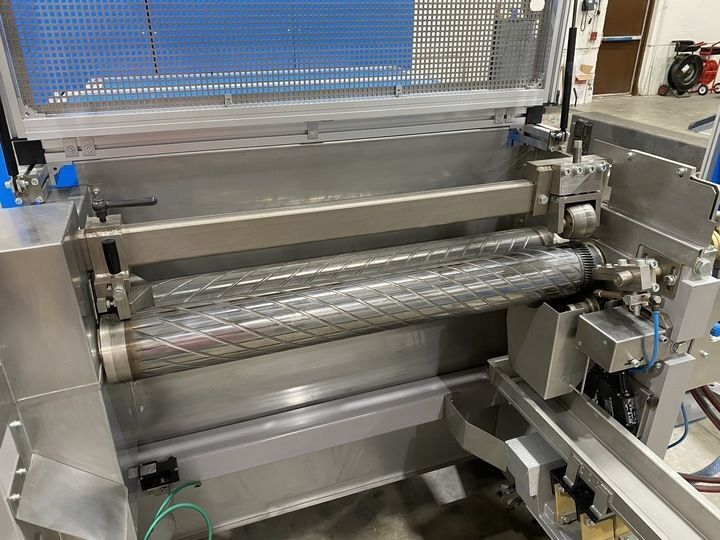

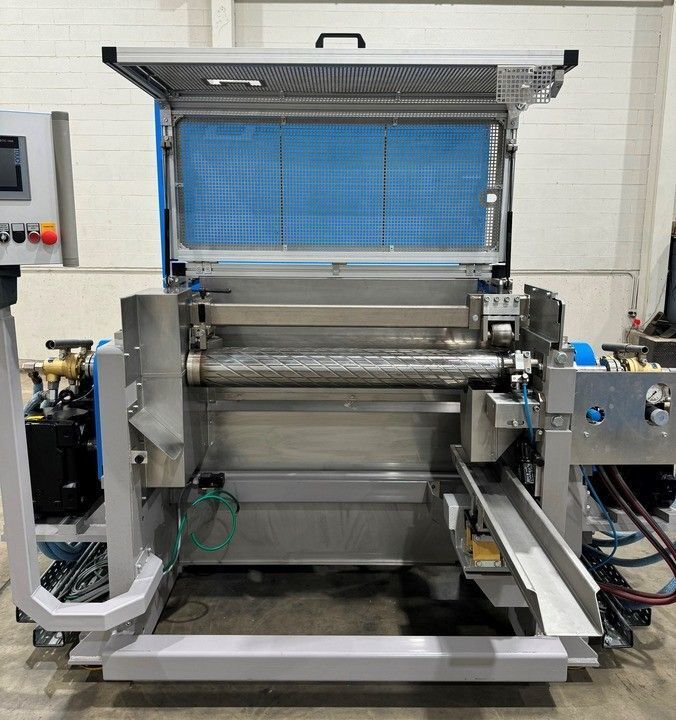

Rollers:
- Gap - maximum............1.6"
- Fine adjustment............0.02" - 0.20"
- Size............5.3"Ø
- Power............13.4 HP each
- Number............2
- Speed............7.5 - 100 RPM
Roller Heat Exchangers:
- Number............4
- Temperature range............68°F - 572°F
- Cooling capacity............170,670 BTU/Hr.
- Heating capacity............61,419 BTU/Hr.
- Medium............Oil
- Flow rate - maximum............26.4 GPM
- Internal volume............5.8 Gals.
- External volume - maximum............22.8 Gals.
Electrics............460V/60Hz
System footprint - catalog............210"(L-R) x 160"(F-B)
EQUIPPED WITH:

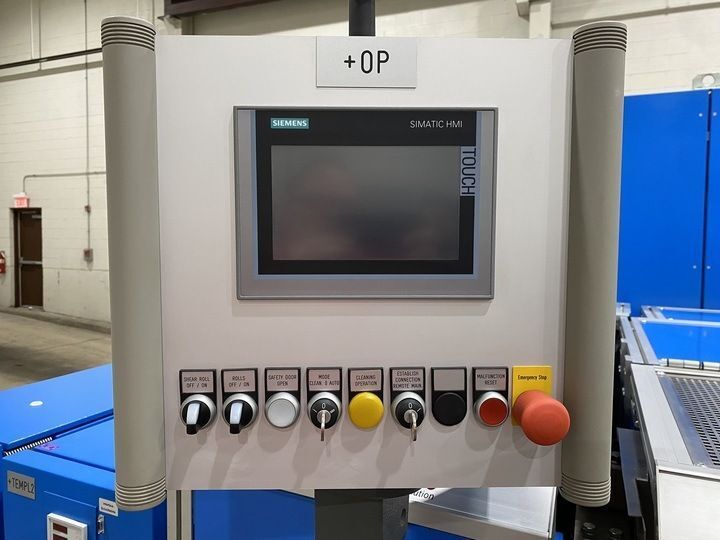

Siemens SIMATIC HMI TOUCH TP700 control

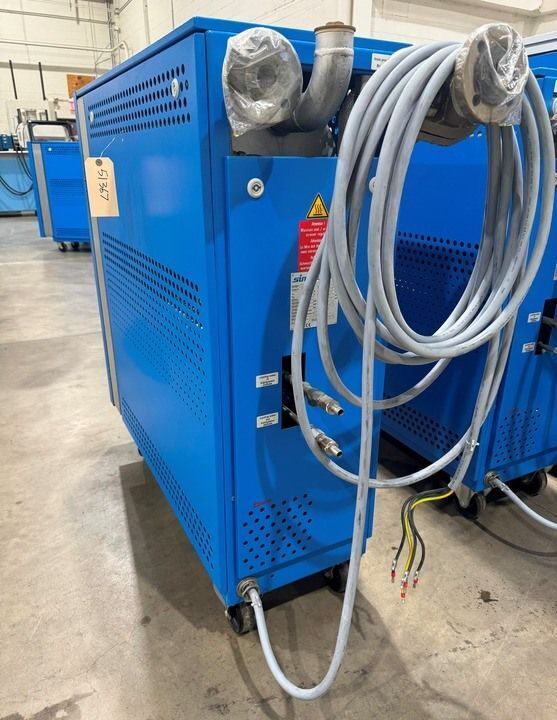

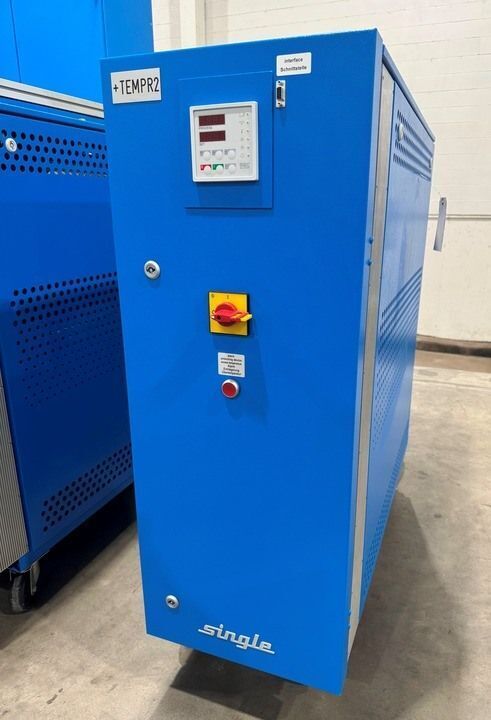

(4) Single Group GmbH Oil Advanced D2-300-18-50 heat exchangers

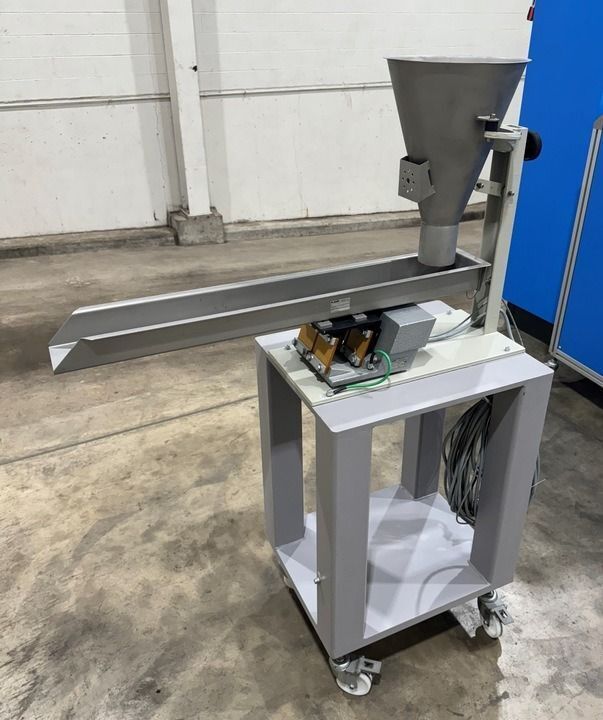

Stainless steel feed hopper
Stainless steel finished goods catch tray
Documentation - hard copy and cd
*Catalog specifications pending verification.
