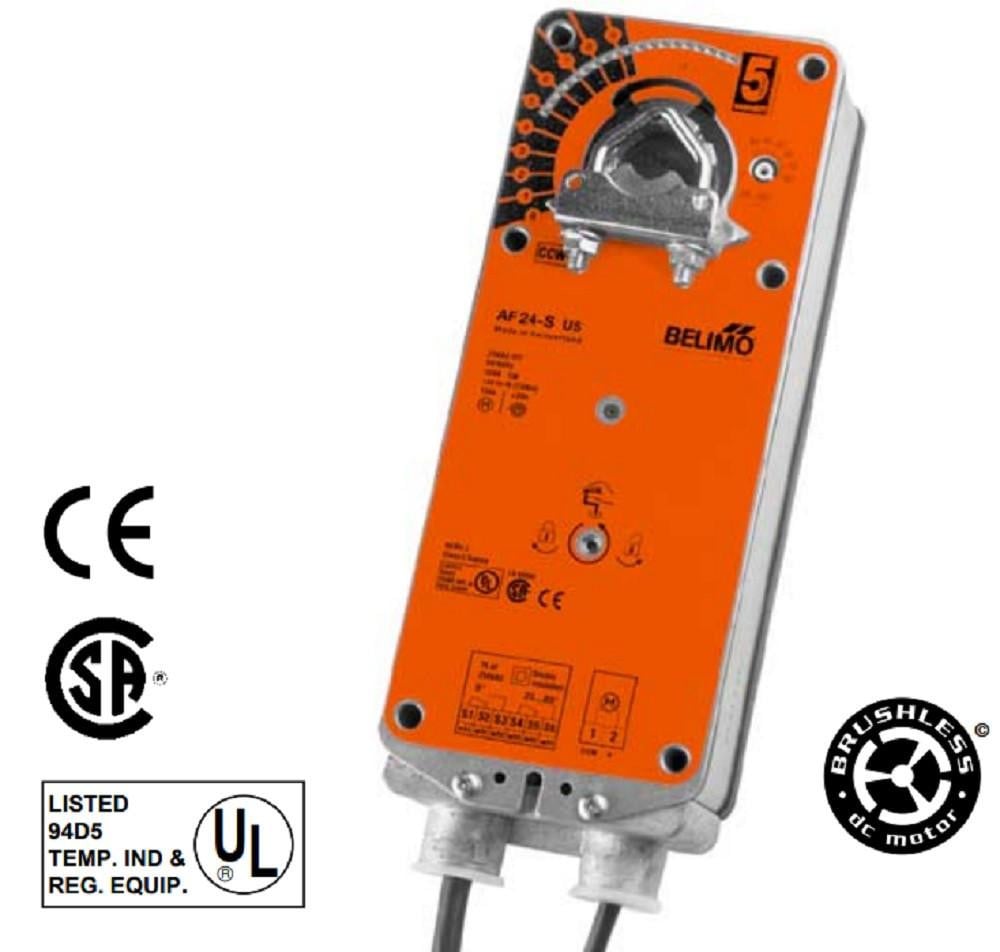

Belimo #AF24-S-US, HVAC Damper Actuator, on-off, spring return fail-safe, 95° rotation, (2) aux. switches, 24 Volts, (2 available)

$658 USD

Request Formal Quote

. . . . . Belimo AF24-S US HVAC Damper Actuator, On-off, Spring Return Fail-Safe, 24 V - Application - For on-off, fail-safe control of dampers in HVAC systems. Actuator sizing should be done in accordance with the damper manufacturer???s specifications. Control is on-off from an auxiliary contact, or a manual switch. The actuator is mounted directly to a damper shaft up to 1.05??? in diameter by means of its universal clamp. A crankarm and several mounting brackets are available for applications where the actuator cannot be direct coupled to the damper shaft. Operation - The AF series actuators provide true spring return operation for reliable fail-safe application and positive close off on air tight dampers. The spring return system provides consistent torque to the damper with, and without, power applied to the actuator. The AF series provide 95??? of rotation and are provided with a graduated position indicator showing 0??? to 95???. The AF has a unique manual positioning mechanism which allows the setting of any damper position within its 95??? of rotation. The AF series actuators are shipped at +5??? (5??? from full fail-safe) to provide automatic compression against damper gaskets for tight shut-off. When power is applied to the AF series, the manual mechanism is released. The actuators will now try to close against the 0??? position during its normal control operations. The manual override can also be released physically by the use of a crank supplied with the actuator. The AF uses a brushless DC motor which is controlled by an Application Specific Integrated Circuit (ASIC). The ASIC monitors and controls the actuator???s rotation and provides a digital rotation sensing function to prevent damage to the actuator in a stall condition. The actuator may be stalled anywhere in its normal rotation without the need of mechanical end switches. The AF24-S US version is provided with 2 built in auxiliary switches. These SPDT switches are provided for safety interfacing or signaling, for example, for fan start-up. The switching function at the fail-safe position is fixed at +5???, the other switch function is adjustable between +25??? to +85???.. Belimo. Belimo. AF24-S US.
