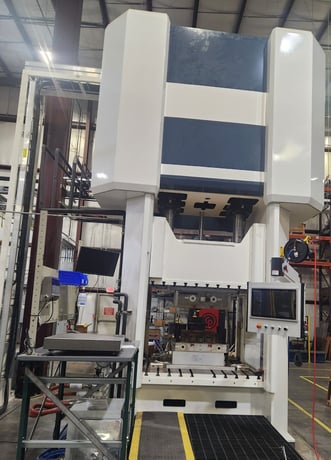

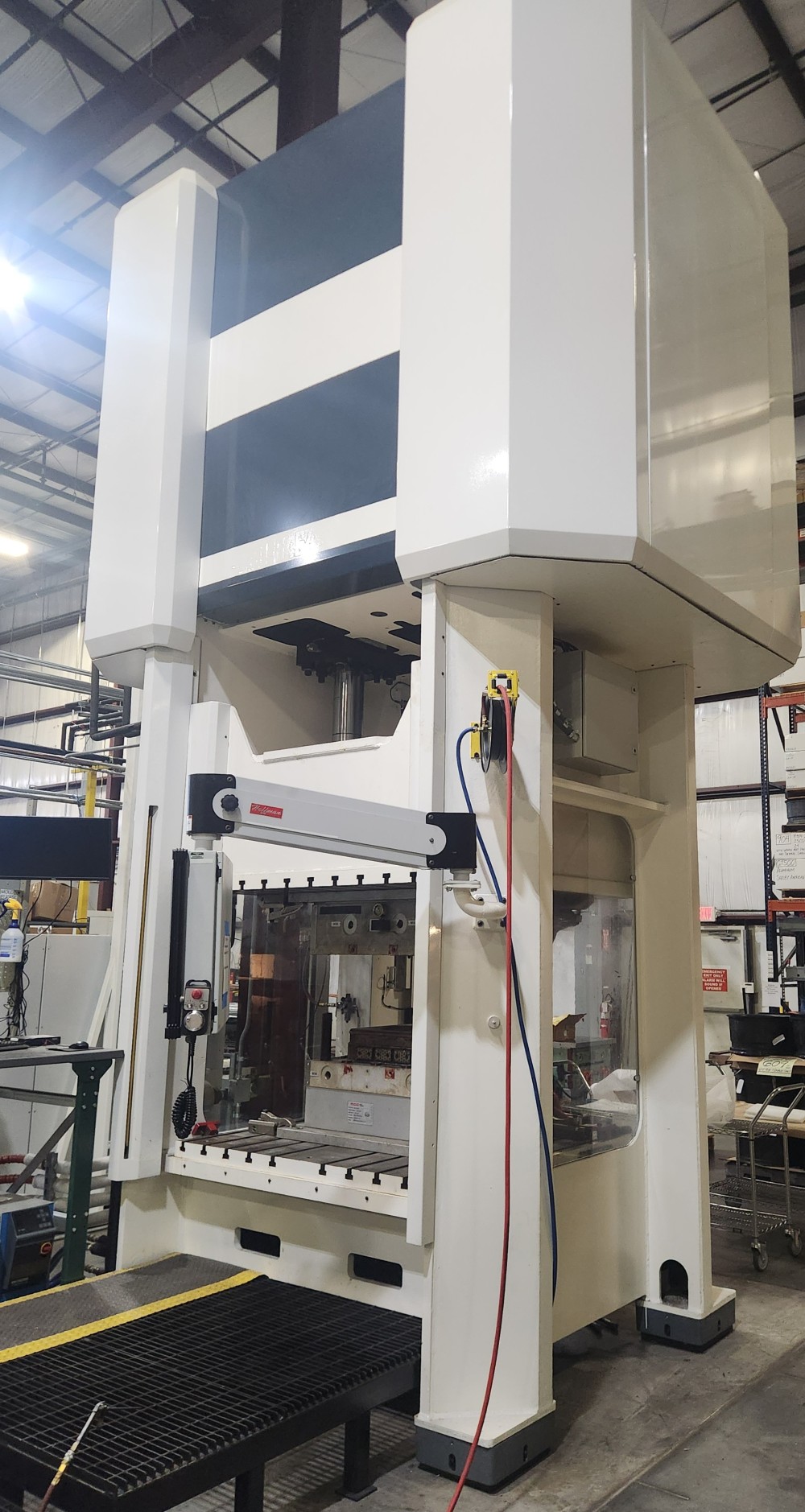

For Sale by Variegate Inc
Description

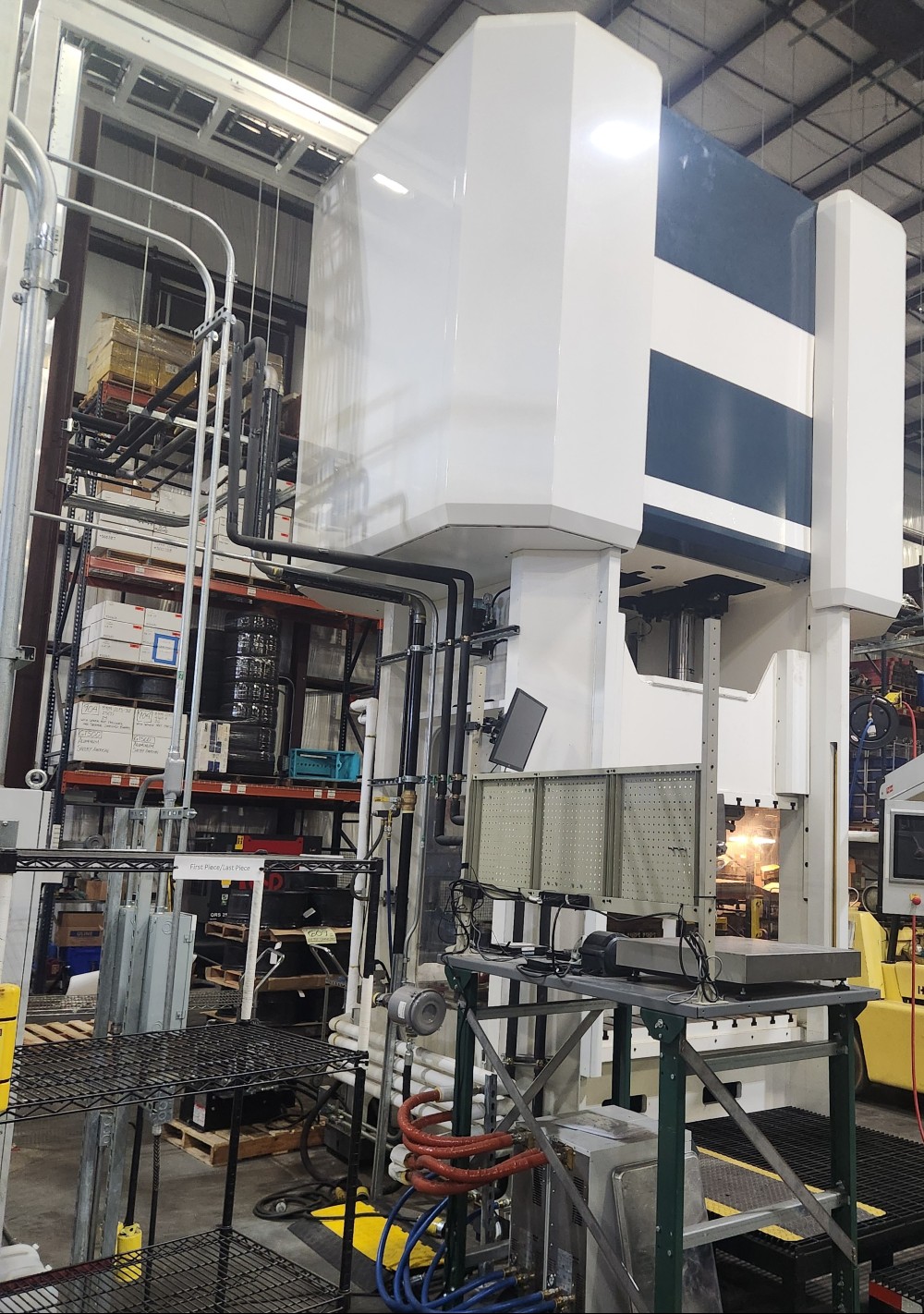

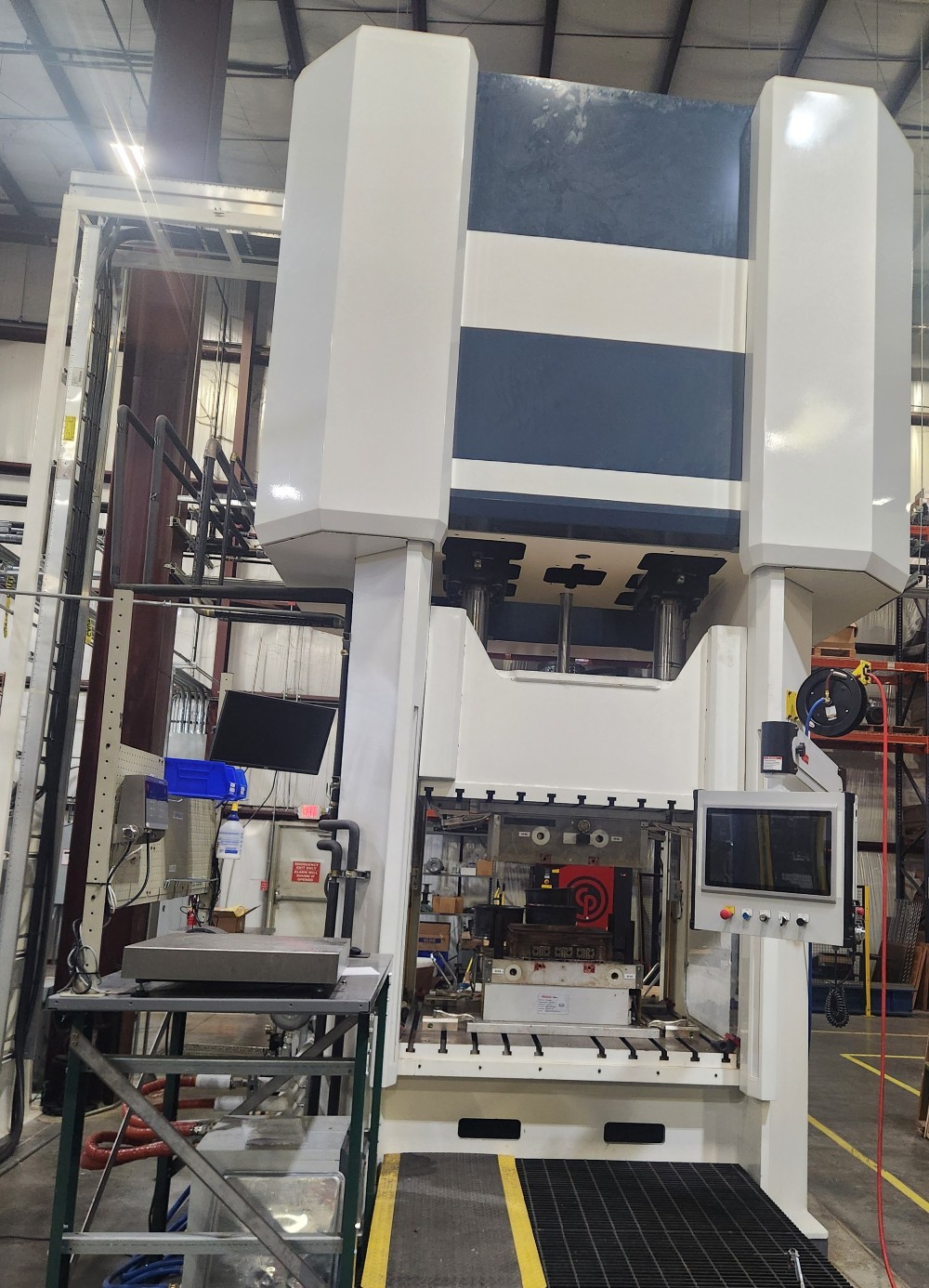

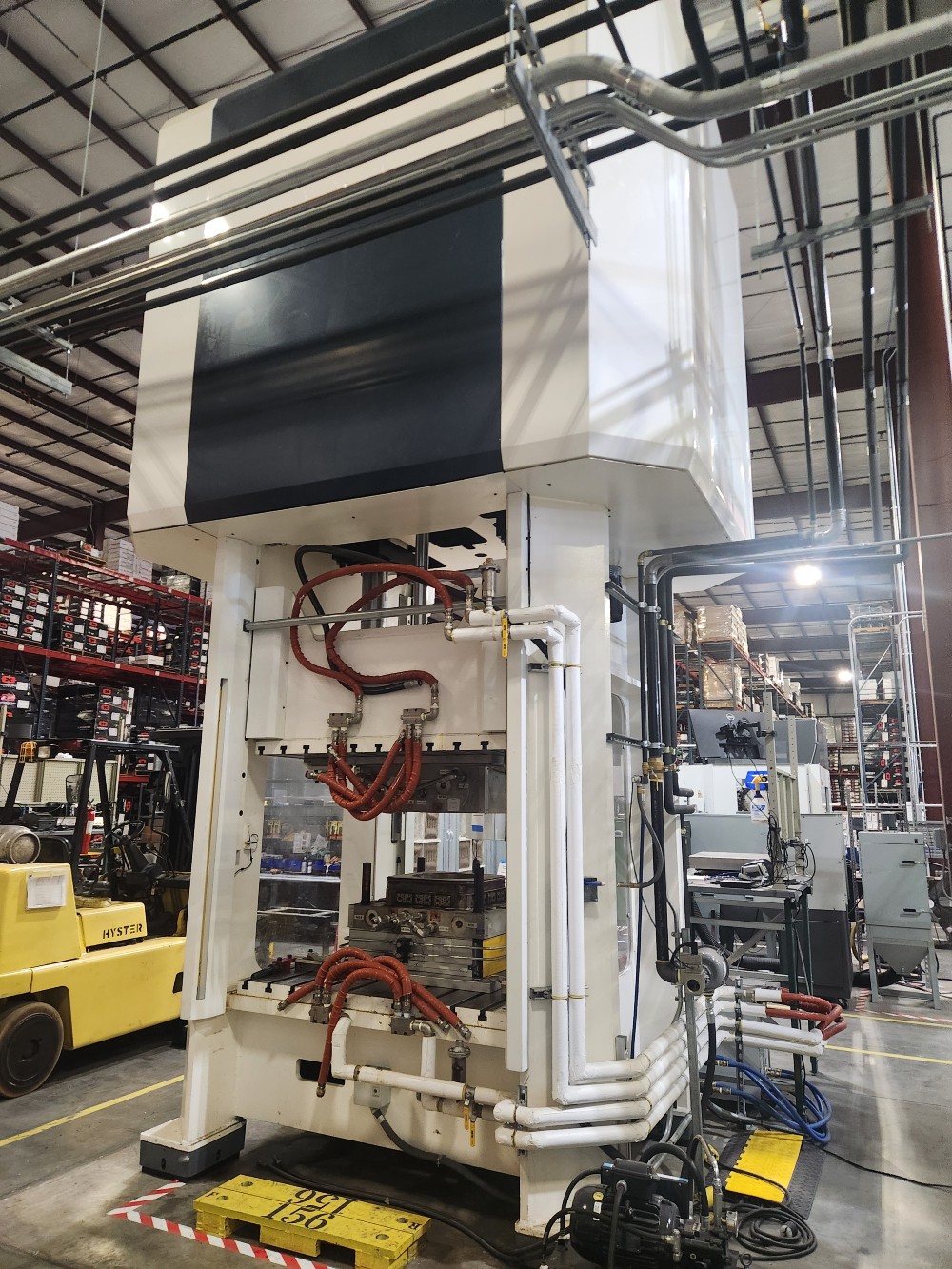

Linear Servo Press’s Nitches:
- Off center loading
- Draw and Punching Work with Nitrogen Die Systems
- Heated Platen Applications
- Precision Forming
- High Cleanliness Requirements
Capacity: 13 to 250 Tons
Stripping Capacity: 187 Tons
Day Light: 60″
Stroke: 36”
Shut Height: 24″
Slide Area: 64” x 64″
Bolster Area: 64” x 64”
T-Slots: 6″ Centers – Ram and Bolster
Fast Approach / Retract Speed: 0.01 to 6 in/sec
Pressing Speed: 0.01 to 0.6 in/sec
Dwell Capability: Infinite - Near zero energy drawn to maintain the dwell (brake holds tonnage)
Position & Repeatability: Active level control
Window: 48" Wide x 62 3/4" Tall

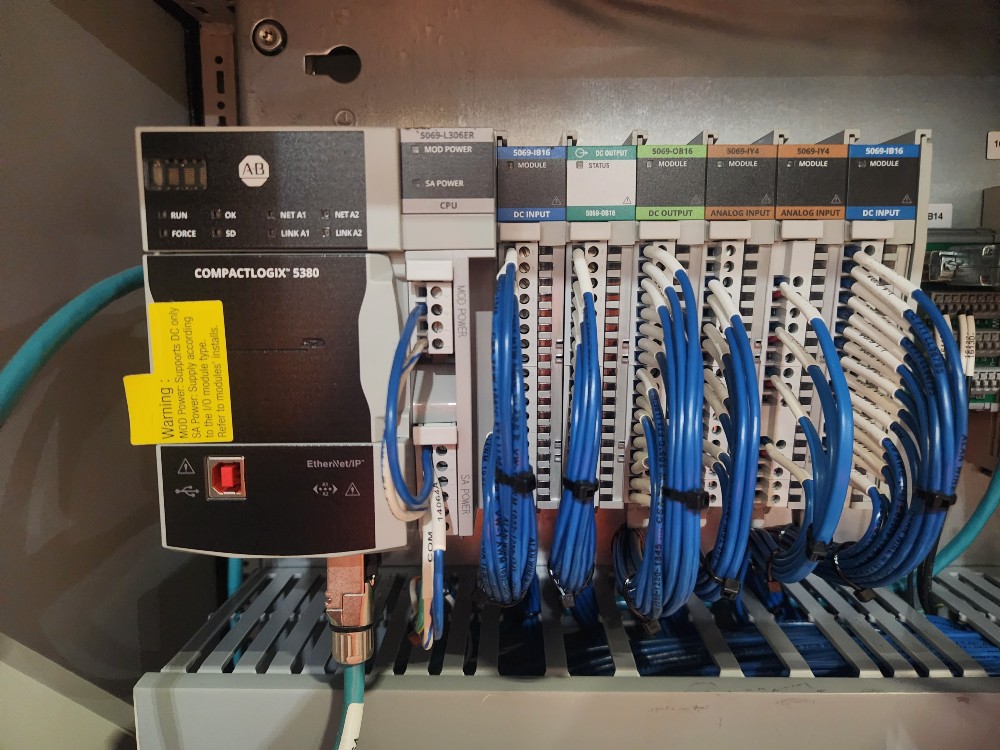

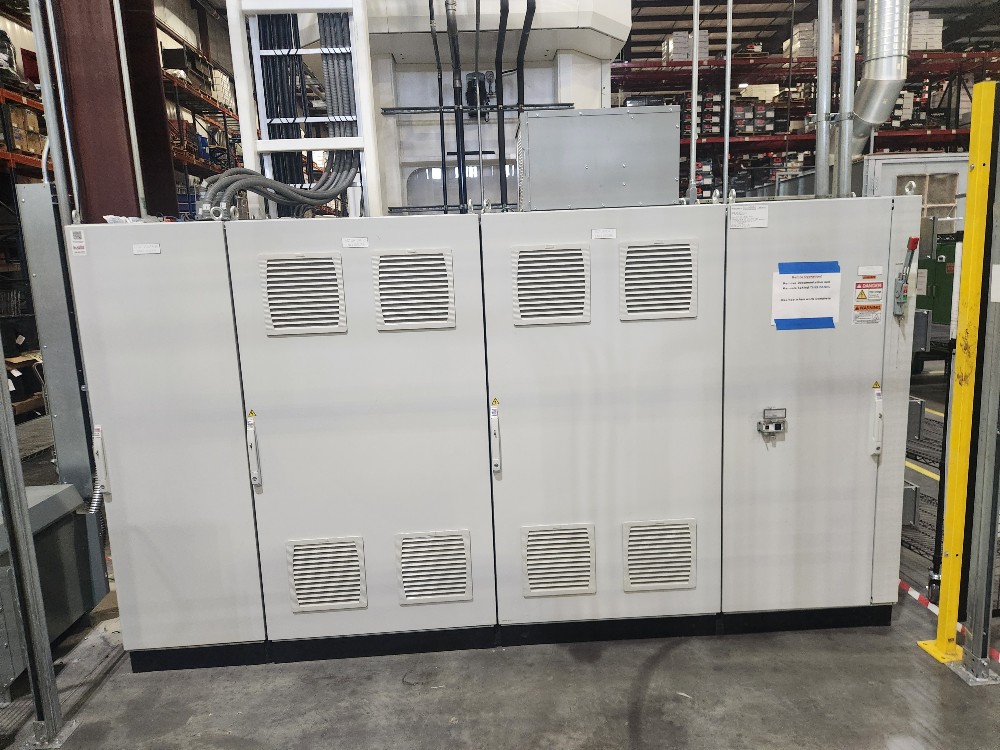

Press Control: Allen Bradley CompactLogix 5069-L306ER - Pre-Programmed for up to 15 Steps
Presslink Communications: Allows Beckwood to monitor the press in real time
Servo Motion Controller: Yaskawa MP3300iec Controller with Advanced Data Acquisition

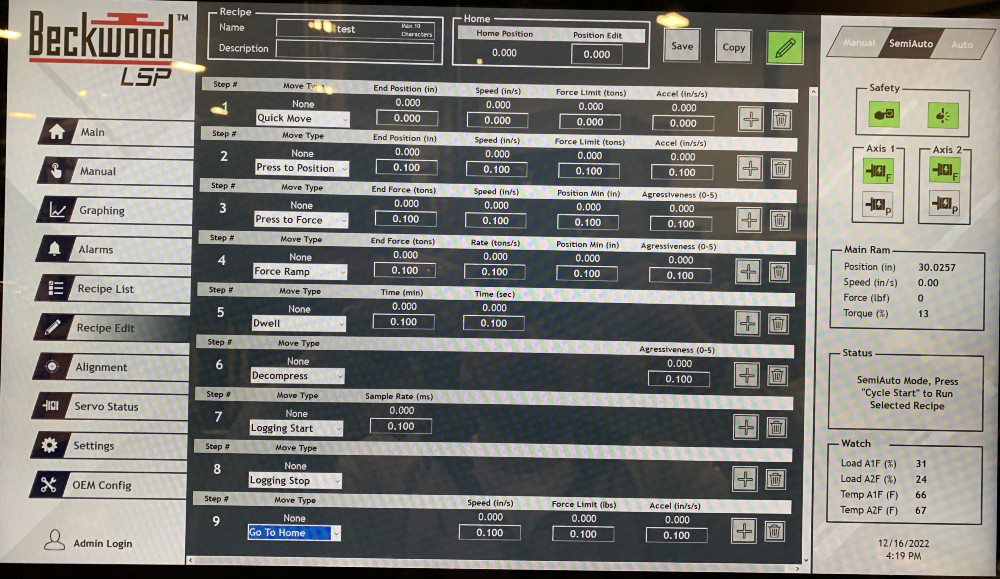

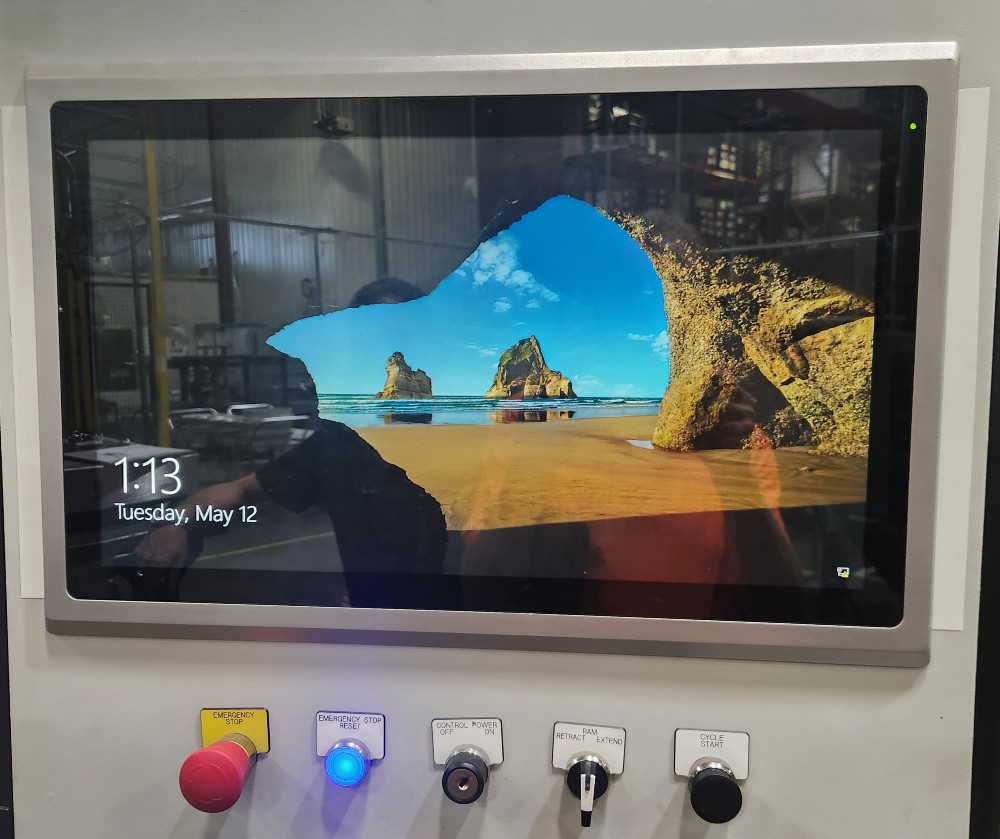

Machine Interface: Industrial PC (Windows 10 LTSB) w/AVEVA Web Studio
Pressing Motor: Two @ 22 kW (Two @ ~30 HP)
Fast Approach Motor: Two @ 30 kW (Two @ ~40 HP)
Power: 480 Volt, 3 Phase, 60 Hz
Full Load Amps: 295 Amps
Pneumatics: 90 psi minimum (estimated 2 SCFM)
Light Curtains: Front & Back
Weight: 81,500 lbs
Manufacturing Date: 6-2023

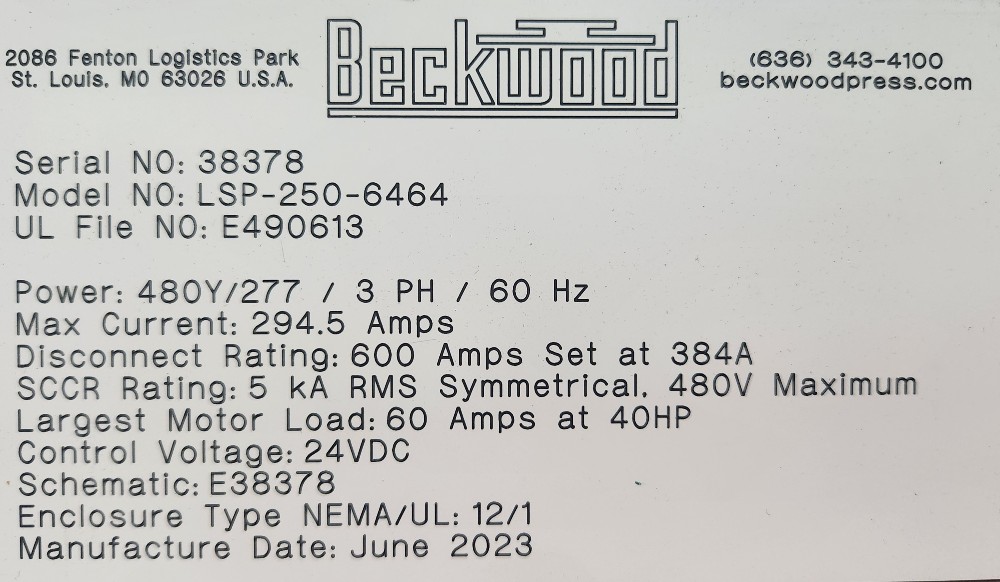

Serial Number: 38378
Customer should view the press to confirm all details
