Banner RLM5 25548 Maxi-Beam Delay Logic Module, ON-Delay OFF-Delay or ON/OFF-Del

$112 USD

Request Formal Quote

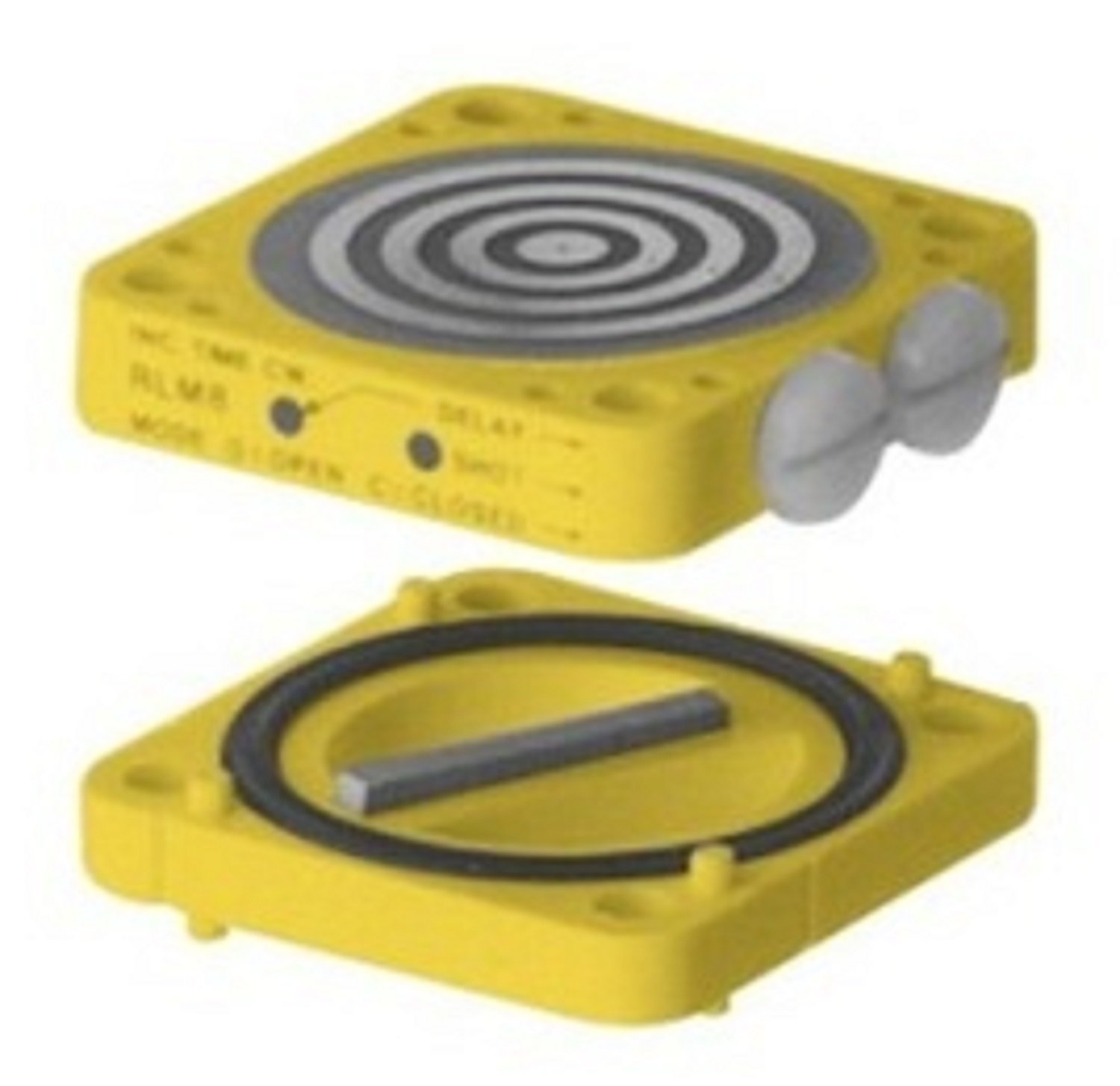

Banner RLM5 25548 Maxi-Beam Delay Logic Module, ON-Delay OFF-Delay or ON/OFF-Del - Add sensor response delay of approximately 2% of maximum OFF-DELAY time. MAXI-BEAM sensors offer built-in timing logic with the addition of a logic module. There are two logic modules available. Model RLM5 is programmable for ON-DELAY, OFFDELAY, and ON/OFF DELAY timing logic. Model RLM8 offers both ONE-SHOT and DELAYED ONE-SHOT functions. A programming ring is supplied with each logic module. Programming of the logic function, timing range, and output state is similar to sensor head programming. Both logic modules feature 15-turn, clutched potentiometers for accurate timing adjustments. Once programmed, the logic module may be rotated in 90-degree increments to position the timing adjustments for easiest access. Logic modules are housed in the same tough molded VALOX which is used for the other MAXI-BEAM components. The logic module and its programming ring simply slip between the MAXI-BEAM sensor head and power block (see photograph, page 3). The assembly is bolted together with no interwiring necessary. The component interfaces are quad-ring sealed. - Banner - Banner Engineering - RLM5 - 25548
