Banner Engineering SLLCR23-350-S Safety Light Curtain Receiver 24V DC Untested Surplus

Product Specifications

• Manufacturer: Banner Engineering
• MPN / Model: SLLCR23-350-S
• OEM Part Number: 808924
• Product Type: Safety Light Curtain Receiver
• Series: EZ-SCREEN LS
• Supply Voltage: 24V DC +/- 15%
• Current: 0.115A DC Max
• Defined Area: 350 mm (13.8 in)
• Resolution: 23 mm
• Range: 0.1 to 12 m (40 ft)
• Enclosure Rating: IP65/IP67
• Temperature Rating: -20 to 55 deg. C
• Response Time: 9.1 ms
• OSSD Rating: Imax = 0.5A; Vmin = Vsupply - 1.5V
• Safety Rating: Type 4 per IEC 61496; EN ISO 13849-1 Cat. 4 PL e; SIL 3 per IEC 61508
• Connection: Removable Disconnect (RD)
• Effective Aperture Angle: 2.5 deg. at 3 m
• Serial Number: M34548968089242120
• Condition: Cosmetic Wear / Field Use

Product Description

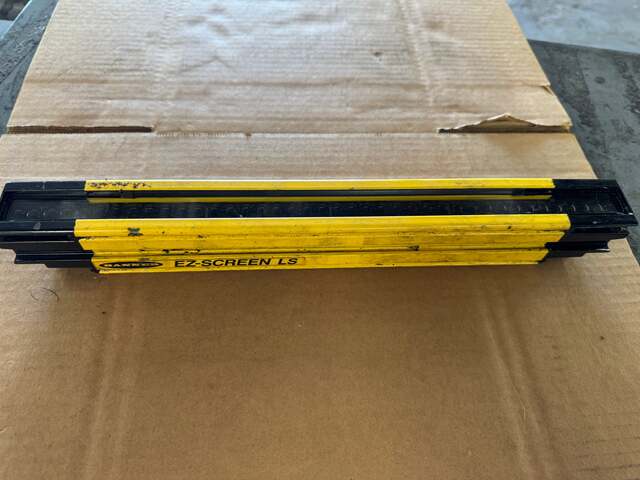

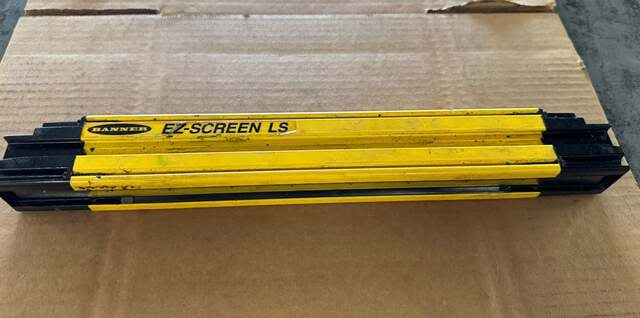

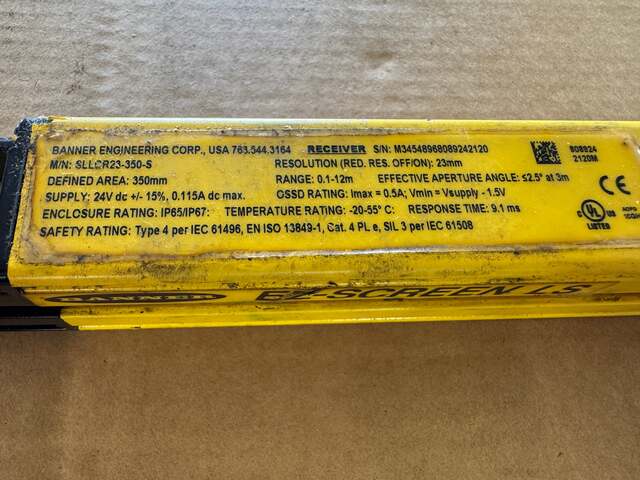

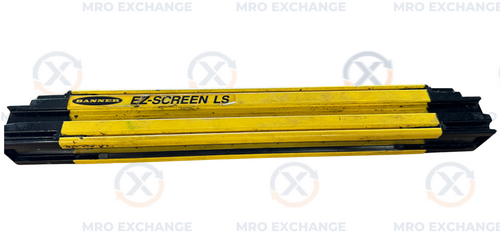

Banner Engineering EZ-SCREEN LS safety light curtain receiver, model SLLCR23-350-S (OEM part number 808924). The nameplate confirms a 350 mm defined area, 23 mm resolution, 24V DC supply, IP65/IP67 enclosure rating, and a safety rating of Type 4 per IEC 61496, Cat. 4 PL e per EN ISO 13849-1, and SIL 3 per IEC 61508. Sensing range is 0.1 to 12 m with a 9.1 ms response time. Connection is via removable disconnect (RD); mounting hardware and cable are ordered separately. The unit is listed as a used surplus item with cosmetic wear consistent with field use, including visible surface damage, paint chips, and grime on the housing. Serial number M34548968089242120 is visible on the nameplate. Buyers should use the exact MPN SLLCR23-350-S and OEM part number 808924 to confirm fitment with their existing EZ-SCREEN LS system configuration.
