AXI MTC HC-150 Mobile Fuel Polishing System (NEW)

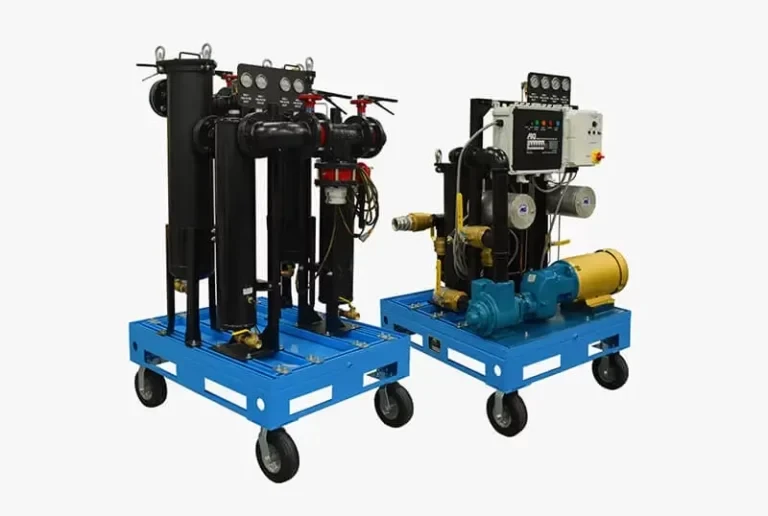

MTC HC-150 Mobile Fuel Polishing System

• Removes heavy and fine contaminants such as sludge, water, and particulates from fuel storage tanks
• Portable system design for easy transportation
• Adjustable fuel polishing flow rate with included variable frequency device (10 - 150 GPM)
• Multi-Stage filtration process with fine filter bypass
• Prevents unnecessary mess, catching potential drips or spills produced during routine filter changes with the skid's drip tray

Product Details

The MTC HC-150 is a high capacity mobile fuel polishing system that removes water, sludge, sediment, and other contaminants that accumulate in fuel storage tanks. The system’s redundant design allows users to isolate filter elements for servicing without interrupting the fuel polishing operation. The MTC HC-150 also features a multi-phase fuel polishing process that allows users to remove water and larger particulate before utilizing fine filtration elements. With an adjustable flow rate range of 10 to 150 GPM, the MTC HC-150 can polish up to 72,000 gallons (272,550 liters) of fuel in a runtime of 8-hours.

System Features:

Multi-Stage Filtration

Remediate fuel to desired cleanliness level with a multi-stage filtration process

Fine Filter Bypass

Spare fine filters during heavy contaminant removal

Dual-Branch Design

Isolate and service a given side of each skid while continuing to polish the fuel via the other side

Adjustable Flow Rates

Adjust fuel polishing flow rates between 10 - 150 GPM

Portable System Design

Easily transport system from tank to tank with the system's skid-based construction

Drip Tray

Capture potential drips or spills produced during routine filter changes.

• TECHNICAL SPECIFICATIONS

  Product Specifications

  Nominal Flow Rate

  10 - 150 GPM (37.9 - 567.8 LPM)

  Primary Filters

  Bag Filter Vessel, Liner Basket for use with 1 - 800μ Bag Filters

  Water Separators

  FP-90 Mechanical Water Separator

  Secondary Filters

  Cartridge Filter Vessel, 2 - 30μ Particulate, 10-30μ Water Block, or 3-10μ Micro-glass Filters

  Fuel Conditioners

  LG-X 4000 Inline Magnetic Conditioner

  Pump

  10 HP Sliding Vane Pump

  System Controller

  SFC80 Smart Filtration Controller with Safety and Alarm Features

  Power

  480V/60Hz/3Ph

  Plumbing

  Black Iron

  Ports

  3" Cam & Groove In, 2.5" Cam & Groove Out

  Dimensions (Pre-Filter Skid)

  ≈ 59” x 36” x 45” (150 x 91 x 114 cm) (H x W x D)

  Dimensions (Pump Skid)

  ≈ 59” x 36” x 45” (150 x 91 x 114 cm) (H x W x D)

  Weight (Pre-Filter Skid)

  ≈ 850 lbs (385.5 kg)

  Weight (Pump Skid)

  ≈ 900 lbs (408.2 kg)
