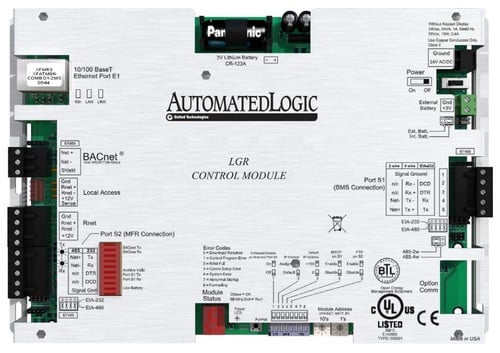

Automated Logic #ME-LGR25, LGR High Speed Ethernet BACnet Router, 25 3rd Party Pt, Refurbished

$2,225 USD

Request Formal Quote

Automated Logic ME-LGR25 LGR High Speed Ethernet BACnet Router, 25 3rd Party Pt The LGR is an extremely powerful, high-speed router/gateway that can connect hundreds of control modules to a BACnet/IP backbone. Support for BACnet/IP, BACnet-over-Ethernet, ARCNET 156 Kbps, MS/TP, and BACnet PTP communications are standard. A wide range of open and proprietary protocol translator drivers allow the LGR to also serve as a gateway to other manufacturers' equipment. Fully programmable, the LGR can also execute complex control strategies for high-level system integration. Key Features and Benefits: 10/100Base-T Fast Ethernet allows modules to serve as a BACnet router between BACnet/IP system backbone and field devices subnetwork. Native BACnet communications to field devices over a high-speed ARCNET 156 Kbps or BACnet MS/TP network. Can route messages from BACnet/IP to BACnet-over-Ethernet, providing compatibility with older BACnet systems. A wide range of open and proprietary protocol translator drivers allow the LGR to also serve as a gateway to other manufacturers' equipment. Designed with a high-speed true 32-bit microprocessor with cache memory, Fast Ethernet controller, high performance 32-bit serial communications co-processor, and ARCNET communications co-processor, LGR routers have the horsepower to serve the most demanding translation and communications functions. Can support hundreds of individual control programs written in ALC's legendary EIKON-LogicBuilder Graphic Programming Language. LGRs can handle the toughest system integration control programs. 16 MByte battery-backed SDRAM (32 bit wide), with 12 MBytes available for use, stores application programs, trends and other data when power is lost. 8 MByte Flash memory (32 bit wide) for easy field upgrades over the network. Battery backed real-time clock provides true standalone capabilities. LGRs recover from power failures providing full continuity of operations, even when communications are disrupted. Rnet port supports Automated Logic's line of RS room sensors and BACview6 local operator interface, and provides local access to the system. Enhanced local access is also available on an EIA-232 port. Tough construction delivers superior performance and reliability. Control modules are constructed with a rugged aluminum cover which provides optimum electrical protection and noise immunity.. Automated Logic. Automated Logic Corporation. ME-LGR25.
