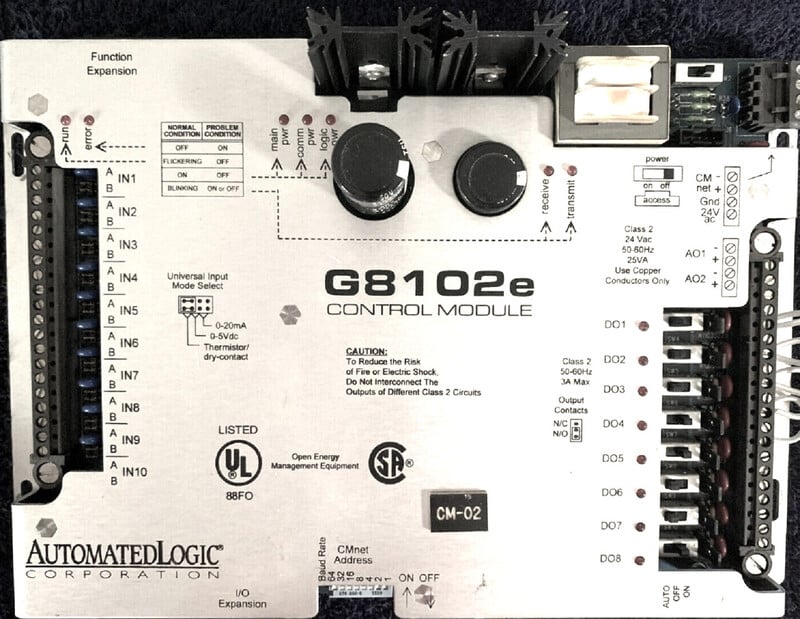

Automated Logic G8102e GX-Line General Purpose Direct Digital Control Module DDC, Refurbished

$556 USD

Request Formal Quote

The G8102e is part of the GX-Line, a unique hardware concept which allows a complete HVAC control system to be built a piece at a time. General purpose Direct Digital Control is achieved by joining various expandable controllers within a standard control panel as the size of the job increases. This original design solves many problems which plague traditional DDC systems.The GX-Line consists of several general purpose controllers which provide different I/O point combinations. Each G board provides the communications circuitry, non-volatile memory, and removable screw terminals for I/O connections. Additionally, each G board (except the G220 and G8102) is designed with a connector which acts as an expansion bus for adding up to five I/O expander boards. These "X boards" expand the total point capacity of each panel up to 120 points.The G8102e can be programmed with up to 56 Graphic Function Blocks.. Automated Logic. Automated Logic Corporation. G8102e.
