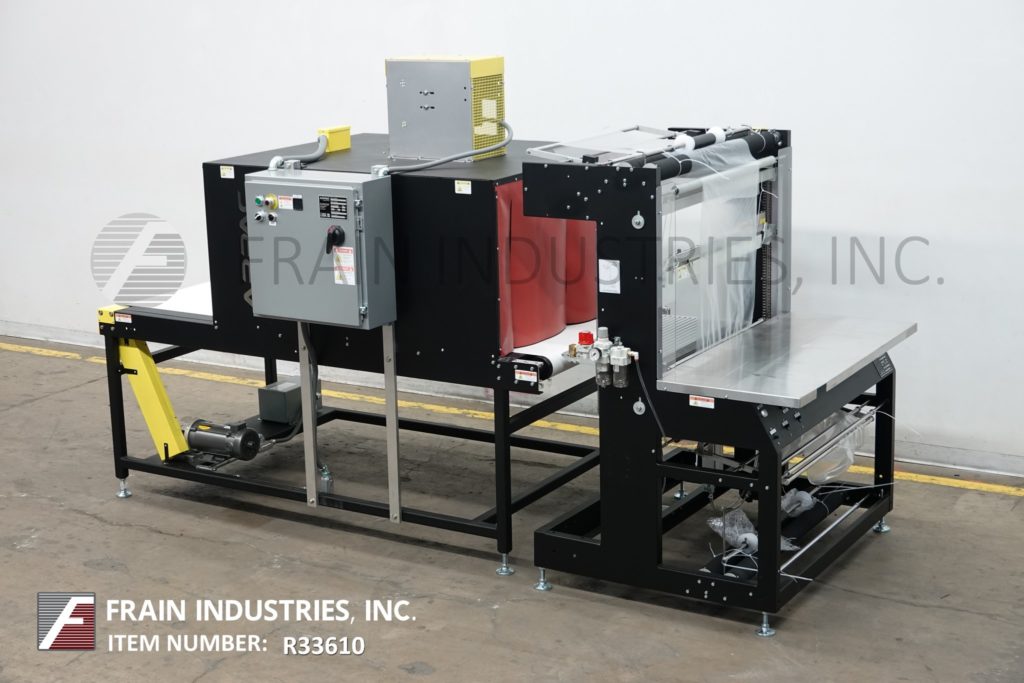

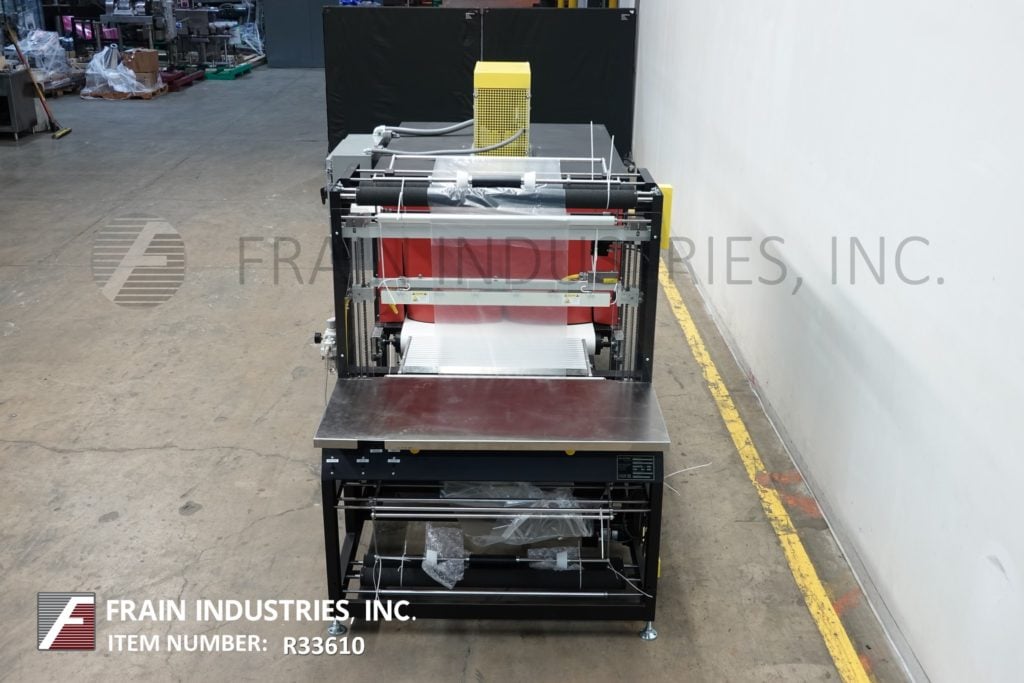

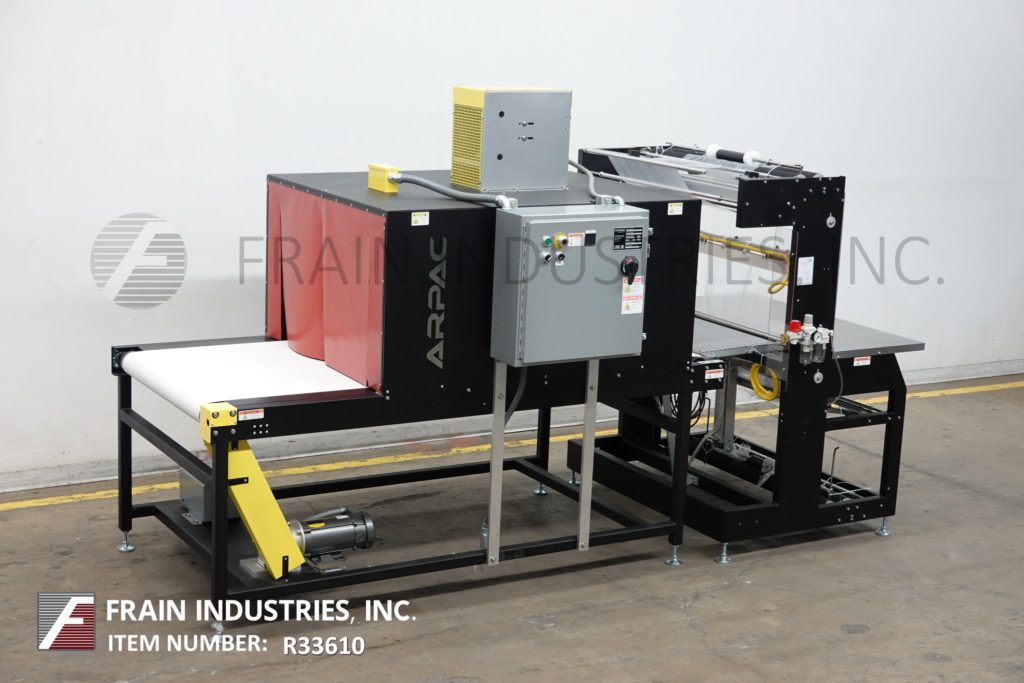

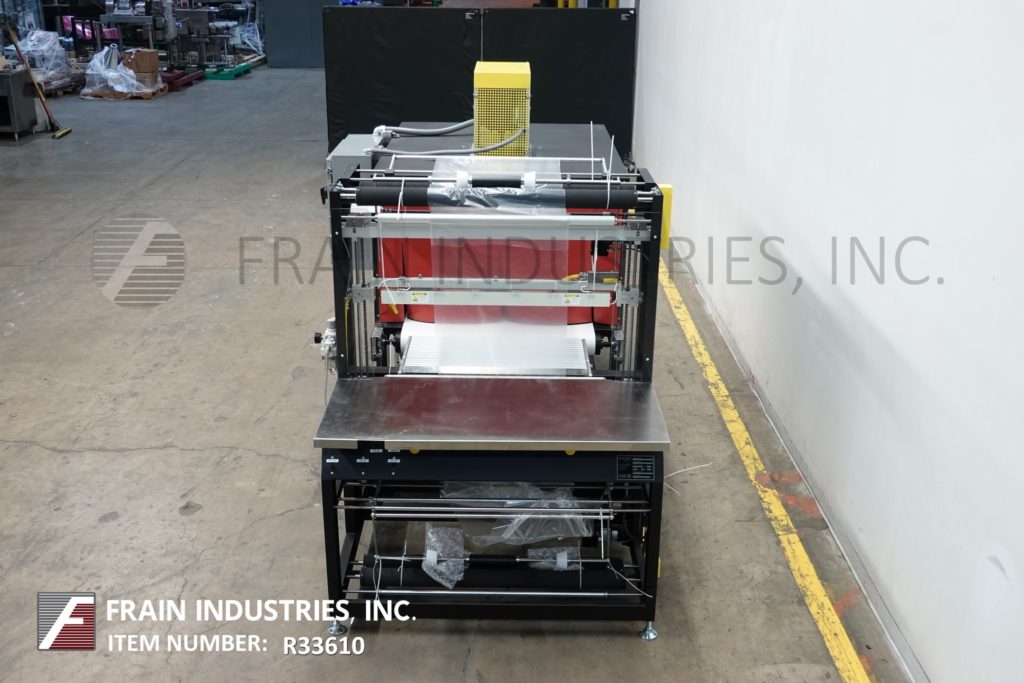

Arpac #737C, semi automatic, Inline, shrink bundler & tunnel, 37" W hot knife seal jaws with 20" vertical travel, 2-handed push button cycle start & roller transfer conveyor

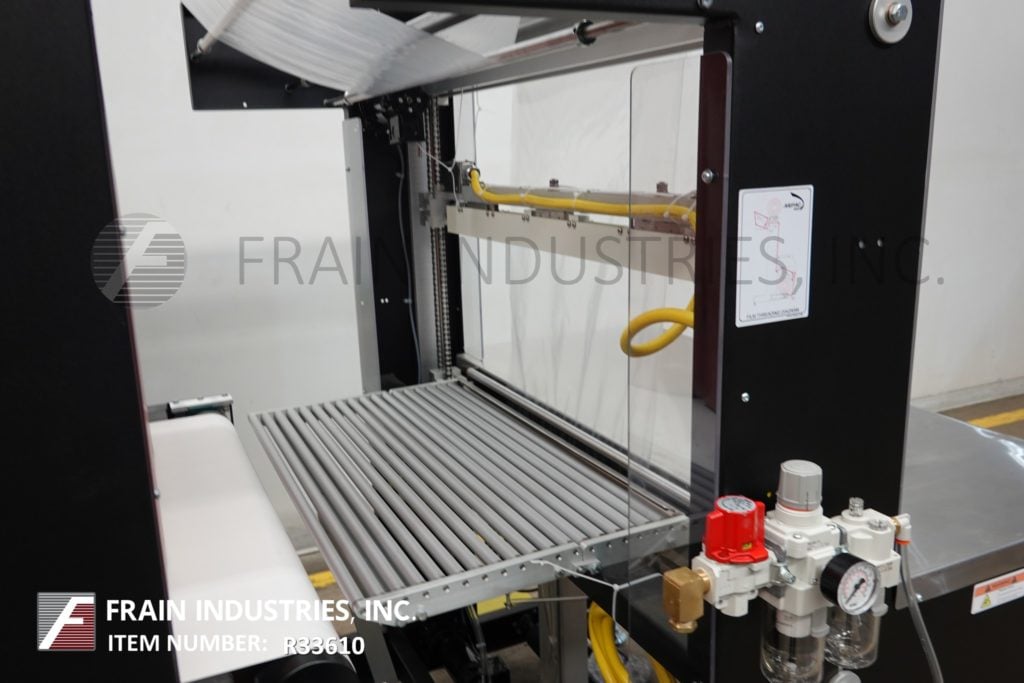

Arpac, semi automatic, inline, shrink bundler and tunnel. Rated from 1 to 15 bundles per minute – depending on materials, application and operator dexterity. Product size range: 6" to 18" in Length x 6" to 35" in Width x 6" to 18" in Height. Arpac Model 737C bundler equipped with 37" wide hot knife seal jaws with 20" vertical travel and (2) handed cycle start push buttons and roller transfer conveyor into shrink tunnel, powered film feed and has film specifications of 37" in width up to 14" in diameter on 3" OD core and film type polyethylene or low density polyethylene with film gauge of 1 to 3 mil.

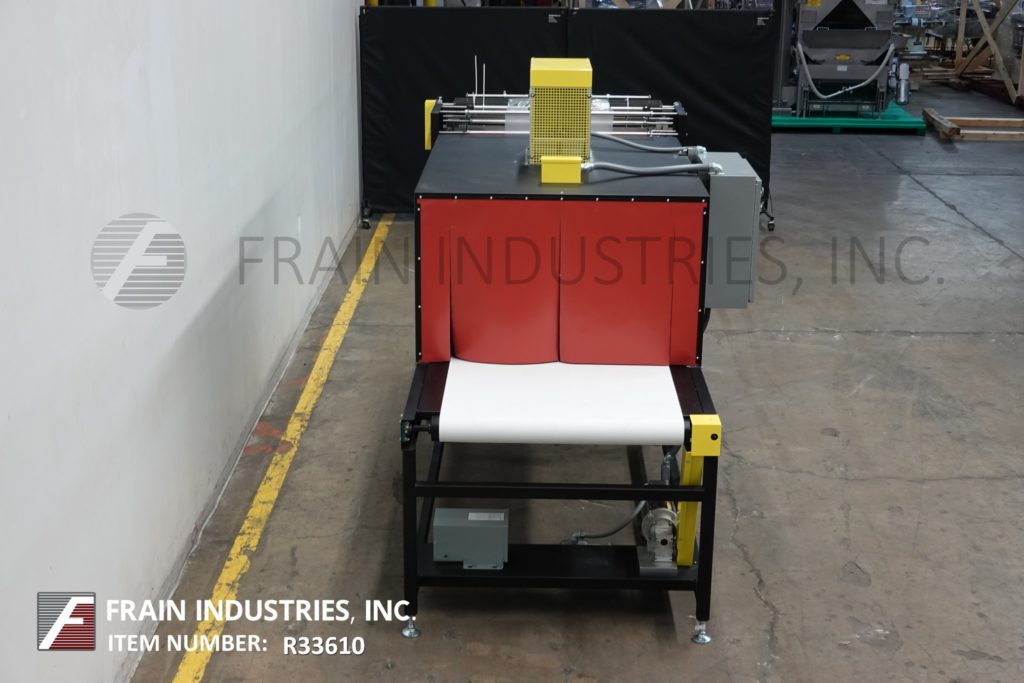

Arpac Model HVP, single zone shrink tunnel with total aperture of 40” in width x 20" in height and has a chamber length of 60" with top mounted blower. Control panel has temperature, variable air flow, variable conveyor speed and e-stops. Capable of running boxes, trays, cartons or any conveyable type product. Mounted on a common frame with leveling legs.

OAD: 141" L x 61" W x 83" H
