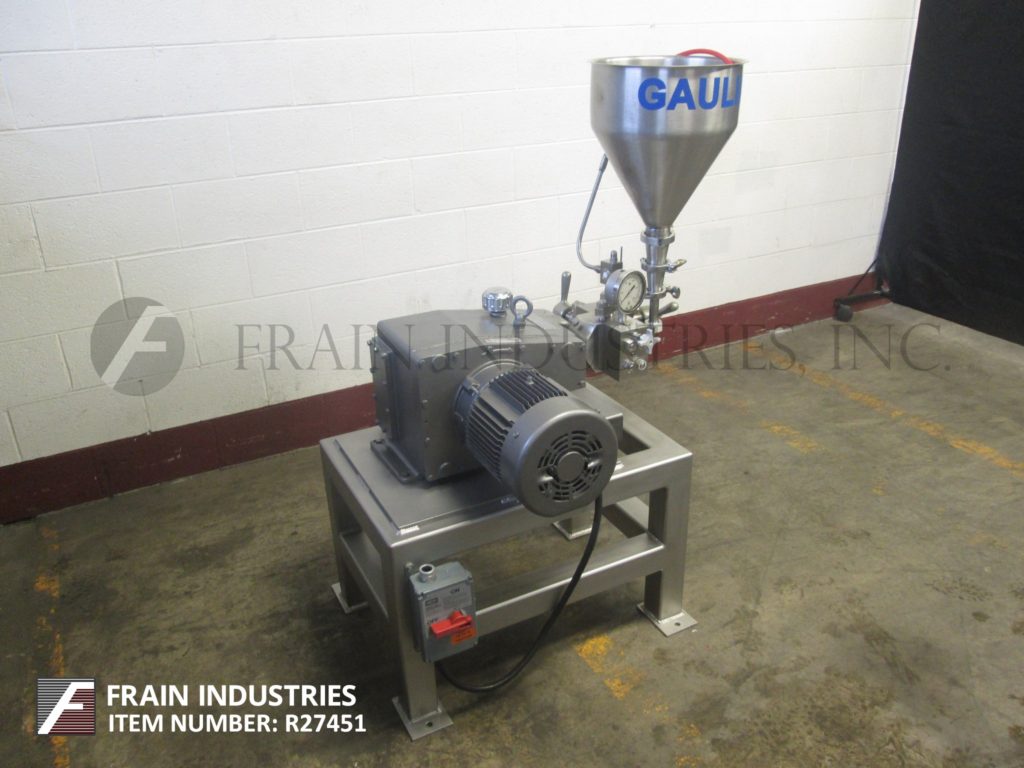

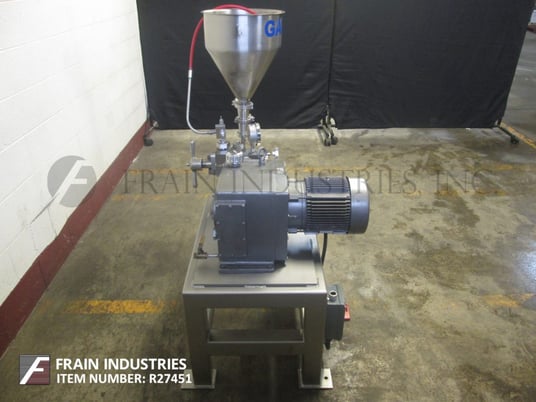

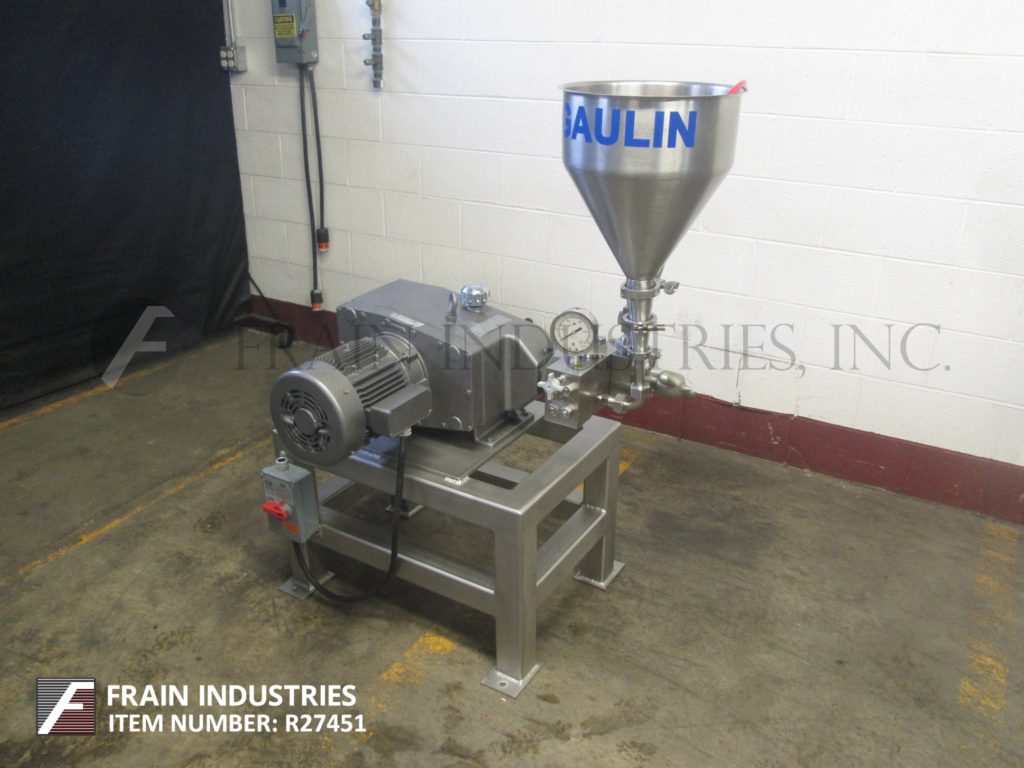

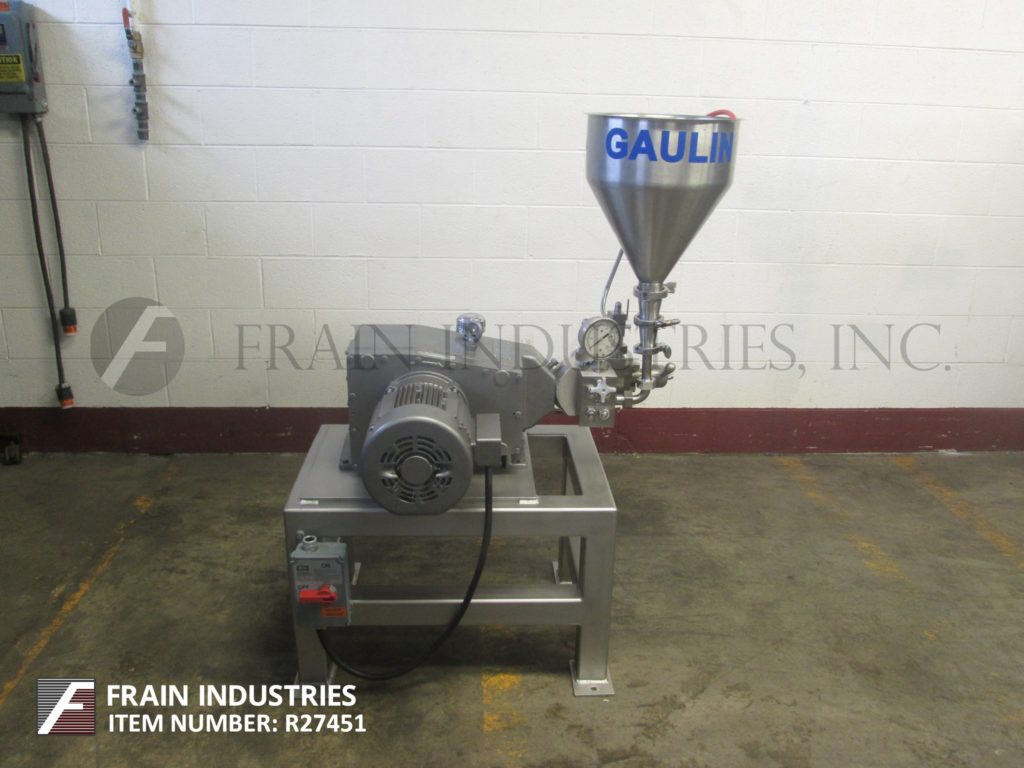

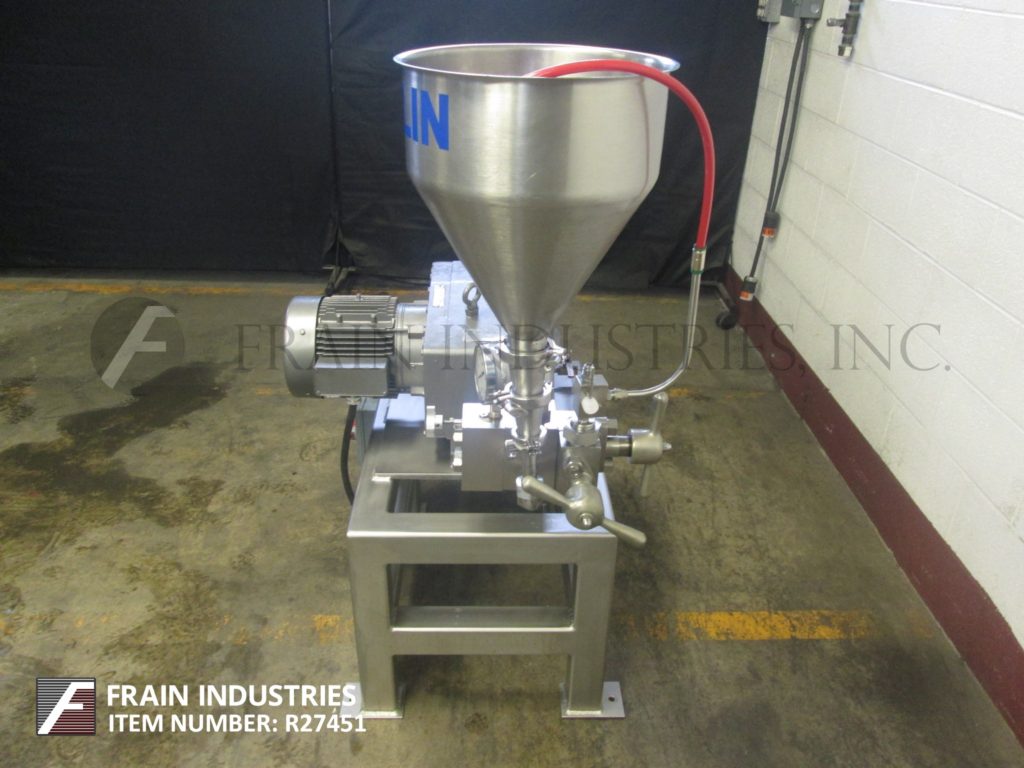

APV Gaulin #15M-8TBA, 2-stage homogenizer, rated output capacity of 15 gallons per hour

APV, Model 15M 8TBA, two stage, homogenizer. Rated output capacity of 15 gallons per hour – depending on materials and application. Maximum operating pressure up to 8000 psi. Equipped with ball valve cylinders and standard style valve seat, manual homogenizing valve actuator assembly with a 14" diameter x 16" deep hopper infeed, three way valve discharge and pressure gage up to 15,000 psi. Ball valve head is ideally suited for high-viscosity or abrasive products like, peanut butter, evaporated milk, wax emulsions and lubricants. Standard valve seat is used for most emulsion and dispersion applications.

OAD: 40"L x 28"W x 54"H
