16 Results
APV Gaulin #15M-8TBA, 2-stage homogenizer, rated output capacity of 15 gallons per hour
Frain Industries | Carol Stream, IL
Category: Homogenizers
Seller: Frain Industries
Location: Carol Stream, IL
Mfr: Apv
Model: 15M-8TBA
APV, Model 15M 8TBA, two stage, homogenizer. Rated output capacity of 15 gallons per hour – depending on materials and application. Maximum operating pressure up to 8000 psi. ball valve cylinders and standard style valve seat, manual homogenizing valve actuator assembly with a 14" diameter x 16" deep ...more
APV Gaulin #15M-8TBA, single stage homogenizer, rated output capacity of 15 gallons per hour
Frain Industries | Carol Stream, IL
Category: Homogenizers
Seller: Frain Industries
Location: Carol Stream, IL
Mfr: Apv
Model: 15M-8TBA
Gaulin, Model 15M 8TBA, single stage, homogenizer. Rated output capacity of 15 gallons per hour – depending on materials and application. Maximum operating pressure up to 8,000 psi. ball valve cylinders, manual homogenizing valve actuator assembly with a 6" diameter x 10" deep product hopper, 3 way ...more
APV Gaulin #15MR8TA, 2-stage, single plunger, laboratory homogenizer capable of 15 gallons per hour
Frain Industries | Carol Stream, IL
Category: Homogenizers
Seller: Frain Industries
Location: Carol Stream, IL
Mfr: Apv
Model: 15MR8TA
Two stage, single plunger, laboratory homogenizer capable of 15 gph and minimum sample size of one pint. All 316 S/S contacts, sub micron dispenser has 8,000 psi continuous operating pressure, 10,000 psi intermittent operating pressure (20 minute maximum), 2 1/8" stroke, ball valve cylinder, and 3-way valve and ...more
APV Gaulin #30 CD, single stage Stainless Steel homogenizer, with ball valve cylinders and CD style valve seat
Frain Industries | Carol Stream, IL
Category: Homogenizers
Seller: Frain Industries
Location: Carol Stream, IL
Mfr: Apv
Model: 30
Gaulin, Model 30 CD, single stage stainless steel homogenizer. ball valve cylinders and CD style valve seat. Rated for an output capacity of up to 30 gallons per hour with a maximum operating pressure of up to 15,000 psi. Manual homogenizing valve actuator assembly with a 1" OD / (3/8)" ID tri-clamp style ...more
APV #3DL-412, Homogenizer, 1000 GPH, 2000 psi, 1.435" diameter Plunger, 2-Stage, 30 HP, 230/460 V
Genemco | Hearne, TX
Category: Homogenizers
Seller: Genemco
Location: Hearne, TX
Mfr: Apv
Model: 3DL-412
APV Crepaco Homogenizer. Model: 3DL-412. S/N: C-4040. Dwg: 06B-P-376677. Maximum capacity: 1000 gph. Plunger Diameter: 1.435 in. Spring-loaded, poppet valve cylinders. Two stage manual valve assembly. Pressure probe installed. Maximum pressure at 1000 GPH: 2000 PSI. Leeson Electric Motor, 30 hp, 1760 rpm, 230/460 V ...more
Get email updates for newly added Homogenizers
Homogenizers (also known as high-shear mixers) are machines that reduce particle size in liquids to create uniform, stable mixtures. By forcing the liquid through a narrow space under high pressure, homogenizers break down particles and droplets, enhancing texture and consistency. Commonly used in industries like food and beverage, pharmaceuticals, and cosmetics, they are essential for products such as milk, creams, and emulsions. Homogenizers ensure a smooth and even distribution of ingredients.
APV Gaulin #4000-DJF40, painted frame homogenizer, 4000 GPH, 2500 psi, 2 stages
Genemco | Hearne, TX
Category: Homogenizers
Seller: Genemco
Location: Hearne, TX
Mfr: Apv
Model: 4000-DJF40
APV Gaulin Painted Frame Homogenizer. Model: 4000-DJF4O. S/N: 64586256. Nominal capacity: 4000 gph. 2-stage manual valve assembly. 2-3/4 in. dia. plungers. 2,500 psi. Pressure and flowrate can be modified/adjusted to suit your needs. Tapered seat ball valve cylinders. Currently unit is missing: motor, motor pulley ...more

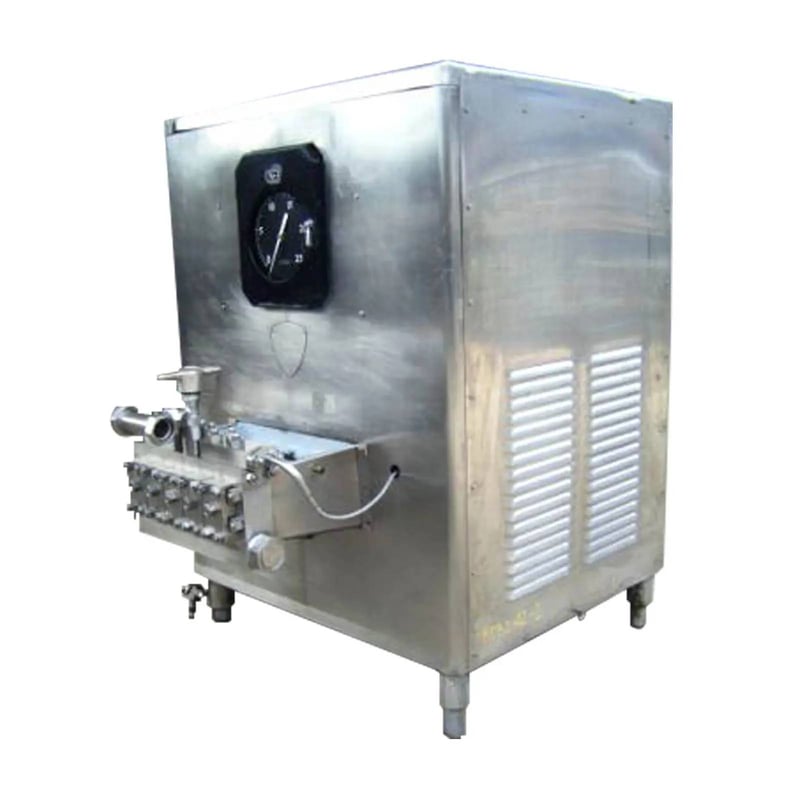

APV #5DD425, 5-Piston Homogenizer, 1500 GPH, 1800 psi, 1.249" diameter Plunger, 6.5" diameter Motor Pulley, 32" diameter Gear Pulley, 30 HP, 230/460 V, 1990
Genemco | Hearne, TX
Category: Homogenizers
Seller: Genemco
Location: Hearne, TX
Mfr: Apv
Model: 5DD425
Year: 1990
1990 APV Crepaco 5-Piston Homogenizer. Model: 5DD425. Rated capacity: 1,500 GPH at 1,800 psi. Pressure and flowrate can be modified/adjusted to suit your needs. Single stage manual valve assembly. Plunger diameter: 1.249 in. Turbo flow and poppet valves. Spare parts included. Westinghouse electric motor, 30 hp, 1180 ...more
APV #5DD775, 5 Cylinder Homogenizer, 2430 GPH, 1600 psi, (5) 1-3/4" diameter Plungers, 11-3/8" driver & 3' 8" driven Pulley, 2500 psi max, 2-Stage, 125/1 HP, 230/460 V
Genemco | Hearne, TX
Category: Homogenizers
Seller: Genemco
Location: Hearne, TX
Mfr: Apv
Model: 5DD775
APV Crepaco 5 Cylinder Homogenizer. Model: 5DD775. Rated capacity: 2,430 GPH at 1,600 PSI with (5) 1-3/4 in. dia. plungers. Pressure and flowrate can be modified/adjusted to suit your needs. Pulley dia: 11-3/8 in. driver, 3 ft. 8 in. driven. Maximum PSI: 2500. Lincoln motor: S/N: 1466996, 125 HP, 1185 RPM, 460 V, 154 ...more
Featured
APV #BT-HP, homogenizer
Locate It Direct Inc. | Piscataway, NJ
Category: Homogenizers
Seller: Locate It Direct Inc.
Location: Piscataway, NJ
Mfr: Apv
Model: BT-HP
APV Rannie #BT40.120H Homogenizer, 1056.688 gph (4,000 l/h), 1000 bar (14503 psi). Belt driven by 200hp, 3/60/460 V.
Aaron Equipment Co | Wood Dale, IL
Category: Homogenizers
Seller: Aaron Equipment Co
Location: Memphis, TN
Mfr: Apv
Model: BT40.120H
used- apv rannie homogenizer, model bt, type 40.120h. capacity 1056.688 gph (4,000 l/h). maximum homogenizing pressure 1,000 bar (14,503 psi). belt driven by 200hp, 3/60/460 volt, 885rpm motor. 1-1/2" tri-clamp fitting. mounted on frame with (4) legs. 3/60/460 volt. serial #1-89.288.
APV #G-55-3P, Homogenizer, 2-Stage, 10500 GPH, 2539 psig, 75 HP - 230/460 V motor, 2001
Genemco | Hearne, TX
Category: Homogenizers
Seller: Genemco
Location: Hearne, TX
Mfr: Apv
Model: G-55-3P
Year: 2001
APV Gaulin 55 Homogenizer - Type: G-55-3P, Serial No: 1-01-609, Max Pressure: 175 bar (2539 PSIG). Year of Mfg: 2001, Valve Design: Poppet. Number of Stages: 2-Stage. Inlet/outlet: (1)3 in. tri-clamp, Inlet/outlet: (1) 2.5 in. tri-clamp. Frame is Stainless Steel, has previously damaged from the Frame but can be ...more
APV #G110T-75P, Stainless Steel, (2) stage, (3) plunger homogenizer with working capacities of 14000 litres or 3696 GPH
Frain Industries | Carol Stream, IL
Category: Homogenizers
Seller: Frain Industries
Location: Carol Stream, IL
Mfr: Apv
Model: G110T-75P
APV Model G110T-75P, stainless steel, (2) stage, (3) plunger homogenizer with working capacities to 14,000 litres or 3,696 gallons per hour – depending on materials, application and machine configuration. Maximum operating pressure up to 210 bar or 2,000 psi. (3) poppet, aseptic design, mechanical hydraulic ...more
APV #G132, APV Gaulin G132 Ball Valve Homogenizer, 3846 GPH, 2900 psi, 2-3/4" plunger, 125/0.5/0.33 HP motors, 1998
Genemco | Hearne, TX
Category: Homogenizers
Seller: Genemco
Location: Hearne, TX
Mfr: Apv
Model: G132
Year: 1998
1998 APV Gaulin Homogenizer. Model: G132Q-3BX. Max capacity of 3846 GPH. Max Working Pressure: 2,900 PSIG. Pressure and flowrate can be modified/adjusted to suit your needs. Ball valves. 2-3/4 in. (70mm) plungers. Anderson controls. Marathon Electric motor: 125 HP, 1780 RPM, 460V, 146 A, 60 Hz, 3-phase. Lube pump ...more
APV Rannie #LAB, lab sanitary homogenizer, 52 GPH, 14500 psi, 2-stages
Genemco | Hearne, TX
Category: Homogenizers
Seller: Genemco
Location: Hearne, TX
Mfr: Apv
Model: LAB
APV Rannie Sanitary Homogenizer. Copenhagen-Denmark. S/N: 1-90 222. Model: LAB. Type: Type: 12.51H. Flowrate: 60-200 LPH (16-52 GPH). Max pressure: 1000 bar (14,500 PSI). Valve seats: ball. Number of pistons: 3. Two stage manual homogenizing valve. Toshiba motor: 10 HP, 220V/460V, 256T Frame, 3-phase. Weight: 1250 ...more
APV #LAB1000, 2-stage, homogenizer, 6 GPH, 12000 psi, digital pressure gauge
Frain Industries | Carol Stream, IL
Category: Homogenizers
Seller: Frain Industries
Location: Carol Stream, IL
Mfr: Apv
Model: LAB1000
APV, Model LAB 1000, two stage, homogenizer. Rated output capacity of 6 gallons per hour – depending on materials, application and machine configuration. Maximum operating pressure up to 12,000 psi. poppet cylinders and CD valve seat, manual homogenizing valve actuator assembly with a 5" diameter x 9" ...more
APV Gaulin #MS45-3TPS, homogenizer, 3630 GPH, 3000 psi, 100 HP, Fr.444T
Genemco | Hearne, TX
Category: Homogenizers
Seller: Genemco
Location: Hearne, TX
Mfr: Apv
Model: MS45-3TPS
APV Gaulin Homogenizer. Model: MS45-3TPS. S/N: 59211977. Min/Max Flowrate with 2.75 inch plungers: 1700 to 3630 GPH. Max pressure: 3,000 PSI. Motor: 100 HP, 1185 RPM, 460V, 122 amps, 3-phase, 60 Hz, Frame 444T. Tapered seat poppet valve cylinder. Plunger diameter: 2.75. Previously running at a Campbells Soup plant. ...more
