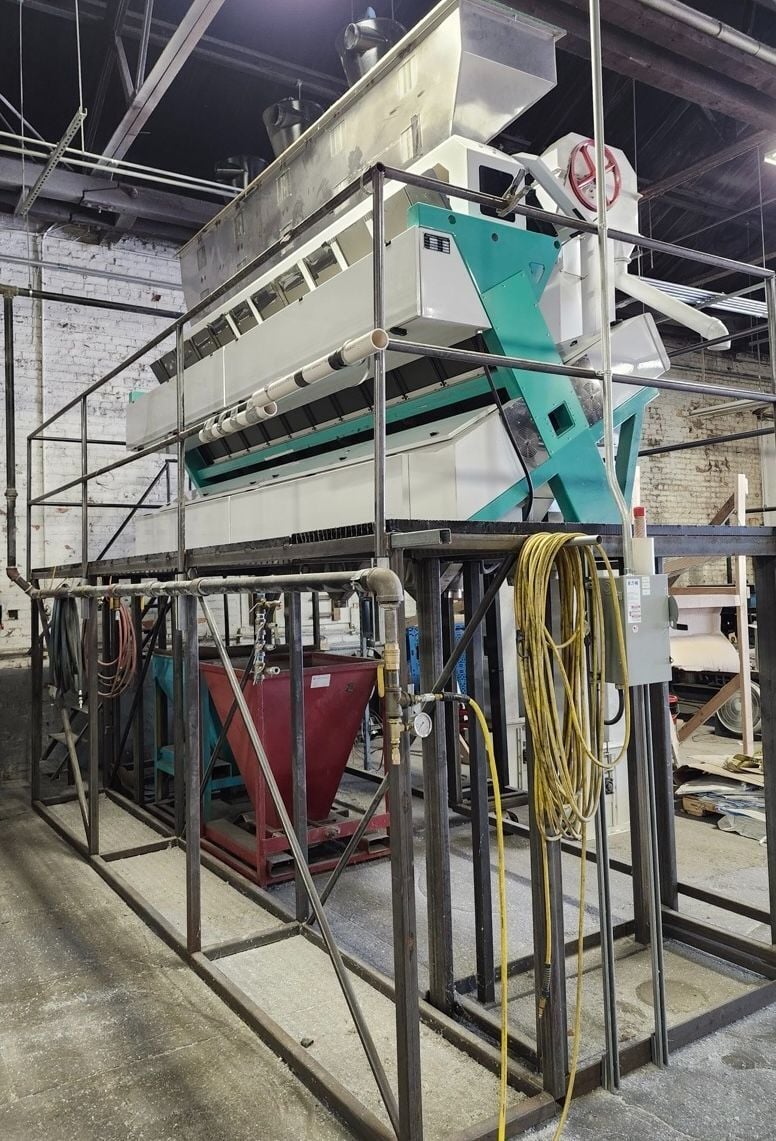

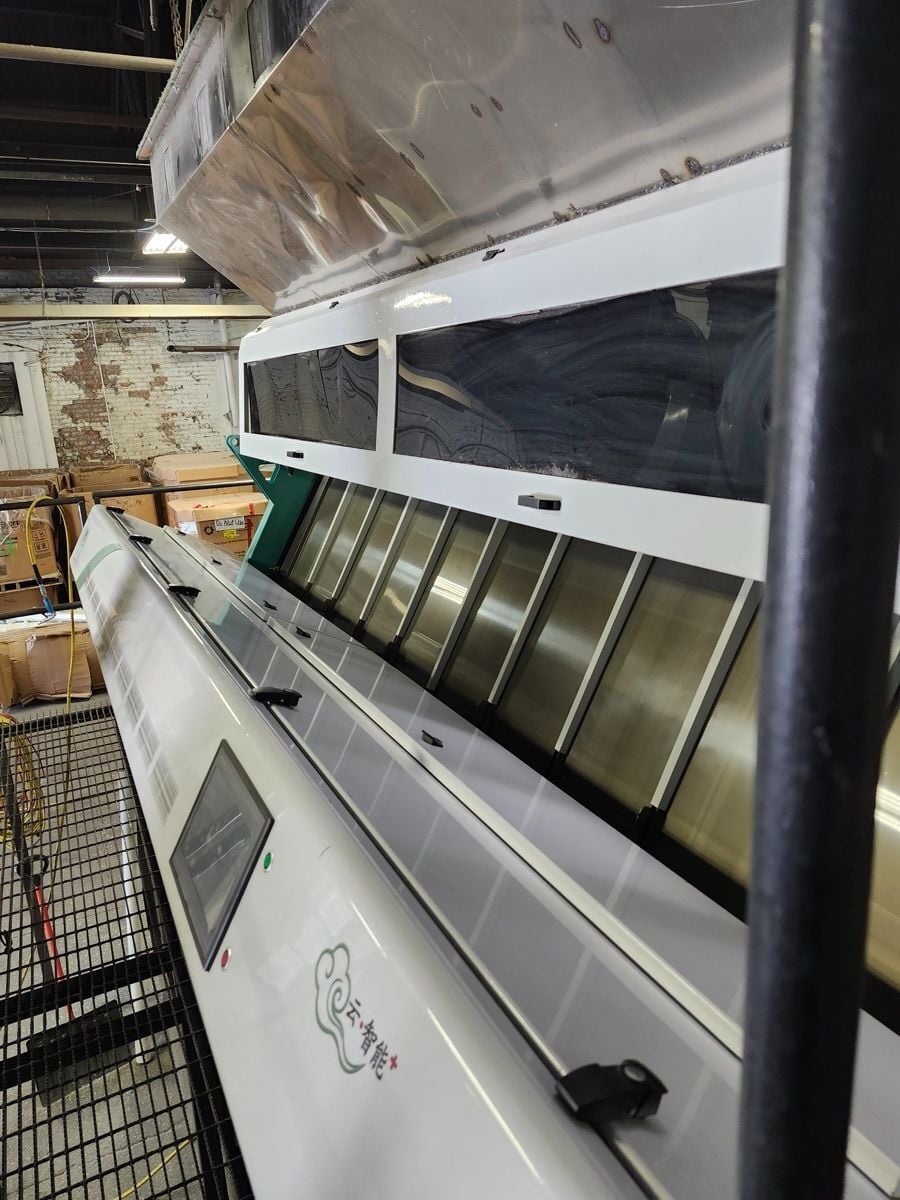

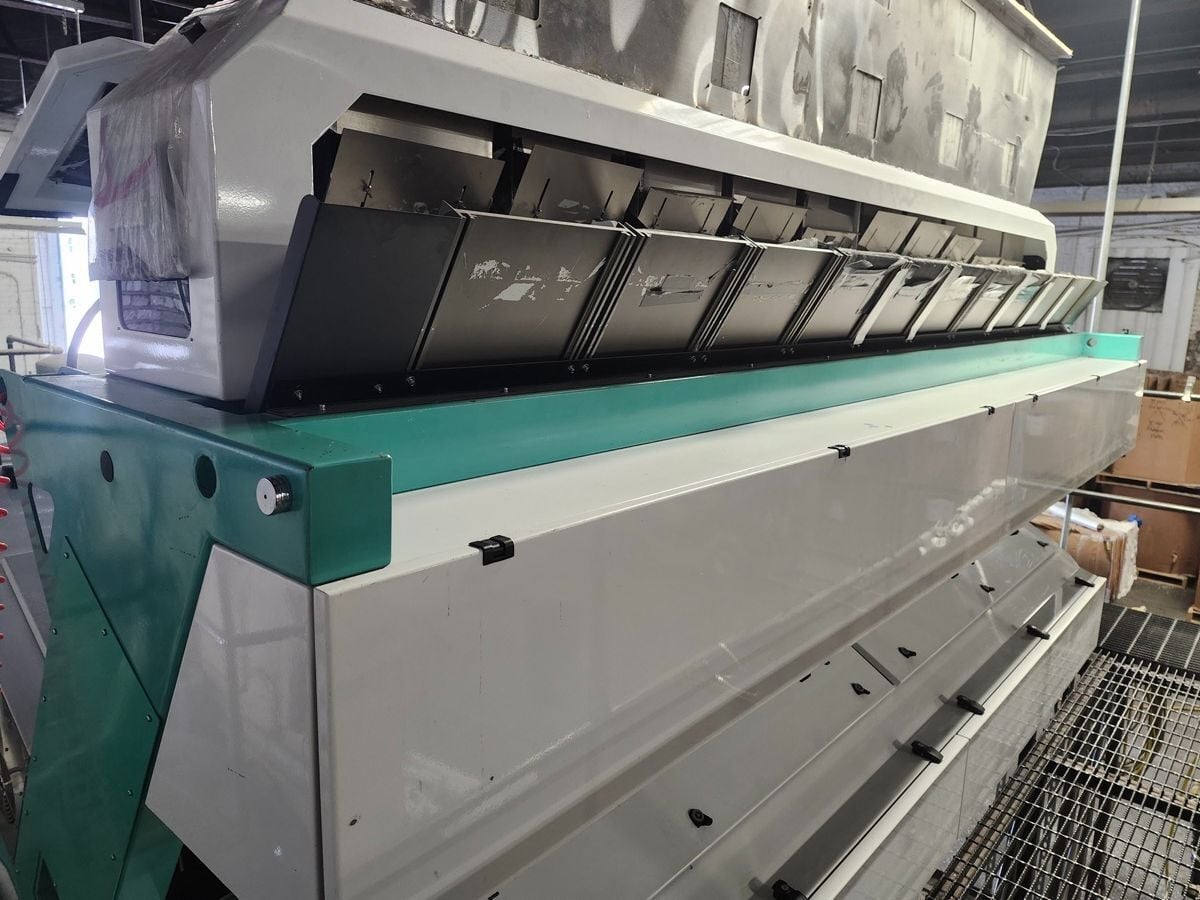

Anhui Wenyao, 10 chute optical sorter, designed for separating materials based on color & quality

The Anhui Wenyao 10-Chute Optical Sorter is a high-capacity, precision sorting machine designed for separating materials based on color and quality. Equipped with 10 sorting chutes, this unit provides consistent throughput while maintaining exceptional accuracy. Using advanced CCD camera technology and high-speed ejectors, the sorter detects and removes off-color or defective materials in real time.`
• Equipment:
• Manufacturer: Anhui Wenyao Intelligent Photoelectronic Technology Co., Ltd.
• Type: Optical Color Sorter
• Configuration: 10 Chutes (640 Channels)
• Condition: Used
• Capacity:
• Rice & Grains: 8–12 TPH (8,000–12,000 kg/hr)
• Plastics & Flakes: 3–5 TPH (3,000–5,000 kg/hr)
• Beans & Seeds: 5–8 TPH (5,000–8,000 kg/hr)
• Sorting Accuracy: Up To 99.99%
• Carryover Ratio: Greater Than 100:1
• Optical System:
• High-Speed 5,400-Pixel RGB CCD Line-Scan Cameras
• Dual-Vision Front & Rear Scanning
• Detection Resolution: Down To 0.04 mm²
• Intelligent Shadowless LED Cold Lighting
• Pneumatic Requirements:
• Working Air Pressure: 0.6–0.8 MPa (87–116 PSI)
• Air Consumption: 4.5–6.0 m³/Min (159–212 CFM)

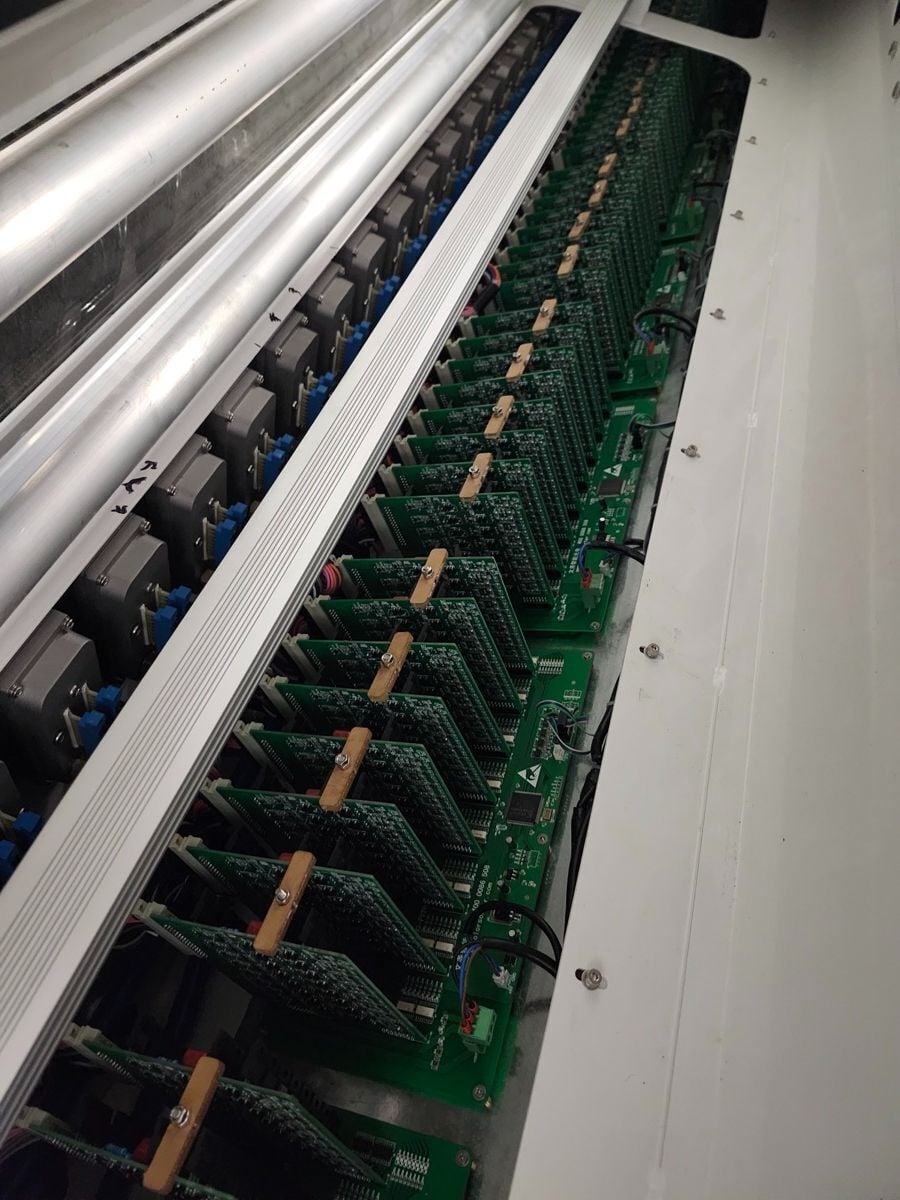

• Ejection System: 640 High-Speed Magnetic Levitation Solenoid Valves
• Electrical Requirements:
• Voltage: 220–380 VAC
• Phase: 3-Phase
• Frequency: 50/60 Hz
• Connected Load: 6.5–8.0 kW
• Dimensions:
• Length: 139.8 in. (3,550 mm)
• Width: 62.2 in. (1,580 mm)
• Height: 80.7 in. (2,050 mm)
• Weight: Approximately 3,527–3,968 lbs. (1,600–1,800 kg)
• Construction:
• Processing Core: FPGA Image Processor with Multi-Core DSP
• Operator Interface: 12 in. Industrial LCD Touchscreen
• Connectivity: Wi-Fi Remote Diagnostics (Model Dependent)
• Frame: Heavy-Duty Welded Steel Construction
• Typical Applications:
• Plastic Flake Sorting
• Rice & Grain Processing
• Coffee Bean Sorting
• Seed & Nut Processing
• PET & PP Recycling
• Food Processing
