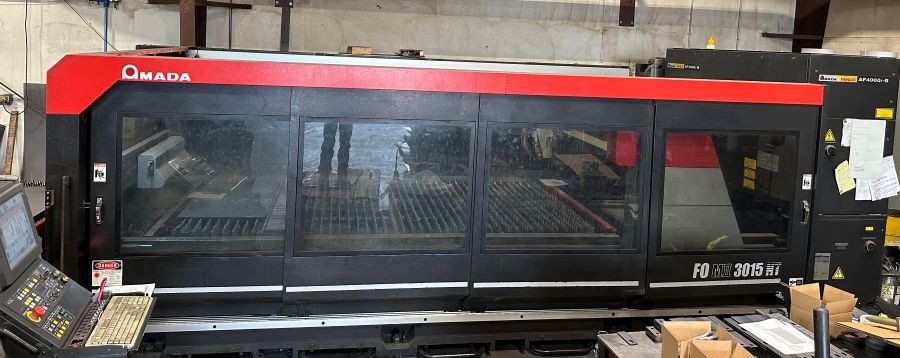

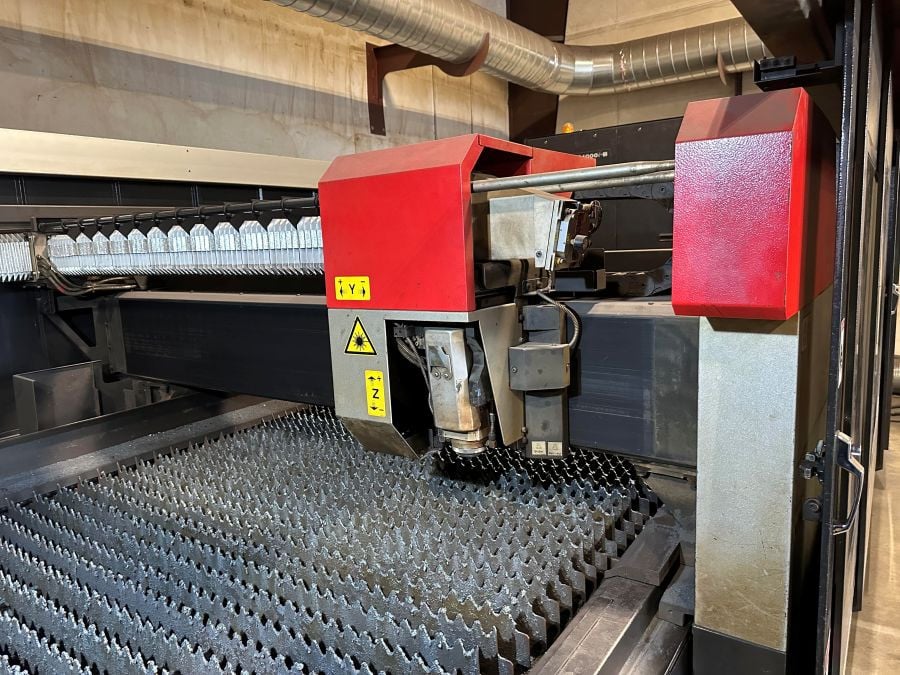

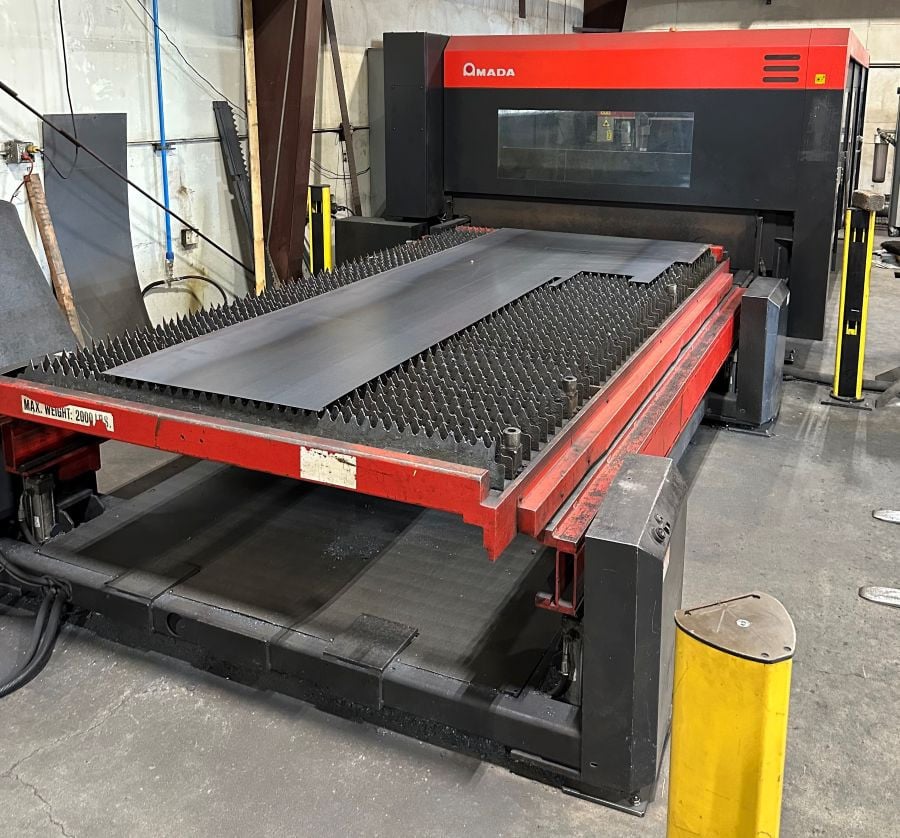

Amada #FOM2-3015NT, laser, 4000 watt, 5' x 10' sheet, 2012

Specifications
Travel Method: X & Y - Axis Beam Move
Drive method: X Rack & Pinion, Y & Z Ball Screw
Work Area
X= 121"
Y= 61"
Z= 7.87"
Maximum Thickness
7/8" Mild Steel
1/2" Stainless Steel
3/8" Aluminum
Maximum Work Weight: 2000 lbs
Rapid Traverse
X & Y: 3,150 inches per minute
Simultaneous: 4455 inches per minute
Z: 2,362 inches per minute
Repeatability: +/- 0.0002"
Z-Axis Sensor: HS-2007
CNC: AMNC PC-OS; windows embedded
Assist Gas Control: Automatic Select
Approximate Machine Weight: 34,216 lb. (includes shuttle tables)
Power requirements: 200/220V +/- 10% 50/60 Hz

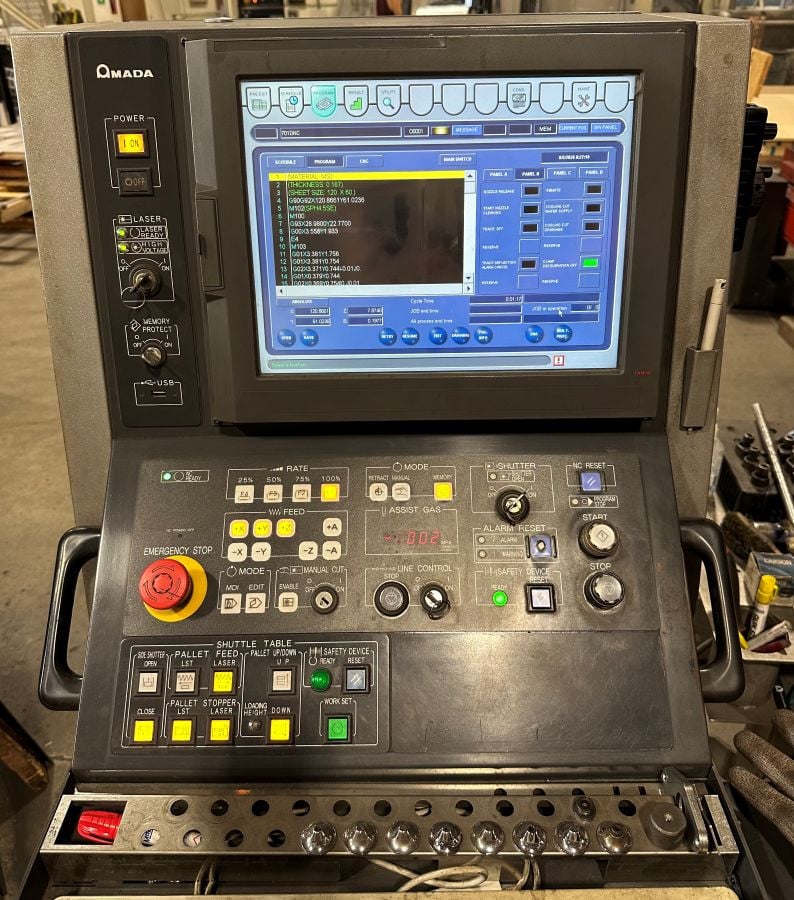

CNC Controller
Model: AMNC-NT
Display: LCD color graphics display
Control function
X,Y,Z-axis simultaneous and focus lens B-axis, adaptive optic and laser power control (CW, gated pulse, pierce routines, etc.)
Data input method: Touch screen, keyboard, ethernet, wireless, CD, USB, 3.5" floppy disk
Minimum command unit: 0.0001" (X,Y,Z)
Minimum travel unit: 0.0001" (X,Y,Z)
Standard memory: 2 MB
Hard drive: 10 GB
Operating modes: Automatic and manual
Display modes: Program contents, position information, program check, settings, parameters, beam diameter compensation, assist gas status, self-diagnostics
Interlock displays: Cooling water status, gas pressure status, vacuum status, turbo blower malfunction, shutter status beam power, resonator discharge, door open, WACS

Equipped with
Chiller

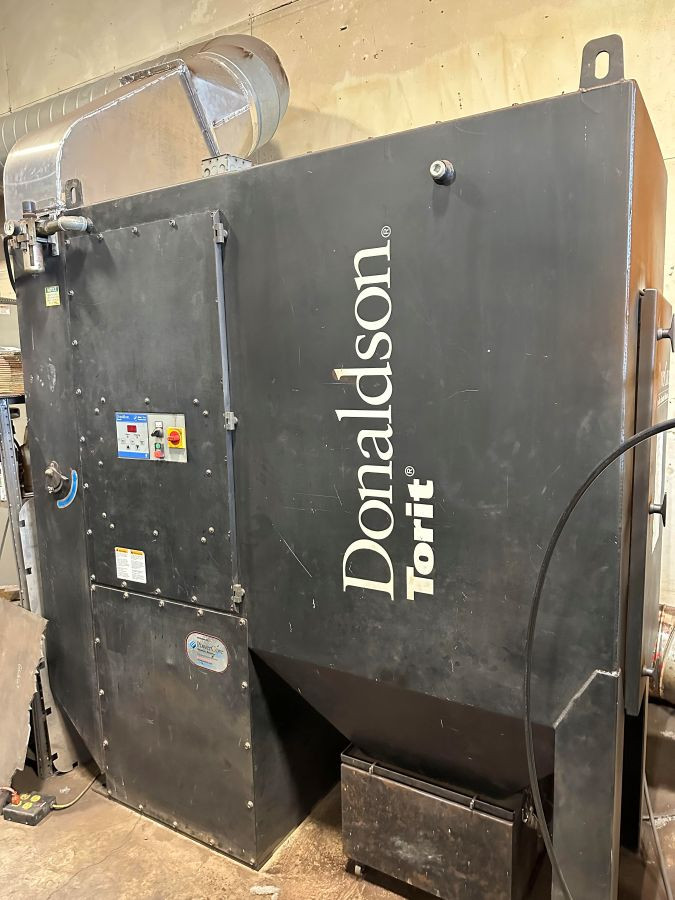

Dust Collector
