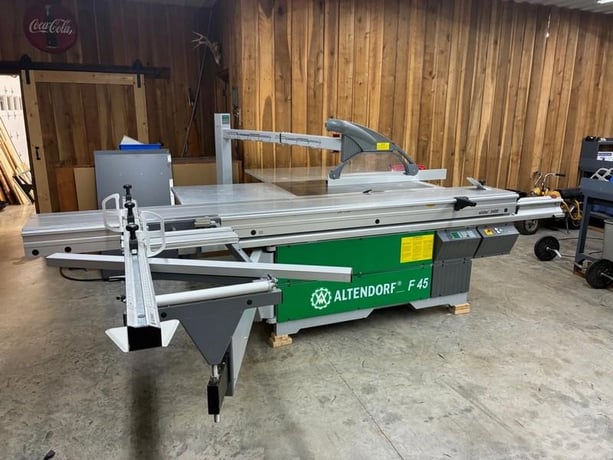

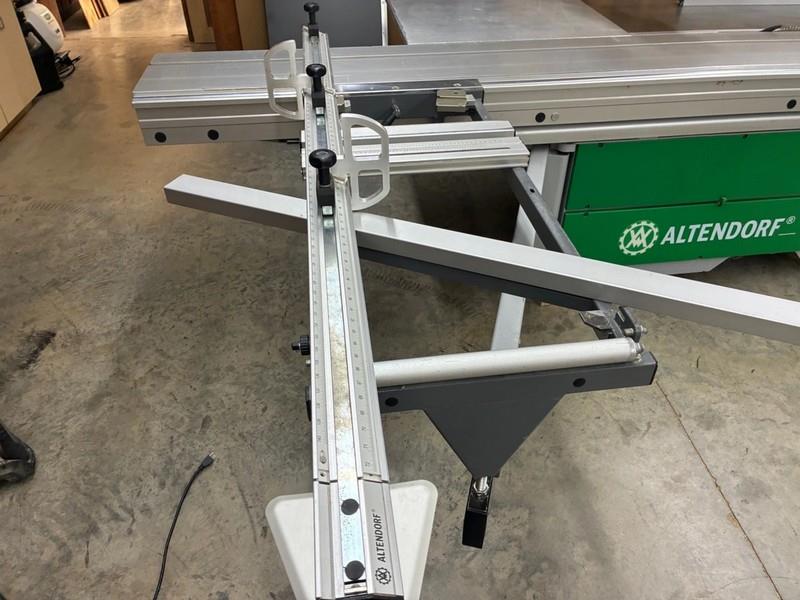

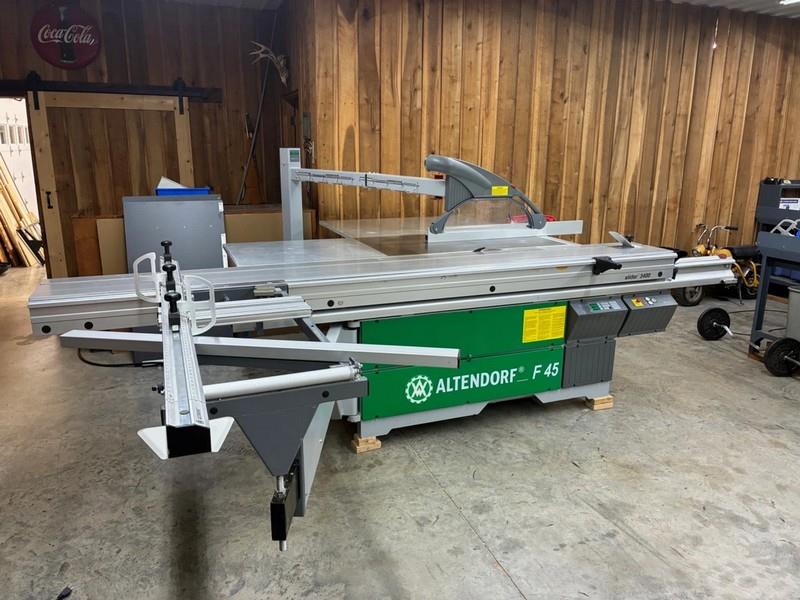

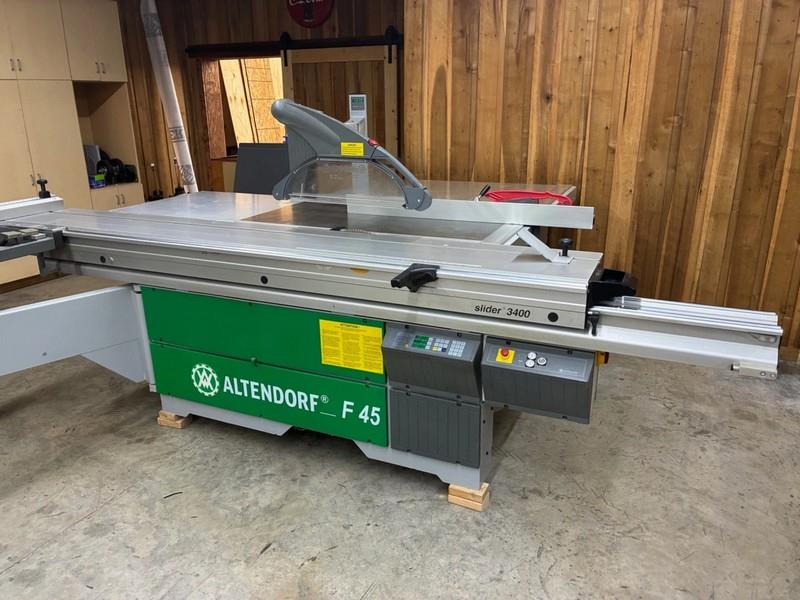

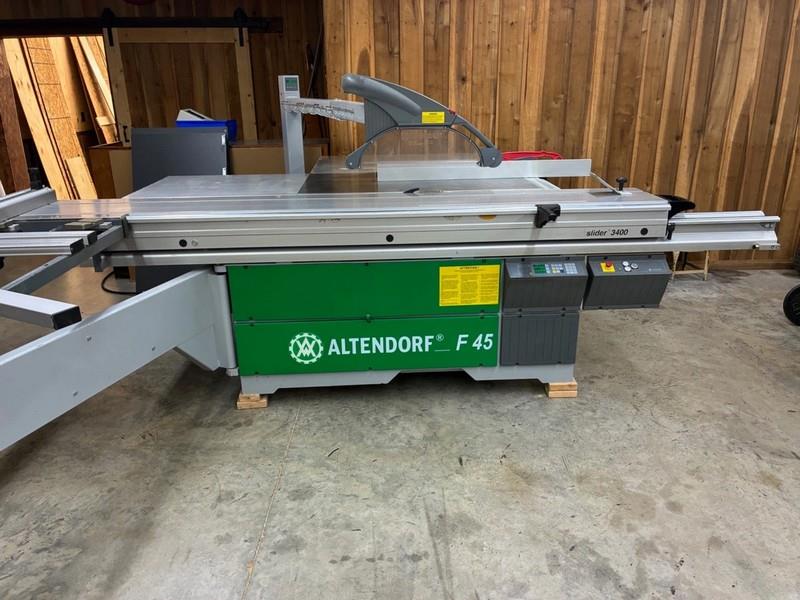

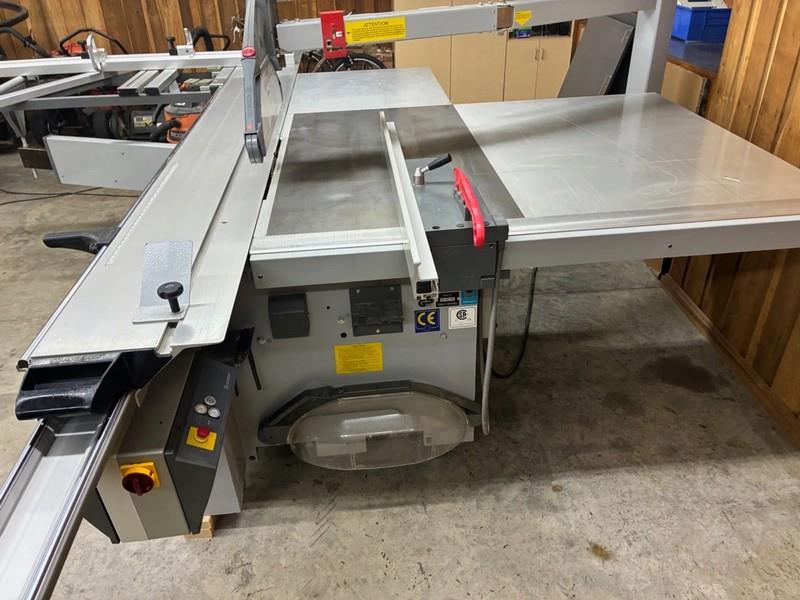

Altendorf #F45, sliding table panel saw, 134" sliding table, 130" cut length, 51" rip, 17.7" blade, 7.5 HP, 3000-5000 RPM, 2005

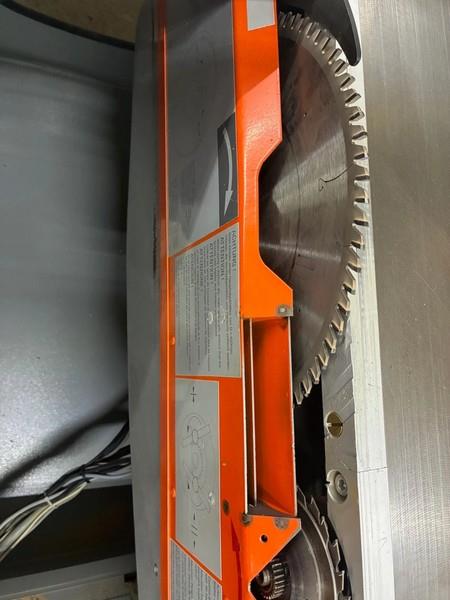

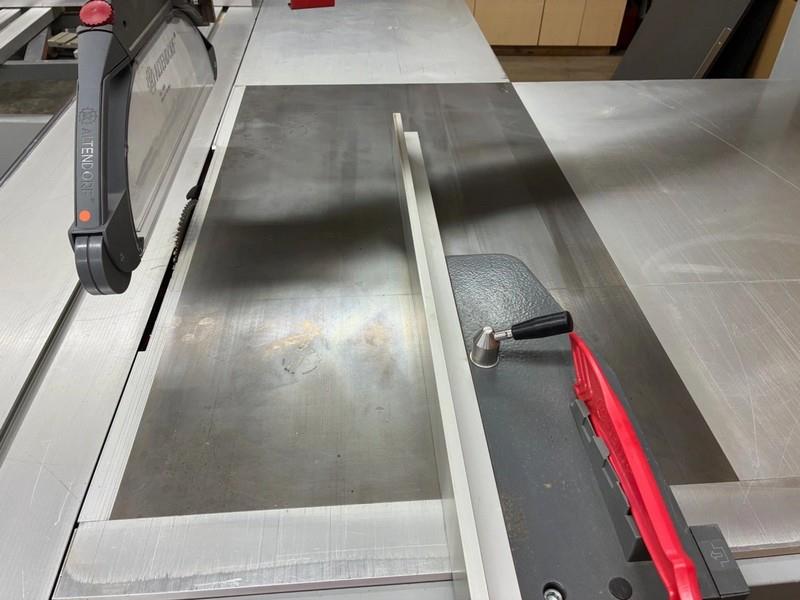

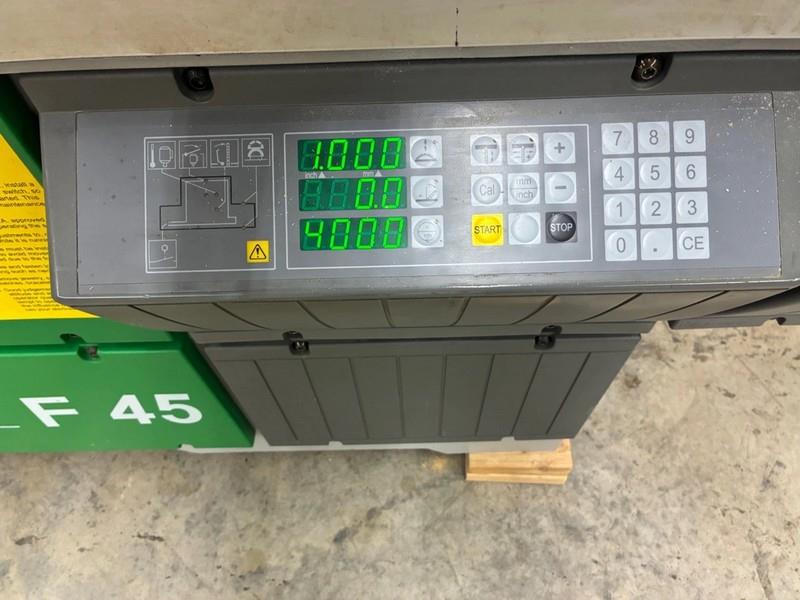

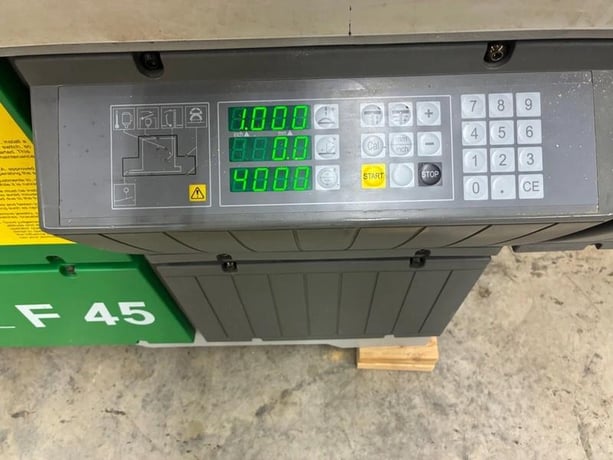

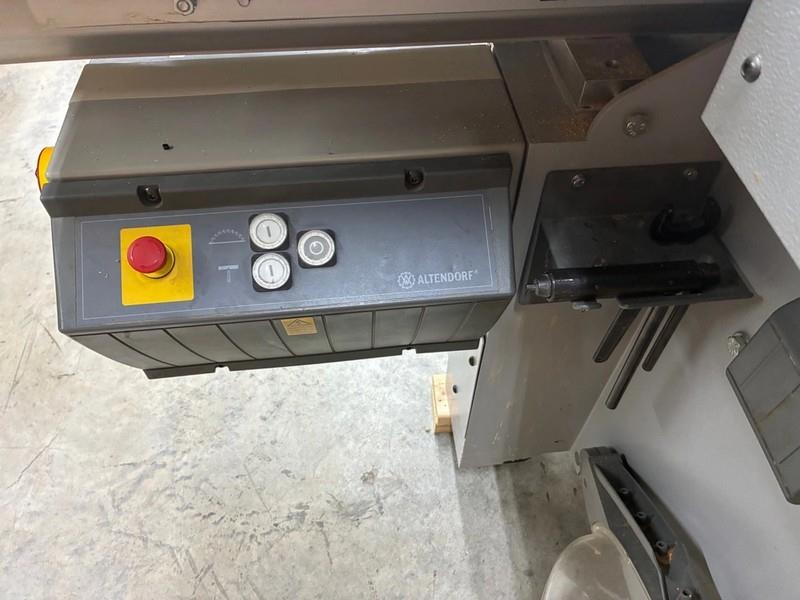

ALTENDORF F45 3400 Industrial Sliding Table Panel Saw with Programmable Blade Height, Blade Tilt, CNC Rip Fence Specifications: Sliding Table Length: 3400 mm (134") Maximum Cutting Length: 3300 mm (130") Rip Capacity: 1300 mm (51") Electrical: 220V / 440V 3 Phase 60 HzMachine Controls Knee-level operator control panel Powered blade height adjustment Powered blade tilt adjustment CNC programmable rip fence positioning Electronic machine controlsMain Saw Unit 5.5 kW (7.5 HP) high-torque motor Three spindle speeds: 3,000 / 4,000 / 5,000 RPM Powered blade height adjustment Powered blade tilt adjustment Blade tilt range: 0–46Main Saw Blade Maximum blade diameter: 450 mm (17.7") 30 mm arbor Maximum dado width: 20 mm (25/32") Three riving knives included for 300–450 mm bladesMaximum Cutting Capacity 154 mm (6") at 90 with 450 mm blade (scoring unit removed) 105 mm (4") at 45 with 450 mm blade (scoring unit removed) 130 mm (5.1") at 90 with 400 mm blade and scoring unit installed 81 mm (3.1") at 45 with 400 mm blade and scoring unit installedScoring Unit 0.75 kW (1 HP) scoring motor 8,200 RPM Motorized height adjustment Motorized lateral adjustment RAPIDO shimless scoring system LED scoring operation indicator 120 mm (4.7") scoring bladeSliding Table Precision 3400 mm (134") sliding table Maximum cutting length: 3300 mm (130") Infinite sliding table locking system Start/Stop controls located on both the control panel and sliding table Maximum supported workpiece weight: 250 kg (550 lbs.)Crosscut Fence Heavy-duty crosscut miter fence Maximum crosscut capacity: 3500 mm (137") with extension Miter angle range: 0–49 Two adjustable flip stops Integrated measuring scale with extension fenceRip Fence CNC programmable rip fence Rip capacity: 1300 mm (51") Digital position readout Traverse speed: 250 mm/sec (9.8"/sec) Positioning accuracy: ±0.1 mm (0.004")Machine Configuration CNC programmable rip fence Precision scoring saw Heavy-duty crosscut fence with two flip stops Overarm blade guard with integrated dust collection Industrial cast-iron machine constructionDust Collection Recommended airflow: Approximately 900 CFM Overarm guard dust port: 80 mm (3.15") Machine base dust port: 120 mm (4.75")Electrical Requirements 220V or 440V 3 Phase 60 Hz Full load current: 30 Amps @ 220V / 15 Amps @ 440V
