Allen-Bradley 20AD5P0A0AYNNNC0 Variable Frequency Drive 480V AC 3-Phase Untested Surplus 01428

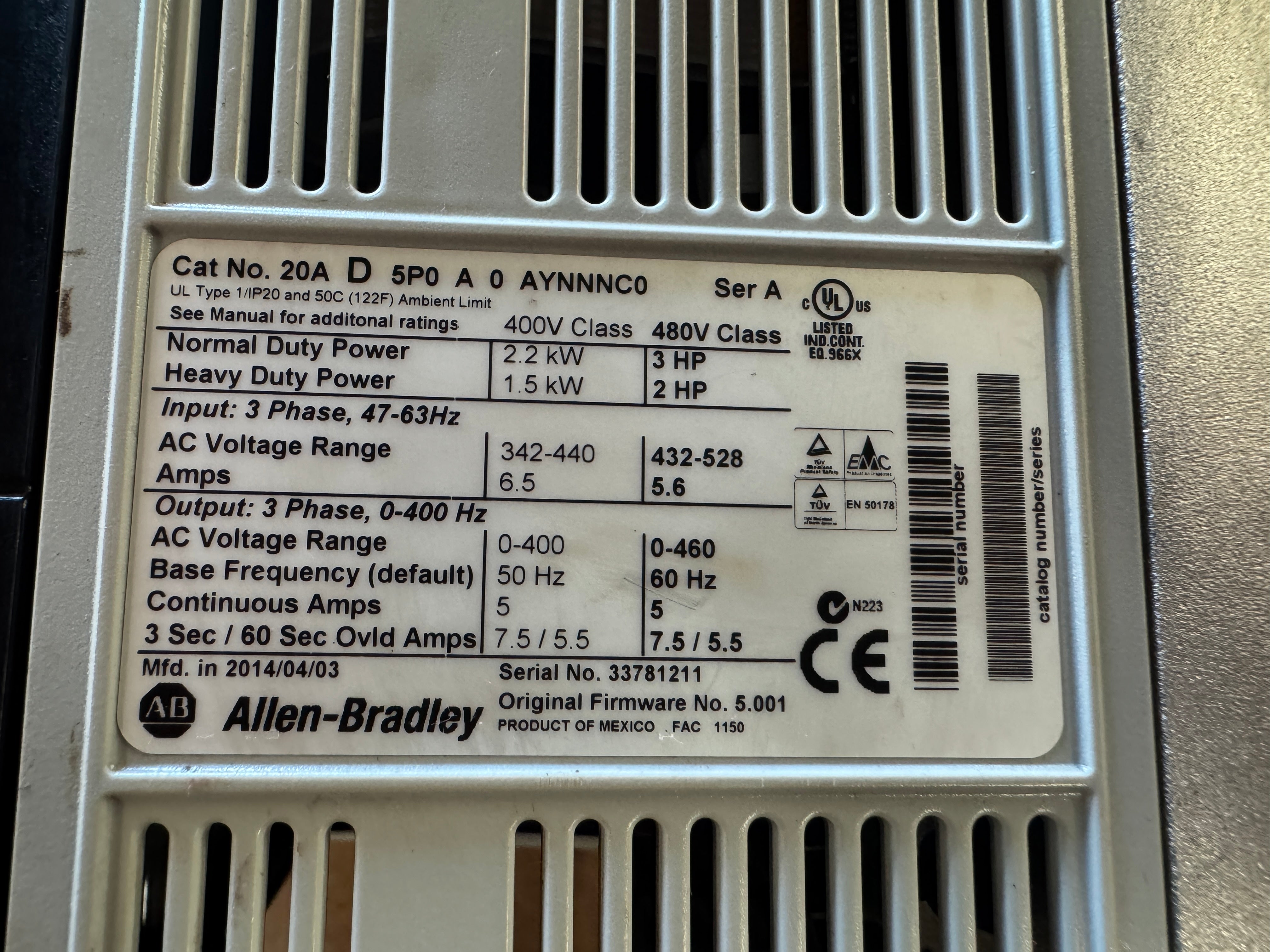

Product Specifications

• Manufacturer: Allen-Bradley
• MPN / Model: 20AD5P0A0AYNNNC0
• Product Type: AC Variable Frequency Drive
• Series: PowerFlex 70, Series A
• Input Voltage: 480V AC, 3-Phase
• Input Voltage Range: 432 to 528V AC
• Input Frequency: 47 to 63 Hz
• Input Amperage: 5.6A
• Output Voltage: 0 to 460V AC
• Output Frequency: 0 to 400 Hz
• Output Current: 5A Continuous
• Overload Current: 7.5A for 3 Seconds
• Normal Duty Power: 2.2 kW / 3 HP
• Heavy Duty Power: 1.5 kW / 2 HP
• Enclosure Rating: UL Type 1 / IP20
• Ambient Temperature Rating: 50 degrees C (122 degrees F)
• HIM: Full Numeric LCD with Keypad (SMART Interface)
• Control Type: Enhanced Control, No Feedback
• Firmware Version: 5.001
• Serial Number: 33781211
• Manufacture Date: April 2014

Product Description

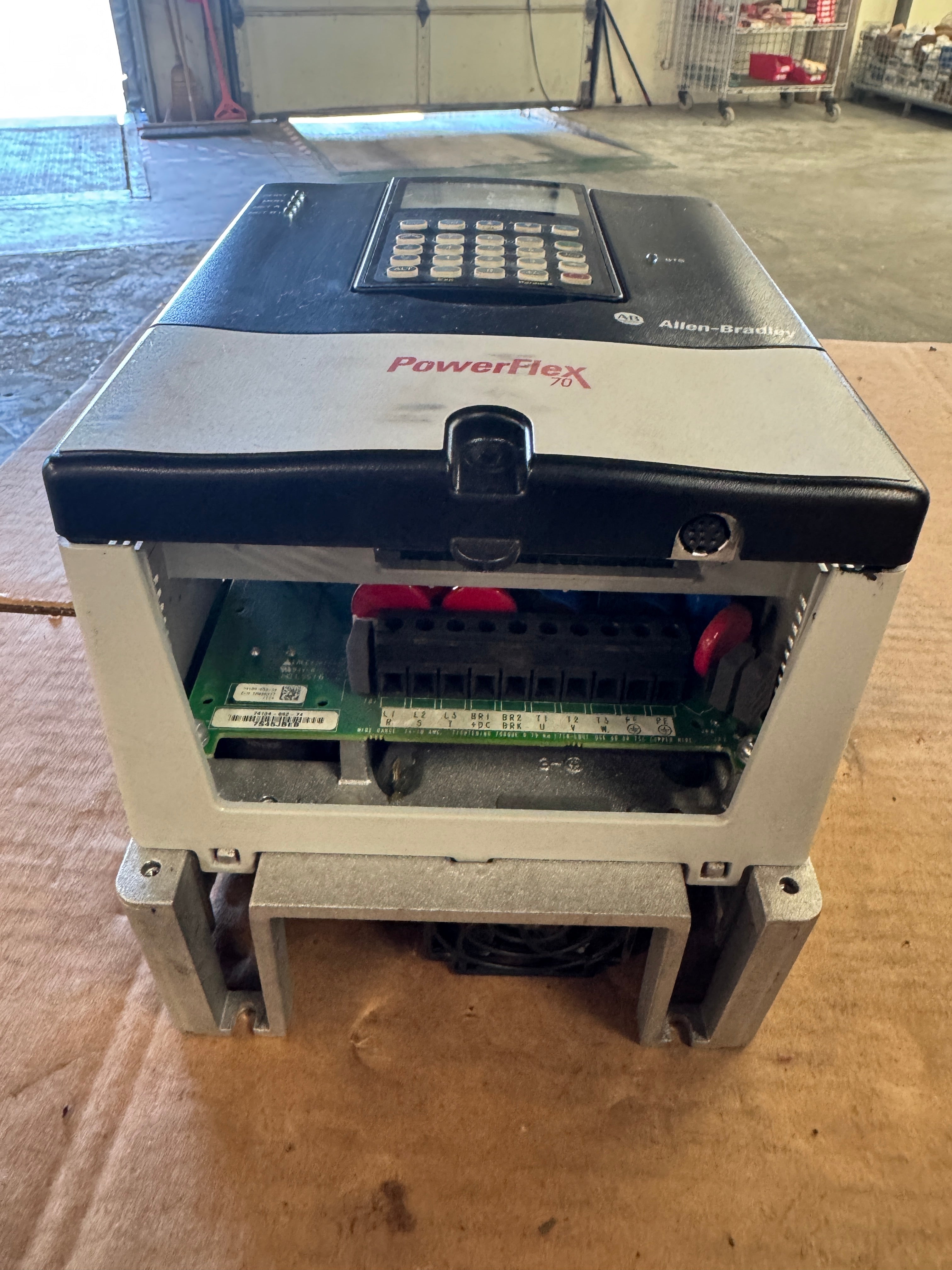

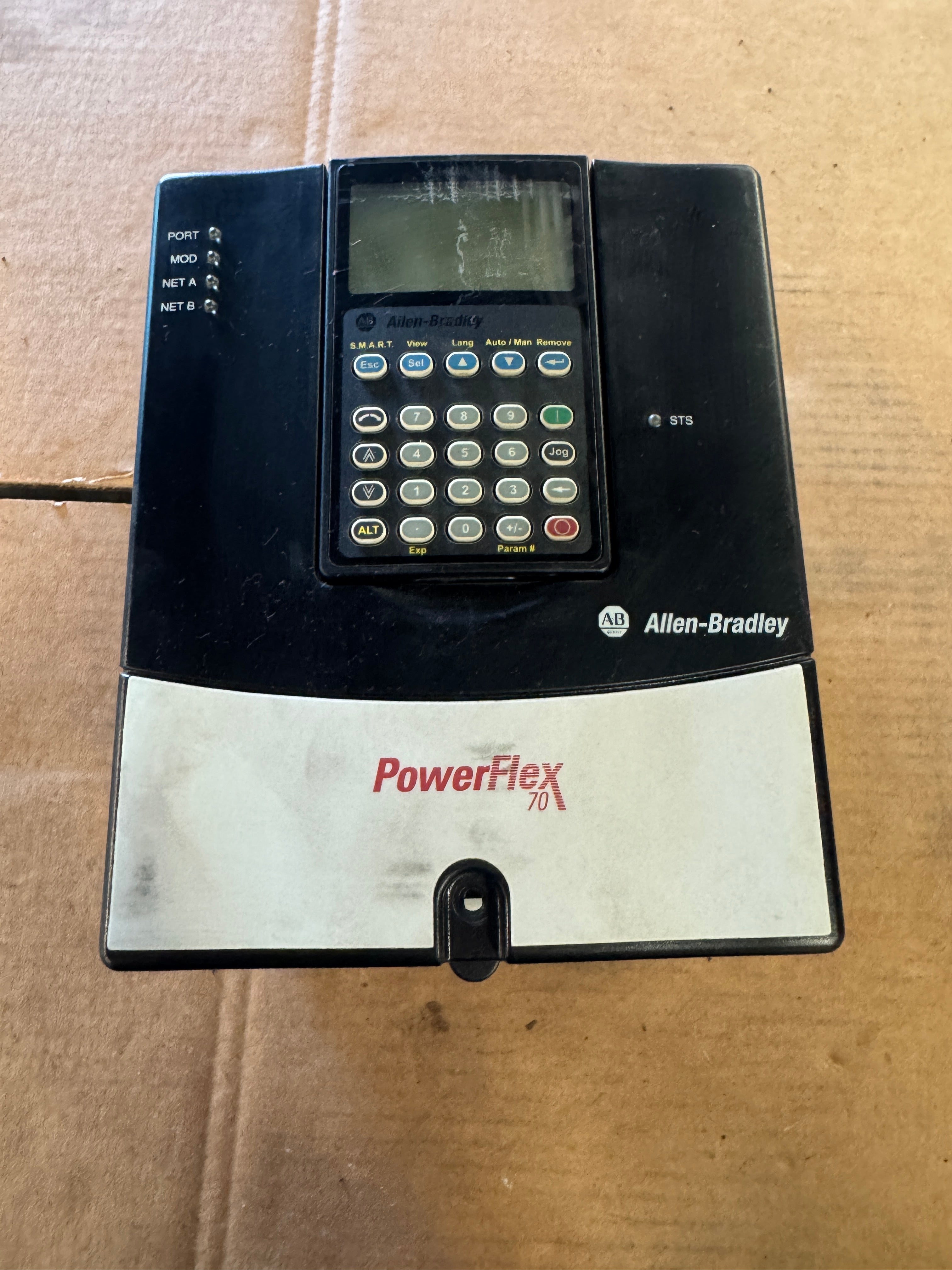

The Allen-Bradley PowerFlex 70, catalog number 20AD5P0A0AYNNNC0, Series A, is a panel-mount adjustable frequency AC drive rated for 480V three-phase input. This unit carries a Normal Duty rating of 3 HP (2.2 kW) and a Heavy Duty rating of 2 HP (1.5 kW). Input voltage range for the 480V class is 432 to 528V AC at 5.6 amps, with three-phase operation at 47 to 63 Hz. Output is three-phase, 0 to 460V AC, 0 to 400 Hz, with 5 continuous output amps and a 3-second overload capacity of 7.5 amps. Serial number 33781211, manufactured April 2014, original firmware version 5.001. The unit is equipped with a full-featured Enhanced Control board and includes an Allen-Bradley SMART operator interface panel with LCD display, S.M.A.R.T. navigation keys, numeric keypad, and Auto/Man and Jog functions. Status LED indicators for PORT, MOD, NET A, and NET B are present on the drive face. The UL Type 1 / IP20 enclosure is rated for 50 degrees C ambient.
