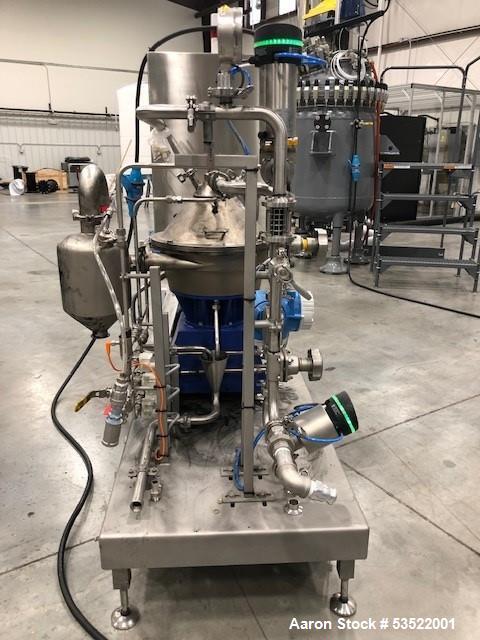

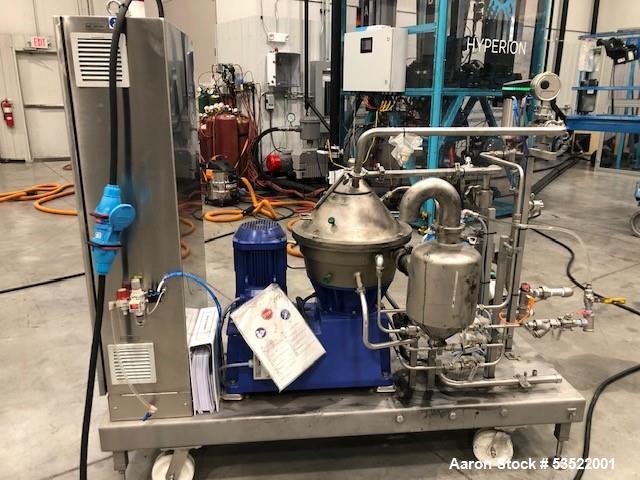

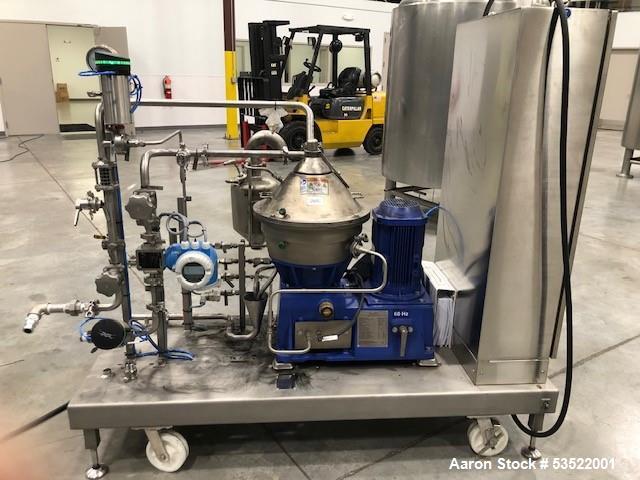

Alfa-Laval #LAPX-404SGP-31G/CG, Disc Centrifuge, Stainless Steel, 9600 RPM Bowl, 33 LPH solids capacity, 100 deg. C, 3.7 kW, 460 V, 2021

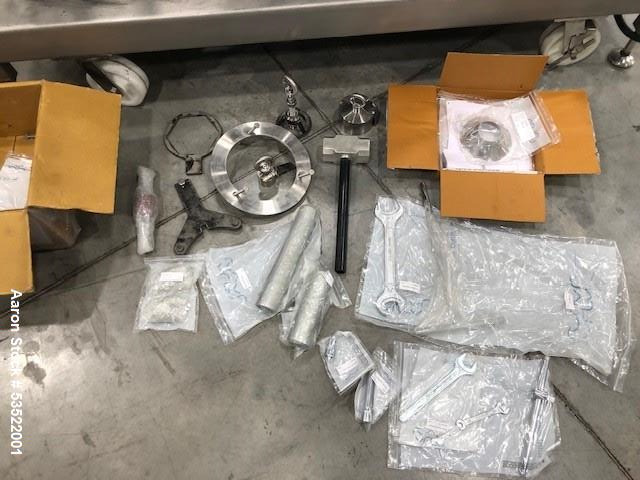

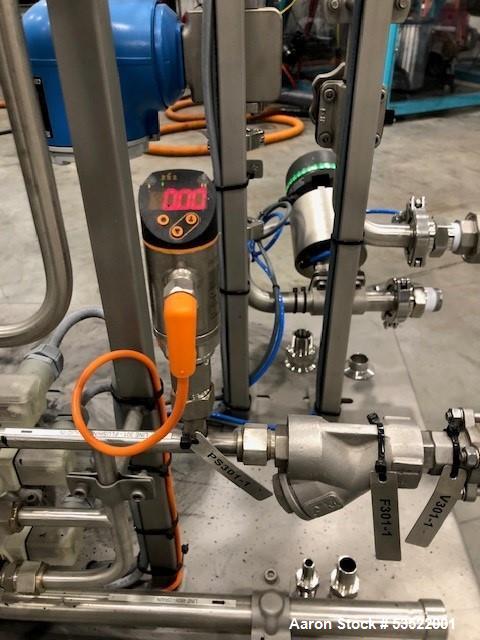

used alfa laval model lapx 404sgp-31g/cg disc stack clarifier centrifuge with 316 stainless steel product contact surfaces and 9,600 rpm maximum bowl speed, built 2021. designed for liquid-solid separation and clarification of compatible process liquids containing suspended particles. features a listed centrifugal force of 11,000 x g, rated liquid throughput of 4,000 liters per hour and maximum solids-handling capacity of 33 liters per hour, with actual processing capacity dependent on feed composition and separation requirements. the rotating disc stack provides separation surfaces that allow denser solids to collect at the bowl periphery while clarified liquid moves toward the center for discharge under pressure. equipped with a low-shear disc inlet designed to limit mechanical stress during feed acceleration. listed process temperature range is 0100 degrees c. driven by a 3.7 kw, approximately 5 hp motor rated at 3,600 rpm and requiring 460 volts, 3-phase, 60 hz electrical service. includes sludge tank, piping and tools. possible applications include pilot-scale fermentation broth clarification, cell and yeast separation, removal of suspended particles from protein-containing liquids, and clarification of compatible beverage and aqueous process streams.
