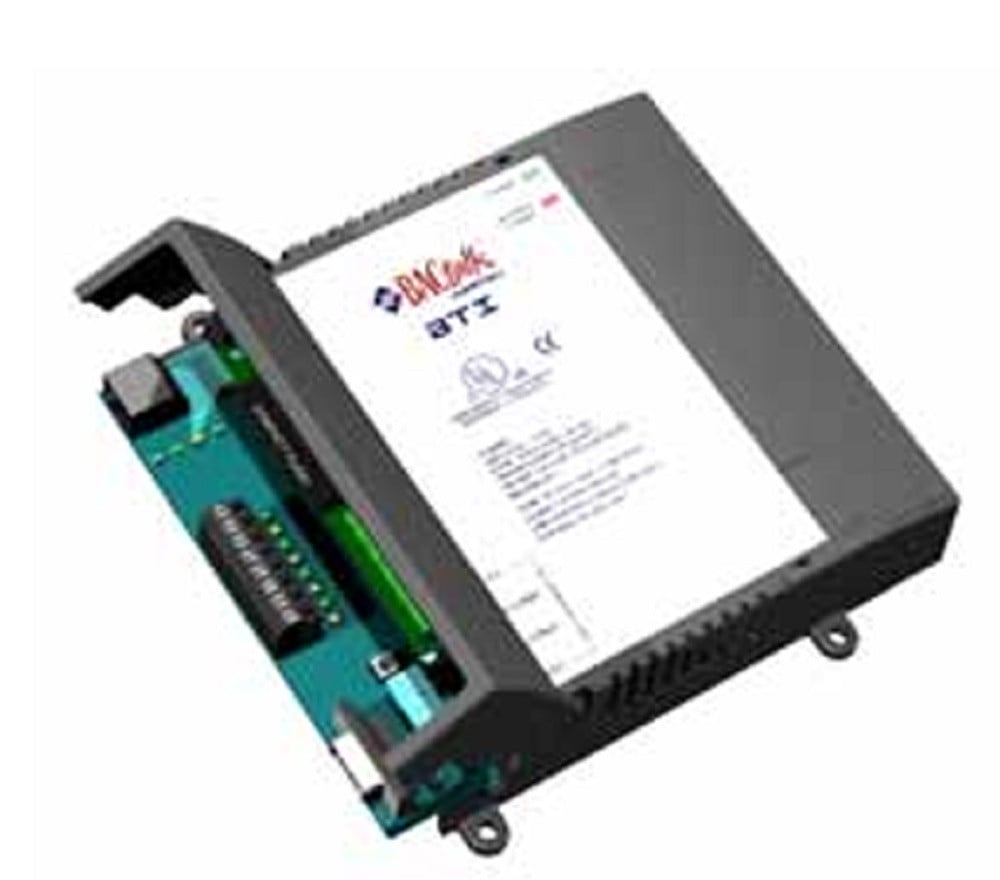

Alerton #BTI, BACtalk Integrator, BACnet-Compliant Global Controller, Refurbished

$1,205 USD

Request Formal Quote

. . . . . The BACtalk? Integrator (BTI) is the next-generation BACnet-compliant global control device from Alerton. BTIs can connect to a 10Base-T or 100Base-TX BACnet Ethernet network over unshielded twisted pair cable (UTP). BTIs support field controllers on 4 BACnet MS/ TP LANs, configurable up to 76.8 Kbps each. The BTI is IP capable for interoperability across campuses or continents. The BTI independently executes global control algorithms to orchestrate the operation of field controllers on its MS/TP LANs, accessing operational data from throughout the BACnet internetwork. DDC is programmed at a BACtalk operator terminal with Alertons easy-to-use, Windows-based graphical programming environment, VisualLogic?. Revolutionary features like drag-and-drop DDC edits, dynamic real-time data updates, and self-documentation save time and ease the setup process. In addition to executing DDC, the BTI also performs automated control functionsschedules, trendlogs, and alarmswhich are set up at a BACtalk operator terminal. For site monitoring and control system setup, technicians can use BACtalk operator terminals connected permanently or temporarily over Ethernet. For sites that require fully independent operation of the BTI or that call for roaming or remote access to data, the BTI offers an internal 33.6Kbps modem and a standard 9-pin RS-232 port to host direct serial-cable connections between 9.6 and 115.2Kbps. The BTI makes all its operational status and control data available as BACnet objects and properties, as well as data from controllers on its MS/TP LANs. This enables an unmatched level of interoperability with other site systems. A battery-backed, real-time clock, CPU watchdog, 6layer circuit design with separate ground plane, battery powered shutdown, 128K SRAM, CompactFlash, and a shock-resistent, flame-retardant case ensure the highest level of reliability available.. Alerton. Honeywell. BTI.
