Manufacturer: Akira Seiki
Model: AVEREX HS-450I
Year: 2012
Automatic Tool Changer: 80
Longitudinal" X: 25.2
Cross" Y: 24.0
Vertical" Z: 26.8
RPM: 15000
Stock # X3X4401
Click to zoom in
For Sale by Toolquip Inc
Surplus Record Dealer Since 2025
Location: Lebanon, OH
Contact Daniela Weaver
Phone Number: 513...> Show Phone Number 513-450-6223
Let the seller know you found their listing on Surplus Record!
Description

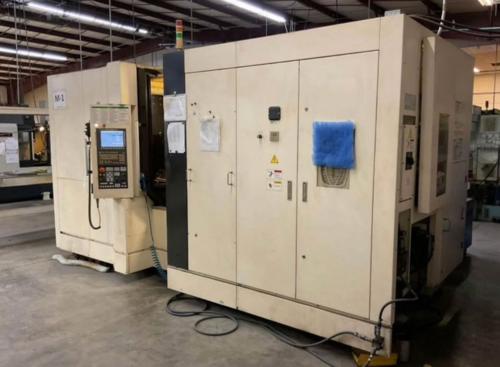

Used Horizontal Machining Center, 25" X, 24" Y, 26.8" Z, 30 hp, 4-axis, 15,000 RPM, CAT 40 taper, equipped with 2 tombstones, AVEREX-FANUC MPRO controller.
TRAVEL:
X-Y-Z AXIS 25.2 INCH / 24.0 INCH / 26.8 INCH
SPINDLE CENTER TO PALLET SURFACE 2.0 INCH - 26.0 INCH
SPINDLE NOSE TO PALLET CENTER 3.9 INCH - 30.7 INCH
PALLET TOP HEIGHT (FROM THE FLOOR) 43.3 INCH
TABLE:
TABLE SIZE (2 PALLETS) 15.7 INCH X 15.7 INCH
WORKPIECE MAX. SIZE 29.5 INCH X 39.4 INCH
MAX. PAYLOAD 1,100 LBS
CONFIGURATION M16X25LP - 3.1 INCH
MIN. INDEXING DEGREE 0.001
INDEXING SPEED 1.1 SEC / 90 DEG.
PALLET CLAMPING SYSTEM MECHANICAL LOCK
PALLET CLAMPING FORCE 2,203 LBS X 4 CONES
B-AXIS CLAMPING TORQUE 2,582 LB-FT
SPINDLE:
SPINDLE SPEED 40 - 15,000 RPM
SPINDLE RATED TORQUE 147 LB-FT (2 MIN)
110 LB-FT (15 MIN)
SPINDLE ACCELERATION/DECELERATION 3.2 SEC. (0-15K RPM)
SPINDLE TAPER NO. 40
THROUGH SPINDLE COOLANT 285 PSI
FEED:
RAPID FEED (X/Y/Z) 2,362 IPM
CUTTING FEED (X/Y/Z) 787.4 IPM
TABLE ROTATING SPEED 33.3 RPM
GUIDE WAYS (X/Y/Z) ROLLER WAYS
ACCELERATION (X/Y/Z) 1+G
BALLSCREWS SIZE 1.5747 INCH
TYPE OF TOOL SHANK CAT 40
TYPE OF PULL-STUD CAT 40 JIS (OPTIONAL)
NUMBER OF TOOLS 80
MAX. TOOL DIAMETER 3.7 INCH / 7.2 INCH
ADJACENT POTS FULL/EMPTY
MAX. TOOL LENGTH 15.7 INCH
MAX. TOOL WEIGHT 17.6 LB
TOOL SELECTION SYSTEM RANDOM/FIXED
APC:
NUMBER OF PALLETS 2, OPTIONAL 6
PALLET CHANGE SYSTEM ROTATION
APC EXCHANGE TIME 7 SEC.
MOTOR:
SPINDLE MOTOR 30/20 HP
FEED AXES MOTORS (X/Y/Z/B) 6.0/6.0/6.0/3.6 HP
LUBRICATION PUMP MOTOR 0.024 HP
SPINDLE COOLANT PUMP 1.7 HP
CHIPS FLUSH (BASE) COOLANT PUMP 2.1 HP
THROUGH SPINDLE COOLANT PUMP 1.0 HP
OVERHEAD SHOWER FLUSH COOLANT PUMP 0.8 HP
HYDRAULIC PUMP 3.0 HP
SUPPLY:
ELECTRIC VOLTAGE 200-230 VOLT
ELECTRIC POWER SUPPLY 50/55 KVA
AIR PRESSURE 72.5 PSI
AIR VOLUME 132 GAL/MIN
TANK:
HYDRAULIC UNIT TANK 15.9 GAL
COOLANT TANK 145.3 GAL
LUBRICATION UNIT TANK 0.47 GAL
MACHINE DIMENSIONS:
190.6 INCH X 104.9 INCH X 101.2 INCH H
MACHINE WEIGHT (APPROX):
25,619 LBS.
TRAVEL:
X-Y-Z AXIS 25.2 INCH / 24.0 INCH / 26.8 INCH
SPINDLE CENTER TO PALLET SURFACE 2.0 INCH - 26.0 INCH
SPINDLE NOSE TO PALLET CENTER 3.9 INCH - 30.7 INCH
PALLET TOP HEIGHT (FROM THE FLOOR) 43.3 INCH
TABLE:
TABLE SIZE (2 PALLETS) 15.7 INCH X 15.7 INCH
WORKPIECE MAX. SIZE 29.5 INCH X 39.4 INCH
MAX. PAYLOAD 1,100 LBS
CONFIGURATION M16X25LP - 3.1 INCH
MIN. INDEXING DEGREE 0.001
INDEXING SPEED 1.1 SEC / 90 DEG.
PALLET CLAMPING SYSTEM MECHANICAL LOCK
PALLET CLAMPING FORCE 2,203 LBS X 4 CONES
B-AXIS CLAMPING TORQUE 2,582 LB-FT
SPINDLE:
SPINDLE SPEED 40 - 15,000 RPM
SPINDLE RATED TORQUE 147 LB-FT (2 MIN)
110 LB-FT (15 MIN)
SPINDLE ACCELERATION/DECELERATION 3.2 SEC. (0-15K RPM)
SPINDLE TAPER NO. 40
THROUGH SPINDLE COOLANT 285 PSI
FEED:
RAPID FEED (X/Y/Z) 2,362 IPM
CUTTING FEED (X/Y/Z) 787.4 IPM
TABLE ROTATING SPEED 33.3 RPM
GUIDE WAYS (X/Y/Z) ROLLER WAYS
ACCELERATION (X/Y/Z) 1+G
BALLSCREWS SIZE 1.5747 INCH
TYPE OF TOOL SHANK CAT 40
TYPE OF PULL-STUD CAT 40 JIS (OPTIONAL)
NUMBER OF TOOLS 80
MAX. TOOL DIAMETER 3.7 INCH / 7.2 INCH
ADJACENT POTS FULL/EMPTY
MAX. TOOL LENGTH 15.7 INCH
MAX. TOOL WEIGHT 17.6 LB
TOOL SELECTION SYSTEM RANDOM/FIXED
APC:
NUMBER OF PALLETS 2, OPTIONAL 6
PALLET CHANGE SYSTEM ROTATION
APC EXCHANGE TIME 7 SEC.
MOTOR:
SPINDLE MOTOR 30/20 HP
FEED AXES MOTORS (X/Y/Z/B) 6.0/6.0/6.0/3.6 HP
LUBRICATION PUMP MOTOR 0.024 HP
SPINDLE COOLANT PUMP 1.7 HP
CHIPS FLUSH (BASE) COOLANT PUMP 2.1 HP
THROUGH SPINDLE COOLANT PUMP 1.0 HP
OVERHEAD SHOWER FLUSH COOLANT PUMP 0.8 HP
HYDRAULIC PUMP 3.0 HP
SUPPLY:
ELECTRIC VOLTAGE 200-230 VOLT
ELECTRIC POWER SUPPLY 50/55 KVA
AIR PRESSURE 72.5 PSI
AIR VOLUME 132 GAL/MIN
TANK:
HYDRAULIC UNIT TANK 15.9 GAL
COOLANT TANK 145.3 GAL
LUBRICATION UNIT TANK 0.47 GAL
MACHINE DIMENSIONS:
190.6 INCH X 104.9 INCH X 101.2 INCH H
MACHINE WEIGHT (APPROX):
25,619 LBS.
Get Your Price from Toolquip Inc!
Buyers Who Viewed This Listing Also Viewed:
JUST ADDED!
Mazak #PFH-4800, horizontal machining center, 80 automatic tool changer, 22.1" X, 24.8" Y, 23.6" Z, 18,000 RPM, CAT 40, 30/40 HP, Mazatrol Fusion 640M Control, Chip Conv., 2005
Category: Horizontal CNC Machining Centers
Seller: Revelation Machinery
Location: Chicago, IL
Mfr: Mazak
Model: PFH-4800
Year: 2005
Make: Mazak, Model: PFH-4800, Year: 2005, Machine Location: Upon Request, Pallet Size: 15.75″ x 15.75″ (400 x 400 mm), Number of Pallets: 2, X-Axis Travel: 22.05″ (560 mm), Y-Axis Travel: 24.80″ (630 mm), Z-Axis Travel: 23.62″ (600 mm), Maximum Workpiece Weight: 880 lbs. (400 kg), Maximum ...more
JUST ADDED!

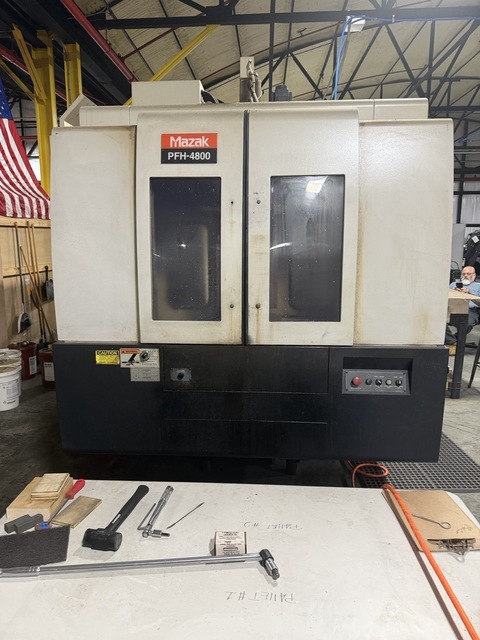

Mazak #PFH-4800, Horizontal Machining Center, 22" X, 24.8" Y, 23.6" Z, 15.75" x 15.75" pallet, 30/40 HP, 18000 RPM, CAT 40, 80 automatic tool changer, 2005
