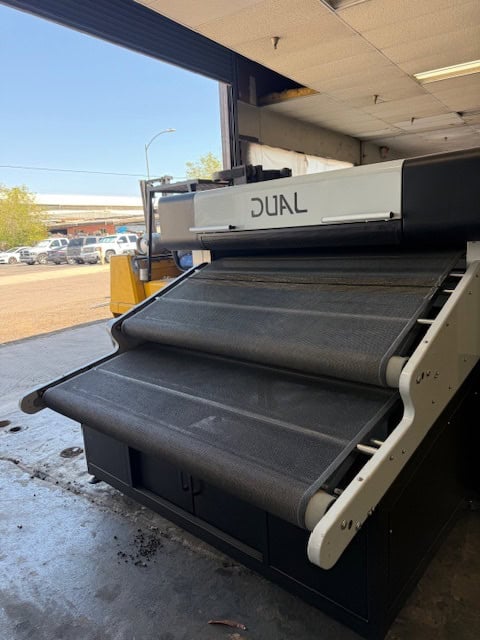

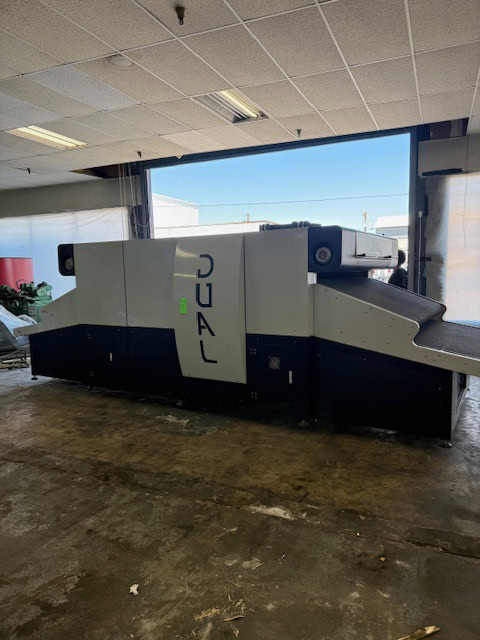

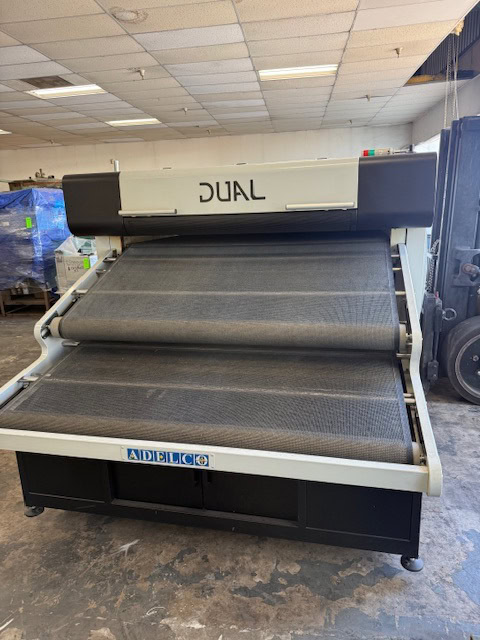

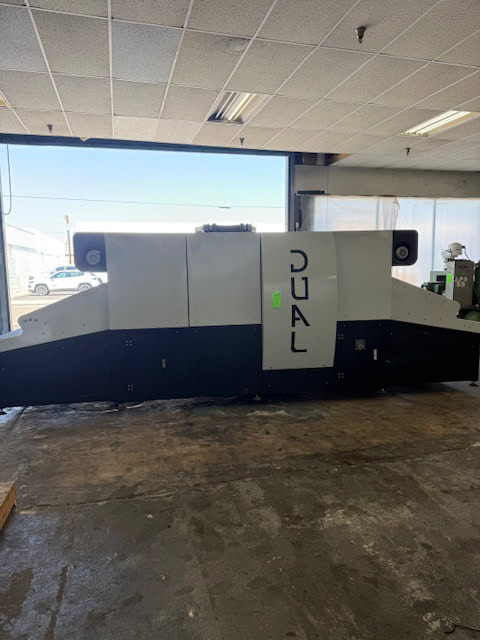

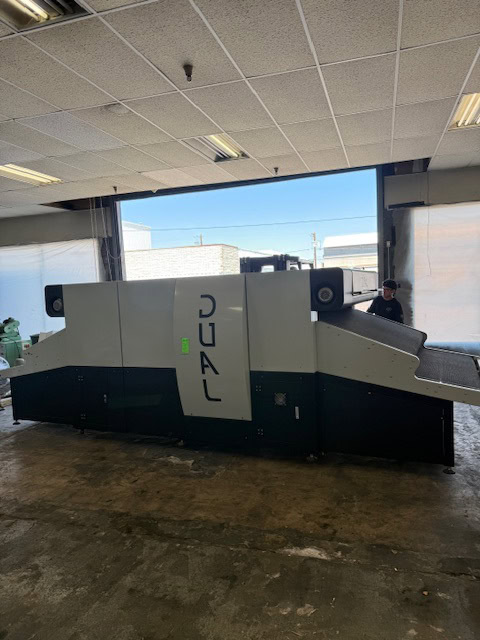

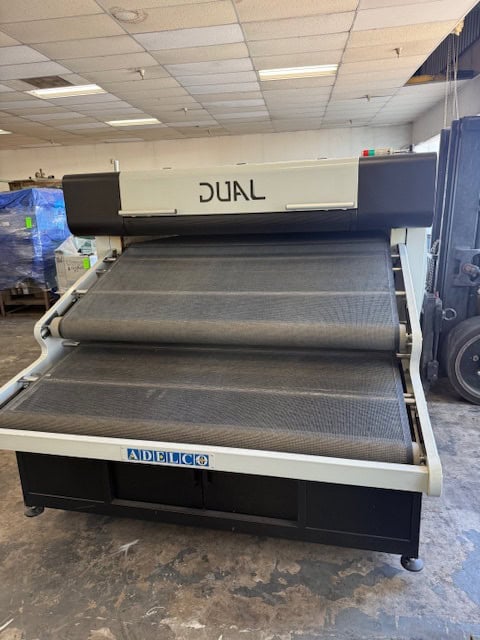

Adelco #DL180G-3, Dual Gas-fired Textile Dryer, 6000 CFM, 2022

The 2022 Adelco DL180G-3 Dual Gas-Fired Dryer is a high-capacity textile curing system featuring two independently controlled 72″ conveyor belts and two-level oven chambers, providing the capability of curing both digital and screen-printed garments simultaneously. Each level is equipped with its own 225,000 BTU gas burner, temperature and airflow controls, while the dual-deck design delivers high production capacity in a compact footprint

Type: Dual Gas-Fired Conveyor Dryer
Conveyor Configuration: Two Independently Controlled Conveyor Belts
Belt Width: 72″
Oven Configuration: Two-Level Ovens
Cure Length: 10′ per level
Infeed Length: 5′ per level
Outfeed Length: 5′ per level
Total Dryer Footprint Length: Approximately 20′
Burners: (2) Independent Gas Burners
Burner Capacity: 225,000 BTU per level
Maximum Gas Consumption: 450,000 BTU/hr
Temperature Control: Independent Temperature Control for Each Level
Airflow: Independent Airflow Control for Each Level
Maximum Airflow: 6,000 CFM
Control Panel: 15″ HDMI Touchscreen
Belt Speed Display: Digital
Electrical Supply: 3 Phase, 220V / 380V / 415V
Maximum Electrical Consumption: 7 kW
Natural Gas Pressure: 10″ W.G. / 25 mbar per supply
Natural Gas Connection: 3/4″ BSP per supply
Propane Gas Pressure: Line pressure reduced to 37 mbar per supply
Propane Gas Connection: 1/4″ BSP per supply
Exhaust: Built-In Infeed and Outfeed Exhaust System
Exhaust Diameter: 12″
Warm-Up Time: Approximately 15 minutes from ambient to 320°F
Applications: Screen Printing and Digital Textile Printing
