ABB Solid State Drive Contactor EHDB 360 Amp

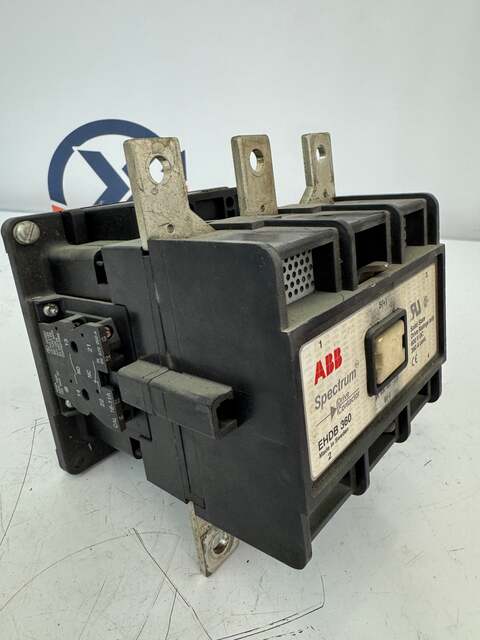

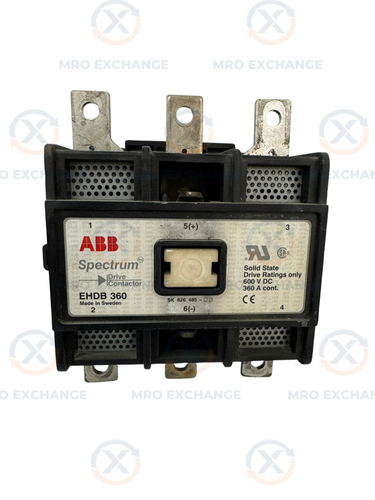

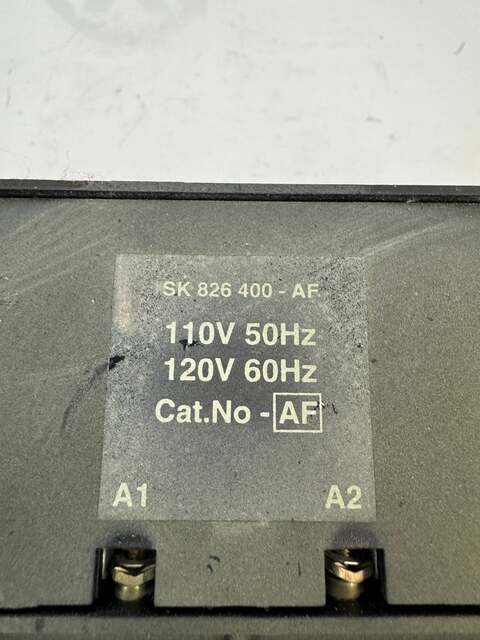

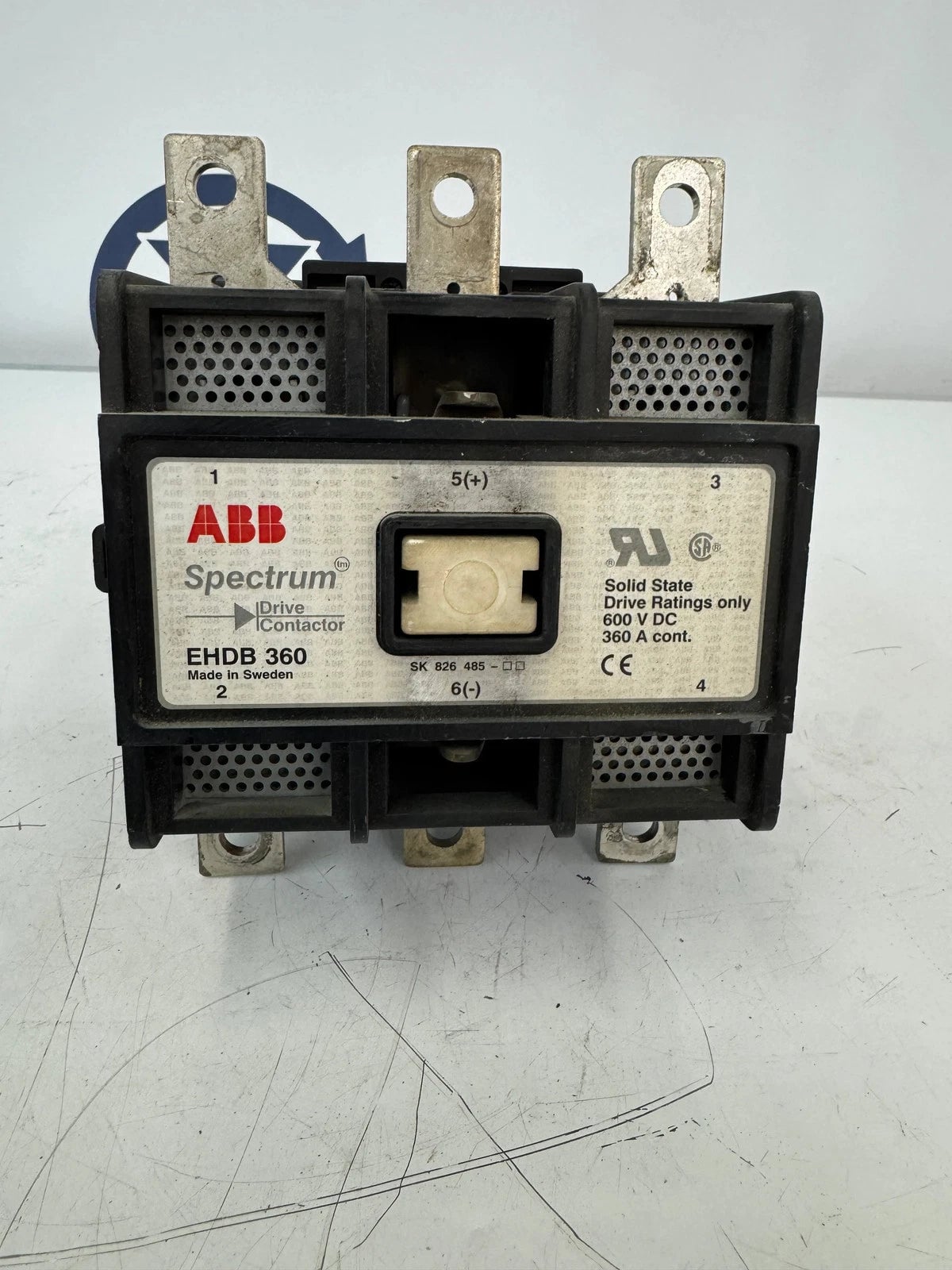

The ABB EHDB 360 is a solid state Spectrum series drive contactor rated for 360 amperes continuous at 600 volts DC. The unit is designed specifically for solid state drive applications and carries UL and CSA listings as confirmed by the nameplate markings. The contactor is a 2-pole configuration with load terminals labeled 1, 2, 3, 4 and DC bus terminals labeled 5(+) and 6(-). The coil assembly is catalog number SK 826 400-AF, rated for 110V at 50Hz and 120V at 60Hz, with coil terminals A1 and A2 visible on the coil module. The contactor body is labeled SK 826 485 and carries CE marking. The unit is manufactured in Sweden. ABB Spectrum drive contactors are used in DC drive systems, regenerative drives, and DC motor control applications requiring reliable high-current switching with solid state drive-rated contacts. The EHDB series is among the most recognized and widely installed drive contactors in the North American industrial market, commonly found in steel mills, paper mills, mining operations, and other heavy industrial DC drive installations. The unit shows signs of prior service use consistent with its removed-from-service condition. Coil voltage is compatible with standard 120V North American control circuits.

Stock # 0226-328
