Ton: 95.0
Stroke: 16.0
Daylight: 21.0
Stock # 694
1 / 2
Click to zoom in
1 / 2
For Sale by Icon Industries, Inc
Surplus Record Dealer Since 1990
Location: Grand Rapids, MI
Contact Tom,Pete,Bob
Phone Number: 616...> Show Phone Number 616-229-2957
Let the seller know you found their listing on Surplus Record!
Description

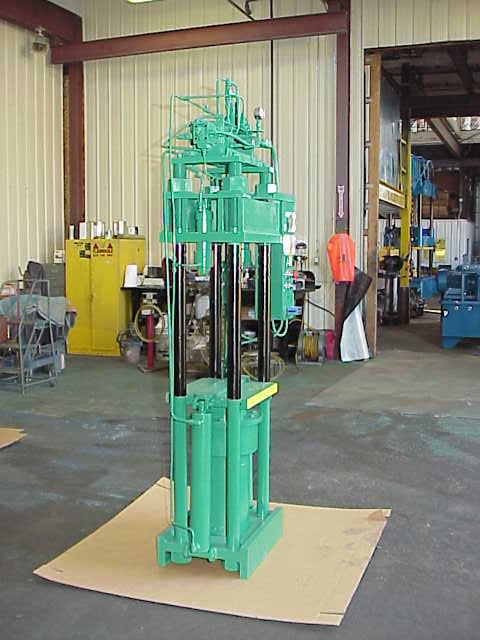

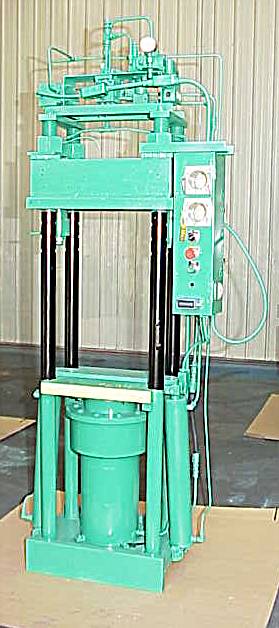

ADJUSTABLE DAYLIGHT FROM 21" TO 27 \u00bd". APPROX STROKE 16". 9" DIAMETER , SINGLE-ACTING MAIN RAM RATED AT 3000 PSI WITH A \u00be" NPT PORT. 2 \u00bd" DIAMETER POSTS. HALF SURROUND GUIDES ON MOVING BOLSTER. OVERALL PLATEN SIZE: 18 \u00bd" L to R X 16" F to B. DISTANCE BETWEEN POSTS: 16" L to R X 8" F to B. TWO PUSH BACK CYLINDERS: 2" BORE, 1 \u00bc" ROD, 5" STROKE. TWO PULL BACK CYLINDERS: 3 \u00bc" BORE, 1 \u00bd" ROD, 18" STROKE. OPERATOR HEIGHT 33 \u00bd". HYDRAULIC SOLENOID VALVES AND PRESSURE CONTROLS MOUNTED ON TOP OF PRESS. SMALL CONTROL PANEL WITH 3 LIMIT SWITCHES. OVERALL DIMENSIONS: 48" L to R X 24" F to B X 96" TALL. APPROX WEIGHT: 4000 LBS. (ITEM #694)
Get Your Price from Icon Industries, Inc!
