Manufacturer: Mitsubishi
Model: DIAMOND-BH8525
Year: 2018
Tons: 94.0
Overall: 8.6
Between Housings: 87.00
Stock # 5262
1 / 3
Click to zoom in
1 / 3
For Sale by Machine Tool Technologies
Surplus Record Dealer Since 2011
Location: Milwaukee, WI
Contact Joe Ryan
Phone Number: 414...> Show Phone Number 414-486-9700
Let the seller know you found their listing on Surplus Record!
Description

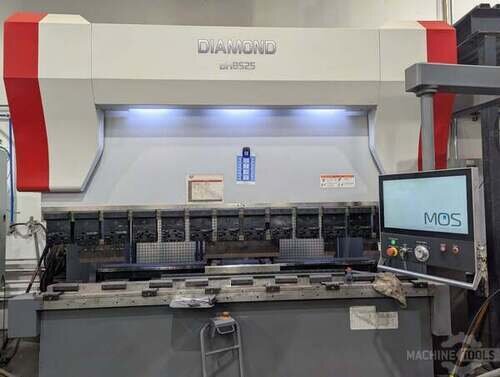

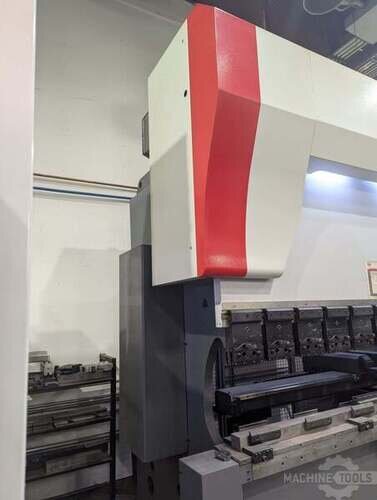

Used 2018 Mitsubishi Diamond BH8525 Hybrid Press Brake
| Tonnage | 94 T |
| Overall Length | 102" |
| Between Housings | 87" |
| Stroke | 9.84" |
| Weight | 15,400 lbs |
Equipped With
Movable Foot Switch,
Dual Telescoping Back Gauge Fingers "FF Axis",
DIAMONDBEND Brake Offline Programming Software,
Dual Drive Mechanism,
Crowning System,
Automatic Thickness Detection System,

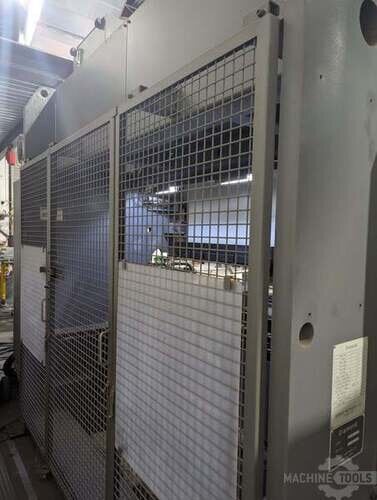

Rear Safety Fence
Dual Telescoping Back Gauge Fingers "FF Axis",
DIAMONDBEND Brake Offline Programming Software,
Dual Drive Mechanism,
Crowning System,
Automatic Thickness Detection System,
Rear Safety Fence
Spec Sheet
Capacity 94 US Tons
Ram Repeatability ± 0.00004 Inch
Approach Speed Max. 472 IPM
Bend Speed Max. 24 IPM
Return Speed Max. 472 IPM
Punch holder Height 5.9 Inch
Back Gauge X distance 33.5 Inch
Back Gauge Repeat Accuracy 0.0002 Inch
R Axis Travel 7.8 Inch
Bending Length 102 Inch
Distance Between Frames 86.6 Inch
Ram Stroke 9.84 Inch
Daylight w/o punch holders 20.8 Inch
Daylight w/ standard holders 14.9 Inch
Throat Depth 15.7 Inch
Table Height 35.4 Inch
Table Width 6.7 Inch
Weight 15,400 lbs.
Oil Capacity 12.6 Gallon
KVA 9 KVA
Standard Voltage 208 V
***CALL Louie at 847-627-6009 for more details or a quote***
Ram Repeatability ± 0.00004 Inch
Approach Speed Max. 472 IPM
Bend Speed Max. 24 IPM
Return Speed Max. 472 IPM
Punch holder Height 5.9 Inch
Back Gauge X distance 33.5 Inch
Back Gauge Repeat Accuracy 0.0002 Inch
R Axis Travel 7.8 Inch
Bending Length 102 Inch
Distance Between Frames 86.6 Inch
Ram Stroke 9.84 Inch
Daylight w/o punch holders 20.8 Inch
Daylight w/ standard holders 14.9 Inch
Throat Depth 15.7 Inch
Table Height 35.4 Inch
Table Width 6.7 Inch
Weight 15,400 lbs.
Oil Capacity 12.6 Gallon
KVA 9 KVA
Standard Voltage 208 V
***CALL Louie at 847-627-6009 for more details or a quote***
