90 Ton, LVD #PPEB-08, hydraulic, 8.2'OA, 80" between housing 4-Axis gauge,Y1 Y2,LVD Cadman Control, 1999

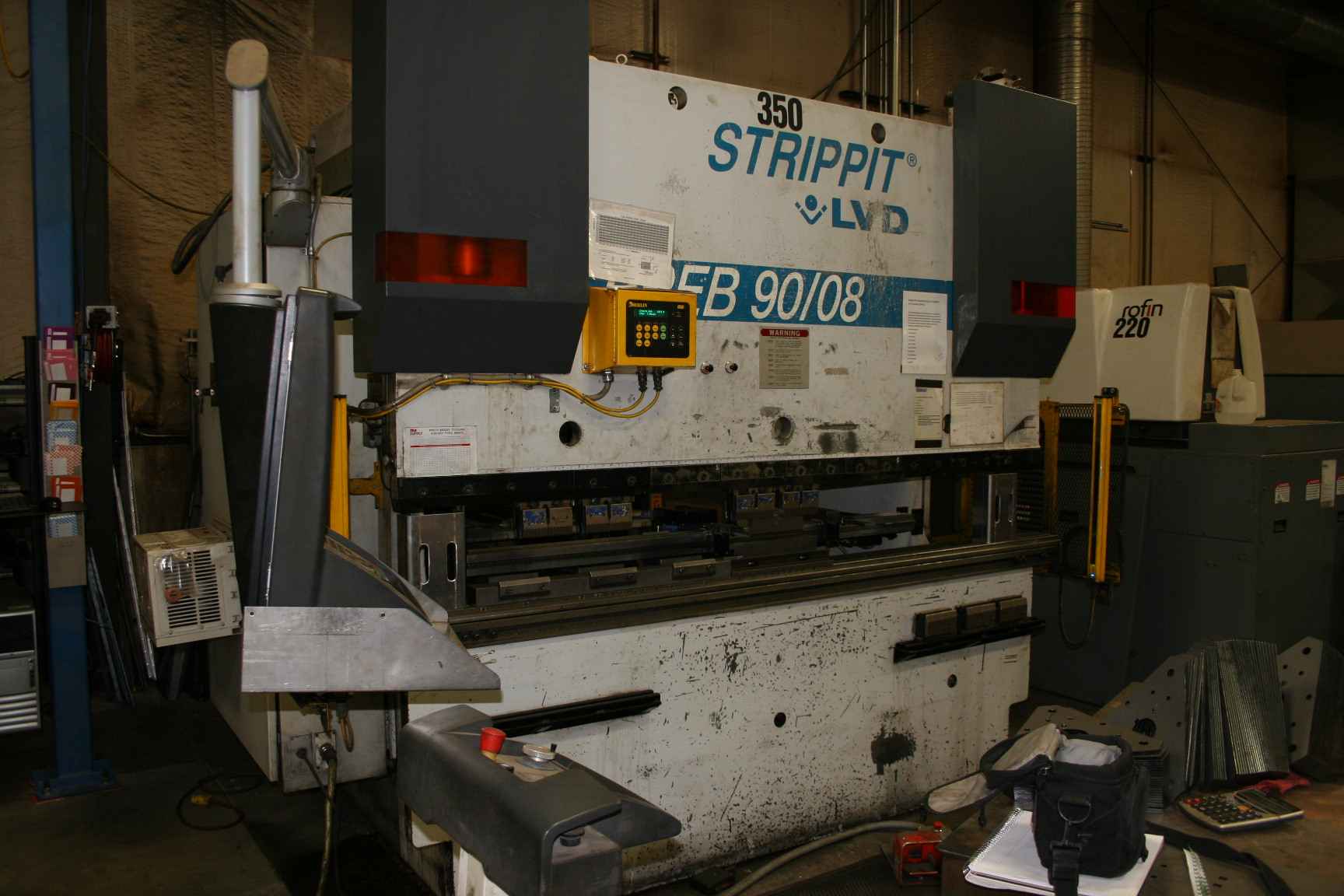

(1)Pre Owned 1999 LVD PPEB Cadman CNC Hydraulic Press Brake
GENERAL SPECIFICATIONS
Tonnage Capacity: 90 US Tons
Overall Length of Bed & Ram: 98”
Distance Between Housings: 80”
Stroke: 7.9"
Open Height: 15.7"
Closed Height: 7.8"
Speeds
Approach 307 IPM
Form 28
Return 320
Width of Bed: 4.7
Throat Depth: 15.7"
Back Gauge X Range 24”
Oil Capacity 33 US Gallons
Main Motor Horsepower 12 480/3/60
EQUIPPED WITH
Sectional Ram Clamps
Programmable Crowning

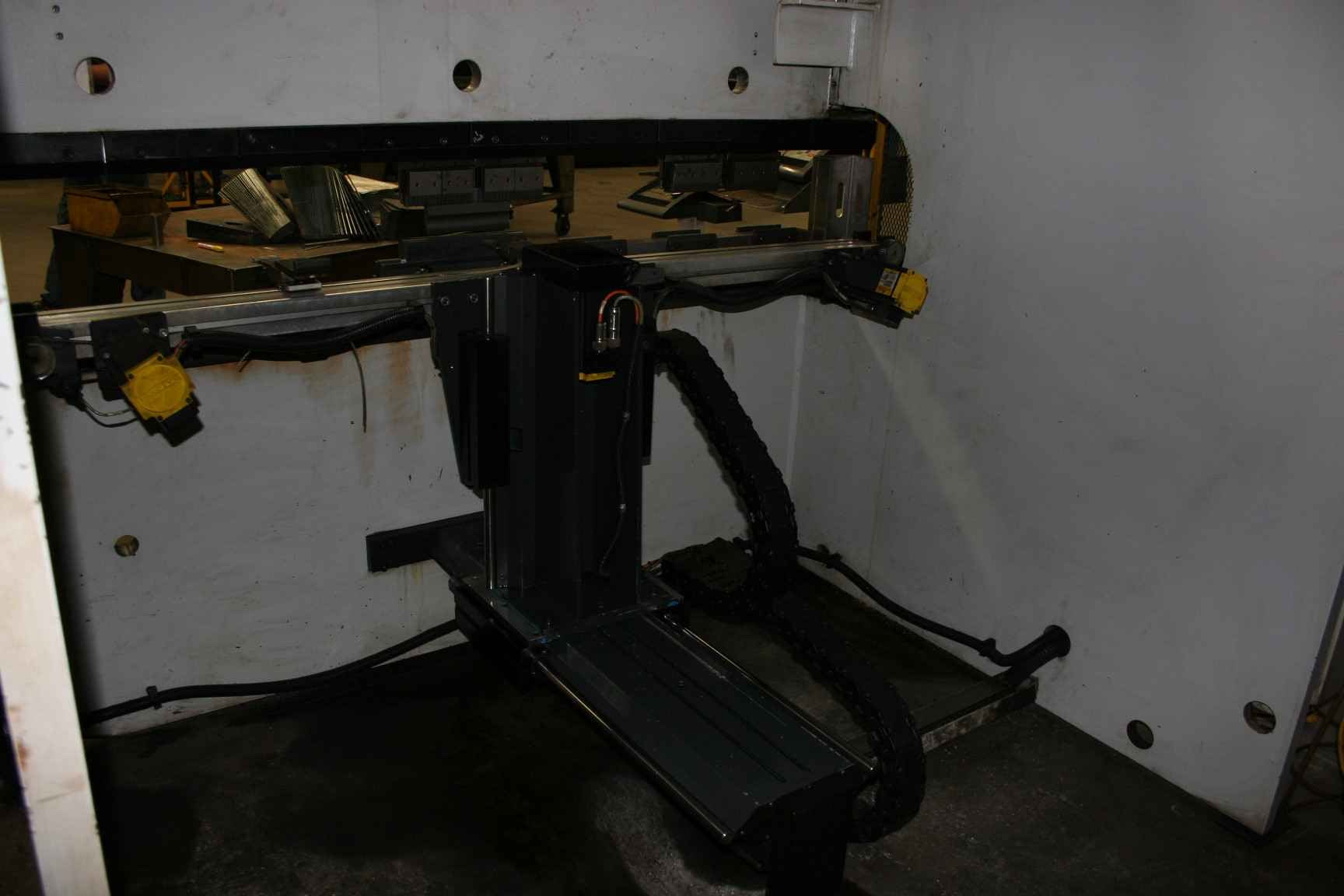

4 Axis Back Gauge (X R, Z1, Z2)
high speed servo hydraulic system

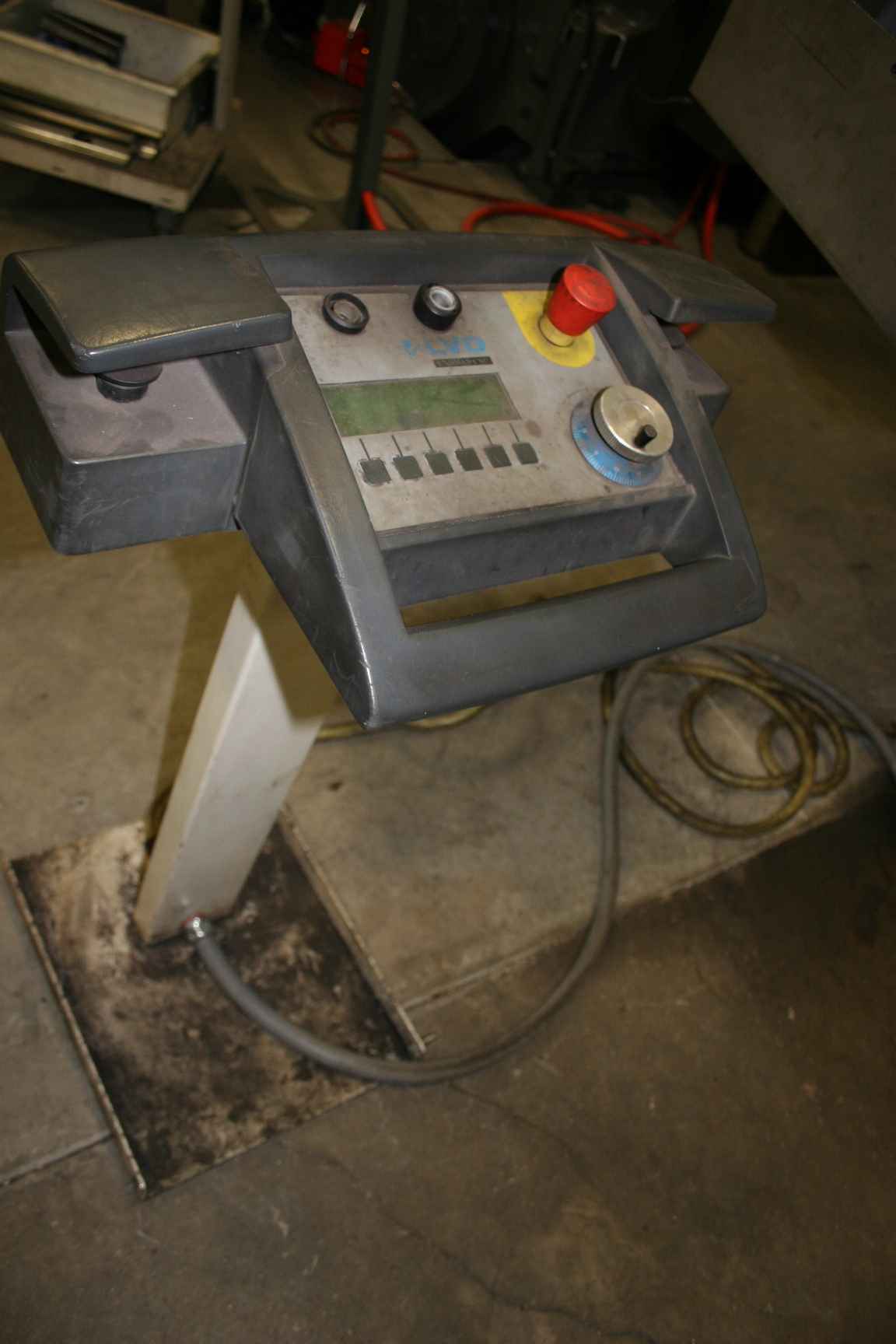

pedestal palm station / Electric Foot Switch
Heidenhain Scales
CONTROL OPTIONS

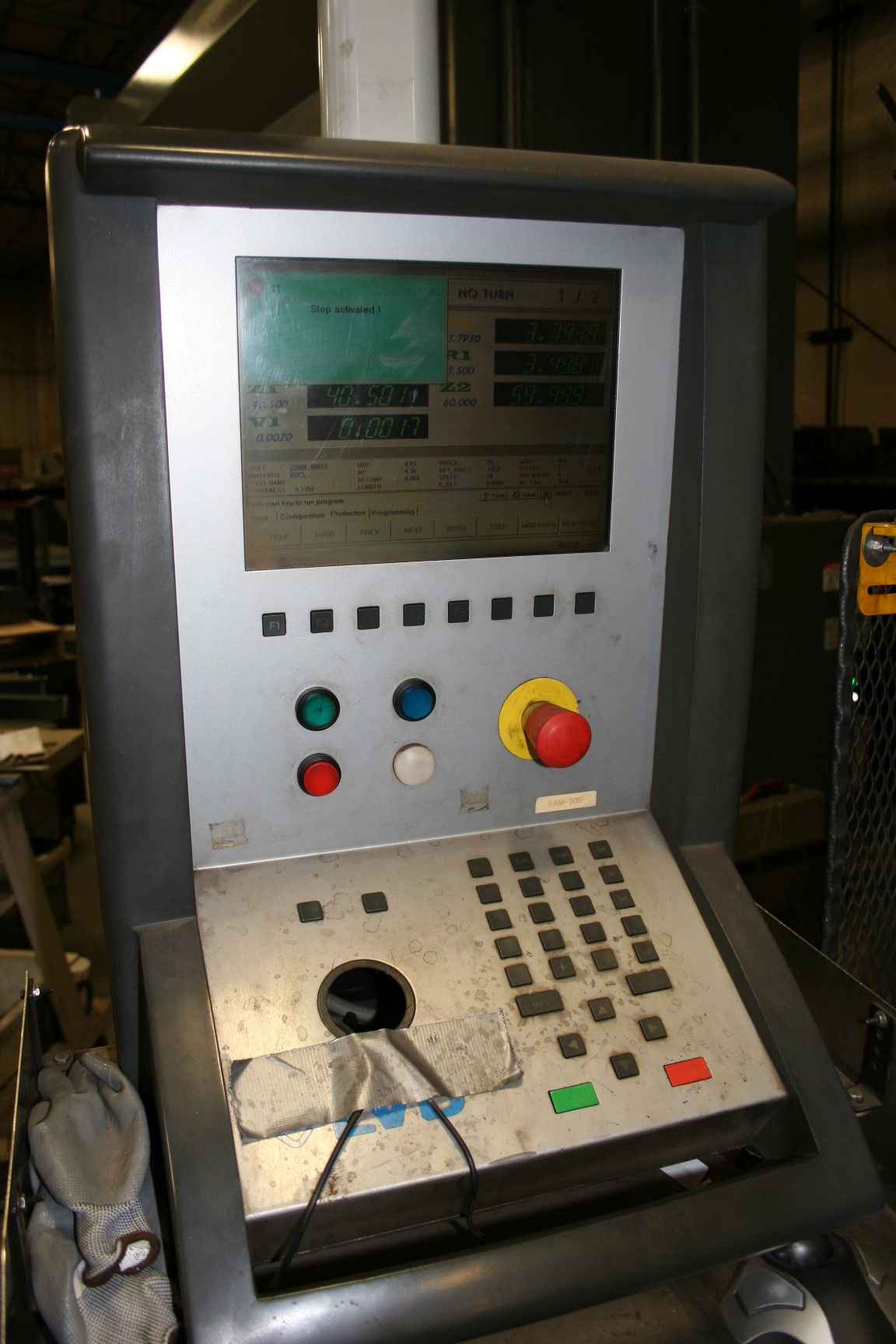

LVD Cadman cnc control y1,y2, X R ,z1,z2
Programable Tonnage
High Resolution Color Graphics Dis
Rs 232 port / CD Rom / Floppy Drives
Multilingual Programming
Graphical Representation of Bending Sequence
Automatic conversion of inch/metric, ton/tons/kn, kg/mm2 /psix1000
programmable Ram Tilt
Overall Dimensions Approx. L-R x’ F-B x ” H
