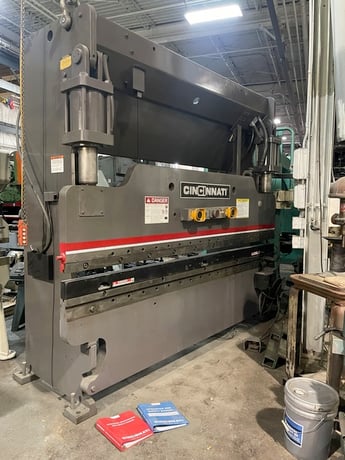

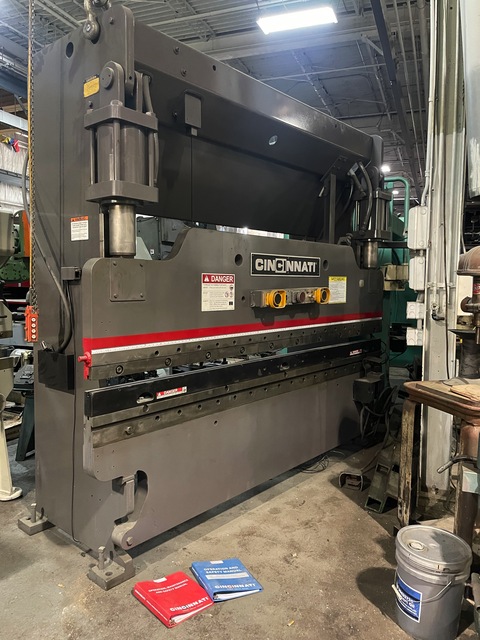

90 Ton, Cincinnati #90CB, hydraulic press brake, 10' overall, 102" between housing, 8" stroke, 7" throat, 15" open

Pre Owned Cincinnati Model 90CB Hydraulic Press Brake

GENERAL SPECIFICATIONS
Capacity 90 TONS
Overall Length of Bed & Ram 10’
Distance Between Housings ` 8’6 3/4”
Stroke 8”
Open Height 15”
Closed Height 7”
Throat Clearance 7”
Speeds
Approach 260 Inch Per Minute
Form 10-20-80 Inch Per Minute
Return 280 Inch Per Minute
Width at Top of Bed 3 ½”
Main Motor Horsepower 15

EQUIPPED WITH
Filler Block
Electric Foot Switch
Manuals
Interlocked Construction
Clevis Mounted Self Aligning Cylinders

Approximate Overall Weight 16500 Lbs
Approximate Overall Dimensions 12’6.5” L X 50”FB X 110” H
