9.7 GPM @ 92' TDH, Grundfos #CR1-4-N-FGJ-A-E-HQQE, Vertical Multistage Centrifugal Pump, 0.5 HP, 3443 RPM

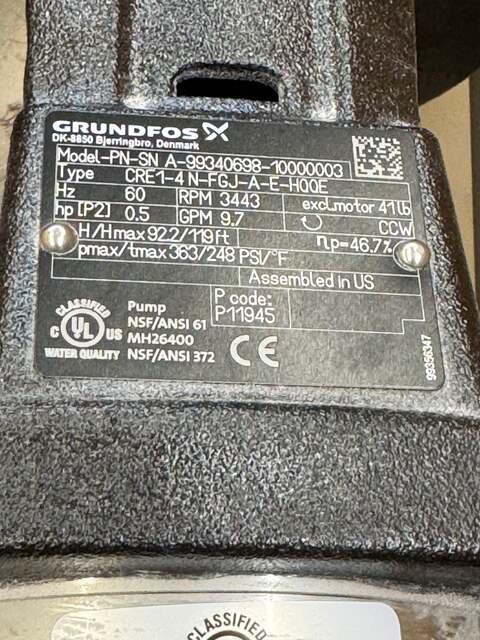

Grundfos CR1-4 N-FGJ-A-E-HQQE vertical multistage centrifugal pump, identified on the manufacturer nameplate as Model-PN-SN A-99340698-10000003. This unit is assembled in the US and rated for 60 Hz operation with a motor speed of 3443 RPM. The motor is rated 0.5 HP and the nameplate lists a nominal flow of 9.7 GPM. Maximum head is marked 92.2 feet (19 ft noted on plate), with a maximum pressure rating of 363 PSI and maximum temperature rating of 248°F. Rotation is CCW. Motor efficiency is shown as 46.7%. Pump code P11945 is printed on the data plate.

Certifications visible on the nameplate include UL listing as well as NSF/ANSI 61 and NSF/ANSI 372 compliance markings. The unit is labeled Grundfos, DK-8850 Bjerringbro, Denmark, and carries CE marking. Configuration code CR1-4 N-FGJ-A-E-HQQE is printed directly on the nameplate and corresponds to the CR series vertical inline multistage pump platform.

This pump is designed for fluid handling applications consistent with the Grundfos CR series and is suitable for systems requiring a compact vertical multistage centrifugal pump with the specifications shown on the manufacturer data plate. All technical details provided are taken directly from the visible equipment nameplate.

Stock # 0226-280
