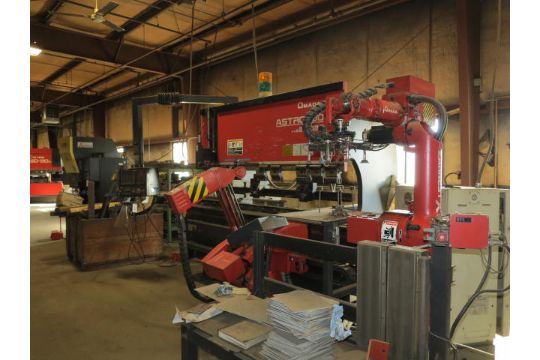

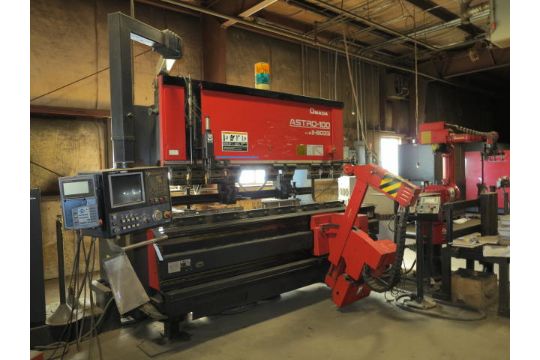

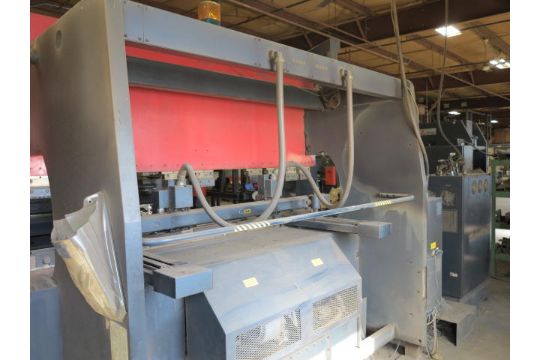

88 Ton, Amada #Astro-100, CNC Press Brake, w/ 6-Axis Robotic Bending Cell, 8.4' overall, 86.6" between housing, 15.75" throat, 5.91" stroke, 16.54" open, 10.1 HP V., 400-460/230 V., 1999

1999 Amada Astro 100 80 ton x 8′ CNC Press Brake and roBIII-8025M 6-Axis Robotic Bending Cell

Amada Earnest X Robotic Loader/Unloader

Amada AMNC RML 26R Robotic Control Package

Amada AMNC RML 39BM CNC control

Amada HB-03 Hand Box handheld pendant controls

Capacity 88 ton (80 metric)

Overall bed length 98.4″ (2500 mm)

Bending length 98.6″ (2505 mm)

Distance between housings 86.6″ (2200 mm)

Throat depth 15.75″ (400 mm)

Stroke 5.91″ (150 mm)

Open height 16.54″ (420 mm)

Oil Resevoir 18.48 gallons (70 L)

Motor 10.1 HP Volts 400-460 / 230

Power required 7 kVA

Approximate dimensions 142.7″ x 55.9″ x 92.7″H

Approximate weight 13,669 lbs (6200kg)

Dual foot pedal controls

Shipping dimensions:

Amada Press brake: 7′-2″W x 13′-3″L x 8′-11″H,

Weight approx. 15,000 lbs

Amada Robot arm: 2′-3″W x 4’L x 7′-3″H,

Weight approx. 550 lbs

Amada Loading table: 2′-11W x 4′-8″L x 4′-7″H,

Weight approx. 500 lbs
