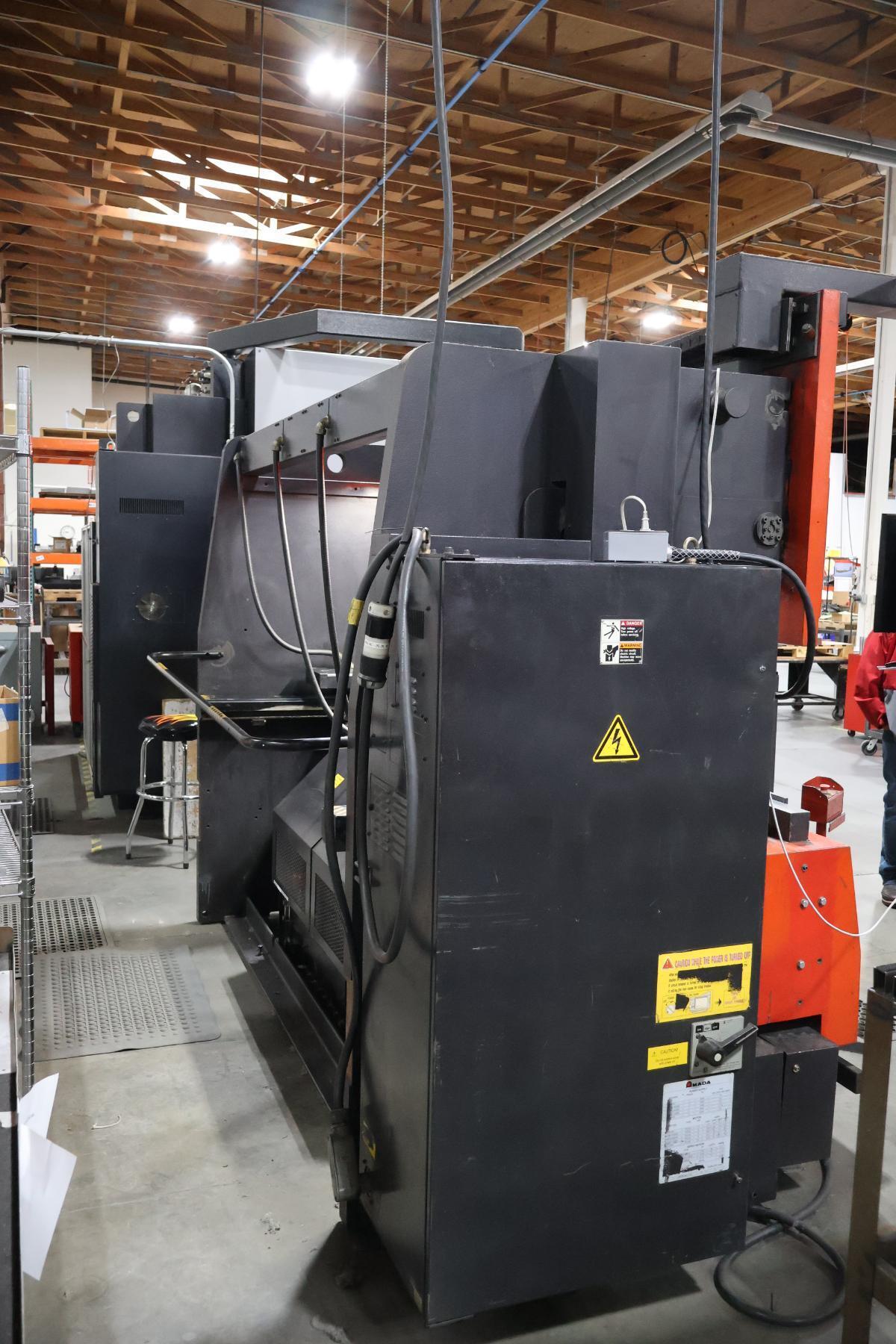

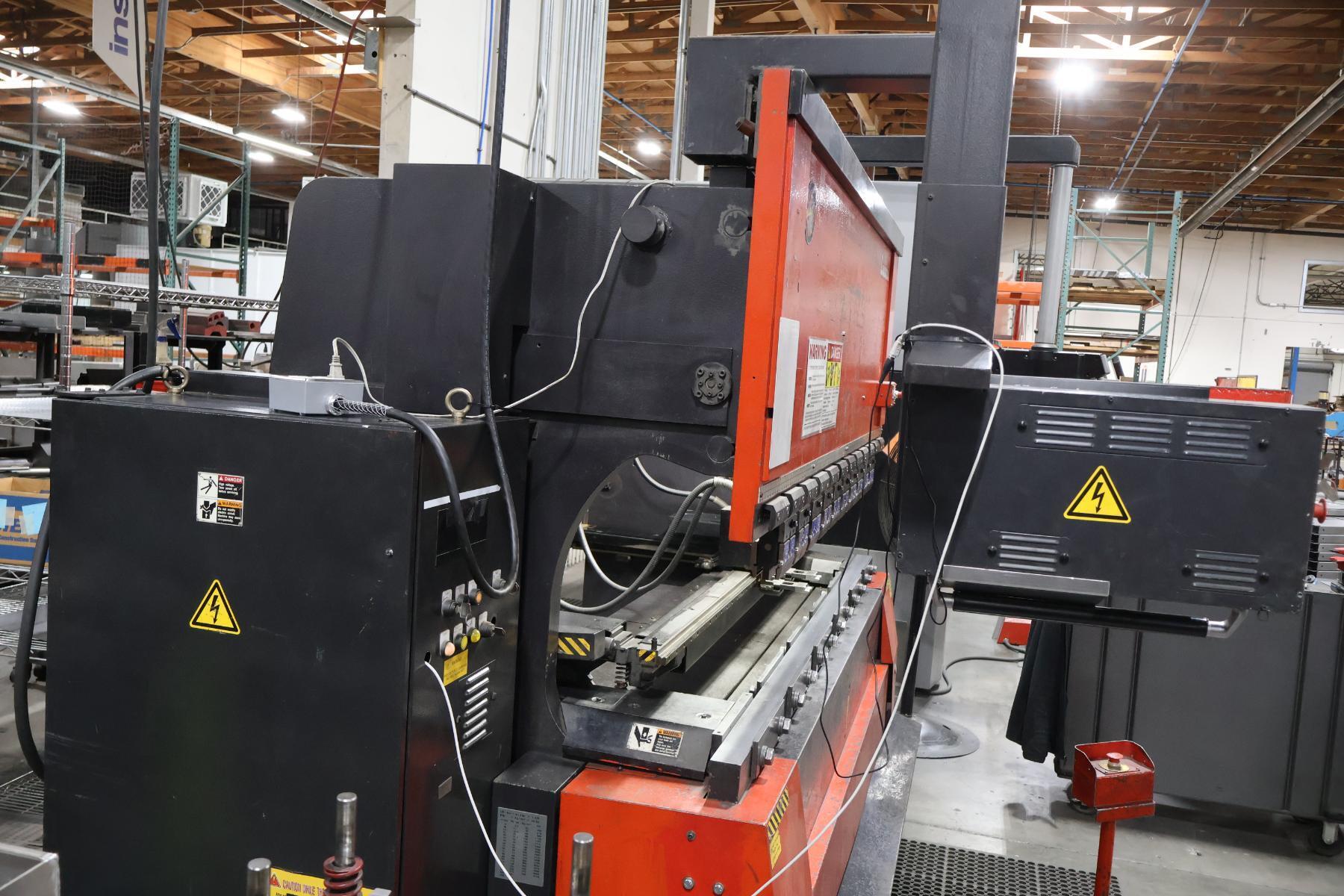

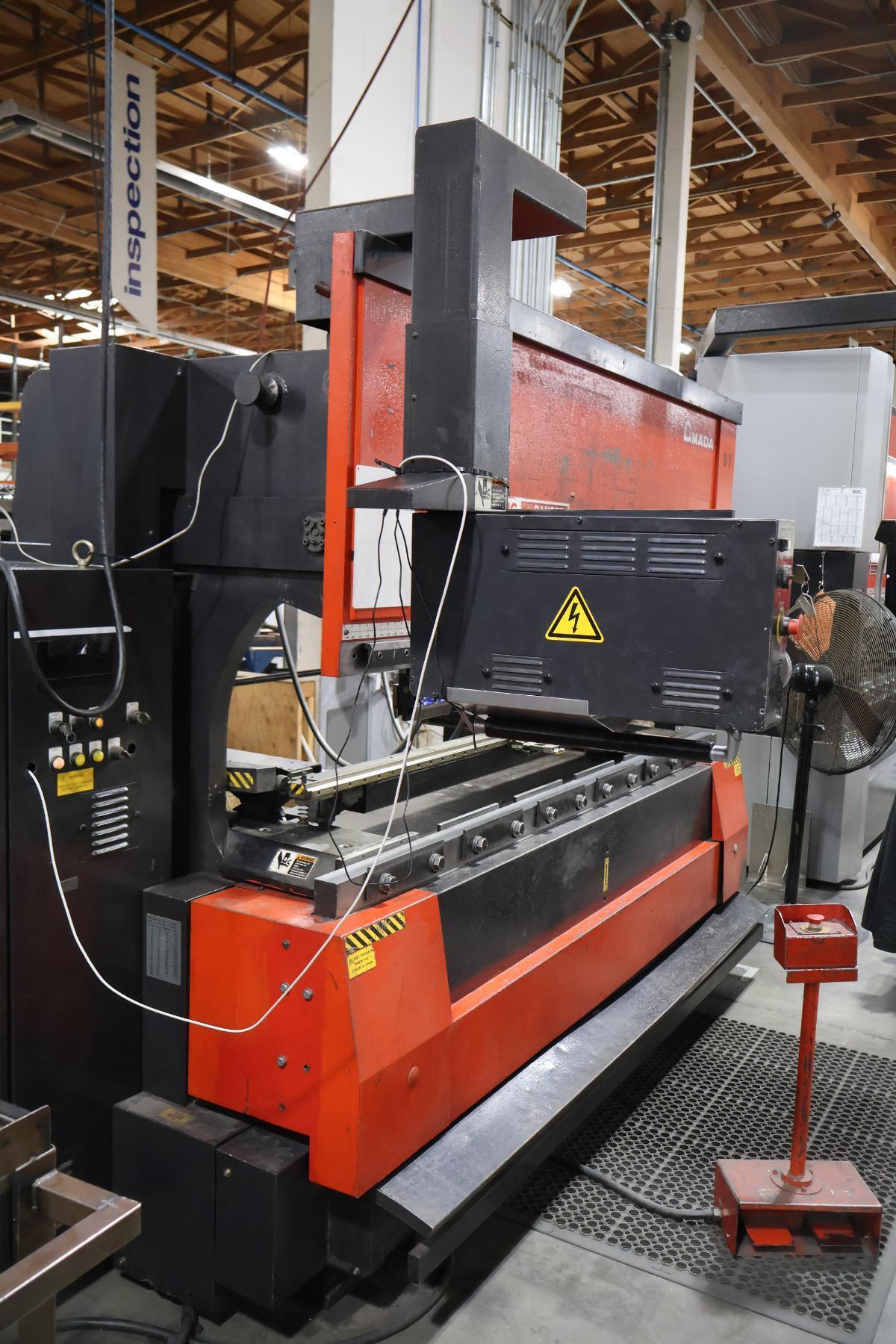

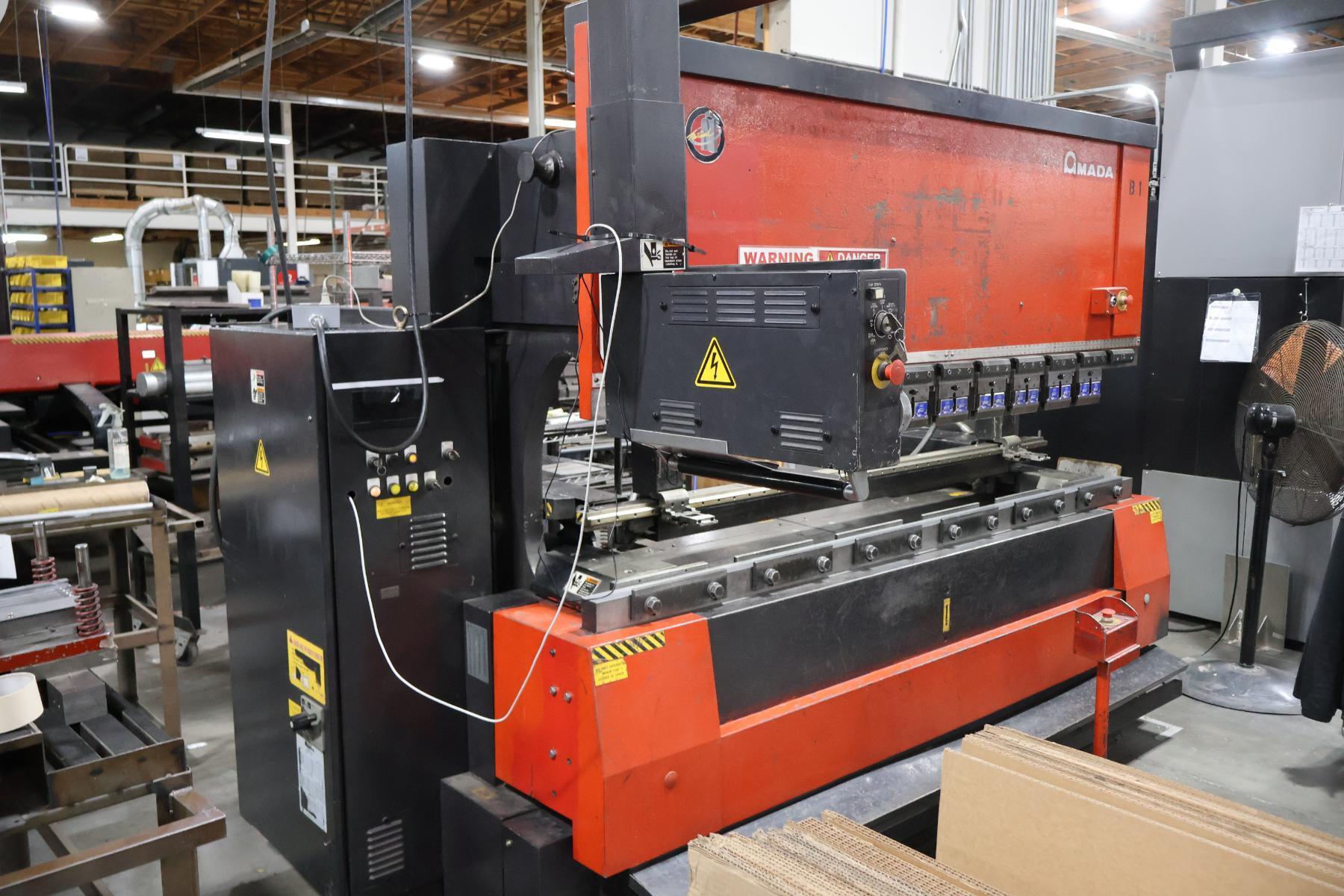

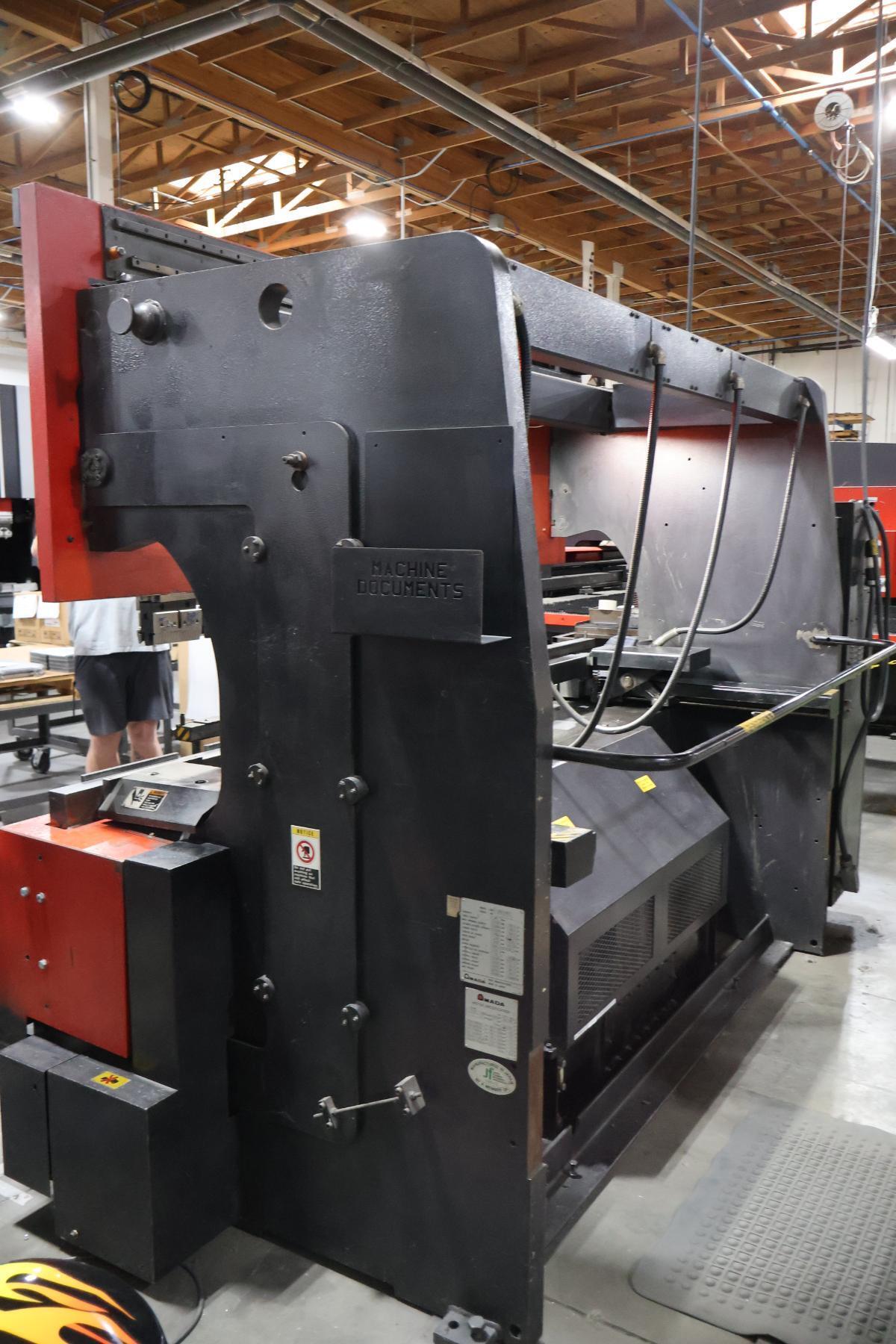

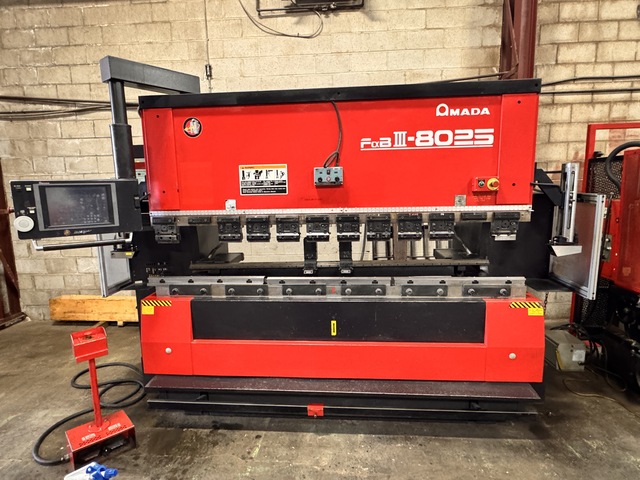

88 Ton, Amada #FBD-8025NT, CNC up-acting hydraulic press brake, 8.2' overall, 86.6" between columns, 5.91" stroke, 15.75" throat, 8-Axis, 10 HP, 2000

CNC Brake Press
Make: Amada (made in Japan)
Model: FBD-8025NT
DOM: 2000
Electrics: 230-460 Volt, 3 Phase, 50-60 Cycle, 30-15 Amps
Main Motor: 10 HP
Features and Specifications:
...Capacity: 80 Tons (88 US Tons)

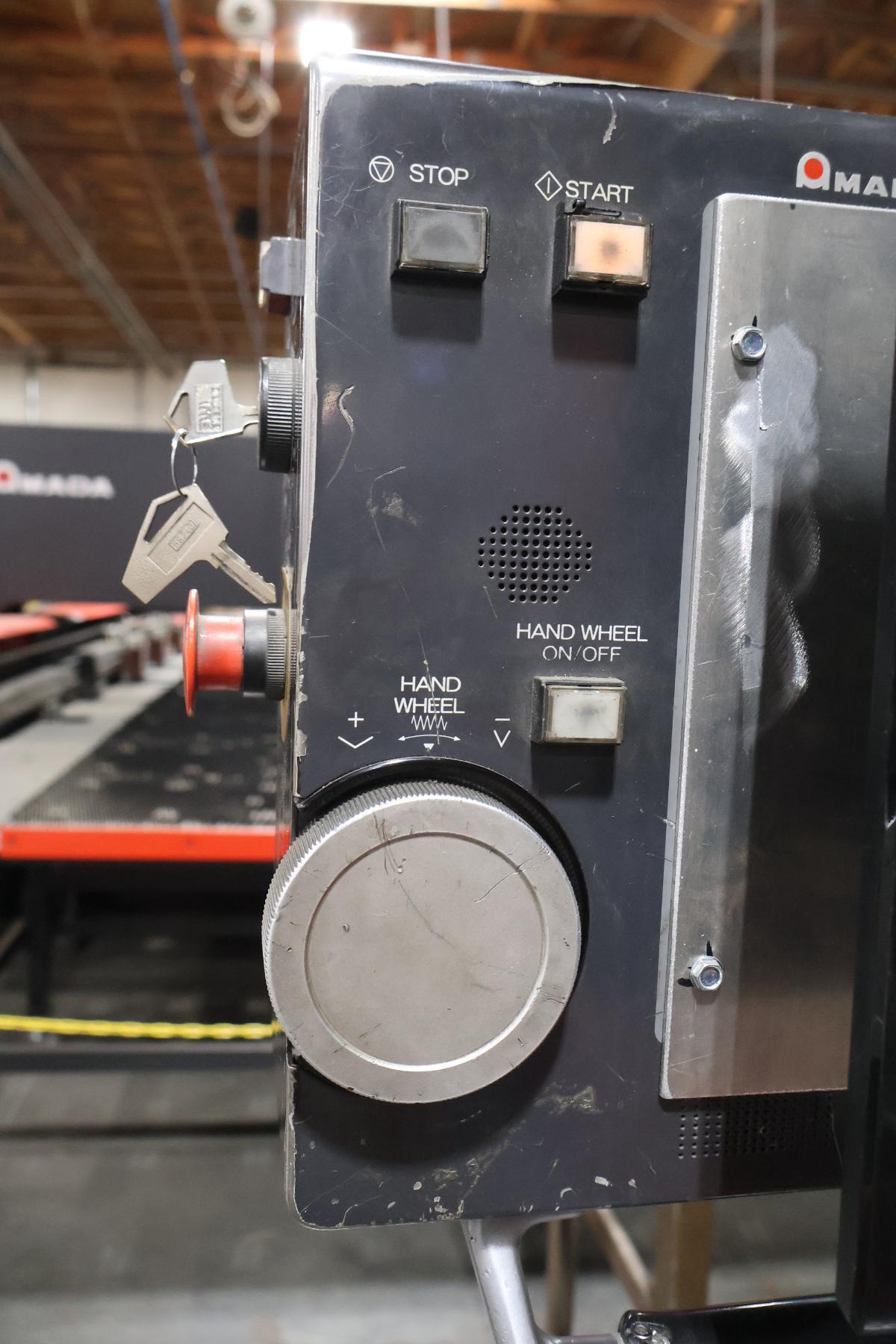

...CNC Controls: AMNC-PC Control
...8-Axis CNC System
...Up-Acting Hydraulic
...Max. Bending Length: 98.4"
...Between Columns: 86.6"
...Stroke: 5.91"
...Open Height: 16.54"
...Throat: 15.75"
...Hydraulic Oil Reservoir: 18.48 Gallons
...Bending Fingers: 10
...Backgauge Specifications:
......F-B Travel: 19.7" (L-Axis)
......Feed Speed: 1,180 IPM
......Vertical Travel: 3" Programmable (R-Axis)

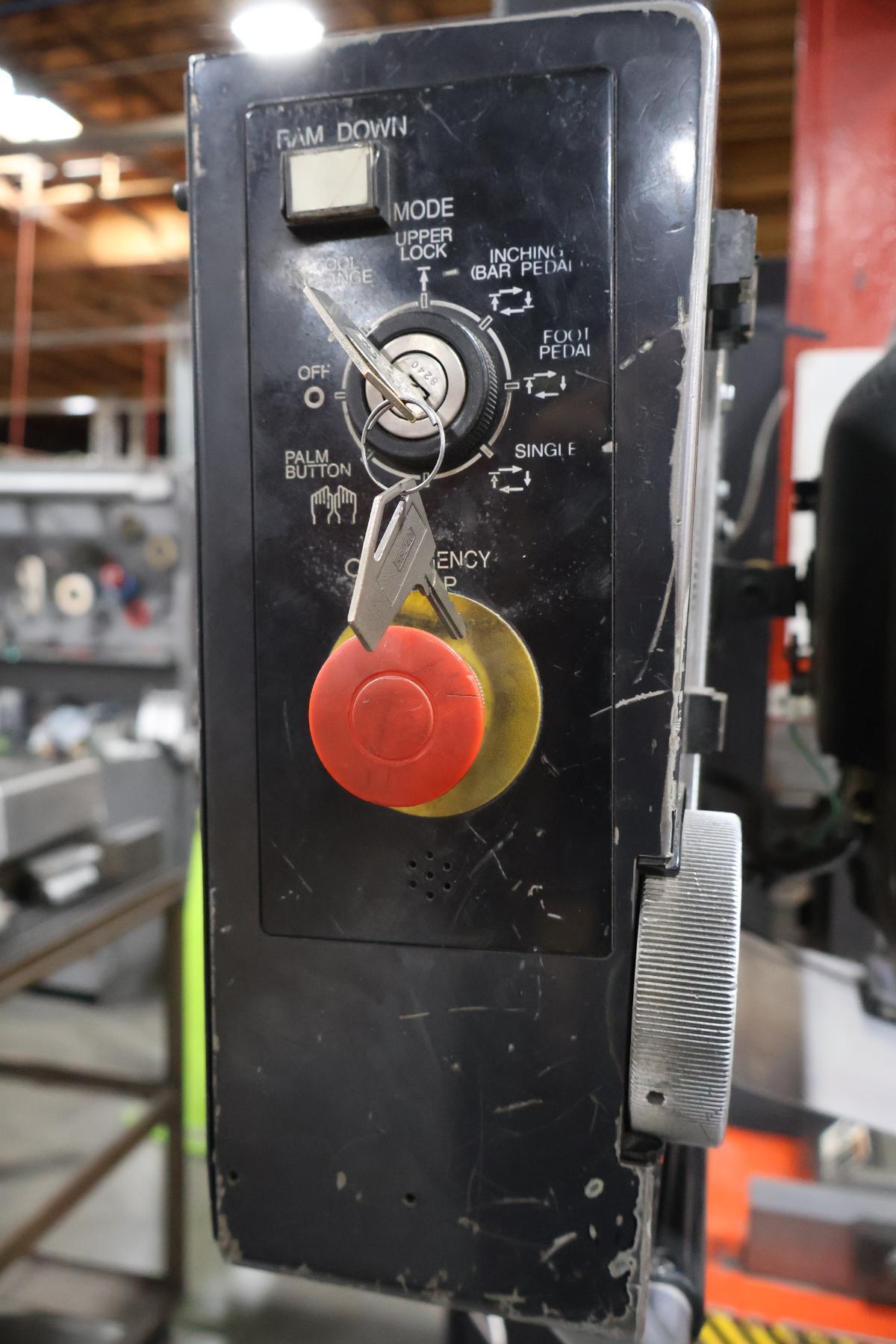

...Foot Pedal
Machine Dimensions (approx.): 133" x 62" x 91"
Machine Weight (approx.): 13,700 lbs.
Approximate specifications and functionality history is taken from 1st-hand inspection, owner interview, manuals, and OEM research. While specifications are assumed accurate, confirmation by purchasing entity is always recommended.
Functionality Notes & History:

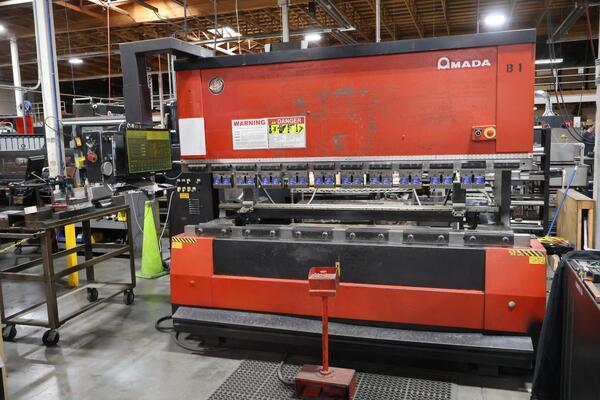

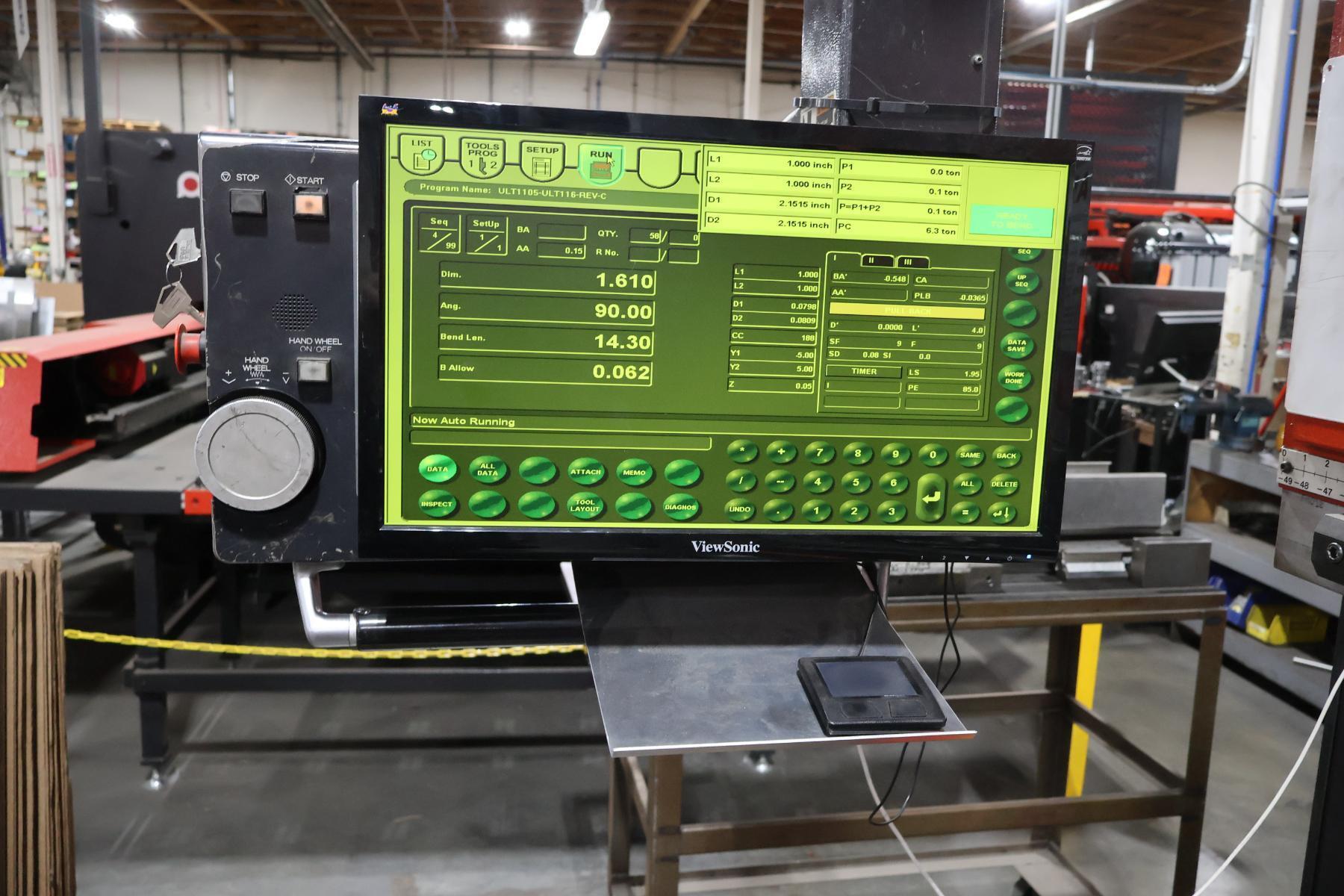

This is a second-owner brake; current owner has had it for at least 20 years. Machine used daily; good runner. The only thing that has been changed in the monitor. As can be seen in pics, original monitor was replaced by a PC monitor and a mouse. Controls are run through this system and work fantastic. Operator loves user-friendly screen and controls. See imbedded video.
Machine is ready to move now. Seller has ordered new unit but can do without this unit in the meantime. Would like to sell within the next 2-3 months, before replacement unit arrives.
CALL FOR DETAILS, SCHEDULE INSPECTION
WE ARE OPEN TO OFFERS
EQUIPMENT LOCATION: Portland, OR Metro Area
Equipment is under power; available for inspection.
Buyer responsible for rigging out of shop, loading on transportation.
Buyer responsible for freight logistics and expenses.
MD Equipment Services can provide rigging, loading quote.
Contact MD Equipment Services LLC to schedule inspection or arrange purchase details.
