8600 Ton, Verson Wheelon Fluid Cell Forming Press #R8600-36x92, 5000 psi, forming depth 4.5" & 6" with-in 2-trays

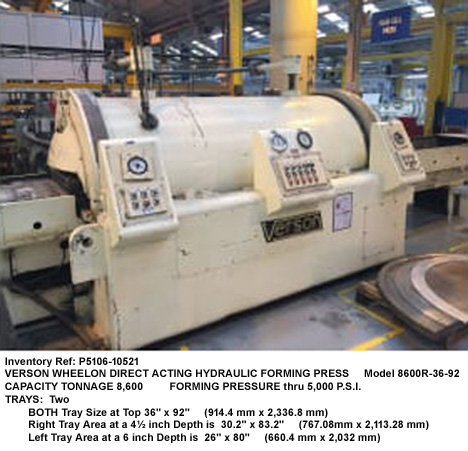

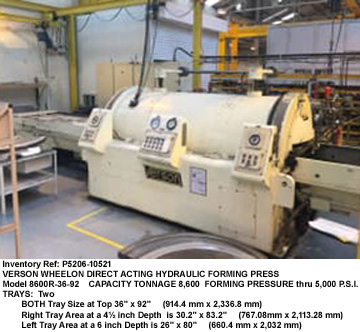

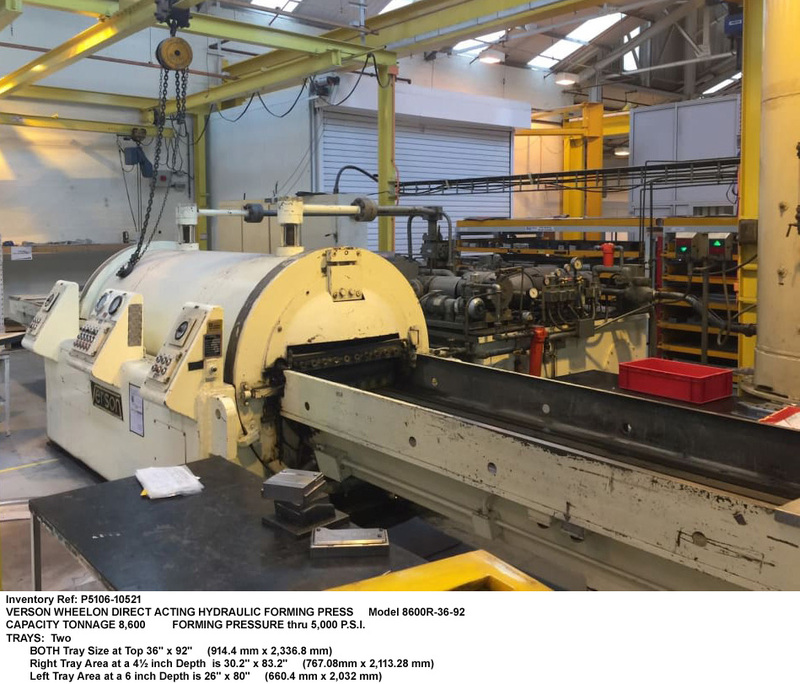

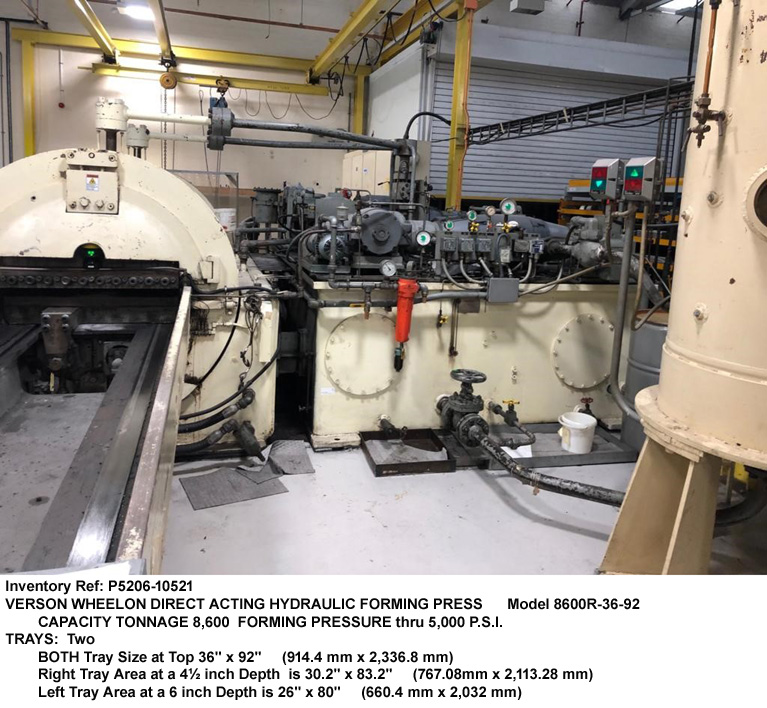

VERSON WHEELON DIRECT ACTING HYDRAULIC FLUID CELL FORMING PRESS
Model 8600R-36-92, FLEX-DIE RUBBER PAD

SPECIFICATIONS: FLUID FORMING
CAPACITY TONNAGE 8,600
FORMING PRESSURE:..... thru 5,000 P.S.I.
TRAYS: Two

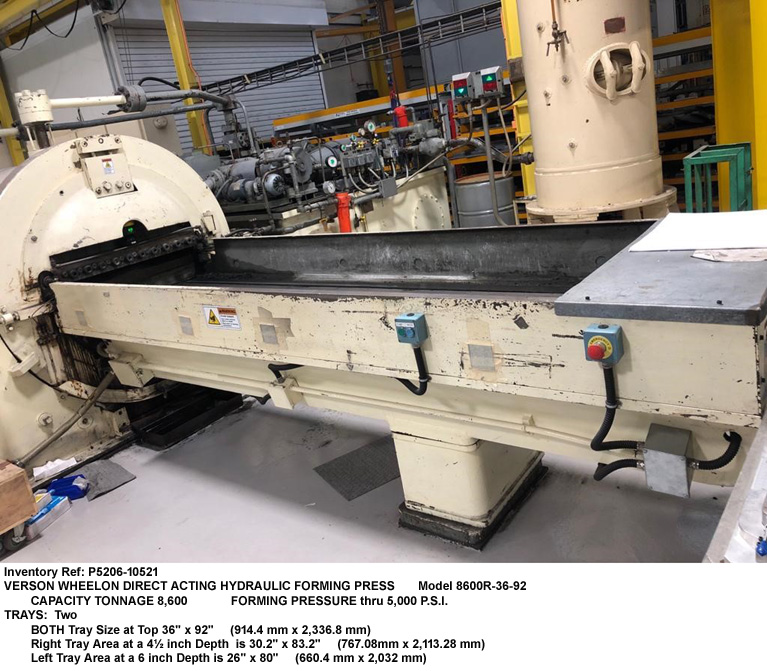

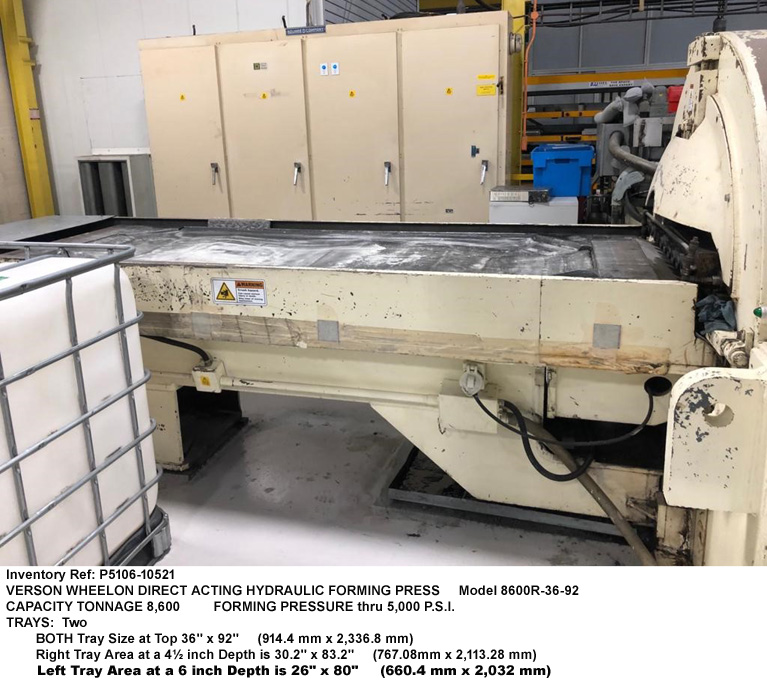

BOTH TR Size at Top 36" x 92" (914.4 mm x 2,336.8 mm)
Right Tray Area at a 4½ " Depth 30.2" x 83.2
(767.08mm x 2,113.28 mm)
Left Tray Area at a 6" Depth 26" x 80" (660.4 mm x 2,032 mm)
MOTOR DRIVES:
(1) Evacuate High Pressure Pumps 75 H.P. (55.162 kw)
(1) ACC Pump. 30 H.P. (22.07 kw)
(1) Pilot Pump 20 H.P. (14.71 kw)
(1) Vacuum Pump 7.5 H.P. (5.52 kw)
(1) Filter Pump 3/4 H.P. (0.552 kw)
CONTROLS: Wired 115 volts
Operator Control Station located center of barrel.
(two) Side Controls Stations located at end of each Barrel
with Emergency Stop Buttons.
EQUIPPED WITH:

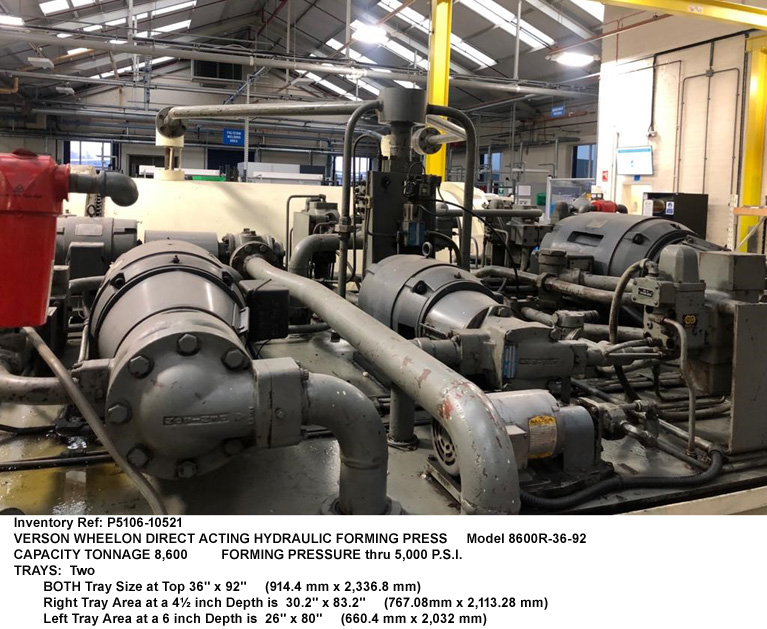

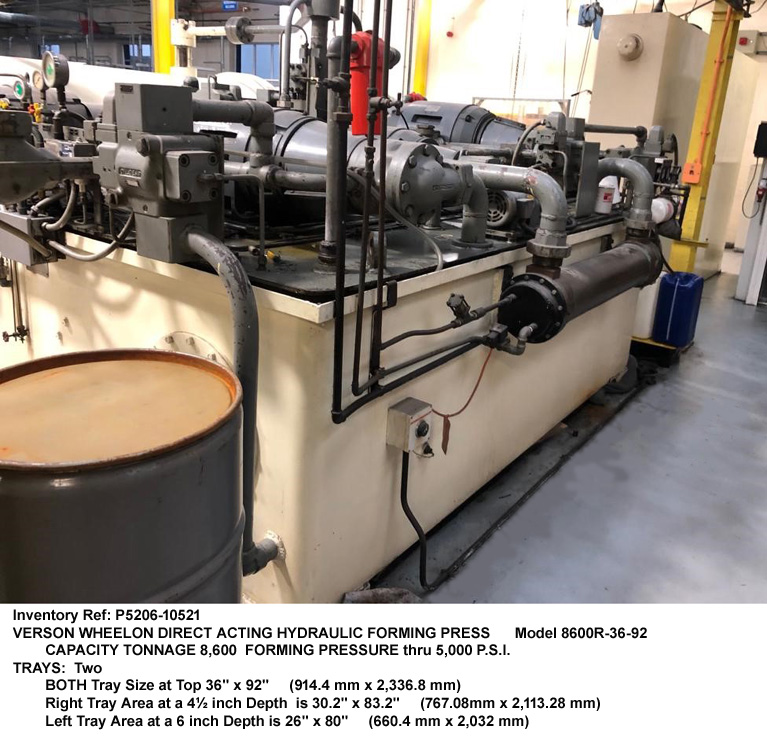

(1) Power Unit and Oil Reservoir.

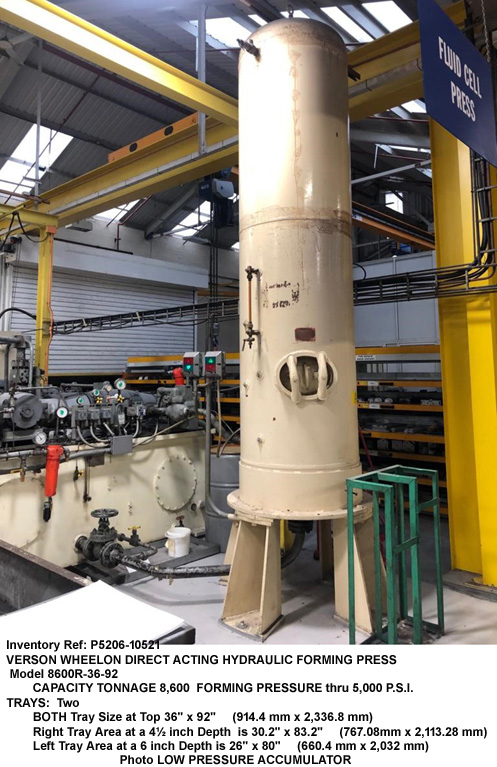

(1) Accumulator Hydraulic Oil Storage Tank.
Electrical Starter Panels.
(1) Fluid Cell.
(1) Rubber Pad.
Hydraulic Oil Cooler.
Spare: Fluid Cell & Contact Pad
Part & Operation Manuals
Operator & COMPLETE FACTORY SAFETY GUARDS

Dimensions
Overall 380" L-R x 217" FB x 202" (9,652mm x 5,130.8mm x 4495.8mm)
Approx. Total Weight 125,400.00 lbs.
Main Chamber with Fill Lines, 116” LR x 78” FB, (2,946.4mm x 1,981.2mm)
Main chamber at base 126” LR (3,200.4mm) Height above Ground 86" (2,184.4mm)
Power Unit and Oil Reservoir 96" F.B x 127" L-R (2,438.4mm x 3,225.8mm) Weight 16,000 lbs.
plus overhang of Cooler approx. add 11” (279.4mm) to 96” F-B
Accumulator: Base 52" dia. x 177" Ht. (1,320.8mm x 4,495.8mm) Weight 2,800 lbs.
R.H. Table. 132: LR x 41” F-B (3,352.8mm x 1,041.4mm) Weight 3,300 lbs.
L.H. Table 132: LR x 41” F-B (3,352.8mm x 1,041.4mm) Weight 4,000 lbs.
Both Trays Assemblies Total Weight 12,500 lbs.

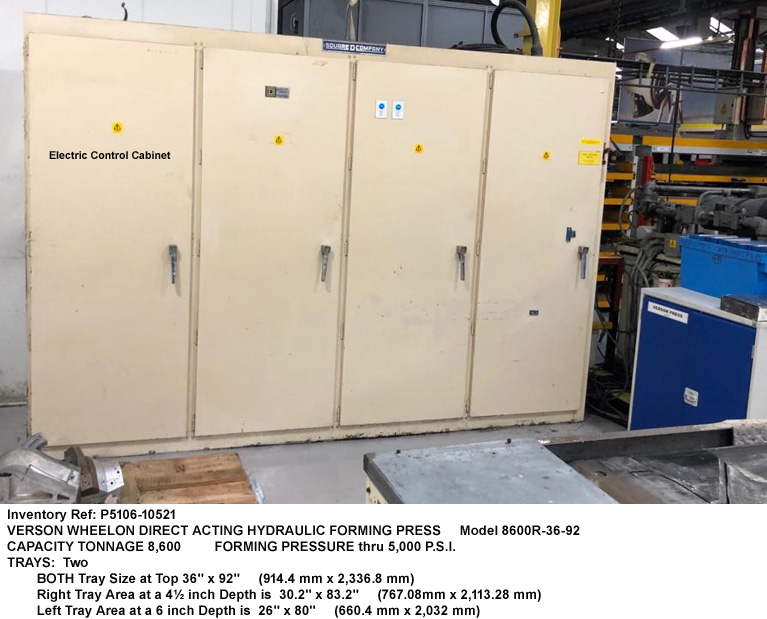

Control Cabinet 135" L-R x 20¼" F-B x 92¼" Ht. (3,429mm x 514.35mm x 2,343.15mm) Wt. 2800 lbs.
