86 Ton, Heller/Sutherland #Mark-88, single crank hydraulic gap frame press, 5.9" stroke

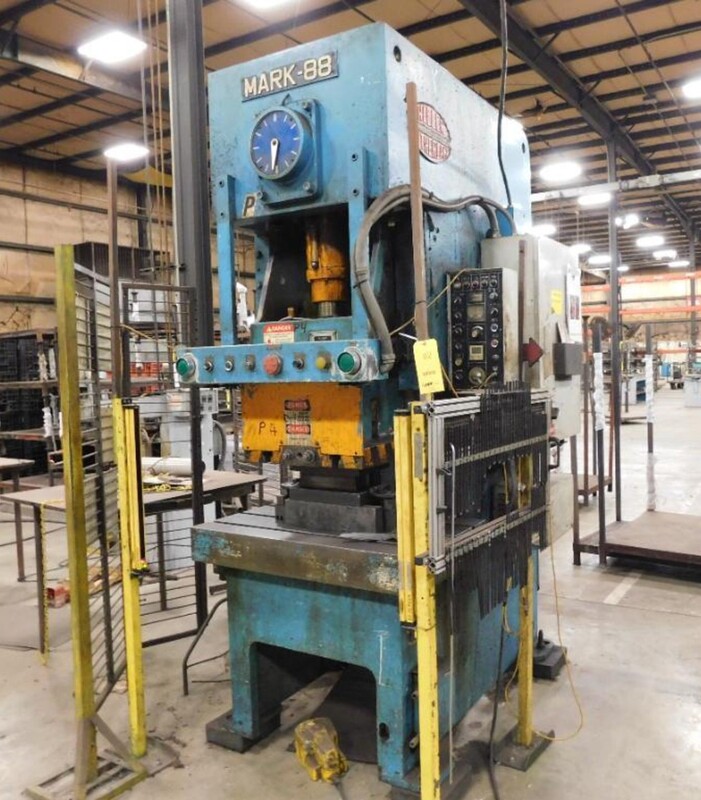

86 TON HELLER/SUTHERLAND SINGLE CRANK
GAP FRAME PRESS
Serial No 0120, Model MARK-88,
86 TON HELLER/SUTHERLAND SINGLE CRANK
GAP FRAME PRESS
Serial No 0120, Model MARK-88,
EQUIPPED WITH:
Twin Air Counterbalance In Frame
Variable Speed Drive
4" Thick Bolster Plate
Overload Protector
Lubrication System
CATALOG SPECIFICATIONS:
Tonnage Capacity, U.S. 88 TON
Tonnage Capacity, Metric 80 TON
Stroke Length 5.9"
Die Height, (SDAU) 12.9"
Slide Adjustment ......... 3.2"
Slide Area, L-R x F-B ......... 22" x 18"

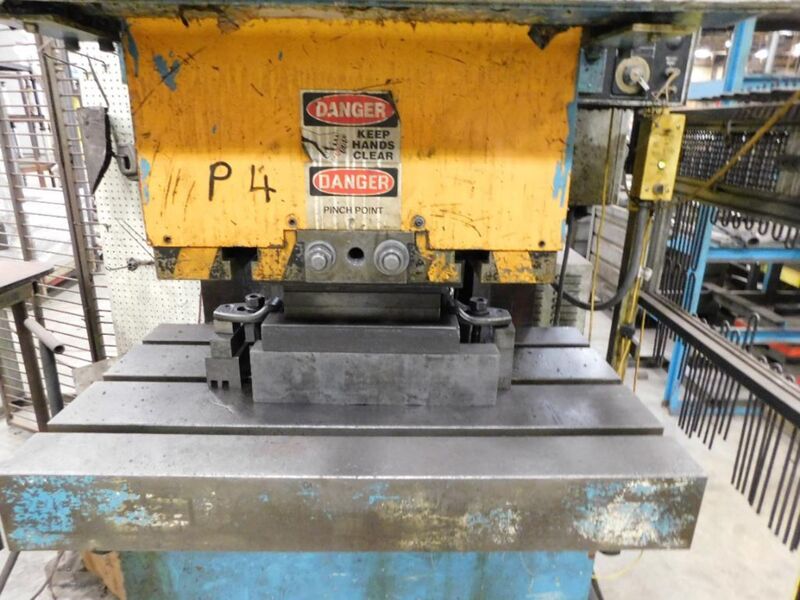

Bolster Area, L-R x F-B ......... 41.3" x 23.6"
Bolster Thickness ......... 5.5"
Opening In Bed, L-R x F-B ......... 21" x 14.9"
Strokes Per Minute, Variable ......... 45 to 75 SPM
Motor, Horsepower ......... 10 HP
Slide Adjustment Motor ......... 0.5 HP
Floor Space Required, W x D ......... 50" x 72"
Overall Height ......... 118"
Weight Approximately ......... 15000 LBS
F.O.B. OUR WAREHOUSE
Stroke length: 5.9"
Bed area, l-r x f-b: 41.3" x 23.6"
Die Height, SDAU: 12.9"
Tonnage Capacity,: 88 TON
Slide Adjustment: 3.2"
Bolster Thickness: 5.5"
Strokes Per Minute, Variable: 45 to 75 SPM
Motor, Horsepower: 10 HP
Slide Adjustment Motor: 0.5 HP
Overall Height: 118"
Weight Approximately: 15000 LBS
