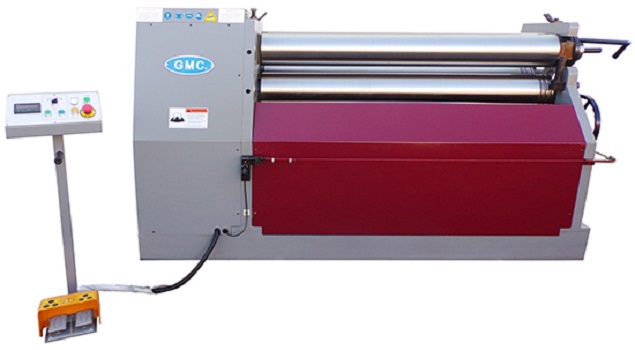

GMC 8′ x 8 Gauge Initial Pinch Hydraulic Plate Bending Roll, HBR-0808
Inventory # 7774
Model: HBR-0808
Specifications:
Cutting Capacity:
Mild Steel: 8′ x 8 Gauge
Stainless Steel: 8′ x 12 Gauge
Min. Rolling Diameter: 7 1/2″
Rolls Length: 8′ 4″
Rolls Diameter: 6 1/2″
Pre-Bend: 0.12″
Rolls Speed: 5 RPM
Rolls Opening: 2 1/32″
Oil Tank Capacity: 12 Gallons
Motor: 7.5 HP / 220v / 440v / 3ph
Standard Features:
ISO 9001 certified
Easy swing-out top roller
Standard cone attachment installed
(1) LED indicator for bending roll position
Safety line all around the machine for emergency stop
Heavy duty all steel welded machine construction
German hydraulic logic system centrally located and quiet
Bending roll is hydraulic powered up/down and tilting adjustment
Planetary reduction gear and pump
All three rolls are made of high grade alloy steel
All rolls run forward and reverse
Safety type foot pedal control
Overload protection and disconnect switch
One year industrial warranty for parts
Standard Equipment:
LED indicator for bending roll position
Safety line all around the machine for emergency stop
Removable safety foot pedal and tool box
Mechanical Specifications:
Dimensions: 142″ x 38″ x 58″ H
Weight: approx. 8,050 lbs.
FOB Factory – Contact us for availability
