For Sale by Machinery Values Inc
Surplus Record Dealer Since 1997
Location: Harrison, NJ
Contact Andrew Valitt
Phone Number: 973...> Show Phone Number 973-497-7600
Let the seller know you found their listing on Surplus Record!
Description

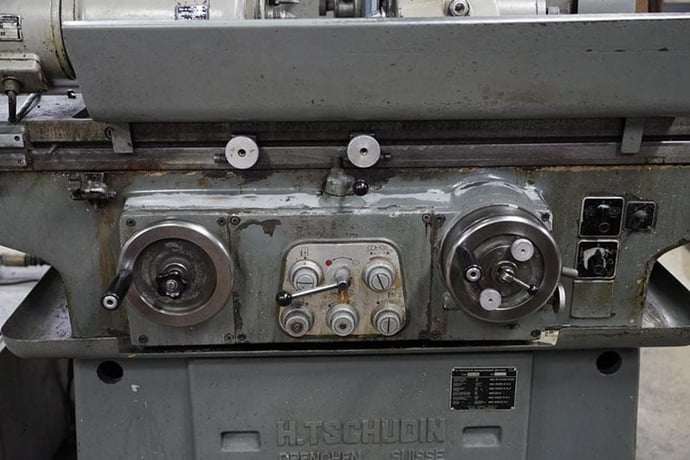

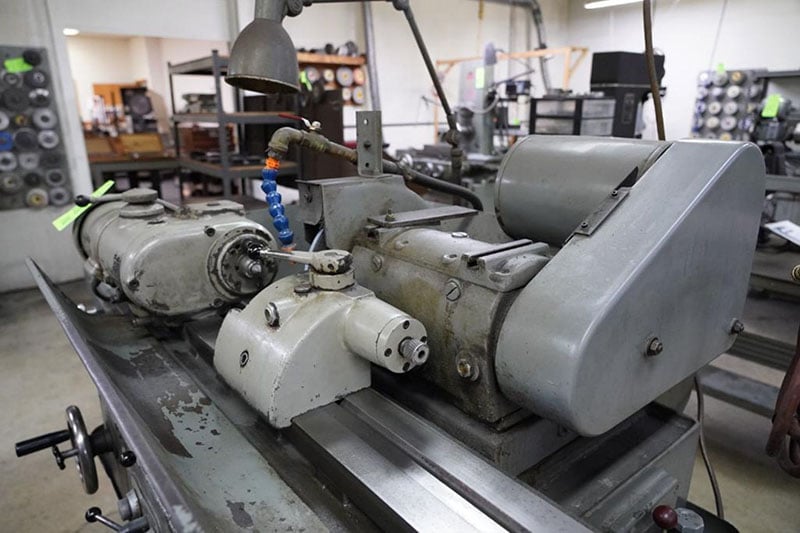

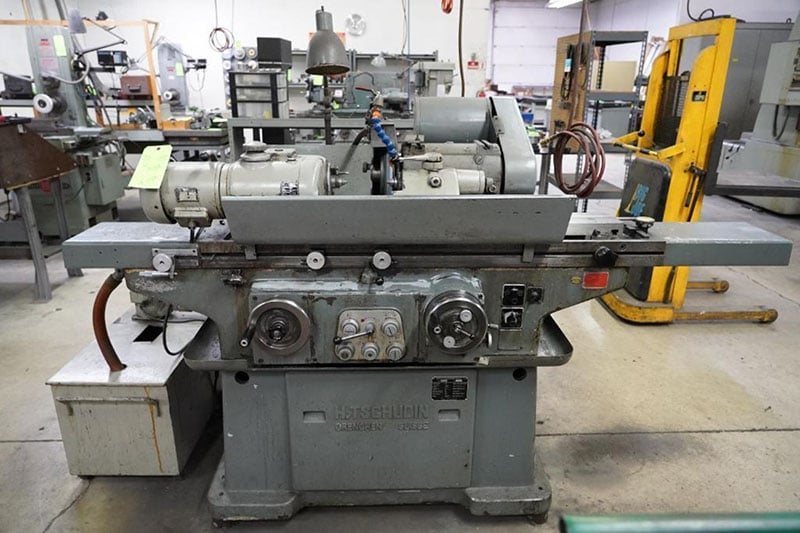

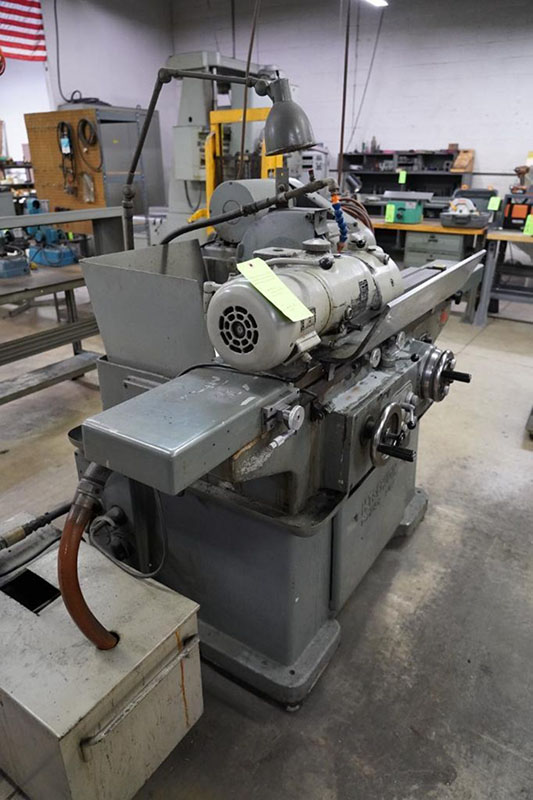

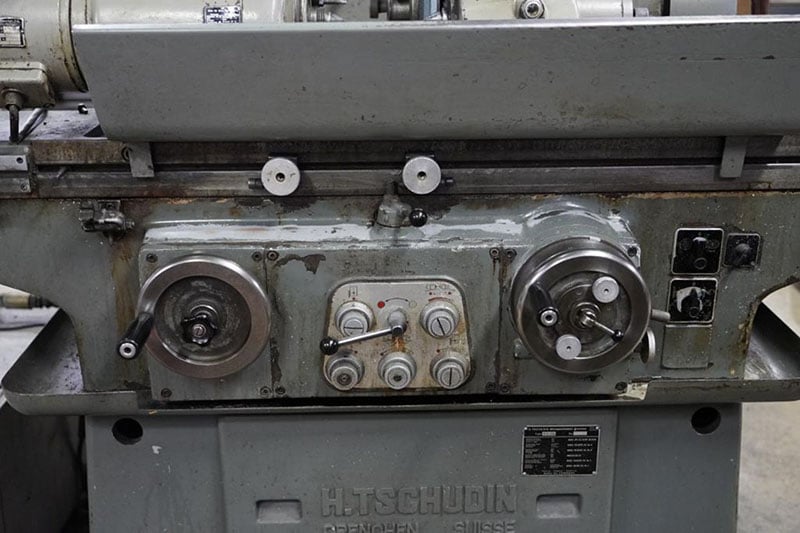

8" X 24" TSCHUDIN…"SWISS"
HIGH PRECISION
UNIVERSAL CYLINDRICAL GRINDER
** THIS MACHINE HAS THE STANDARD
TSCHUDIN WHEELHEAD, WHICH ALLOWS
FOR USING A 12" DIAMETER x 2" WIDE
GRINDING WHEEL **…
MODEL:… HTG-600… S/N: 63-98… NEW: 1963…
MAXIMUM SWING OVER TABLE ............... 8"…
NOMINAL DISTANCE BETWEEN CENTERS ....... 24"…
MAXIMUM TABLE TRAVEL ................... 24-1/2"…
SWIVEL TABLE GRADUATED TO ANGLE OF:…
TOWARD WHEELHEAD ..................... 7°…
AWAY FROM WHEELHEAD .................. 4°…
INFINITELY VARIABLE TABLE SPEED,
.................................. 0 TO 200" IPM…

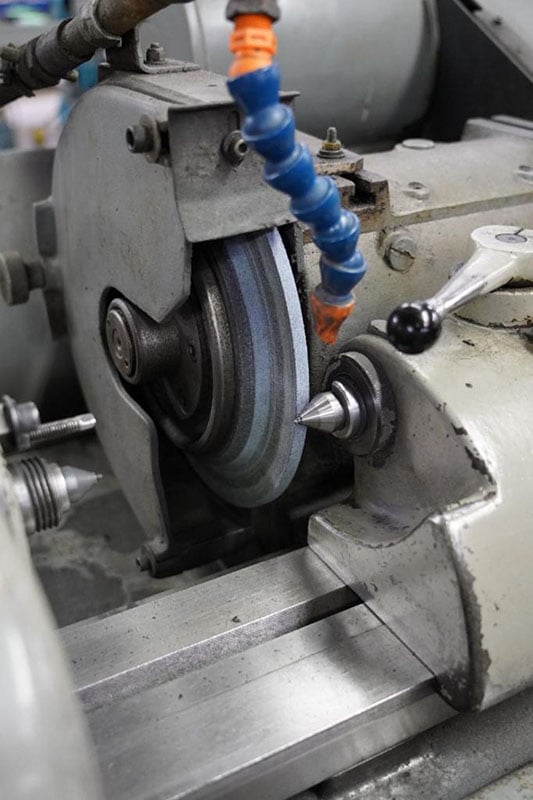

WHEELHEAD:…
GRINDING WHEEL DIAMETER ................ 12"…
GRINDING WHEEL WIDTH, MAXIMUM .......... 2"…
HOLE ................................... 5"…
GRINDING WHEEL SPINDLE SPEEDS,
(3)....................... 1500, 1700… 1900 RPM
RANGE OF PLUNGE FEED RATES,
INFINITELY VARIABLE FROM ...... 0.0005" TO 0.200"
MAX. FEED FOR PLUNGE GRINDING ....... 0.03"
AUTO PICKFEED @ EACH TABLE REVERSAL…
MINIMUM INFEED INCREMENT, DIAMETER
REDUCTION ........................... 0.000050"
RAPID ADVANCE/RETRACTION STROKE ....... 1-13/16"…
MAXIMUM TRAVEL OF LOW SLIDE
BY INFEED SCREWS ..................... 2"…
RAPID ADVANCE/RETRACTION STROKE ....... 1-13/16"…
MAXIMUM TRAVEL OF LOW SLIDE
BY INFEED SCREWS ..................... 2"…
TRAVEL OF UPPER SLIDE ................. 4-″/4"…
SWIVEL OF UPPER SLIDE,
EITHER SIDE OF ZERO .................. 7°…

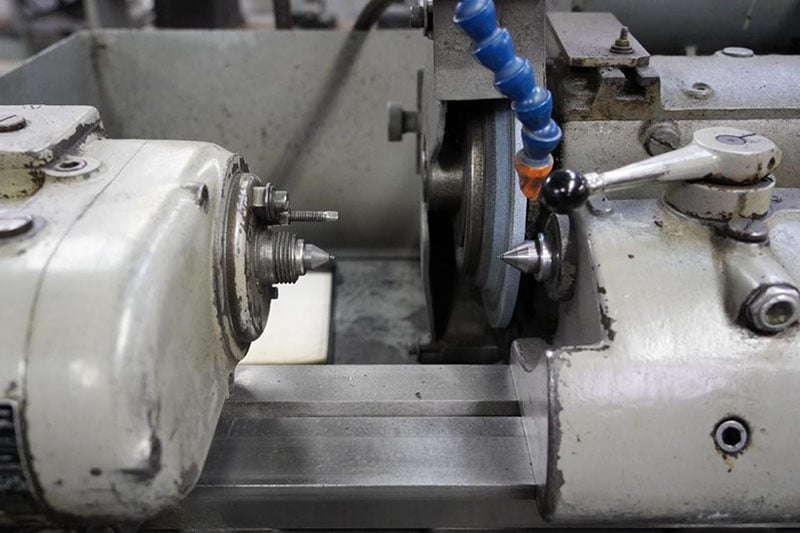

WORKHEAD:…
INFINITELY VARIABLE WORKHEAD
SPINDLE SPEEDS ................ 65 TO 500 RPM…
TAPER OF SPINDLE ................... #4MT
SPINDLE BORE ....................... 29/32"
POWER OF MOTOR ..................... 0.4 H.P.
TAPER OF WORK CENTER, WITH
REDUCTION SLEEVE .................. #3MT…
WORKHEAD SWIVELS ................″60 DEGREES…
TAILSTOCK:…
TAPER OF WORK CENTER ............... #3MT…
TRAVEL OF SPINDLE ..................″/4"…
APPROXIMATE DIMENSIONS ....... 78" x 48" x 54"H…
APPROXIMATE MACHINE WEIGHT ......... 4,700 LBS…
EQUIPPED WITH:…
WORKHEAD SPINDLE IS BOTH…"LIVE"……"DEAD"
CENTER IN THE WORKHEAD
12" GRINDING WHEEL
COOLANT SYSTEM
FULLY AUTOMATIC CYCLE W/SINGLE LEVER CONTROL:
HYDRAULIC TABLE TRAVERSE…
AUTOMATIC INFEED @ EACH TABLE REVERSAL…
AUTOMATIC PLUNGE INFEED…
POWER RAPID WHEELHEAD POSITIONING
SPARKOUT TIMER
CURRENTLY WIRED″/60/220 VOLTS…
** INSPECT UNDER POWER IN OUR HARRISON, N.J. WAREHOUSE **
** ORIGINAL PAINT, SUPERIOR CONDITION… APPEARANCE **
