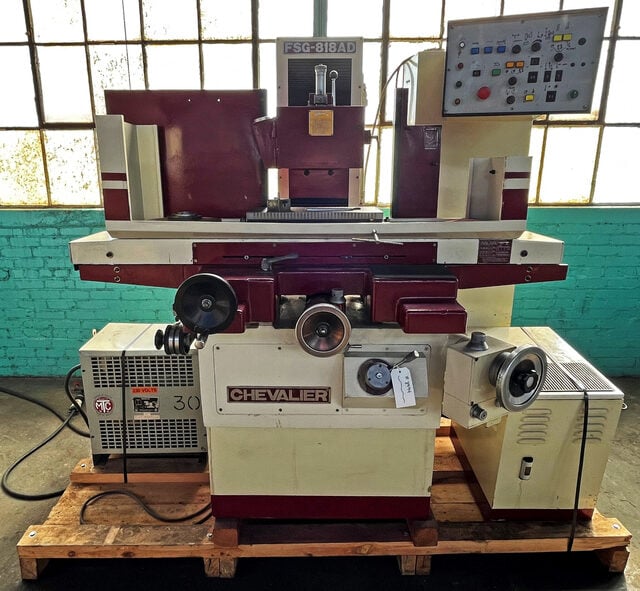

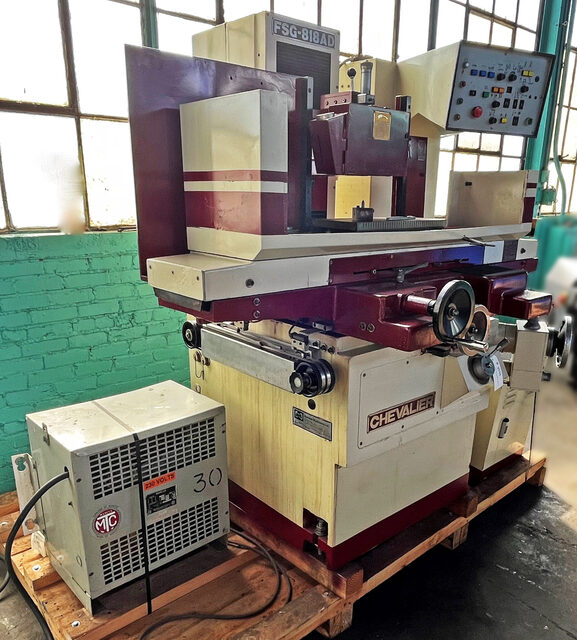

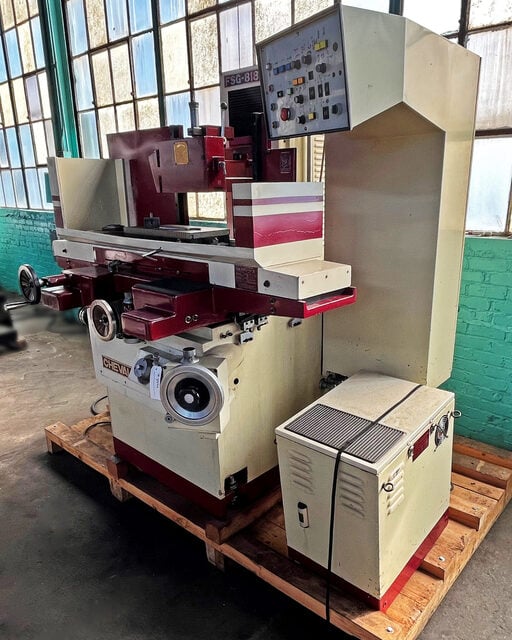

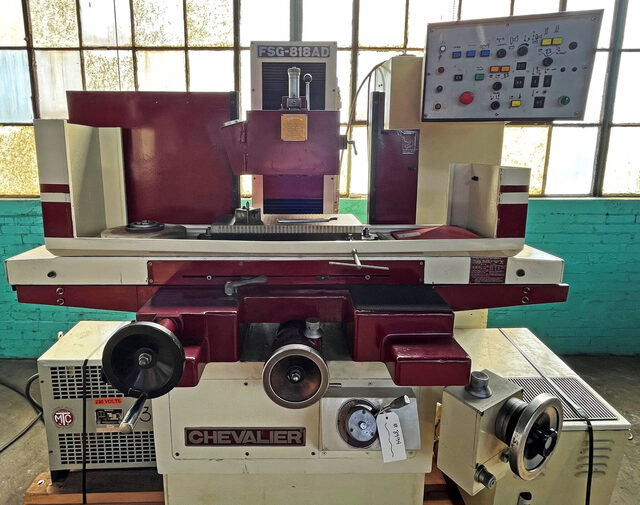

Chevalier 8″ x 18″ Automatic Precision Surface Grinder, FSG-818AD
Inventory # 8994
Model: FSG-818AD
S/N: 03B-0047M
Specifications:
Table Size: 8″ x 18″
Max. Grinding Length: 18″
Max. Grinding Width: 8″
Max. Distance from Table Surface to Spindle Centerline: 18″
Standard Magnetic Chuck Size: 7 7/8″ x 17 3/4″
T-Slot: 1 x 15/32″
Longitudinal Movement of Table:
Longitudinal Travel Hydraulic: 20″
Max. Travel Manual: 22″
Table Speed, Variable: 16 – 98 FPM
Cross Transverse Travel:
Approx. Rapid Travel: 50Hz/10FPM
Auto. Transverse Increment: 0.02″ – 0.5″
Max. Manual Transverse Travel: 9 1/2″
Max. Auto Transverse Travel: 8 5/8″
Handwheel per Revolution: 0.2″
Handwheel per Graduation: 0.001″
Micro Feed:
Per Revolution: 0.004″
Per Graduation: 0.00005″
Wheelhead Vertical Infeed:
Auto Infeed: 0.00005″ – 0.002″
Handwheel per Revolution: 0.05″
Handwheel per Graduation: 0.0005″
Micro Feed: 0.00005″
Approx. Rapid Travel: 50 Hz/6.5 IPM
Grinding Spindle Drive:
Speed: Standard – 3,450 RPM / 60Hz, 2,850 RPM / 50Hz
Power Rating: 2 HP
Standard Grinding Wheel:
Diameter: 8″
Width: 1/2″
Bore: 1 1/4″
Hydraulic Motor: 2 HP
Crossfeed Motor: 1/6 HP
Rapid Downfeed Motor: 1/4 HP
Pump: 1/8 HP
Mechanical Specifications:
Dimensions: 77″ x 53″ x 68″ H
Weight: approx. 3,880 lbs.
Shipping Weight: approx. 4,650 lbs.
FOB Our Baltimore, MD Warehouse
