Manufacturer: Acer
Model: SUPRA-818PD
Year: 2022
Width/Cross: 8.0
Length/Longit.: 18.0
Stock # 179626
1 / 6
Click to zoom in
1 / 6
For Sale by Machinery Values Inc
Surplus Record Dealer Since 1997
Location: Harrison, NJ
Contact Andrew Valitt
Phone Number: 973...> Show Phone Number 973-497-7600
Let the seller know you found their listing on Surplus Record!
Description

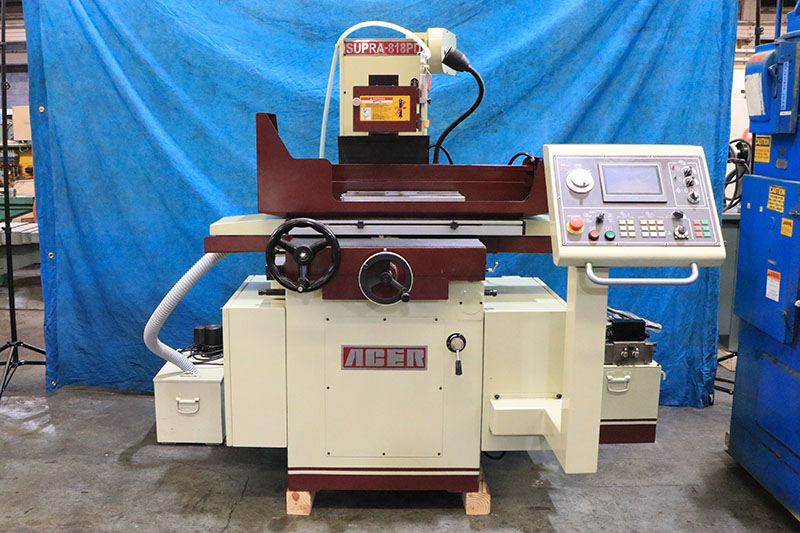

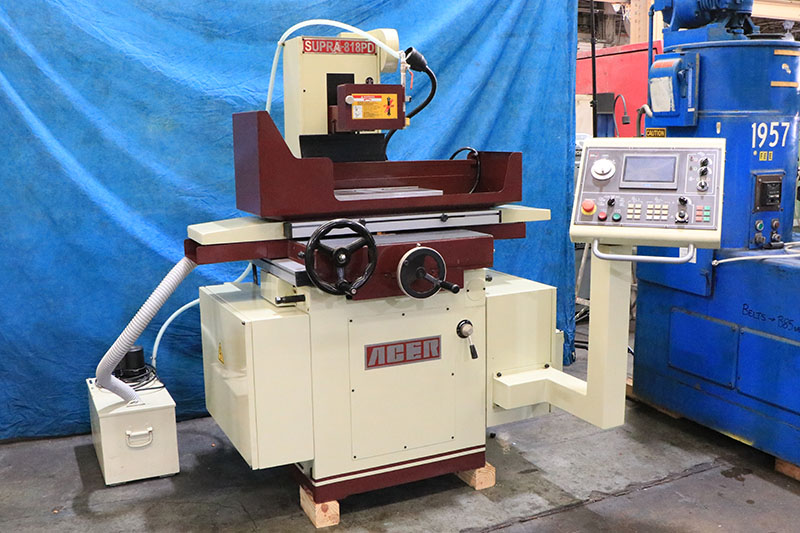

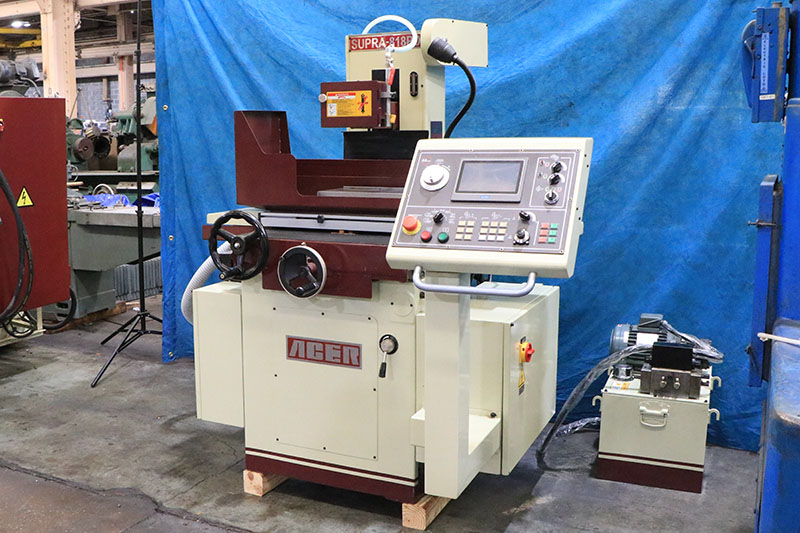

8" X 18" ACER…"HIGH-END"…"SUPRA SERIE
3-AXIS AUTOMATIC FEEDS SURFACE GRINDER
https://aceronline.net/product/supra-818pd/
7.2" TOUCH COLOR SCREEN WITH EASY TO USE
DIGITAL INTERFACE,PROVIDING FOR ELECTRONIC
PROGRAMMABLE AUTOMATIC INCREMENTAL DOWNFEED
MODEL: SUPRA-818PD… S/N:… N22050176… NEW: 2022
MAX. SURFACE GROUND ................... 9" X 18.9"
DIST. FROM SPINDLE CENTER TO TABLE ..... 18.11"
VARIABLE TABLE SPEED, HYDRAULIC ...... 16' TO 80' FPM
MAX. TABLE TRAVEL, MANUAL .............. 20"
MAX. TABLE TRAVEL, HYDRAULIC ........... 18.9"
AUTOMATIC CROSSFEED INCREMENT .......... 0.04" TO 0.4"
AUTO CONTINUOS CROSSFEED ............... 0.79" - 12.6"
MAX. CROSSFEED TRAVEL .................. 9-″/4"
CROSSFEED HANDWHEEL PER GRADUATION ..... 0.0005"
CROSSFEED HANDWHEEL PER REVOLUTION ..... 0.2"
AUTO INCREMENTAL DOWNFEED ......... 0.00005" TO 0.002"
STEP FEED (JOGGING) .................... 0.00005"
RAPID TRAVEL RATE, WHEELHEAD ........... 9.84"
SLOW TRAVEL RATE, WHEELHEAD ............ 0.236"
VERTICAL HANDWHEEL PER GRADUATION ...... 0.0001"
VERTICAL MOVEMENT PER HANDWHEEL REV. ... 0.05"
SPINDLE MOTOR .......................... 2 H.P.
STANDARD GRINDING WHEEL ...... 8"D x 1/2" TO″/4"W x 1- 1/4"
APPROX. WEIGHT ......................... 2,651 LBS
FLOOR SPACE REQUIRED ......... 71.3"L-R x 50.8"W x 66.2"H
EQUIPPED WITH:
7.2" TOUCH COLOR SCREEN -
PROGRAMMABLE ELECTRONIC AUTOMATIC INCREMENTAL
DOWNFEED IN BOTH SURFACE… PLUNGE MODES.…
AUTO INCREMENTAL DOWNFEED HAS BOTH…"ROUGH" AND
"FINE" CYCLE OPTIONS, WITH SPARKOUT POSITION.
MANUAL PULSE GENERATOR (ELECTRONIC HANDWHEEL)
FOR VERTICAL AXIS MANUAL POSITIONING
PRECISION BRUSHLESS AC MOTOR PROVIDING MINIMUM
AUTO DOWNFEED INCREMENT OF 0.00005"
PRECISION BRUSHLESS DC MOTOR FOR POWER CROSS FEED,
PROVIDING FOR STEP OR CONTINUOS CROSS FEED OPTIONS.
CROSS FEED IS WITH A BALL SCREW TO ELIMINATE BACKLASH
TWO-SPEED POWER RAPID WHEELHEAD POSITIONING
HYDRAULIC TABLE TRAVERSE
TABLE MOVES OF ROLLER BEARINGS (LONGITUDINAL AXIS)
TURCITE-B COATING ON WAYS

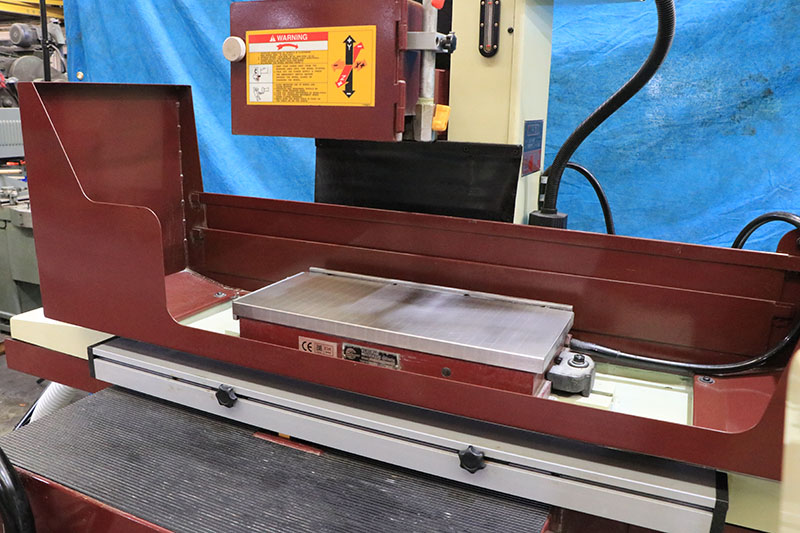

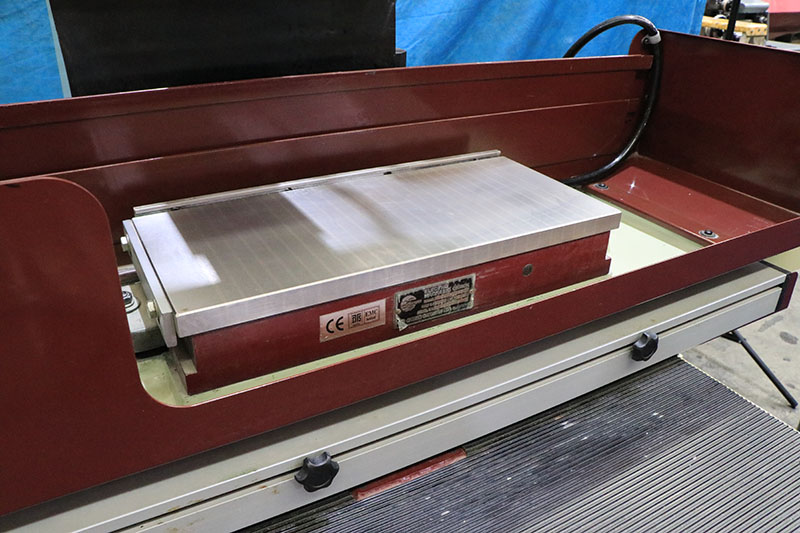

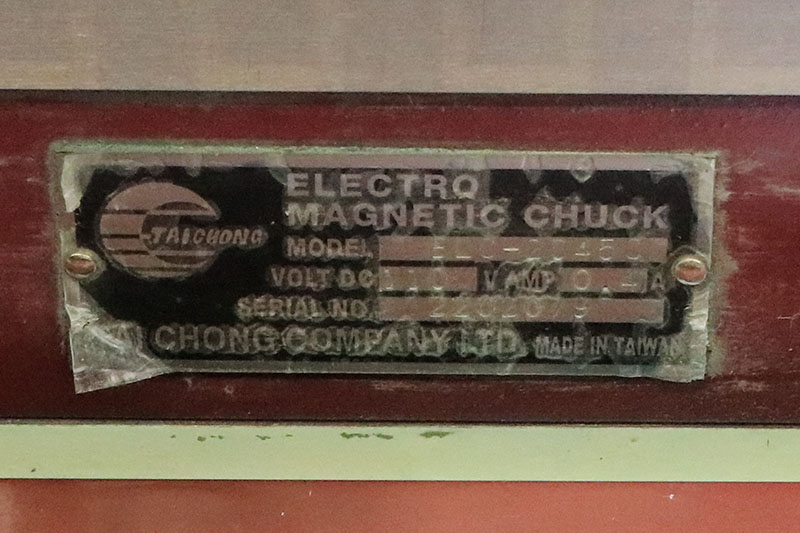

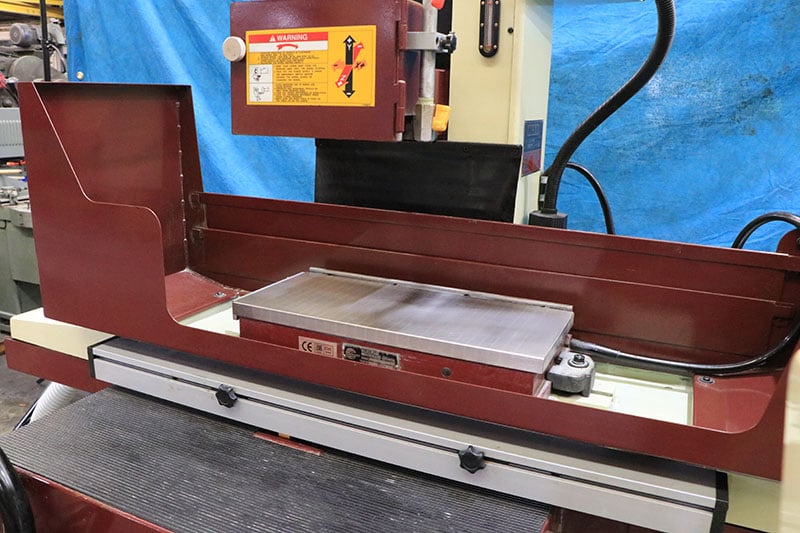

8" x 18" ACER ELECTRO-MAGNETIC CHUCK
VARIABLE HOLD NEUTOFIER
COOLANT SYSTEM
AUTO LUBE SYSTEM
EXTERNAL HYDRAULIC SYSTEM
2 H.P. DIRECT DRIVE SUPER-PRECISION SPINDLE,
3/60/230-460 VOLTS
MACHINE IS PRESENTLY WIRED FOR 230 VOLTS
**…"AS NEW" CONDITION… APPEARANCE (ORIGINAL PAINT) **
** INSPECT UNDER POWER IN OUR HARRISON, N.J. WAREHOUSE **
