Manufacturer: Chevalier
Model: FSG-3A818
Year: 2000
Width/Cross: 8.0
Length/Longit.: 18.0
Stock # 179507
1 / 6
Click to zoom in
1 / 6
For Sale by Machinery Values Inc
Surplus Record Dealer Since 1997
Location: Harrison, NJ
Contact Andrew Valitt
Phone Number: 973...> Show Phone Number 973-497-7600
Let the seller know you found their listing on Surplus Record!
Description

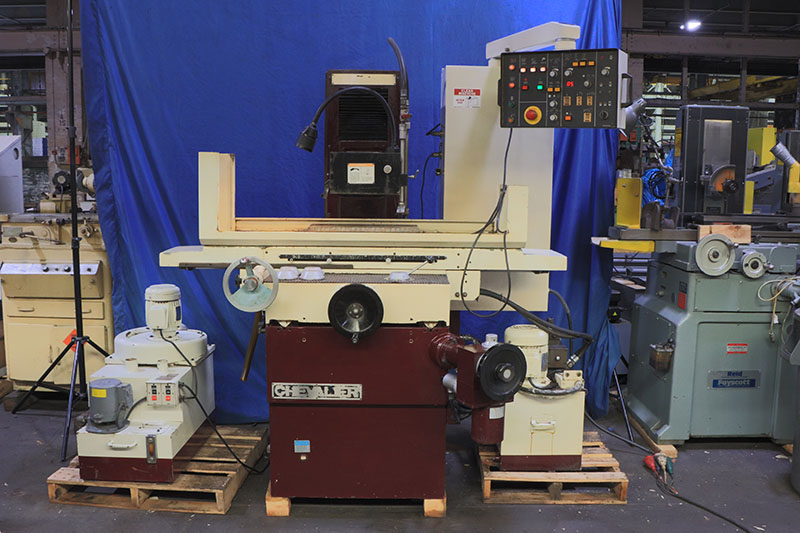

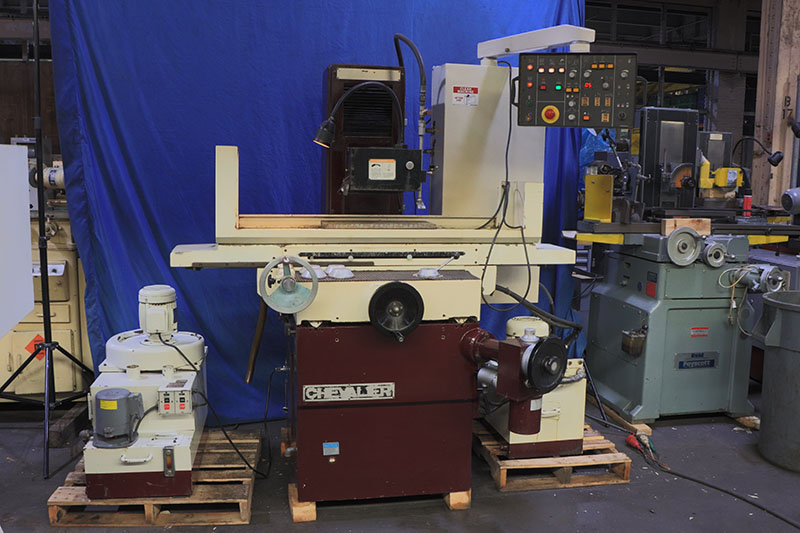

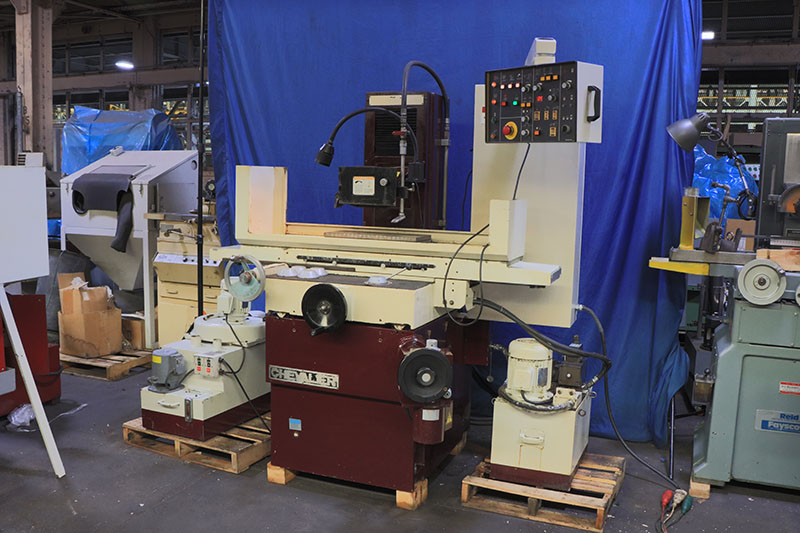

8" X 18" CHEVALIER PRECISION SURFACE GRINDER
W/MICROPROCESSOR CONTROLLED AUTOMATIC INCREMENTAL DOWNFEED
MODEL: FSG-3A818 S/N: M3898010… NEW: 2000
MAX. GRINDING CAPACITY ................. 8" X 18"
MAX. LONGITUDINAL TABLE TRAVEL, HYD. ... 19-″/4"
MAX. LONGITUDINAL TABLE TRAVEL, MANUAL.. 21"…
MAX. CROSSFEED TRAVEL, AUTOMATIC ....... 9"
MAX. CROSSFEED TRAVEL, MANUAL .......... 9- 1/2…"
DIST. FROM SPINDLE CENTER TO TABLE ..... 18…"
VARIABLE TABLE SPEED, HYDRAULIC ........ 16' TO 82' FPM
AUTOMATIC CROSSFEED INCREMENT .......... 0.02" TO 0.24"
RAPID TRAVEL, CROSS FEED ............... 48" IPM
CROSSFEED HANDWHEEL, PER GRADUATION .... 0.001"
PER REVOLUTION .... 0.2"
AUTOMATIC INCREMENTAL DOWNFEED ......... 0.0001" TO .002"
AUTO DOWNFEED DIAL PER GRADUATION ...... 0.1"
RAPID TRAVERSE RATE .................... 13" IPM
SPINDLE MOTOR .......................... 2 HP
STANDARD GRINDING WHEEL .......... 8" DIA. x 1/2" x 1.25"
APPROX. WEIGHT ......................... 2,620 LBS.
APPROX. FLOOR SPACE REQUIRED ..... 86" x 61" Xx75"H
EQUIPPED WITH:

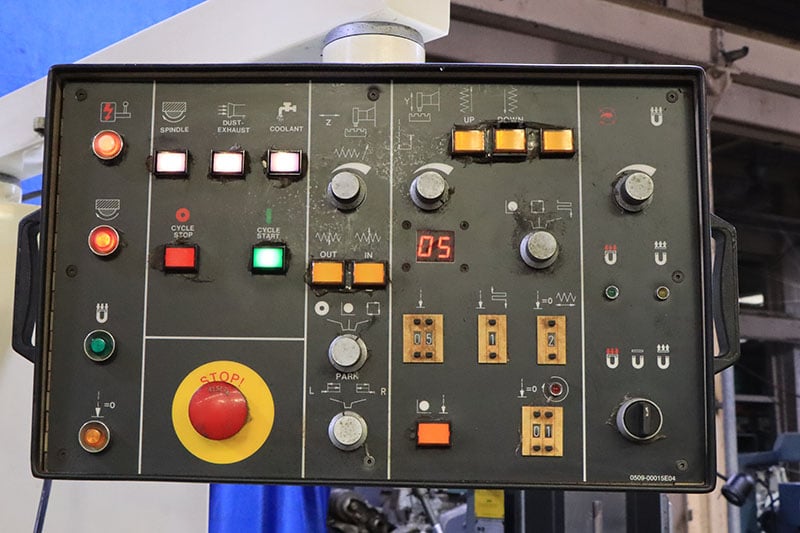

FULLY PROGRAMMABLE AUTO-CYCLE CONTROL W/DIGITAL DISPLAY
-AUTOMATIC INCREMENTAL DOWNFEED (PLUNGE… SURFACE)
-SPARKOUT CYCLE ADJUSTABLE FRO 0 TO 9 TIMES
-AUTOMATIC WHEELHEAD RETRACTION @ COMPLETION OF CYCLE
-POWER RAPID WHEELHEAD POSITIONING
HYDRAULIC TABLE TRAVERSE
POWER CROSSFEED BY AC MOTOR
TABLE GUIDEWAYS ARE HARDENED AND GROUND
BALL BEARINGS FOR FRICTIONLESS TABLE MOVEMENT
ALL SLIDEWAYS ARE LAMINATED WITH TURCITE-B… PRECISELY
HAND-SCRAPED FOR ACCURACY.
"MICRO" FINE FEED FOR VERTICAL AXIS (.0001" GRAD.)

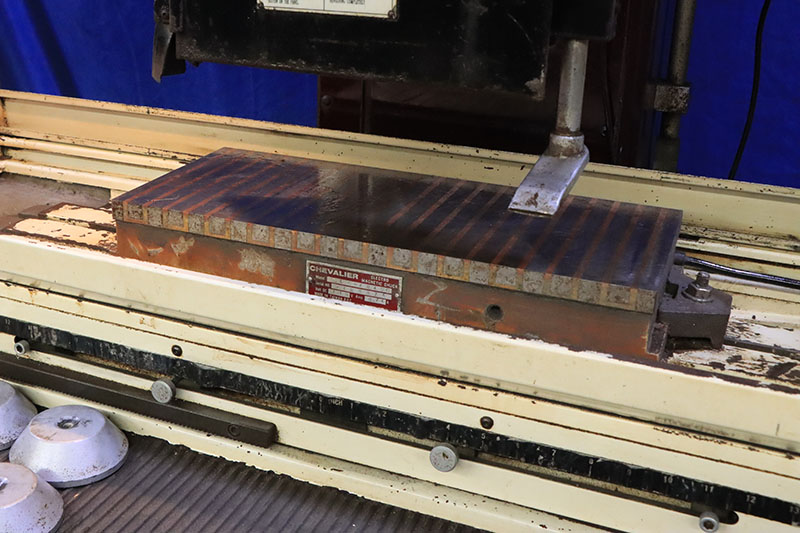

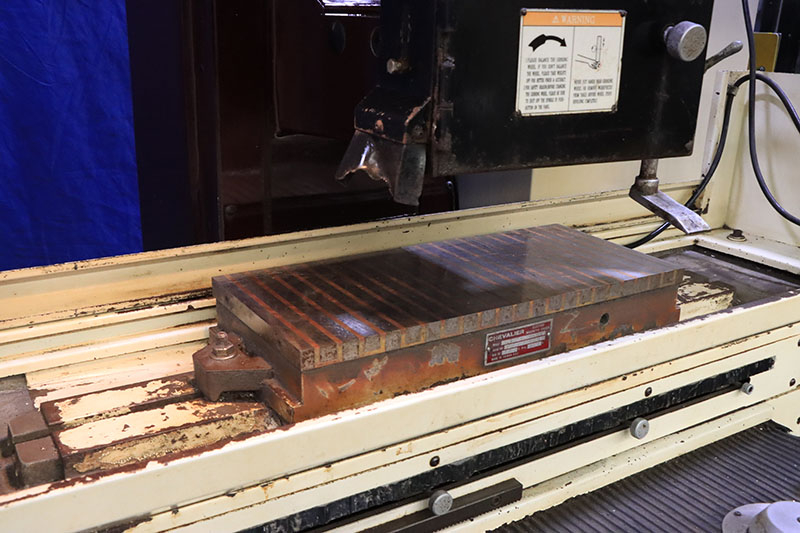

8" X 18" ELECTRO-MAGNETIC CHUCK
W/VARIABLE HOLD NEUTROFIER CONTROL ON MACHINE'S
CONTROL CONSOLE
COMBINATION COOLANT SYSTEM COMPLETE W/SPLASH GUARDS,
AND DUST COLLECTOR
EXTERNAL HYDRAULIC SYSTEM
AUTO LUBE SYSTEM
2 H.P SUPER-PRECISION DIRECT DRIVE SPINDLE,
3/60/208-230-460 VOLTS
MACHINE IS PRESENTLY WIRED FOR″/60/220 VOLT OPERATION
** INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE **
** QUIET SPINDLE… HYDRAULICS - JUST BEAUTIFUL **
** ORIGINAL PAINT - EXCEPTIONAL CONDITION… APPEARANCE **
