8.5" x 0.4" (219mm x 10mm) Voest Alpine, Rafted Cage Forming Tube Mill, 150mm shaft, 80 MPM, upgraded 2008

Tube Diameter: 219mm
Thickness Range: 2mm - 10mm
Upgraded: 2008
Cage Forming Design
Shaft Diameter: 150mm
Speed: 80 MPM
Coil Weight: 20 Ton
Thickness: 2mm - 10mm
Diameter Range: 95mm to 219mm
Complete Mill with the Following Components:
Coil Car
Mandrel Uncoiler
Peeler
6 Roll Straightener
Shear End Welder
Horizontal Accumulator
D-Twist and Pull Out
Mill Configuration:

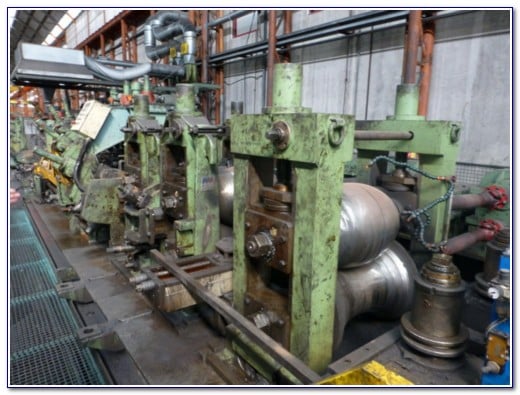

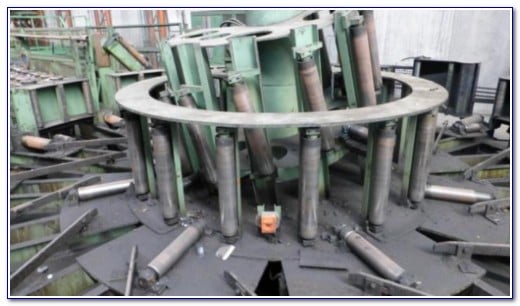

3 Breakdown Stands: CTA - Cage Forming Section w/ Quick Adjustments
2 Finn Passes
4 Roll Weld Box
600 kW Elva Solid State Welder
Water Cooling Section
Galvanizing Gun
Eddy Current Tester

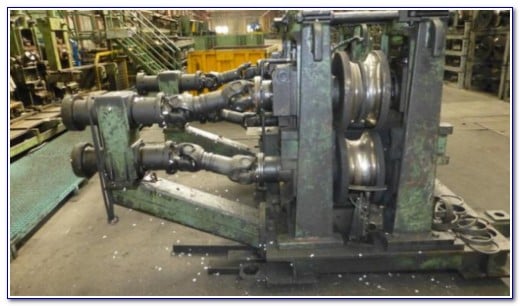

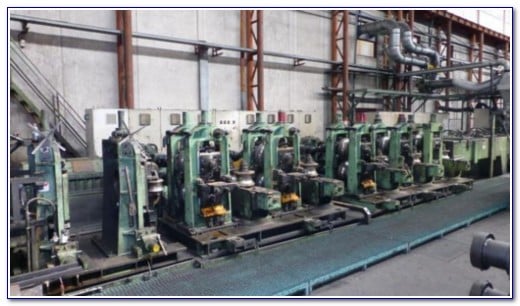

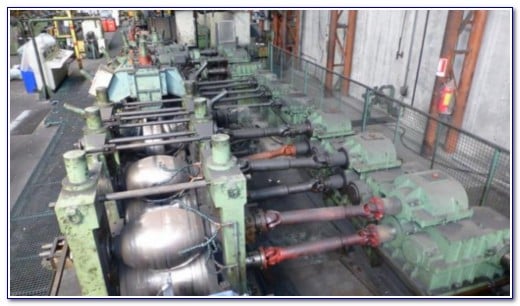

5 Sizing Stands with Clevices for Squaring
Double Turkshead
Mill Power: 105 kW Motor Forming and Sizing, 65 kW DC Motor for Sizing, 105 kW
DC Motor for Sizing
Cutoff: Milling Dual Bladed, Carbide Inserts, 2008
Electrical Controls: 2008
Mechanical Upgrades done by Seuthe: 2008
ID/OD Scarfing Unit

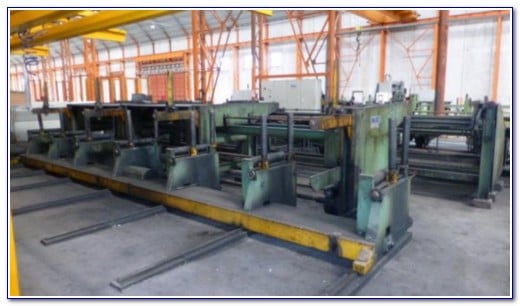

Run Out Table
Mair Research Packaging Line
Signode Automatic Strapping Station
Tooled to Produce Rounds, Squares and Rectangles
Installed at Plant
