750 KVA 27600 Delta Primary, 460Y/266 Secondary, ABB, pad, copper windings, in stock (10 available)

All 10 ABB Padmount Transformers are electrically and physically identical, with the same impedances for paralleling, Manufactured NEW 2013, all have copper HV and LV windings, K-9 Factor rated, stainless steel enclosure, UL, CUL, CSA listed and approved, dead front loop feed, LBOR switch, dual primary fusing (expulsion and current limiting),and include ABB 1000 amp molded case circuit breaker with electronic trip functions installed on the secondary!

These transformers are available for immediate shipping and delivery.

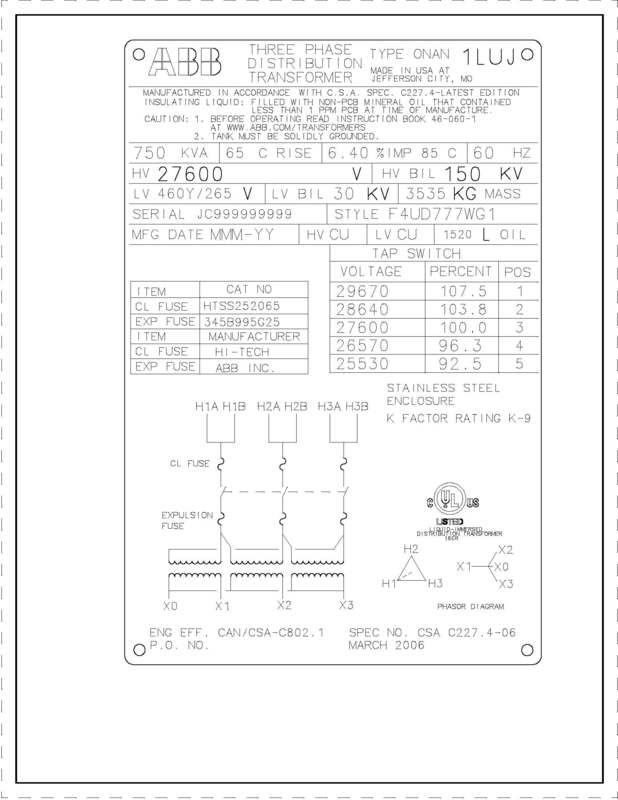

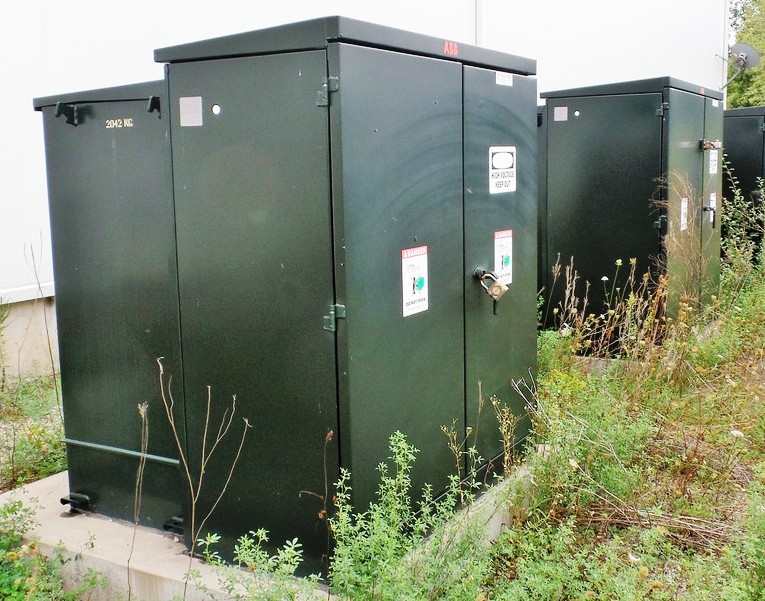

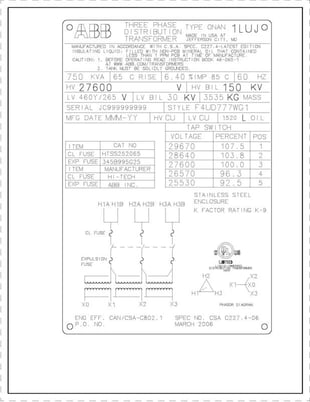

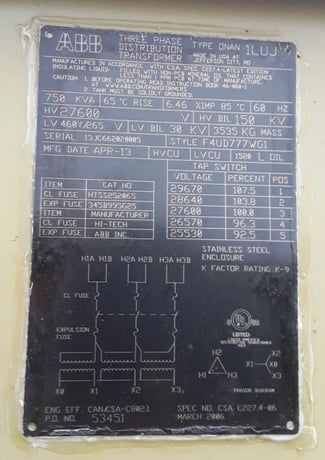

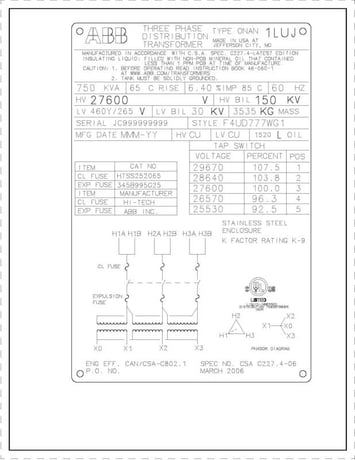

Attached are the nameplate and outline drawings, and photos.

Quick note, the primary taps are flexible for 25 KV, 26.4 KV, or 27.6 KV Delta applications.

Review and advise.
---------------------------------------------------------------------------
Stock 2019013:
----------------------------------------------------------------------------
Qty - 10 units

ABB Padmount Transformers
750 KVA
HV: 27,600 Delta with standard no load straddle taps - BIL 150 Kv
LV: 460 Y/265 - BIL 30 Kv
3 Phase
60 Hertz
Class ONAN
Rise 65 C
Configuration: Delta / Wye
Standard Gauges & Valve Package Included CUL Listed CSA -C802.1, CSA C227.-06 Built to CSA STD C227.4 - Latest Edition
K-9 Factor Rated
Stainless Steel Enclosure
LBOR Switch Included
Copper HV / Copper LV Windings
Current Limiting Fuses
Expulsion Fuses

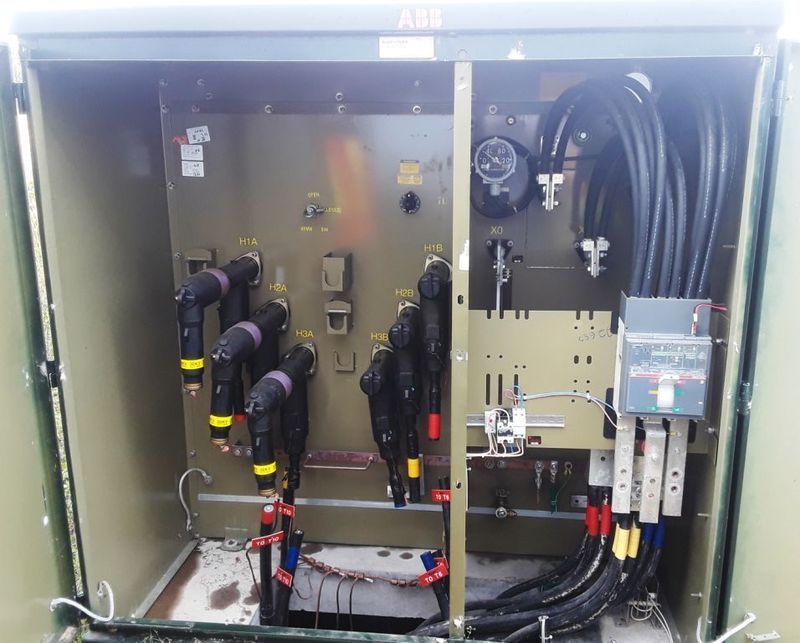

Dead Front Loop Feed Primary
Spade Connected Secondary

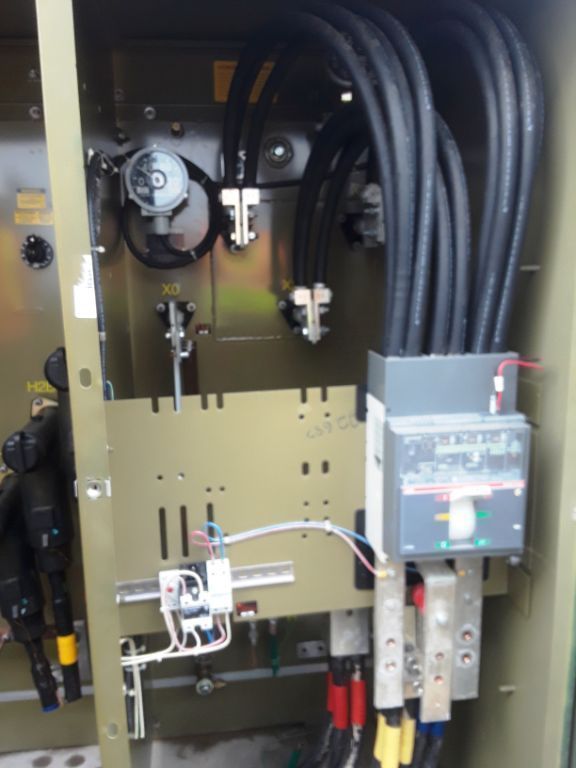

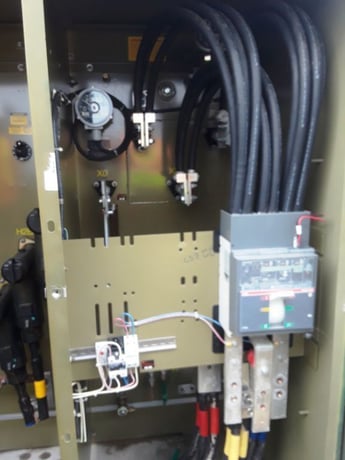

Superior Kirk Key Interlock Mounted on Doors Secondary includes:
ABB T7 Max 1200 Amp Frame Molded Case Circuit Breaker with LSI Functions Excellent Condition Manufactured APRIL 2013

High Voltage Taps
1. 29,670 volts
2. 28,640 volts
3. 27,600 volts
4. 26,570 volts
5. 25,530 volts

Weight: 3,535 kg ( 7,777 lbs.) each
----------------------------------------------------------------------------
