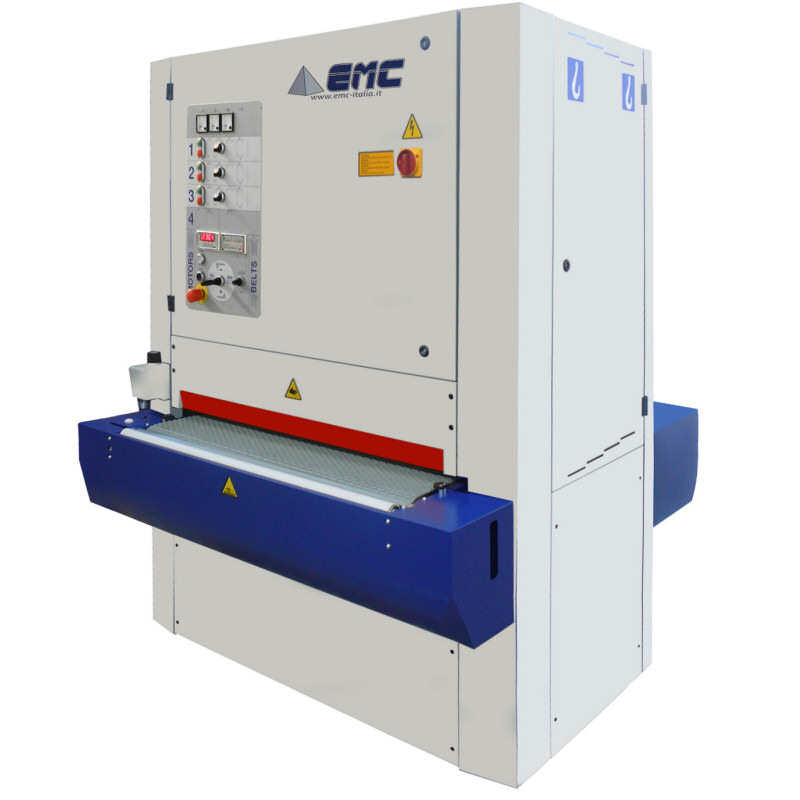

75" x 44" electromagnetic chuck EXPLORER-1100-2RK, wide belt sander, 2-heads, automatic brakes on main motor, automatic emergency stop and alarm display, 2026, new

Estimated monthly payment valid upon approved credit.

Request Formal Quote

EMC EXPLORER 1100 2RK ... Wide Belt Sander with (2) Sanding Heads; Roller and Combination head roller/pad.Versatile, medium duty machine, ideal for cabinet shops etc.TECHNICAL DATA: -- Useful working width 1,100 mm (43"). -- Working thickness min./max. mm 3 - 170 (1/8" - 6-11/16"). -- Abrasive belt dimension (length) 1,900 mm (75") x (width) 1,120 mm (44"). -- Feed belt speeds adjustable by electronic inverter from 3 to 17 m/Min (10 - 55 FPM). Head configuration:1st Head: Steel Contact Roller -- Roller diameter 142 mm (6") -- Automatic abrasive belt grit compensation with "Grit-Set System". -- On/Off Selector control with pneumatic piston to select roller. -- Motor power 11 kW (15 HP). -- Automatic Star-delta starter. -- Speed rotation: 18 m/Sec (59 FPS).2nd Head: Combination Roller & Pad. -- Roller diameter 142 mm (6"). -- Rubber covered roller with hardness 45 Shore. -- Automatic abrasive belt grit compensation with "Grit-Set System". -- On/Off Selector control with pneumatic piston to select roller. Flexible sanding pad. Quick Change System for removable pad with felt, rubber and graphite. Rotating cutting speed 17 m/Sec (55.8 FPS). --Driven by same main motor.Abrasive belts oscillation by means of electronic photocell sensor.Feed System: -- Working thickness min./max. mm 3 - 190 (1/8" - 7-1/2"). -- Motorized table lifting including fine adjustment, on 4 precision screws. Natural rubber conveyor belt, machined. Automatic feed belt centering device. Electronic digital display for working thickness; resolution 0.1 mm (0.004"). -- Feed belt speeds adjustable by electronic inverter from 3 to 17 m/Min (10 - 55 FPM). Centralized Control Cabinet: -- Control panel with self-diagnostics alarm control unit. -- Analog load meters on main control cabinet. -- Table lifting-lowering thickness system, electrically controlled. -- AUTOMATIC Delta - Star starter on main motor and IP 54 protection against dust & moisture. Centralized Independent Pneumatic Control Cabinet: -- Pneumatic air filter with automatic water-drain system. -- Pneumatic adjustment for "Grit set system". --Pneumatic plant working without lubrication. Compressed air pressure 6 bar (85 PSI). IP 54 protection against dust & moisture. Safety Features: -- Anti-kickback infeed protection. -- Oversized parts infeed protection by swinging bar. -- Emergency push buttons front & rear. --Automatic brakes on main motor. -- Automatic emergency stop and alarm displayOption: TAMPICO Cleaning Brush, 150 mm (6") diameter. Please add ...$3,400USA UL or Canada CSA Safety Features
