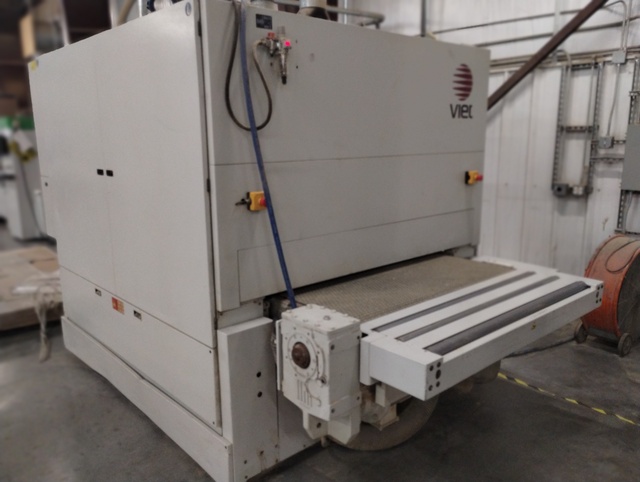

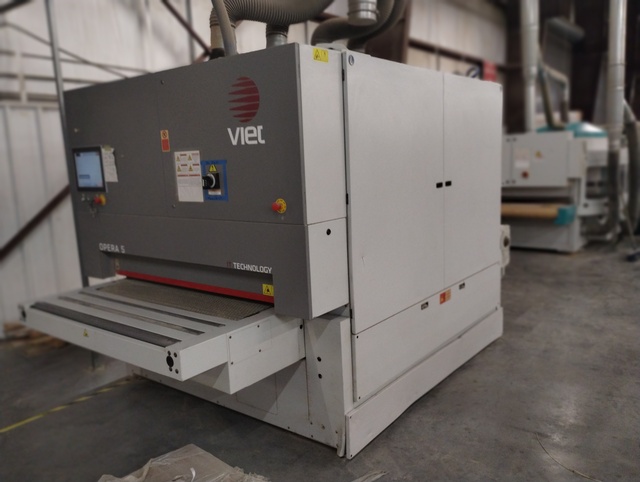

Biesse #Viet-Opera5-RRRF, Widebelt Sander (4 head), 2015

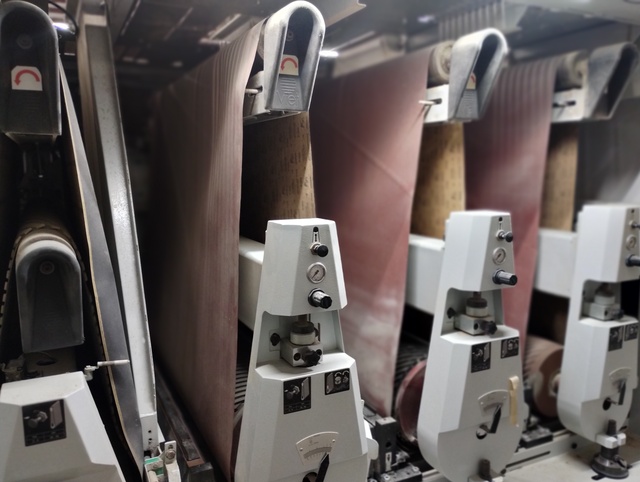

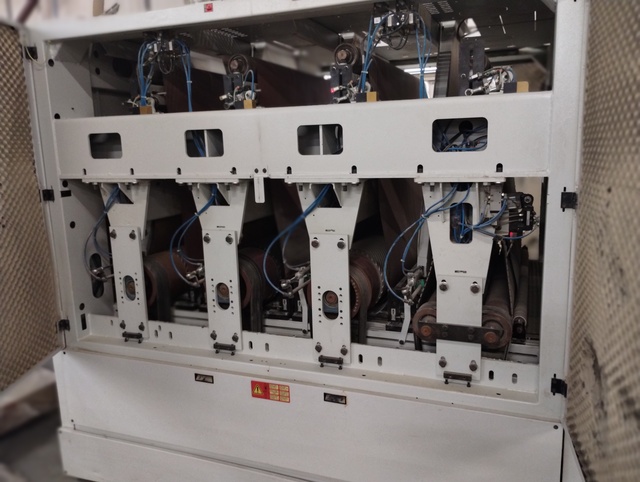

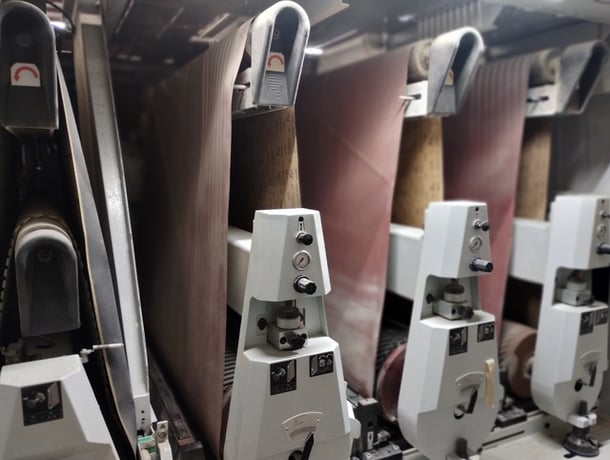

1st Working Unit - Drum Unit -

The roller working unit is characterized for the precision and
effectiveness of the work it does.
Main motor 22 kW (30HP)

Drum - 240mm - Steel

Linear blower cleaning sanding paper A.S.S. (Air Saving System)

Infeed pressure shoe

The pressure beam is used to guarantee the maximum
precision when calibrating and flattens the deformed or thin
pieces. The chromed anti-wear metal removable tips

Outfeed pressure shoe

2nd Working unit - Drum Unit

Main motor 18,5 kW (25HP)

Drum - 300mm - 70 Shore

Linear blower cleaning sanding paper A.S.S. (Air Saving System)

Infeed pressure shoe

Outfeed pressure shoe

3rd Working Unit - Drum Unit

Main motor 15 kW (20HP)

Drum 300mm-40 shore

Linear blower cleaning sanding paper A.S.S. (Air Saving System)

Infeed pressure shoe

Outfeed pressure shoe

4th Working unit - Superfinishing unit

The super-finishing pad is the evolution of the pad unit (Viet
patent, 1978). The pad unit has a "chevron belt" running
between the pad itself and the abrasive belt that guarantees
top-quality finishing and a longer performance to the
abrasive.

Main motor inverter 15 kW (20HP)

Pneumatic “air cushion” pad This pneumatic pad is the ideal tool to solve finishing
problems

Contact insert for pneumatic pad made of steel + felt + graphite

Linear blower cleaning sanding paper A.S.S. (Air Saving System)

Infeed pressure shoe

FEATURES

Working Width: 1350 mm (53.15")

Constant Pass (Fixed Table) - Heads adjust up/down by program)

Working Height: 200 mm (7.87")

Laser Electronic Positioning for working thickness

Motors with amp meters

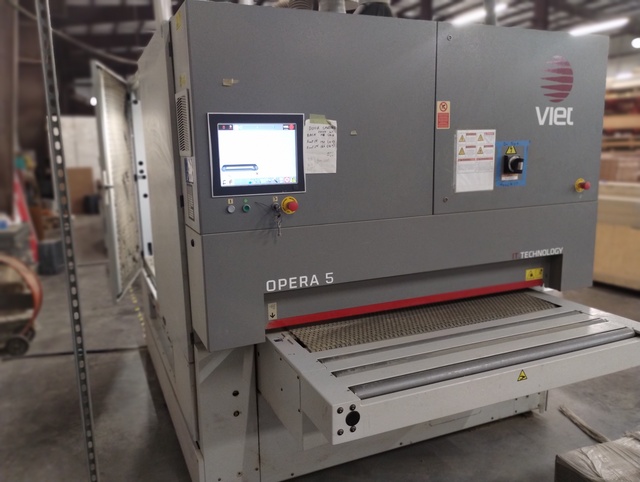

IPC Compact 15" Color Touch Screen Controller

Vacuum Table with 7.5 HP Motor, Electronic System, IPC Control with feed speed up to 75 FPM.

50 Shore Rubber Conveyor

Vacuum bed for short parts

Front & Rear Extension Rollers (2 EACH)
