Description

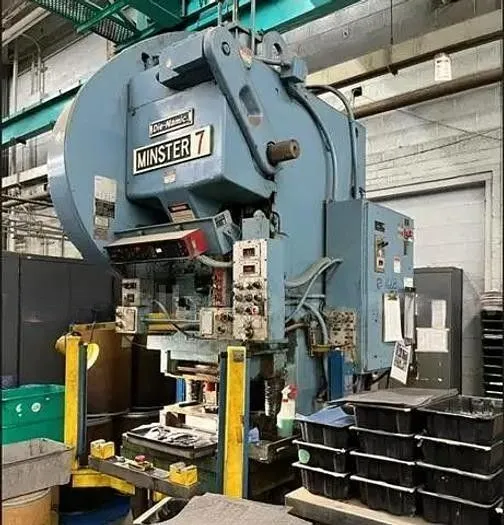

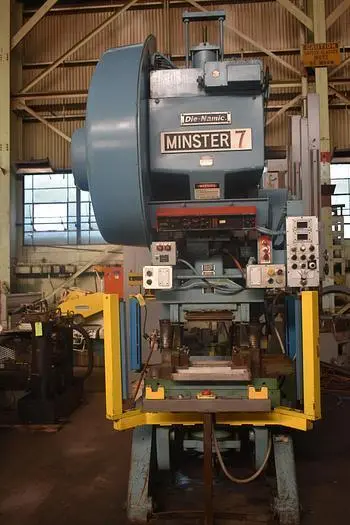

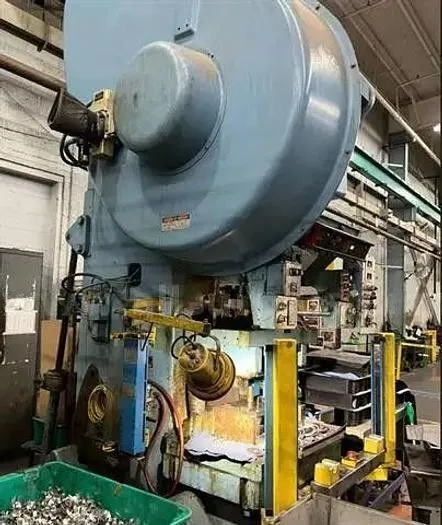

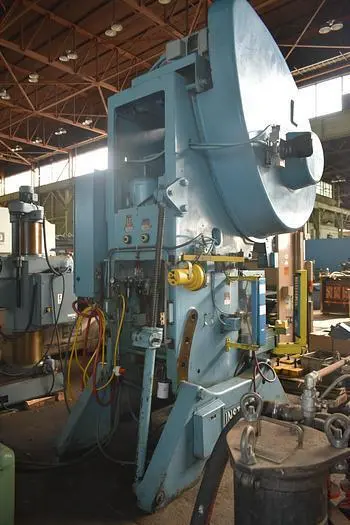

THIS MINSTER #7 DIENAMIC IS A 75-TON CAPACITY OPEN BACK INCLINABLE (OBI) FABRICATING PRESS. THE MACHINE OPERATES WITH A 4" STROKE LENGTH AND FEATURES A VARIABLE STROKE PER MINUTE RANGE OF 90 TO 180 SPM. KEY DIMENSIONS INCLUDE A SHUT HEIGHT TO BED (SDAU) OF 21" AND A SHUT HEIGHT TO BOLSTER (SDAU) OF 18", WITH A POWER SLIDE ADJUSTMENT OF 3.5". THE WORKING AREAS ARE DEFINED BY A 36" X 24" BED AREA (L-R X F-B) AND A 36" X 24" BOLSTER AREA (L-R X F-B). THE RAM AREA MEASURES 24" X 16" (L-R X F-B). POWER IS SUPPLIED BY A 15 HP VARIABLE DRIVE MOTOR WITH A 50 - 1750 RPM RANGE, OPERATING ON A 230-460/3/10 ELECTRICAL SYSTEM. THE APPROXIMATE WEIGHT OF THE MACHINE IS 19000 LBS.
Capacity 75 ton, Stroke 4", Adjustment 3.75", Shute Height SDAU to Bed 17-1/2", Bolster 36" L-R x 24" F-B, Stank Hole 2", Speed 0-150 spm, Bed Opening 12" F-B x 19" L-R, Minster recirculating lubrication system, Includes the following:, - New Press Controls either Cieco PPC1000R, - 8 Die Protection Inputs & 6 ...more
75 TON BLISS C-75 OBI PRESS, Back Geared, Dual Palm Buttons, 24" x 18" Ram, 36" x 24" Bolster/Bed, 4" Stroke, 3.5" Slide ADJ, 17" Shut Height, 45 SPM, Air Clutch & Brake and Dual Air Counterbalance., Bolster/Bed Area (L-R x F-B): 35" x 24" x 3.25", Distance Between Uprights: 19".
