$8,950 USD
Description

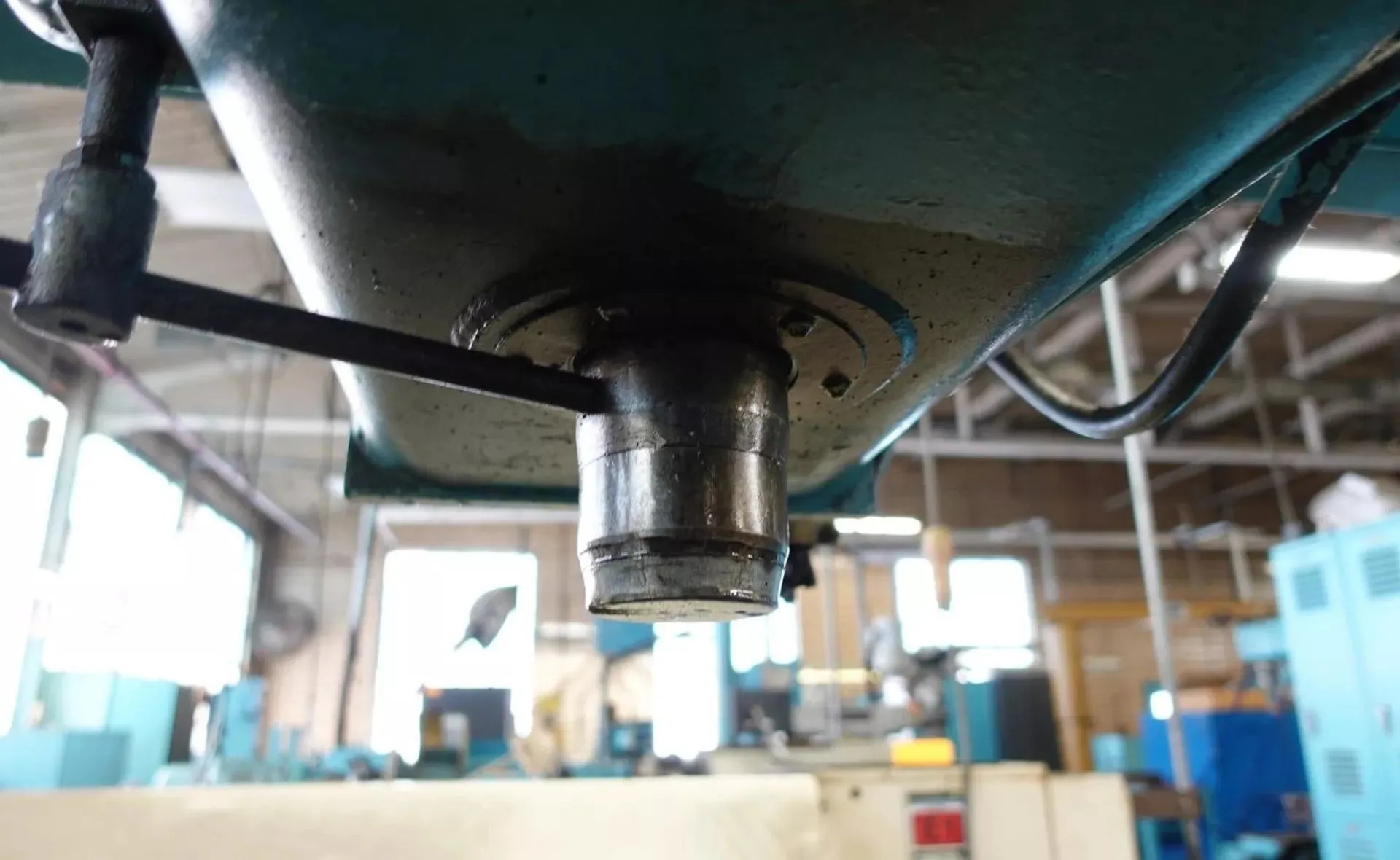

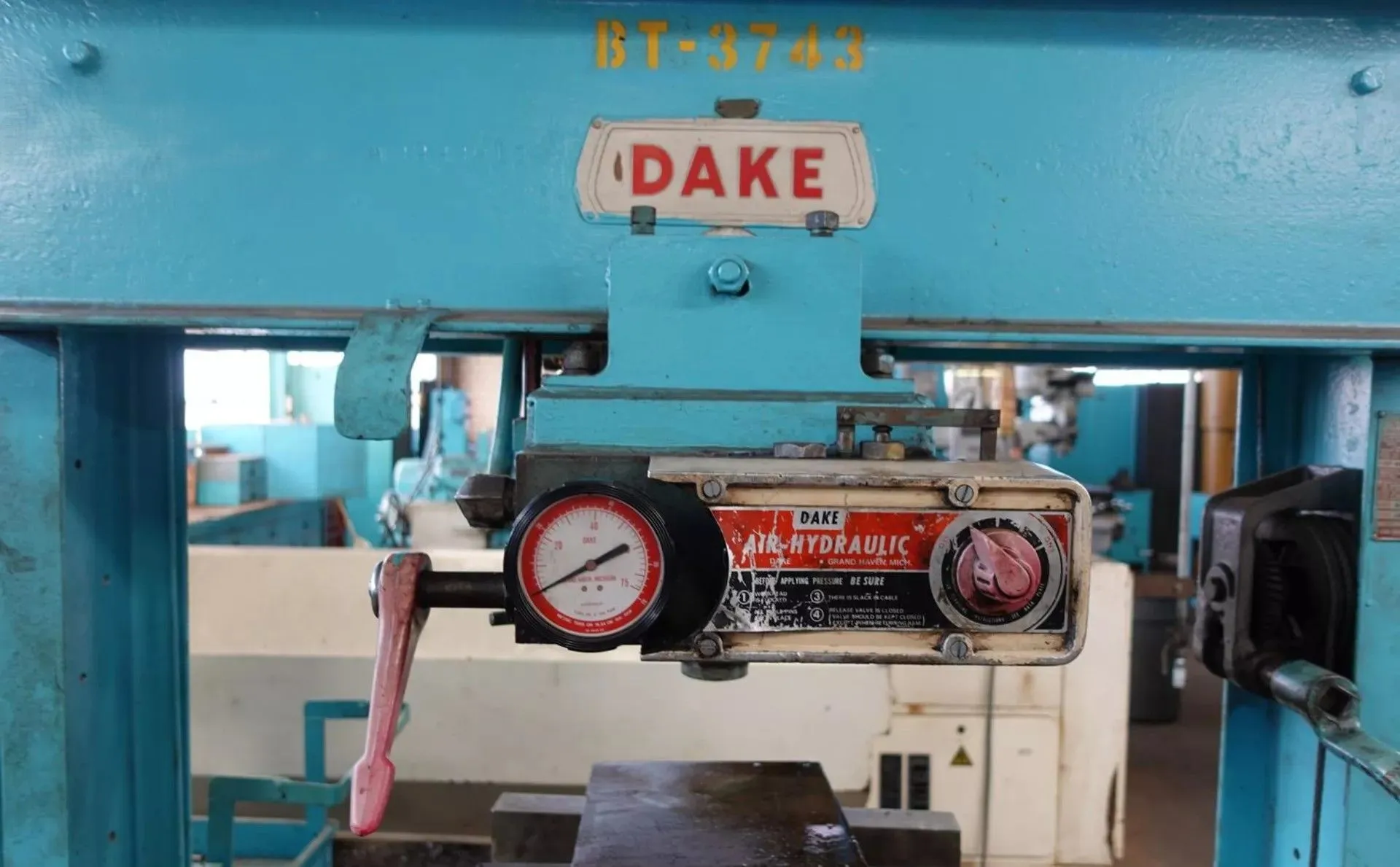

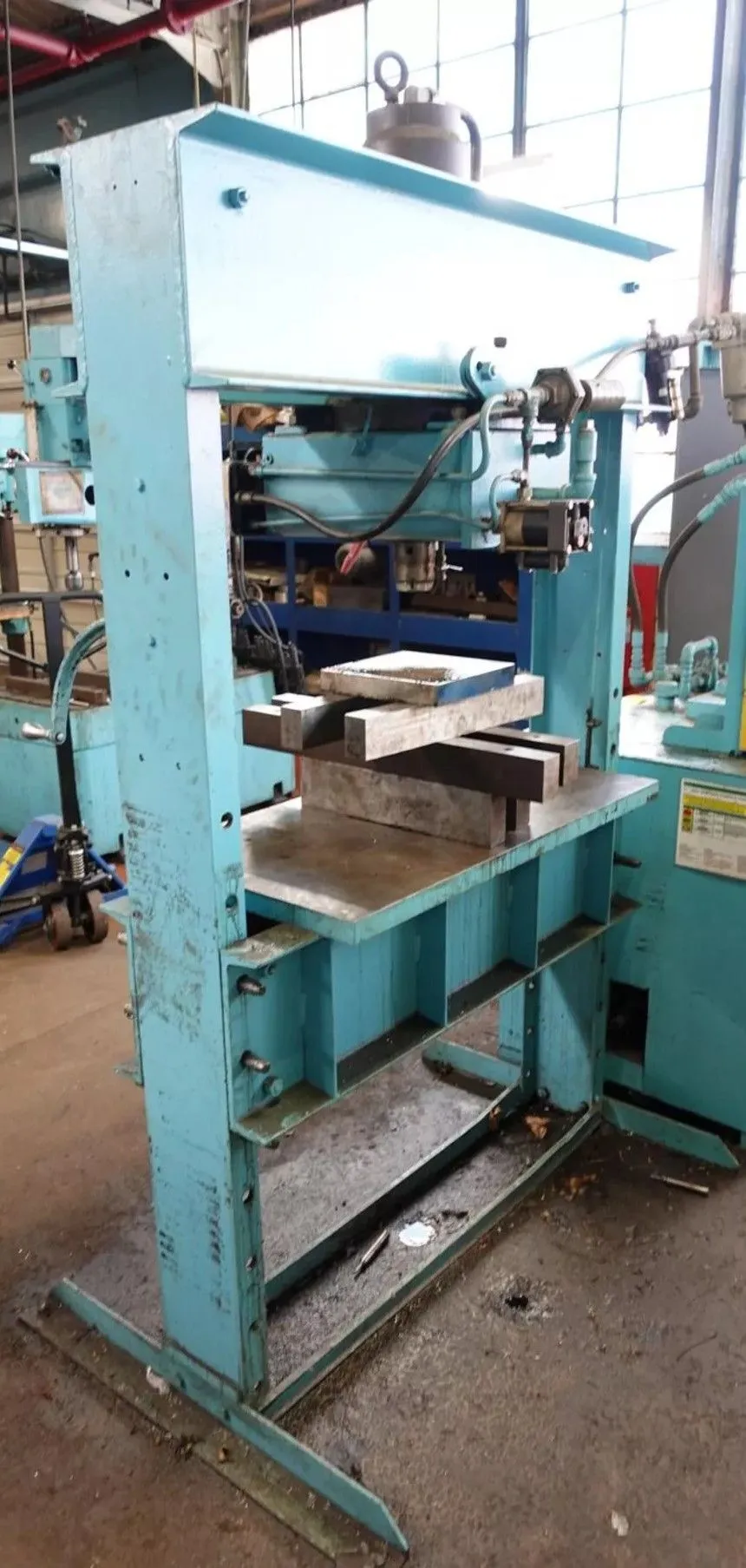

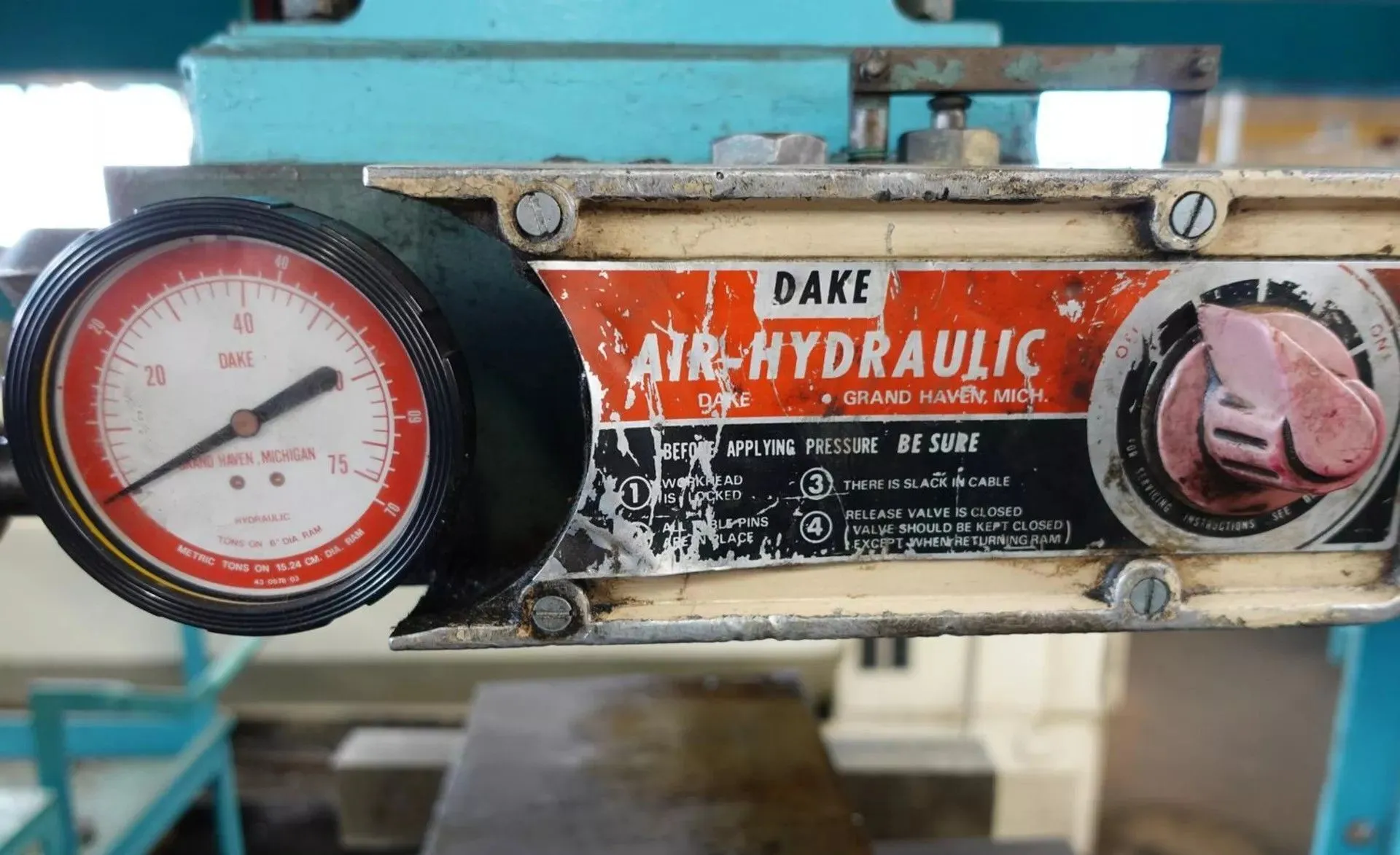

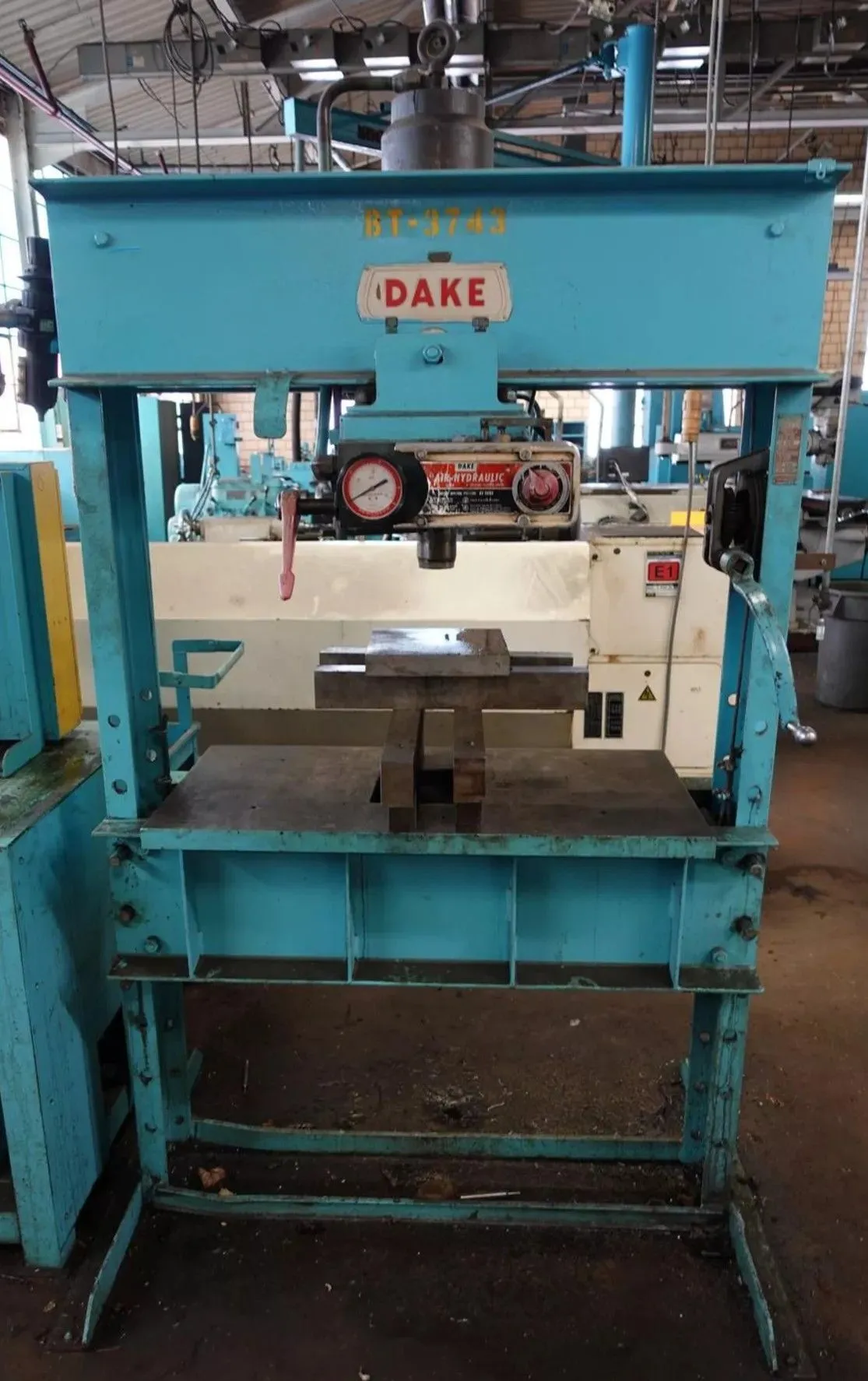

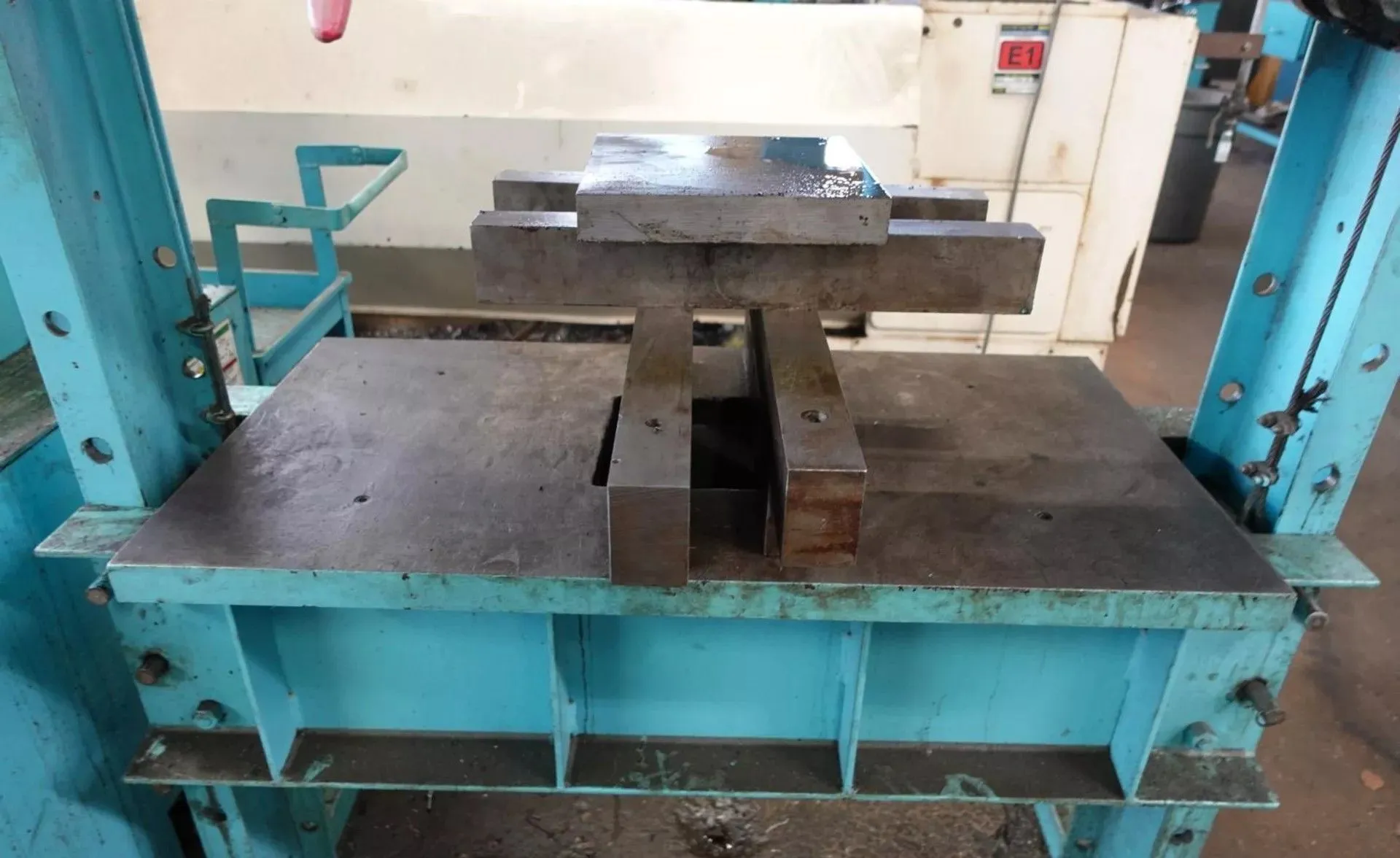

The Dake 6-275 is a 75-ton capacity air hydraulic H-Frame press designed for heavy-duty workshop use. It features a 10-inch ram stroke, 44-inch width between uprights, and a 24-5/8 inch horizontal workhead travel. The unit has an 8-1/4 inch width between table channels and provides a maximum daylight of 36 inches from ram to table. Operating at a required air pressure of 90-125 PSI, the press offers an advance speed of 45 IPM and a pressing speed of 2 IPM. Physical dimensions include a 55-inch by 36-inch base with an overall height of 86 inches, and a weight range between 1,500 and 1,550 lbs.
Inquire Further with Aucto!
