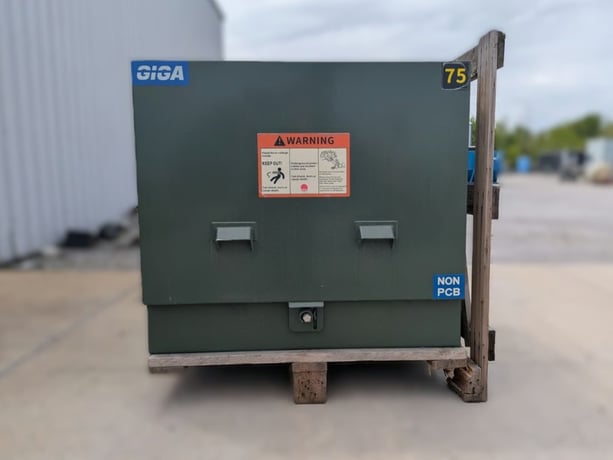

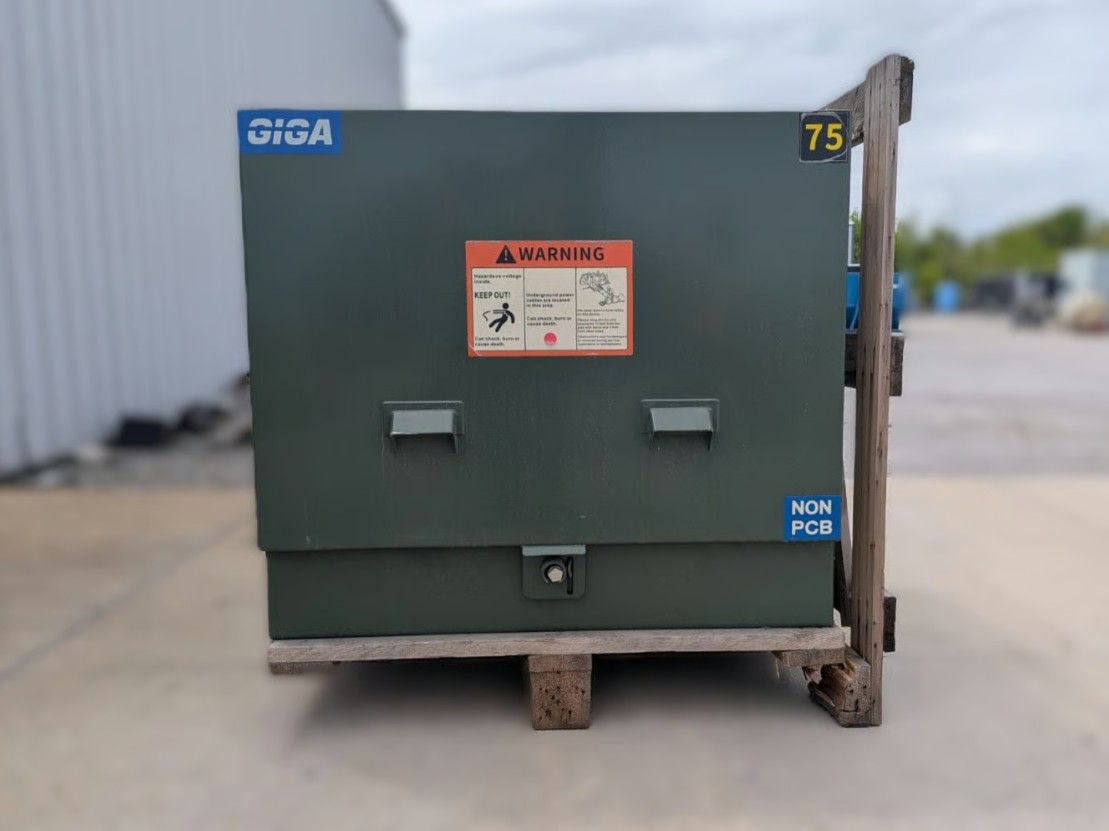

75 KVA 22860GY/13200 x 12470GY/7200 Primary, 240/120 Secondary, Giga Energy, Clam Shell Dual Voltage Padmount Transformer, 1PH, 2024, (10 available)

FOB: Green Industrial, 281 Commerce St, Belgium, WI 53004

*75 KVA Pad Mount Single-Phase Transformer HV: 22860GY/13200 X 12470GY/7200 LV 240V/120

CONDITION: NEW SURPLUS

Manufacturer: Giga Energy
YEAR: 2024
Serial#: Varies by Transformer
TYPE: Single-Phase Pad Mount Transformer
KVA: 167
Enclosure: Pad Mount Outdoor Rated
Phase: 1
Hertz: 60
Primary Voltage: 22860GY/13200 X 12470GY/7200
Secondary Voltage: 240V/120
Impedance: 2.48%
Degree Temp Rise: 65 Degree C Rise
Winding Material: Copper

Actual Transformer Dimensions:
Width: 36.5"
Length/Depth: 41.5"
Height: 33.5"
WEIGHT: 1554 lbs.

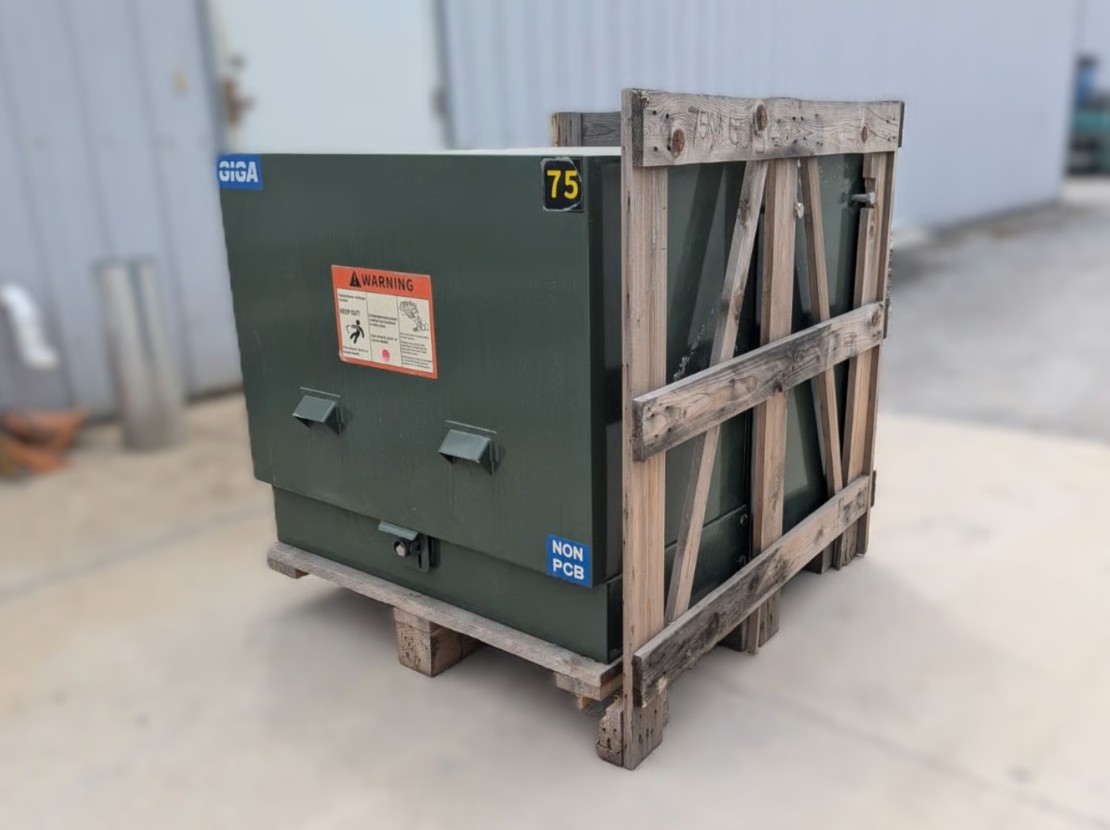

Shipping Dimensions & Weight:
Width: 40"
Length: 43.5"
Height: 42"
WEIGHT: 1854 lbs.

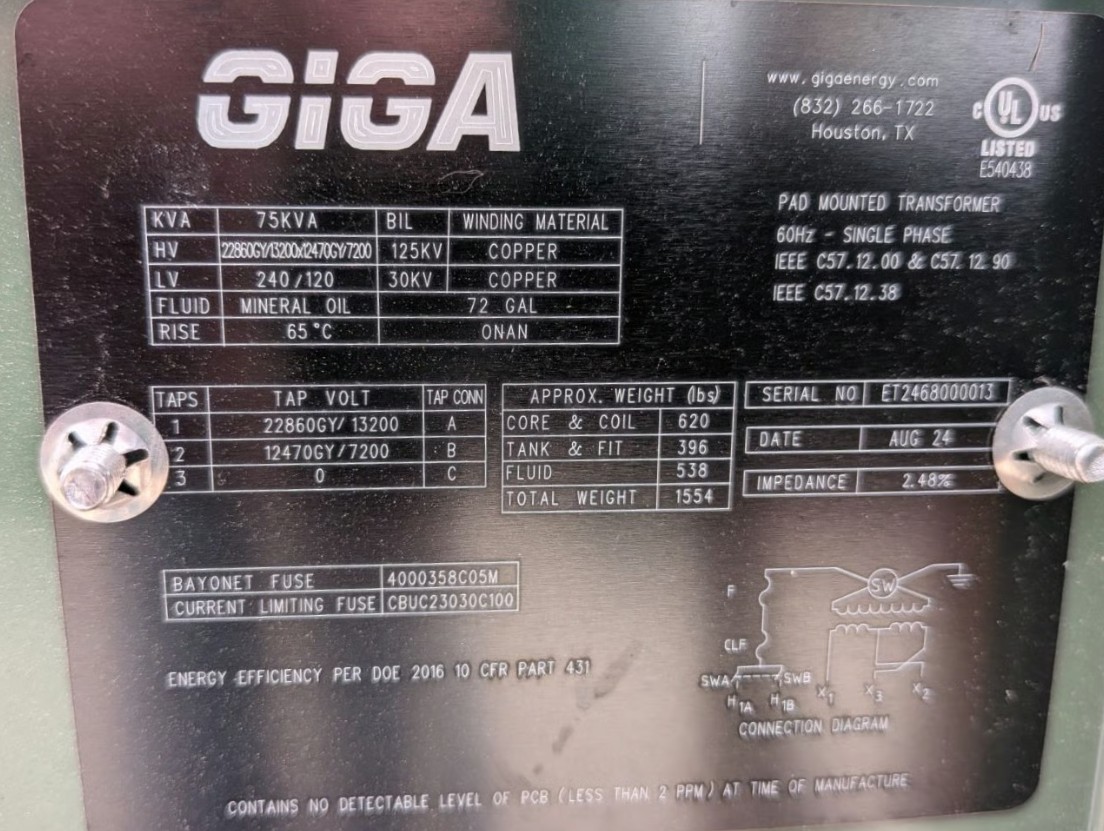

75 KVA, 1PH, 22860GY/13200 X 12470GY/7200 120/240V

-RATED CAPACITY: 1 PHASE

-HIGH VOLTAGE: 22860GY/13200 X 12470GY/7200

-LOW VOLTAGE: 120/240

-BIL: HV 125KV; LV 30KV

-HV TAPS: DUAL VOLTAGE

TAP TAP VOLT

A 22860GY/13200

B 12470GY/7200

C 0

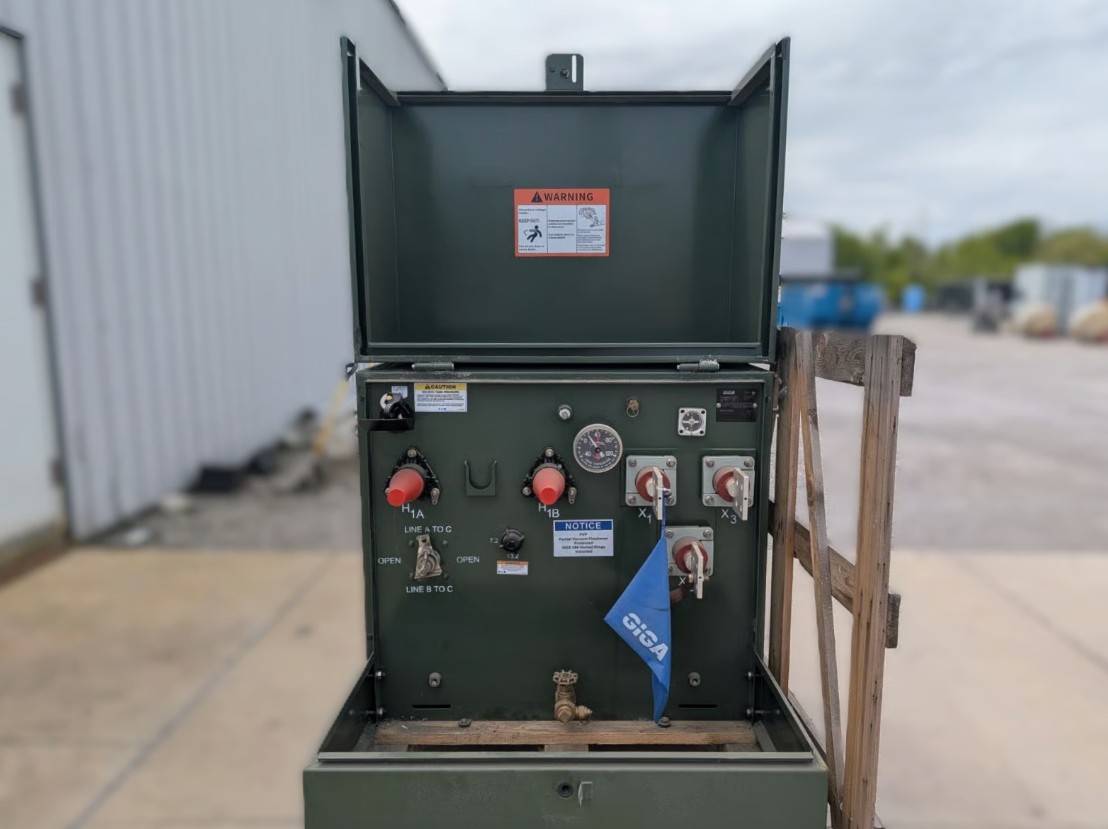

-HV BUSHINGS: (2) 200 A 25 KV LOADBREAK

- DEAD FRONT LOOP FEED

-LV BUSHINGS: (3) 8-HOLE WITH SUPPORTS

-FLUID: MINERAL OIL

-COOLING CLASS: ONAN

-FREQUENCY: 60 HZ

-TEMPERATURE RISE: 65C

-WINDING MATERIAL: COPPER

-TANK MATERIAL: MILD STEEL

-FUSING: BAYONET W/ CLFS

-SWITCH: (1) 4-POS. T

-BLADE LBOR

-LIQUID LEVEL GAUGE

-PRESSURE VACUUM GAUGE

-DIAL TYPE THERMOMETER

-DRAIN AND SAMPLE VALVE

-cUL LISTED

-IEEE C57.12.00 C57.12.90 C57.12.38

-LIQUID LEVEL INDICATION, C

-LIFTING LUGS OR THREADED BOLT HOLES POSITIONED FOR AND CAPABLE OF LIFTING THE ENTIRE PAD MOUNT UNIT
